GZG50R-AEPGKW (1998)
Toyota Century
Production
Oct 1998
-
Jan 2017
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9810- )

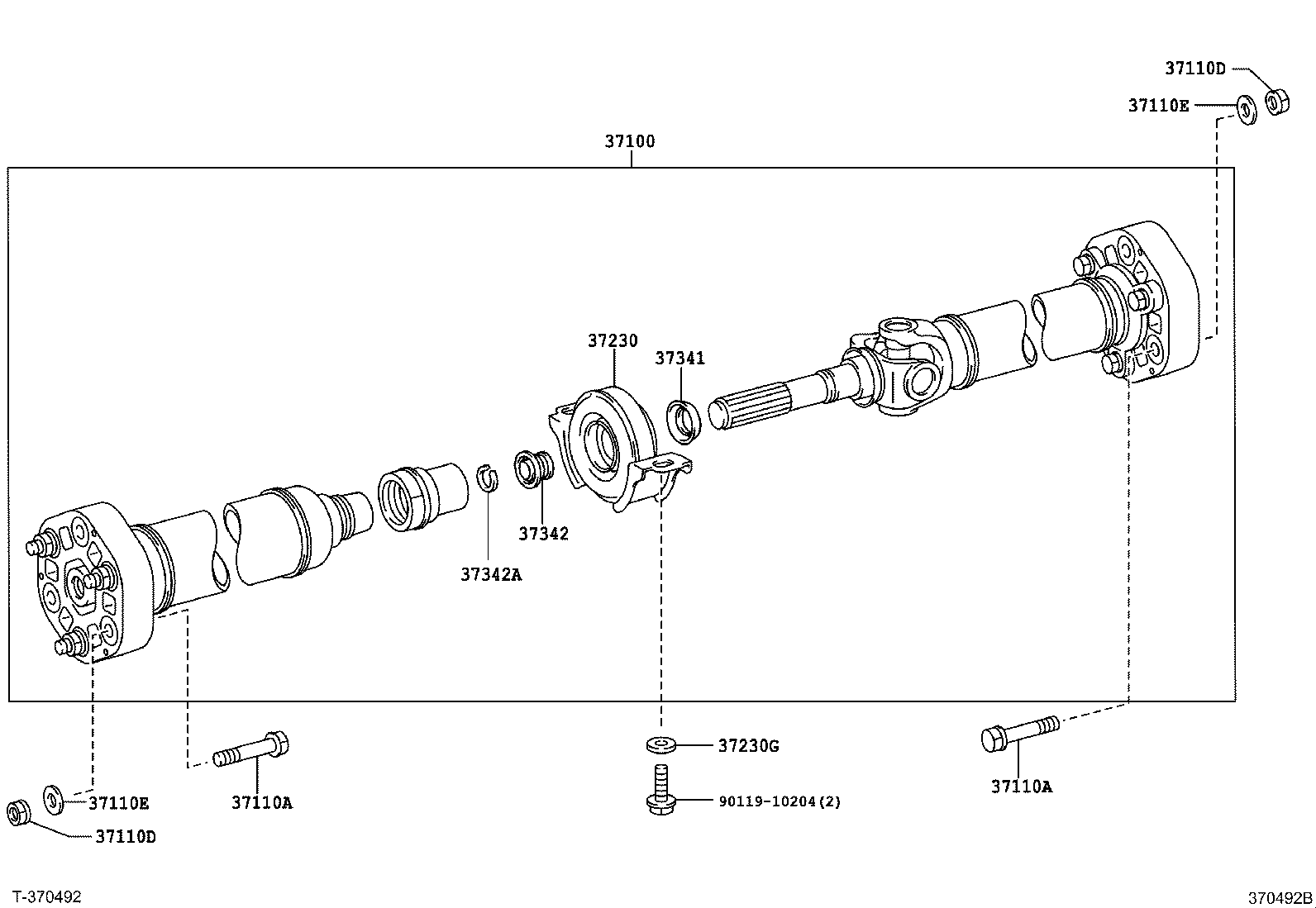

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-40130 |
GZG50 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-12265 |
GZG50 *12X1.25PX59.5-20 |
3 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-12265 |
GZG50 *12X1.25PX59.5-20 |
3 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-12128 |
GZG50 |
3 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-12128 |
GZG50 |
3 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90560-12059 |
GZG50 |
3 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90560-12059 |
GZG50 |
3 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-50030 |
GZG50 |
1 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90560-10099 |
GZG50 T=4.0 |
2 | ||
| 90201-10040 |
GZG50 T=3.6 |
2 | ||
| 90201-10008 |
GZG50 T=4.5 |
2 | ||
| 90560-10097 |
GZG50 T=2.5 |
2 | ||
| 90560-10095 |
GZG50 T=1.0 |
2 | ||
| 90201-10106 |
GZG50 T=2.0 |
2 | ||
| 90560-10098 |
GZG50 T=3.0 |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-22010 |
GZG50 |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-50010 |
GZG50 |
1 | ||
| 37342A - RING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2) | ||||
| 90520-28009 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-10204 | ||||
