GZG50L-AEPGKW (1998)
Toyota Century

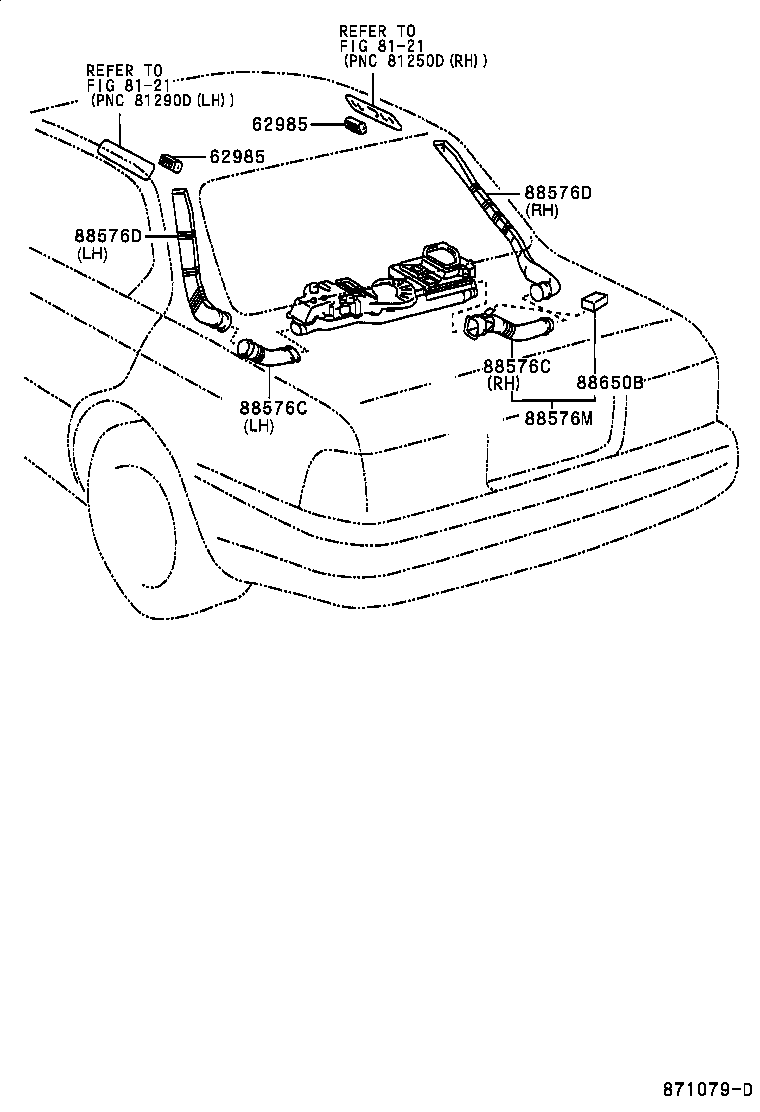

ILLUST NO. 3 OF 3(9810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-40010 |
GZG50 |
2 | ||
| 62985 - REGISTER, ROOF SIDE AIR OUTLET | ||||
| 62985-40010 |
GZG50 |
2 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-50070 |
GZG50 LH |
1 | ||
| 88576-40070 |
GZG50 RH |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-50070 |
GZG50 LH |
1 | ||
| 88576-40070 |
GZG50 RH |
1 | ||
| 88576D - DUCT, COOLER AIR, NO.2 | ||||
| 88576-40090 |
GZG50 LH |
1 | ||
| 88576-40080 |
GZG50 RH |
1 | ||
| 88576D - DUCT, COOLER AIR, NO.2 | ||||
| 88576-40090 |
GZG50 LH |
1 | ||
| 88576-40080 |
GZG50 RH |
1 | ||
| 88576M - DUCT, COOLER AIR, NO.2 | ||||
| 88576-40100 |
GZG50 |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-40171 |
GZG50 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||

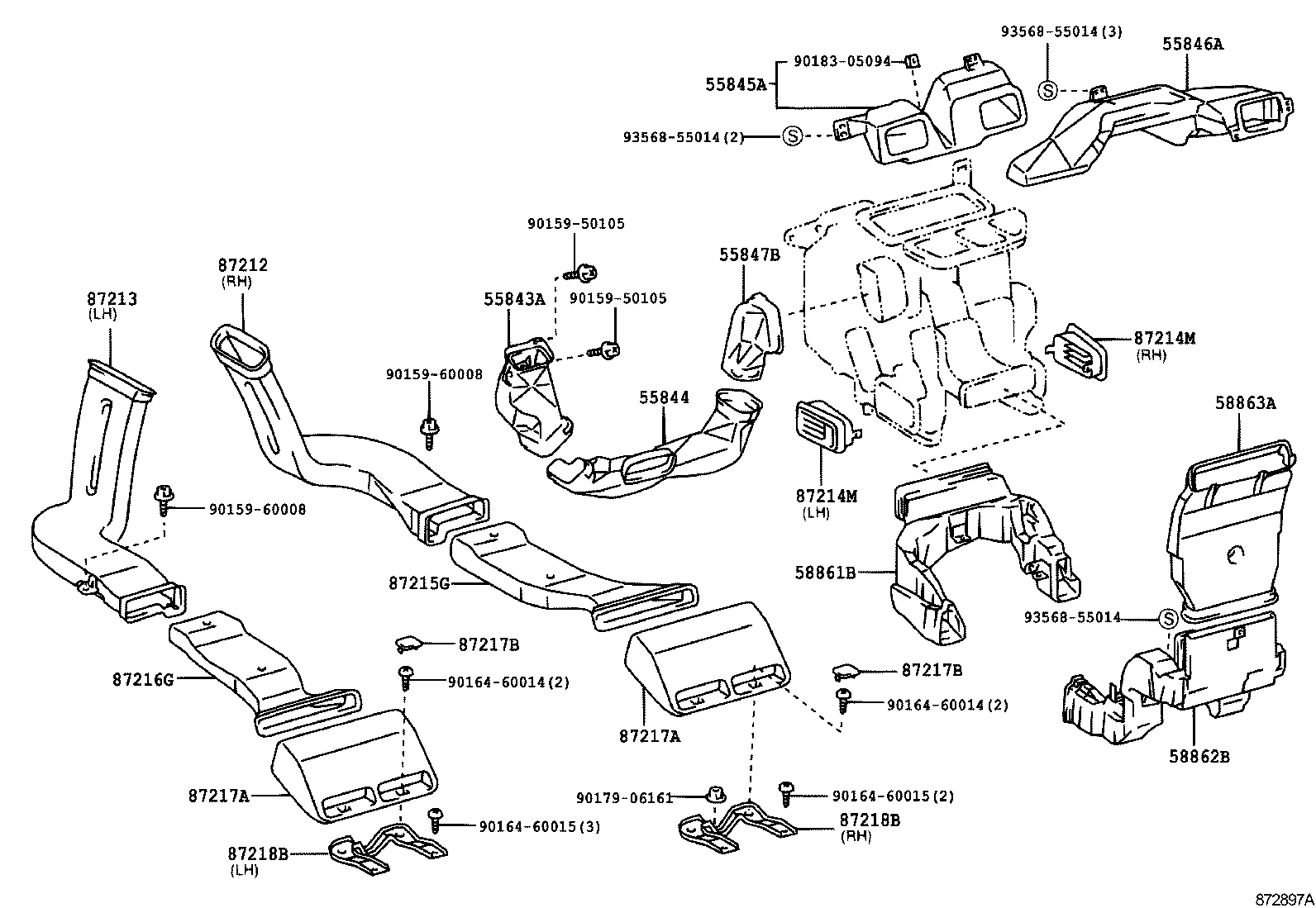

ILLUST NO. 1 OF 3(9810- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-40020 |
GZG50..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-40020 |
GZG50..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-40020 |
GZG50..LHD |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-40020 |
GZG50..LHD |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-40020 |
GZG50..LHD |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-40020 |
GZG50 |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-40020 |
GZG50 |
1 | ||
| 58863A - DUCT, CONSOLE BOX, NO.3 | ||||
| 58863-40010 |
GZG50 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-40100 |
GZG50 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-40040 |
GZG50 |
1 | ||
| 87214M - DUCT, HEATER TO FOOT, NO.3 | ||||
| 87214-40050B0 |
GZG50..LHD MD.GRAY,TRIM1#,RH |
1 | ||
| 87214-40050E0 |
GZG50..LHD ORCHID,TRIM4#,RH |
1 | ||
| 87214-40060B0 |
GZG50..LHD MD.GRAY,TRIM1#,LH |
1 | ||
| 87214-40060E0 |
GZG50..LHD ORCHID,TRIM4#,LH |
1 | ||
| 87214M - DUCT, HEATER TO FOOT, NO.3 | ||||
| 87214-40050B0 |
GZG50..LHD MD.GRAY,TRIM1#,RH |
1 | ||
| 87214-40050E0 |
GZG50..LHD ORCHID,TRIM4#,RH |
1 | ||
| 87214-40060B0 |
GZG50..LHD MD.GRAY,TRIM1#,LH |
1 | ||
| 87214-40060E0 |
GZG50..LHD ORCHID,TRIM4#,LH |
1 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-40050 |
GZG50 |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-40060 |
GZG50 |
1 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-50040E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 87217-50040B1 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-50040E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 87217-50040B1 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693E2 |
GZG50 ORCHID,TRIM4# |
4 | ||
| 90950-01693B3 |
GZG50 MD.GRAY,TRIM1# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693E2 |
GZG50 ORCHID,TRIM4# |
4 | ||
| 90950-01693B3 |
GZG50 MD.GRAY,TRIM1# |
4 | ||
| 87218B - BRACKET | ||||
| 87218-40010 |
GZG50 RH |
1 | ||
| 87219-40020 |
GZG50 LH |
1 | ||
| 87218B - BRACKET | ||||
| 87218-40010 |
GZG50 RH |
1 | ||
| 87219-40020 |
GZG50 LH |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90159-60008 | ||||
| 90164-60014 | ||||
| 90164-60015 | ||||
| 90179-06161 | ||||
| 90183-05094 | ||||
| 93568-55014 | ||||

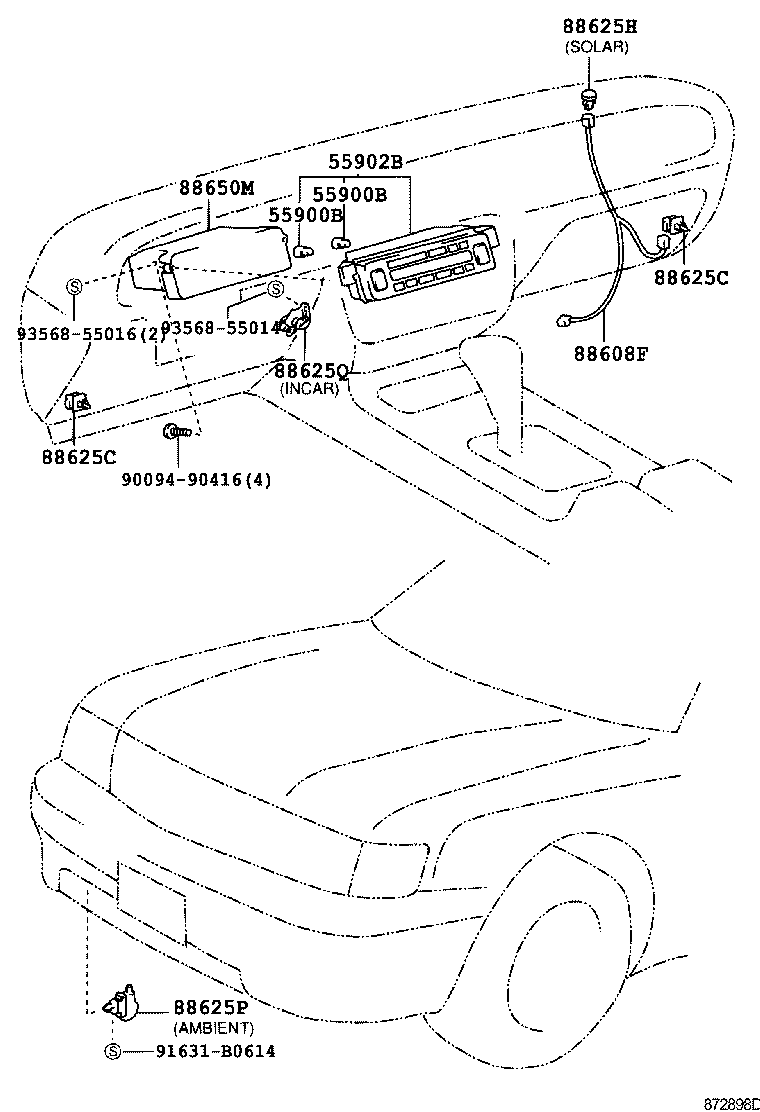

ILLUST NO. 2 OF 3(9810- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-03008 |
GZG50 12V 1.2W,LCD |
3 | ||
| 90010-03007 |
GZG50 12V 1.2W,KNOB |
4 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-03008 |
GZG50 12V 1.2W,LCD |
3 | ||
| 90010-03007 |
GZG50 12V 1.2W,KNOB |
4 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-40050 |
GZG50..LHD |
1 | ||
| 88608F - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-40100 |
GZG50 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-50130 |
GZG50 |
2 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-50130 |
GZG50 |
2 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-32160 |
GZG50 |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-40061 |
GZG50 |
1 | ||
| 88790-40060 |
GZG50 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-50120 |
GZG50 |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-40210 |
GZG50..LHD CHINA SPEC |
1 | ||
| 88650-40200 |
GZG50..LHD |
1 | ||
| 88650-40211 |
GZG50..LHD CHINA SPEC |
1 | ||
| 88650-40212 |
GZG50..LHD CHINA SPEC |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 91631-B0614 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
