GZG50L-AEPGKW (1998)
Toyota Century
Production
Oct 1998
-
Jan 2017
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

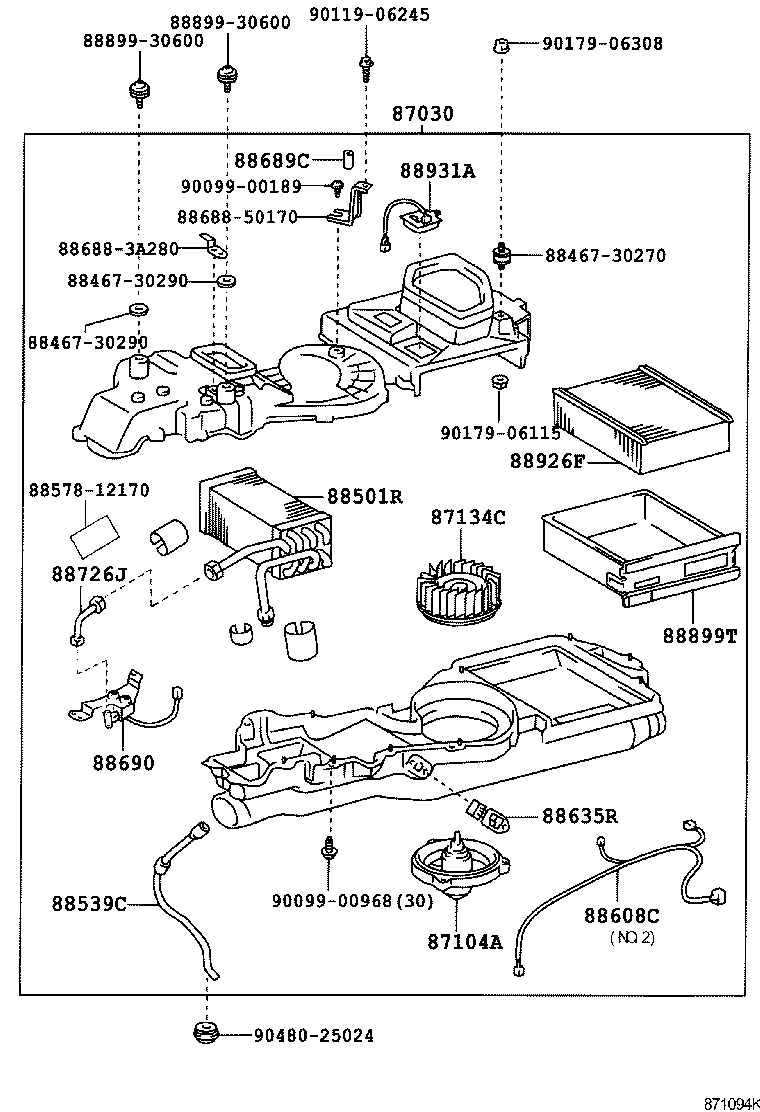

ILLUST NO. 2 OF 3(9810- )
Click highlighted areas on diagram
REAR COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-40010 |
GZG50 |
1 | ||
| 87030-40011 |
GZG50 |
1 | ||
| 87104A - MOTOR SUB-ASSY, BLOWER | ||||
| 87104-50050 |
GZG50 |
1 | ||
| 87134C - FAN, BLOWER(FOR COOLING UNIT) | ||||
| 87134-50030 |
GZG50 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-40120 |
GZG50 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-50050 |
GZG50 |
1 | ||
| 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-40110 |
GZG50 NO.2 |
1 | ||
| 88608-50230 |
GZG50 NO.1 |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 88635-40060 |
GZG50 |
1 | ||
| 88689C - HOSE, VACUUM | ||||
| 88689-50010 |
GZG50 |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-40140 |
GZG50 |
1 | ||
| 88726J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-40740 |
GZG50 |
1 | ||
| 88899T - FRAME, REAR COOLER | ||||
| 88899-30780 |
GZG50 |
1 | ||
| 88926F - FILTER, REAR COOLER | ||||
| 88926-3A520 |
GZG50 |
1 | ||
| 88931A - SENSOR, SMOKE | ||||
| 88931-30050 |
GZG50 |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88467-30290 | ||||
| 88578-12170 | ||||
| 88688-3A280 | ||||
| 88688-50170 | ||||
| 88899-30600 | ||||
| 90099-00189 | ||||
| 90099-00968 | ||||
| 90119-06245 | ||||
| 90179-06115 | ||||
| 90179-06308 | ||||
| 90480-25024 | ||||

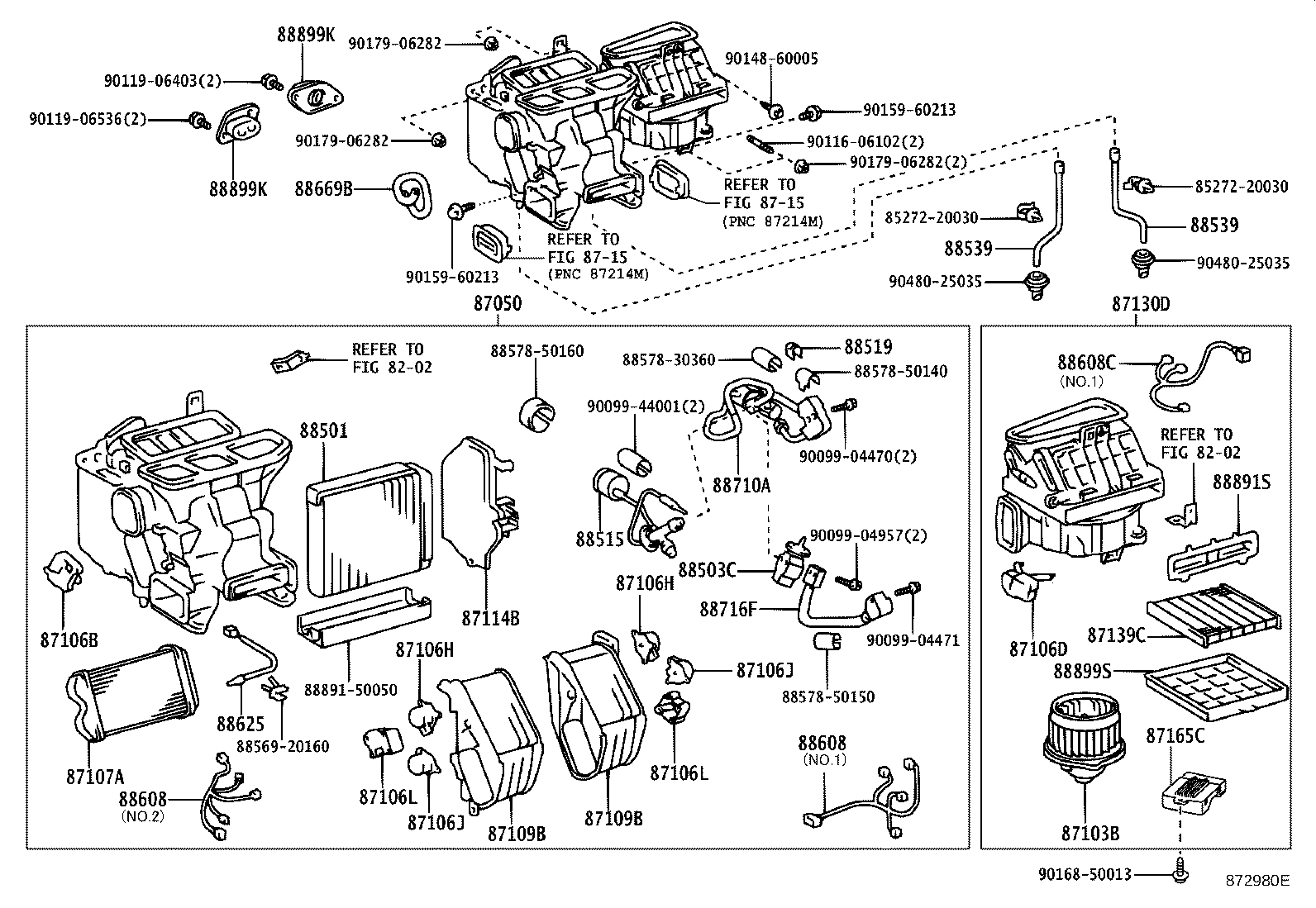

ILLUST NO. 1 OF 3(9810- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-40020 |
GZG50..LHD |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-40020 |
GZG50..LHD |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-50220 |
GZG50 |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-50240 |
GZG50..LHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-50160 |
GZG50 |
2 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-50160 |
GZG50 |
2 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50170 |
GZG50 |
2 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-50170 |
GZG50 |
2 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-50190 |
GZG50..LHD PASSENER SIDE |
1 | ||
| 87106-50180 |
GZG50..LHD DRIVER SIDE |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-50190 |
GZG50..LHD PASSENER SIDE |
1 | ||
| 87106-50180 |
GZG50..LHD DRIVER SIDE |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-40080 |
GZG50 |
1 | ||
| 87109B - FILM SUB-ASSY, AIR CONDITIONER | ||||
| 87109-40040 |
GZG50..LHD PASSENGER SIDE |
1 | ||
| 87109-40030 |
GZG50..LHD DRIVER SIDE |
1 | ||
| 87109B - FILM SUB-ASSY, AIR CONDITIONER | ||||
| 87109-40040 |
GZG50..LHD PASSENGER SIDE |
1 | ||
| 87109-40030 |
GZG50..LHD DRIVER SIDE |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-50010 |
GZG50..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-40040 |
GZG50..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50010 |
GZG50 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-22040 |
GZG50 |
1 | ||
| 87165-22050 |
GZG50 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-50130 |
GZG50..LHD |
1 | ||
| 88503C - REGULATOR SUB-ASSY, PRESSURE | ||||
| 88503-50170 |
GZG50 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-40100 |
GZG50..LHD |
1 | ||
| 88519 - HOLDER, REMOTE BULB | ||||
| 88519-22030 |
GZG50 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-40010 |
GZG50 |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-40010 |
GZG50 |
2 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-50150 |
GZG50..LHD NO.1 |
1 | ||
| 88608-50220 |
GZG50..LHD NO.2 |
1 | ||
| 88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88608-50150 |
GZG50..LHD NO.1 |
1 | ||
| 88608-50220 |
GZG50..LHD NO.2 |
1 | ||
| 88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-40110 |
GZG50 NO.2 |
1 | ||
| 88608-50230 |
GZG50 NO.1 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-50140 |
GZG50 |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-40020 |
GZG50..LHD |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-40290 |
GZG50..LHD |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-40750 |
GZG50..LHD |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50030 |
GZG50 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-50020 |
GZG50 COOLER |
1 | ||
| 88899-50030 |
GZG50..LHD HEATER |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-50020 |
GZG50 COOLER |
1 | ||
| 88899-50030 |
GZG50..LHD HEATER |
1 | ||
| 88899S - FRAME, FRONT COOLER | ||||
| 88899-50050 |
GZG50 |
1 | ||
| Common parts | ||||
| 85272-20030 | ||||
| 88569-20160 | ||||
| 88578-30360 | ||||
| 88578-50140 | ||||
| 88578-50150 | ||||
| 88578-50160 | ||||
| 88891-50050 | ||||
| 90099-04470 | ||||
| 90099-04471 | ||||
| 90099-04957 | ||||
| 90099-44001 | ||||
| 90116-06102 | ||||
| 90119-06403 | ||||
| 90119-06536 | ||||
| 90148-60005 | ||||
| 90159-60213 | ||||
| 90168-50013 | ||||
| 90179-06282 | ||||
| 90480-25035 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8715 | ||||
ILLUST NO. 3 OF 3(9810- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
