GZG50L-AEPGKW (1998)
Toyota Century

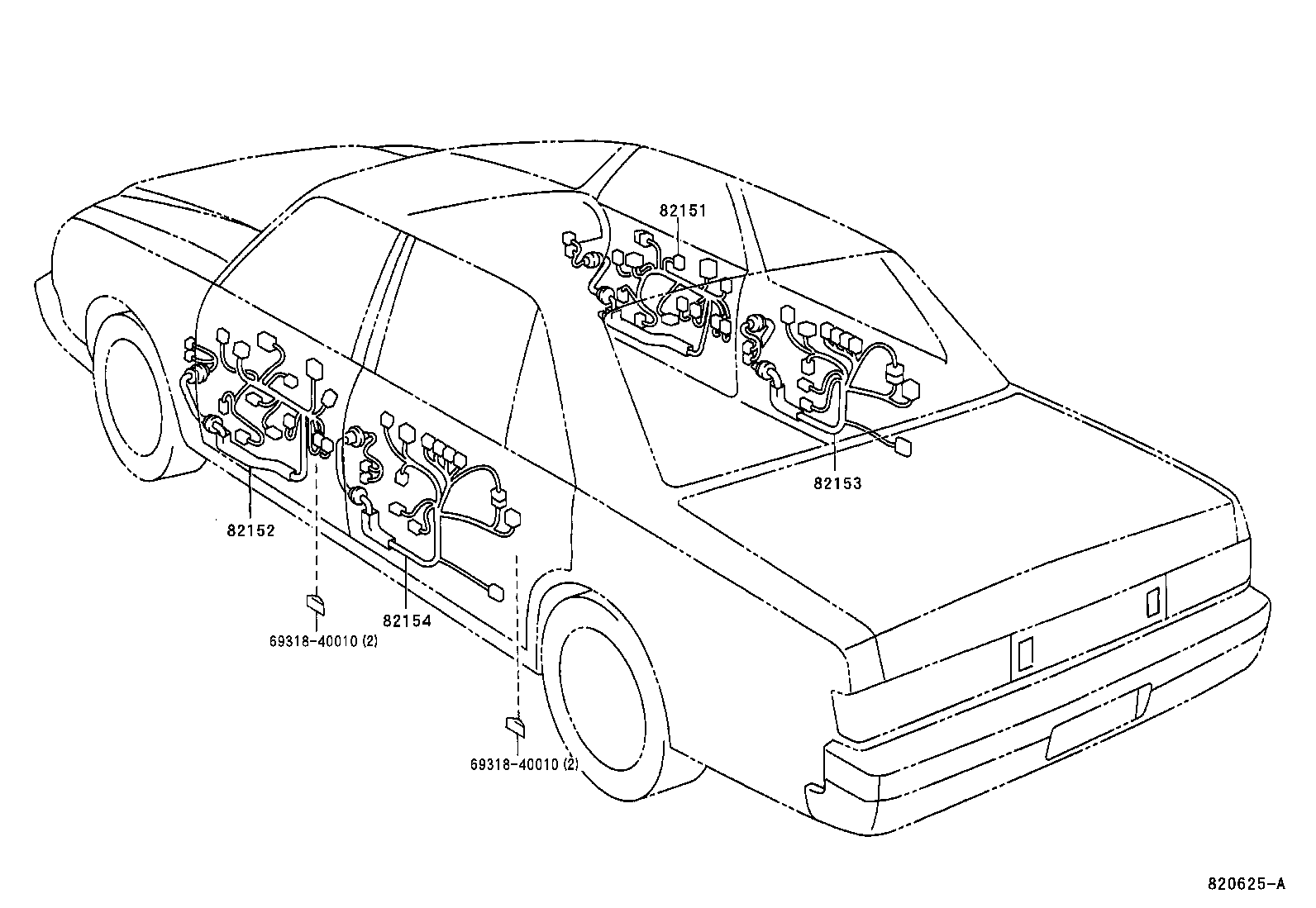

ILLUST NO. 4 OF 8(9810- )
DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-40111 |
GZG50..LHD |
1 | ||
| 82151-40110 |
GZG50..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-40110 |
GZG50..LHD |
1 | ||
| 82152-40111 |
GZG50..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-40111 |
GZG50 |
1 | ||
| 82153-40110 |
GZG50 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-40110 |
GZG50 |
1 | ||
| 82154-40111 |
GZG50 |
1 | ||
| Common parts | ||||
| 69318-40010 | ||||

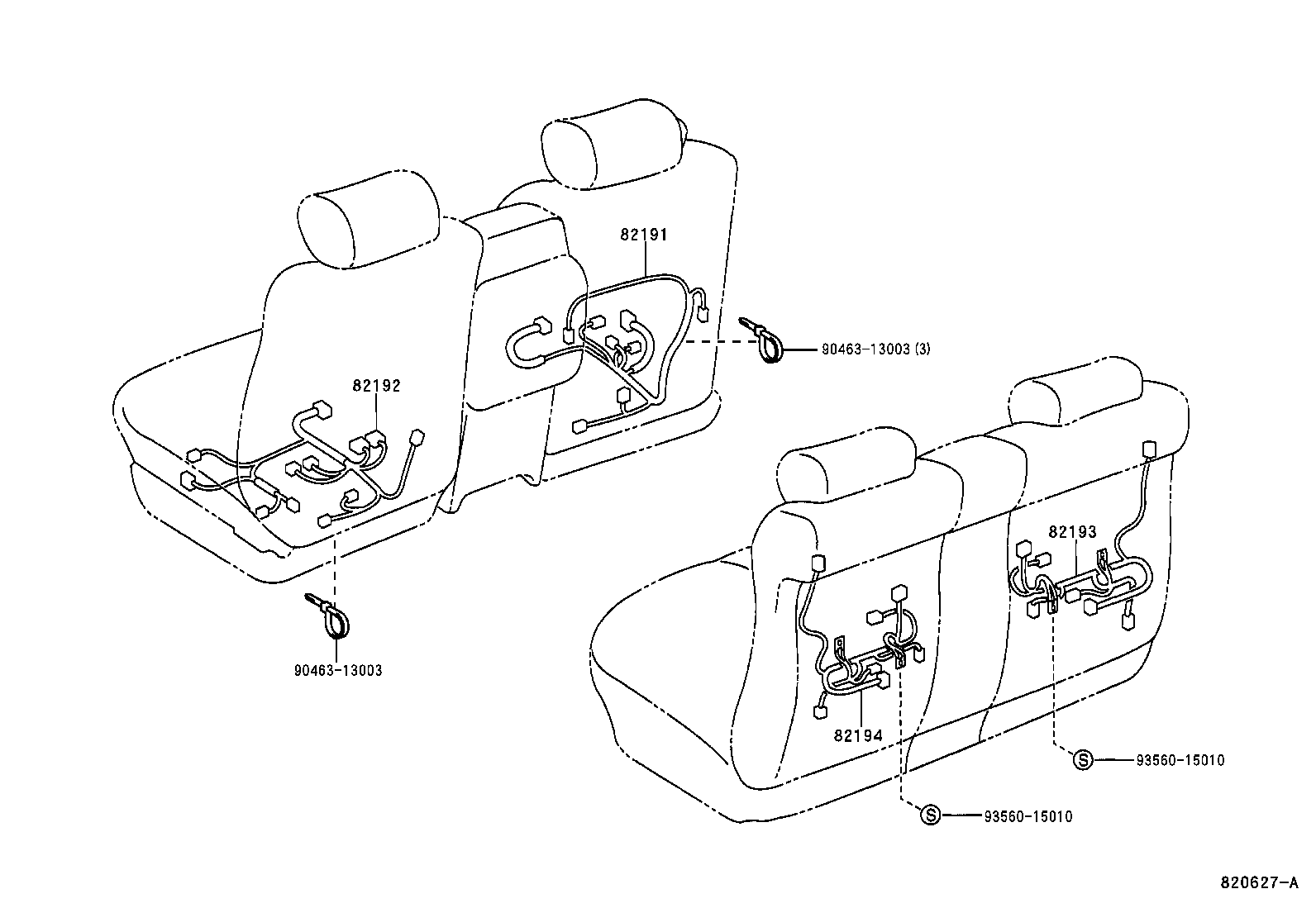

ILLUST NO. 6 OF 8(9810- )
SEAT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-40070 |
GZG50..LHD |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-40130 |
GZG50..LHD |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-40120 |
GZG50 |
1 | ||
| 82193-40110 |
GZG50 |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-40140 |
GZG50 |
1 | ||
| 82194-40150 |
GZG50 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 93560-15010 | ||||

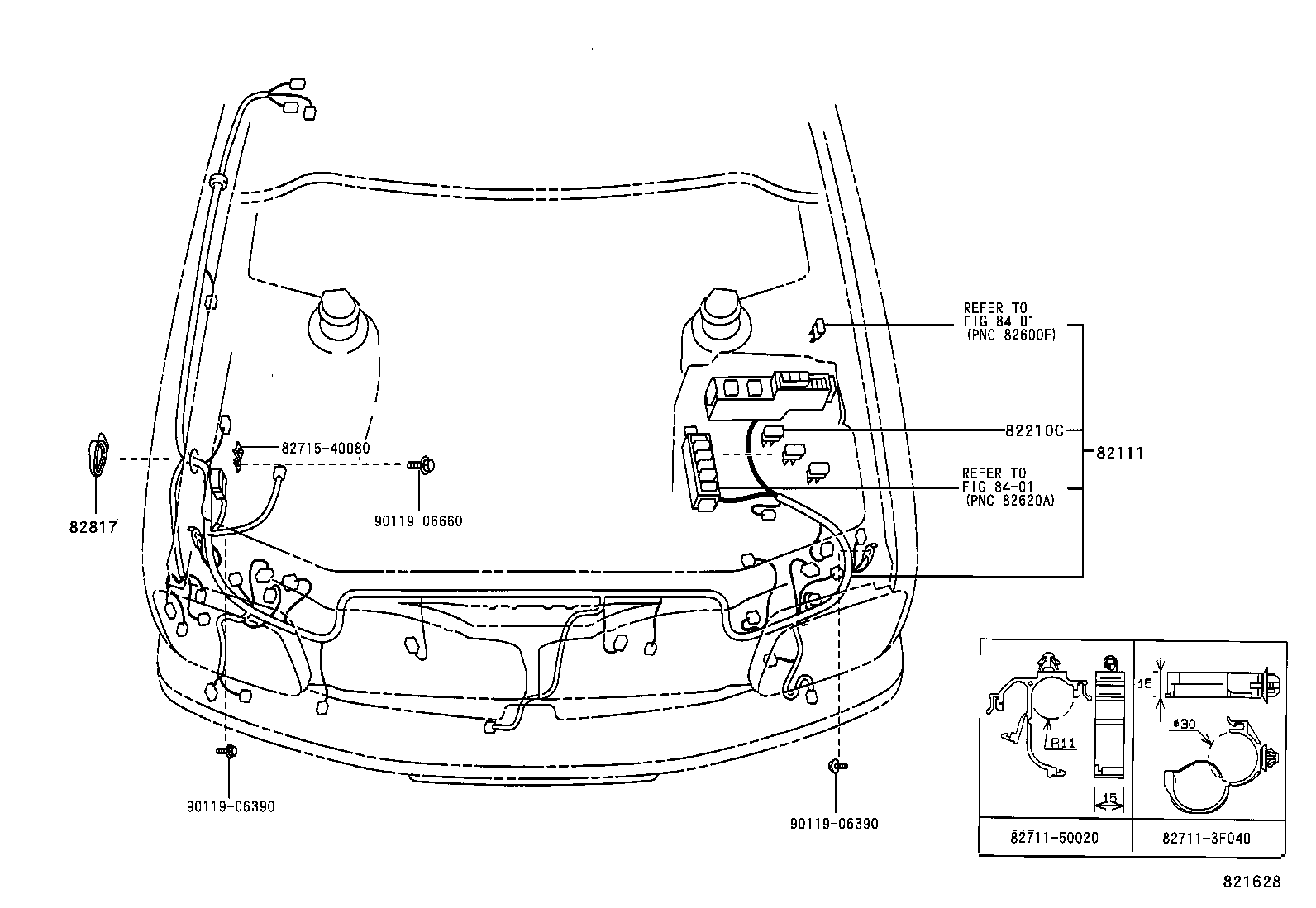

ILLUST NO. 1 OF 8(9810- )LHD
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-40170 |
GZG50..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
GZG50 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
GZG50 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08203 |
GZG50..LHD 80A,TERM.:MALE,BLK |
2 | ||
| 90982-08286 |
GZG50 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08257 |
GZG50..LHD 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08223 |
GZG50 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08280 |
GZG50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-5A790 |
GZG50 |
1 | ||
| Common parts | ||||
| 82711-3F040 | ||||
| 82711-50020 | ||||
| 82715-40080 | ||||
| 90119-06390 | ||||
| 90119-06660 | ||||
| Linked diagrams | ||||
| 8401 | ||||

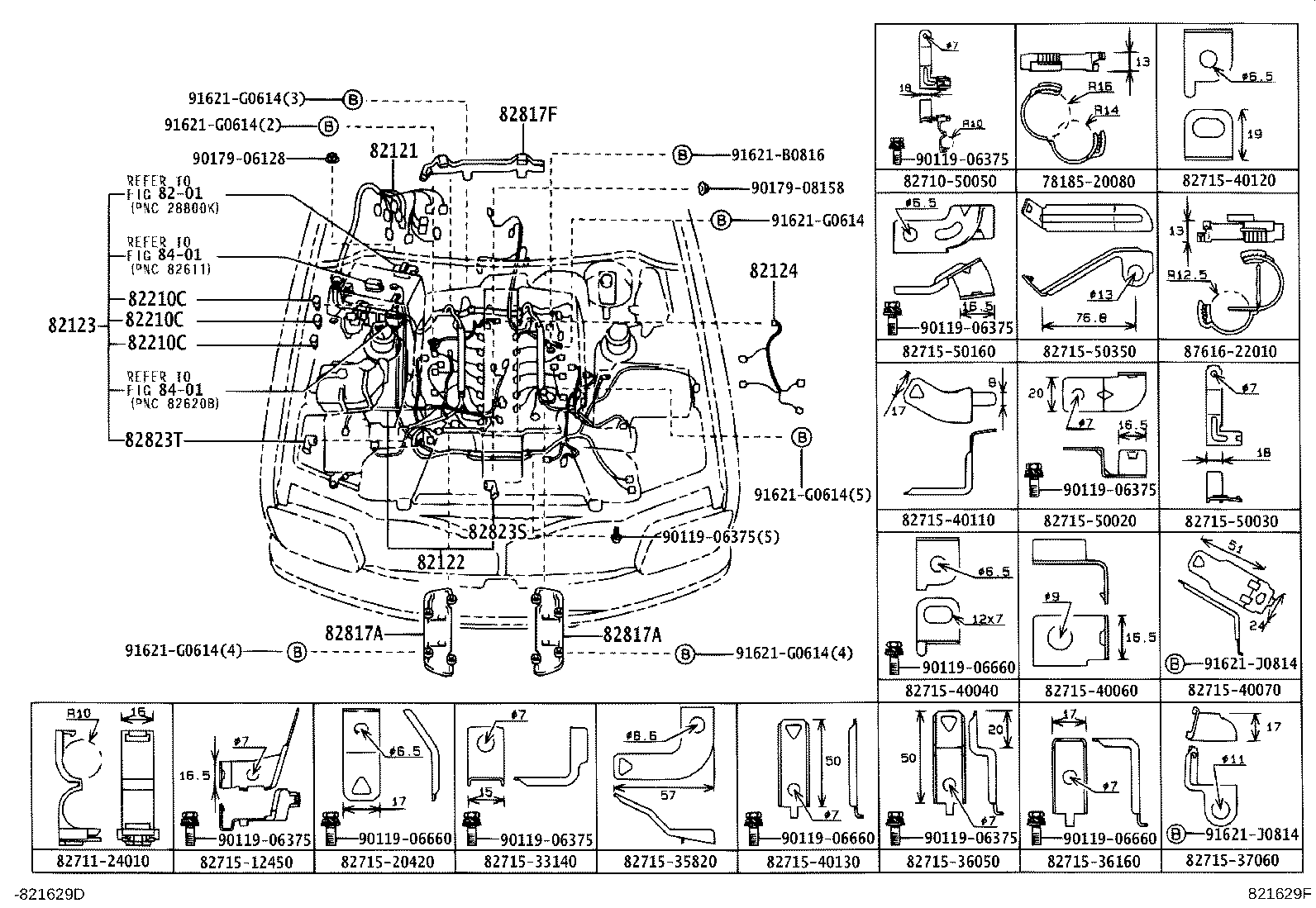

ILLUST NO. 2 OF 8(9810- )LHD
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-40070 |
GZG50..LHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-40030 |
GZG50..LHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-40040 |
GZG50..LHD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-40010 |
GZG50 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
GZG50 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
GZG50 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08203 |
GZG50..LHD 80A,TERM.:MALE,BLK |
2 | ||
| 90982-08286 |
GZG50 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08257 |
GZG50..LHD 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08223 |
GZG50 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08280 |
GZG50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
GZG50 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
GZG50 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08203 |
GZG50..LHD 80A,TERM.:MALE,BLK |
2 | ||
| 90982-08286 |
GZG50 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08257 |
GZG50..LHD 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08223 |
GZG50 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08280 |
GZG50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
GZG50 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
GZG50 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08203 |
GZG50..LHD 80A,TERM.:MALE,BLK |
2 | ||
| 90982-08286 |
GZG50 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08257 |
GZG50..LHD 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08223 |
GZG50 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08280 |
GZG50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-40110 |
GZG50 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-40110 |
GZG50 |
2 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-40340 |
GZG50..LHD |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
GZG50 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22070 |
GZG50 |
1 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 82710-50050 | ||||
| 82711-24010 | ||||
| 82715-12450 | ||||
| 82715-20420 | ||||
| 82715-33140 | ||||
| 82715-35820 | ||||
| 82715-36050 | ||||
| 82715-36160 | ||||
| 82715-37060 | ||||
| 82715-40040 | ||||
| 82715-40060 | ||||
| 82715-40070 | ||||
| 82715-40110 | ||||
| 82715-40120 | ||||
| 82715-40130 | ||||
| 82715-50020 | ||||
| 82715-50030 | ||||
| 82715-50160 | ||||
| 82715-50350 | ||||
| 87616-22010 | ||||
| 90119-06375 | ||||
| 90119-06660 | ||||
| 90179-06128 | ||||
| 90179-08158 | ||||
| 91621-B0816 | ||||
| 91621-G0614 | ||||
| 91621-J0814 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||

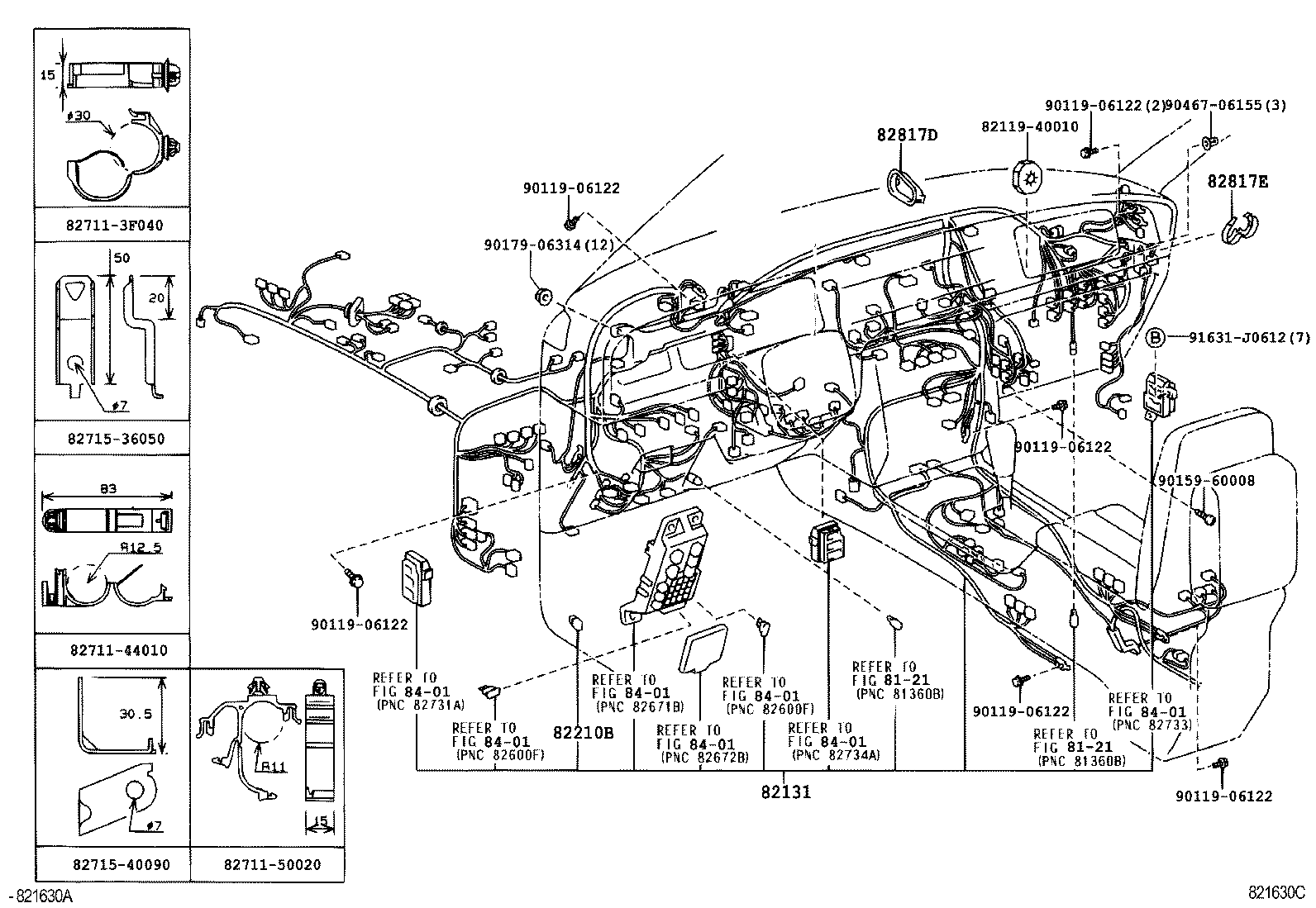

ILLUST NO. 3 OF 8(9810- )LHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-40230 |
GZG50..LHD |
1 | ||
| 82210B - FUSIBLE LINK | ||||
| 90982-08283 |
GZG50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-5A790 |
GZG50 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-50650 |
GZG50 |
1 | ||
| Common parts | ||||
| 82119-40010 | ||||
| 82711-3F040 | ||||
| 82711-44010 | ||||
| 82711-50020 | ||||
| 82715-36050 | ||||
| 82715-40090 | ||||
| 90119-06122 | ||||
| 90159-60008 | ||||
| 90179-06314 | ||||
| 90467-06155 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

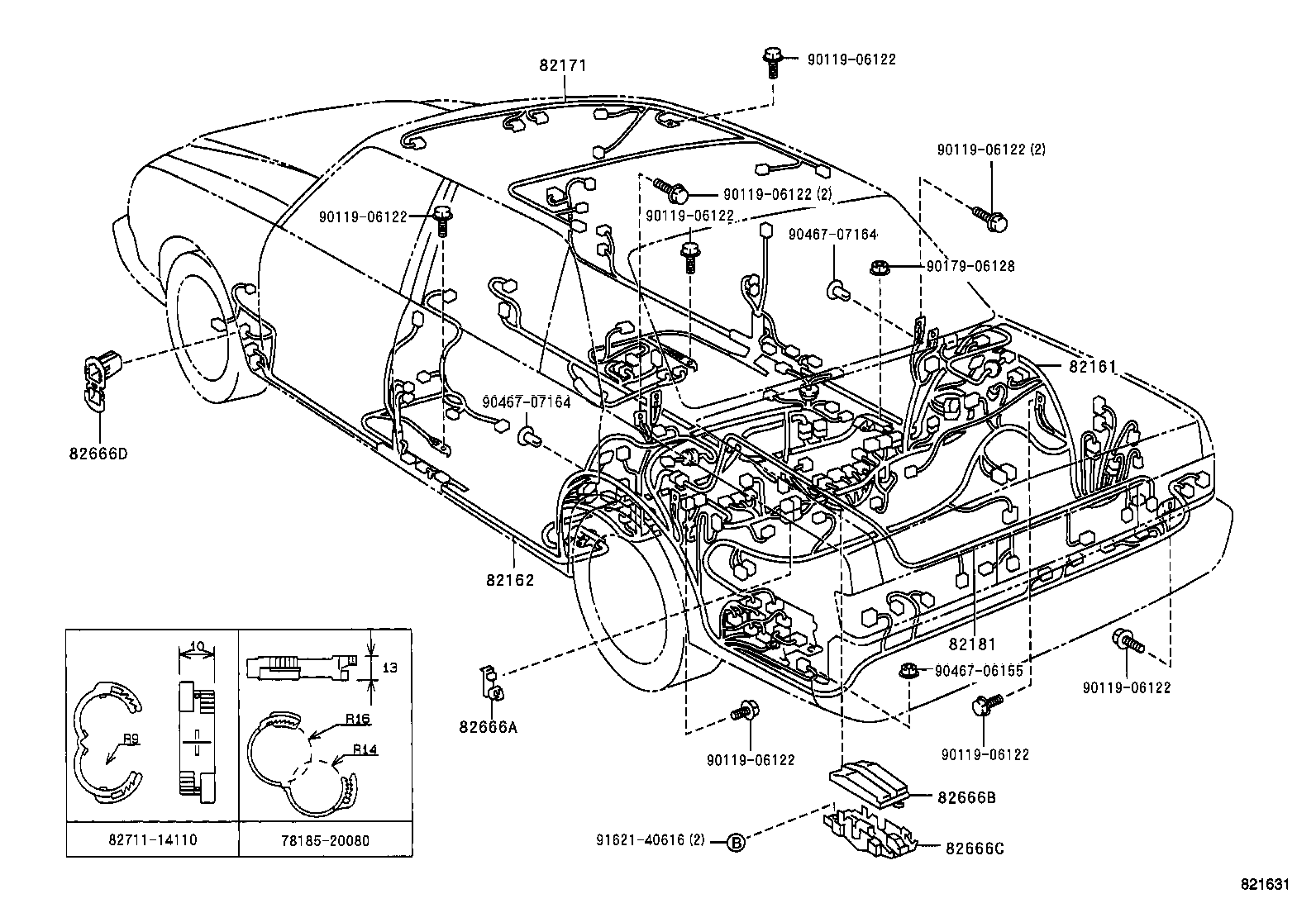

ILLUST NO. 5 OF 8(9810- )
ROOF & FLOOR & LUGGAGE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-40170 |
GZG50..LHD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-40180 |
GZG50..LHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-40090 |
GZG50..LHD |
1 | ||
| 82171-40091 |
GZG50..LHD |
1 | ||
| 82171-40092 |
GZG50..LHD |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-40070 |
GZG50 |
1 | ||
| 82181-40071 |
GZG50 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-22070 |
GZG50 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-40050 |
GZG50 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-40060 |
GZG50 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-40070 |
GZG50..LHD |
1 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 82711-14110 | ||||
| 90119-06122 | ||||
| 90179-06128 | ||||
| 90467-06155 | ||||
| 90467-07164 | ||||
| 91621-40616 | ||||

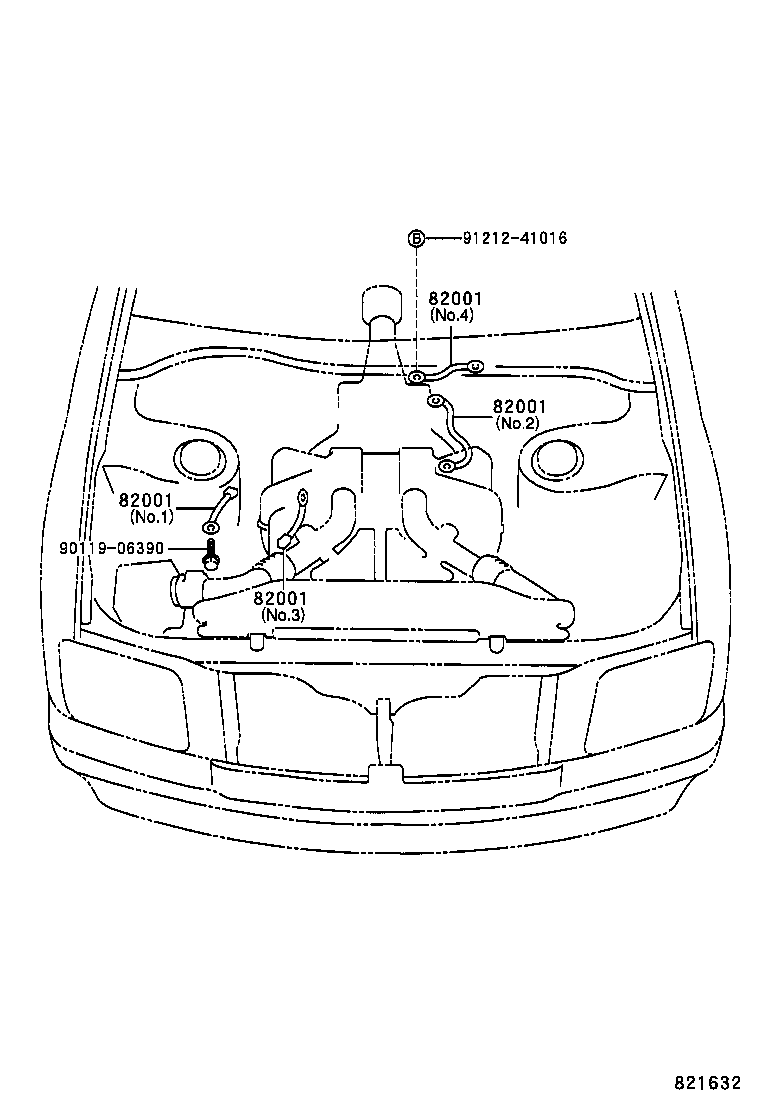

ILLUST NO. 7 OF 8(9810- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07239 |
GZG50 NO.1 |
1 | ||
| 90980-07393 |
GZG50 NO.3 |
1 | ||
| 90980-07354 |
GZG50 NO.2 |
1 | ||
| 90980-07394 |
GZG50 NO.4 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07239 |
GZG50 NO.1 |
1 | ||
| 90980-07393 |
GZG50 NO.3 |
1 | ||
| 90980-07354 |
GZG50 NO.2 |
1 | ||
| 90980-07394 |
GZG50 NO.4 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07239 |
GZG50 NO.1 |
1 | ||
| 90980-07393 |
GZG50 NO.3 |
1 | ||
| 90980-07354 |
GZG50 NO.2 |
1 | ||
| 90980-07394 |
GZG50 NO.4 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07239 |
GZG50 NO.1 |
1 | ||
| 90980-07393 |
GZG50 NO.3 |
1 | ||
| 90980-07354 |
GZG50 NO.2 |
1 | ||
| 90980-07394 |
GZG50 NO.4 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91212-41016 | ||||

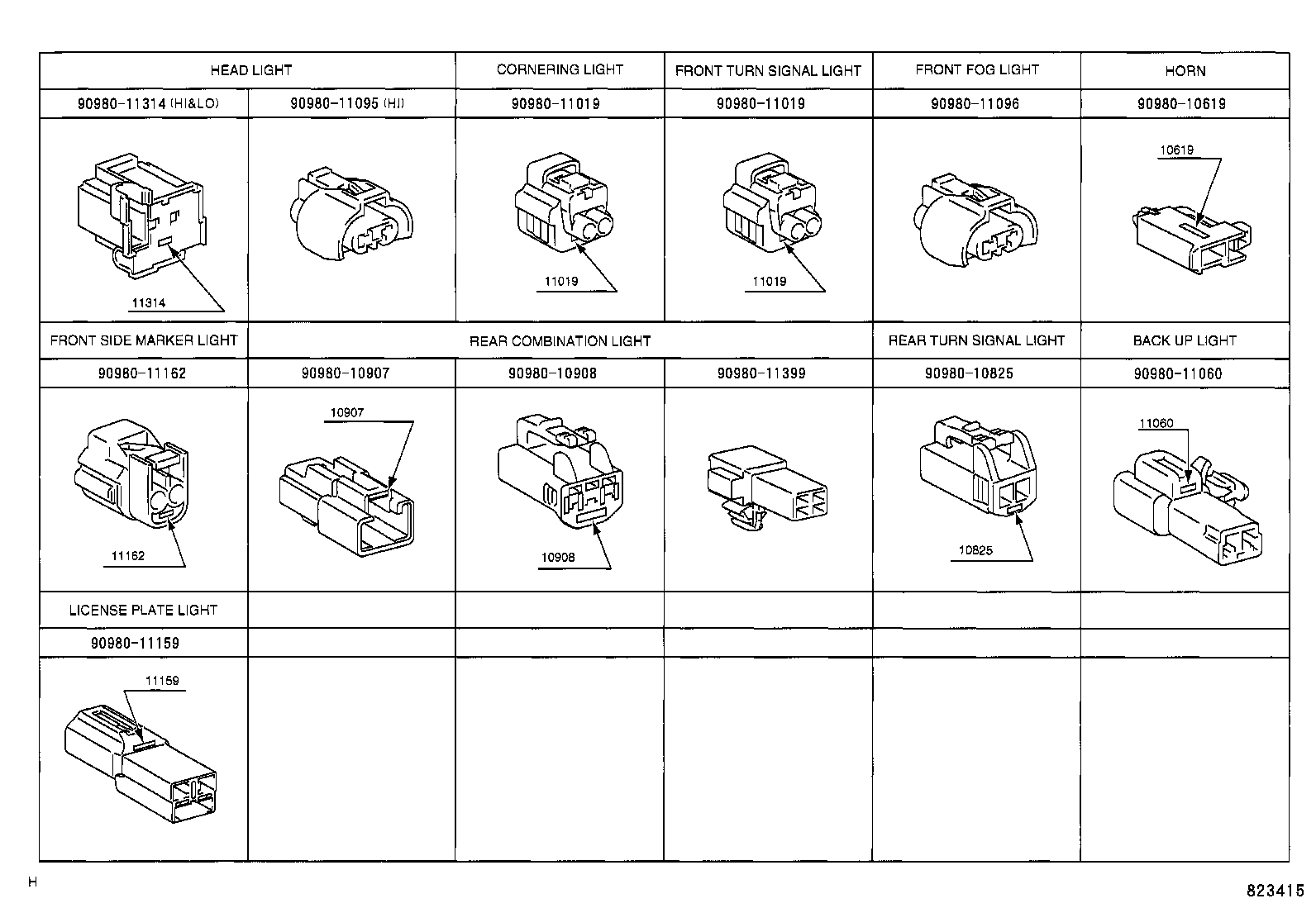

ILLUST NO. 8 OF 8(9810- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10825 | ||||
| 90980-10907 | ||||
| 90980-10908 | ||||
| 90980-11019 | ||||
| 90980-11060 | ||||
| 90980-11095 | ||||
| 90980-11096 | ||||
| 90980-11159 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
| 90980-11399 | ||||
