GZG50L-AEPGKW (1998)
Toyota Century
Production
Oct 1998
-
Jan 2017
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9810- )LHD

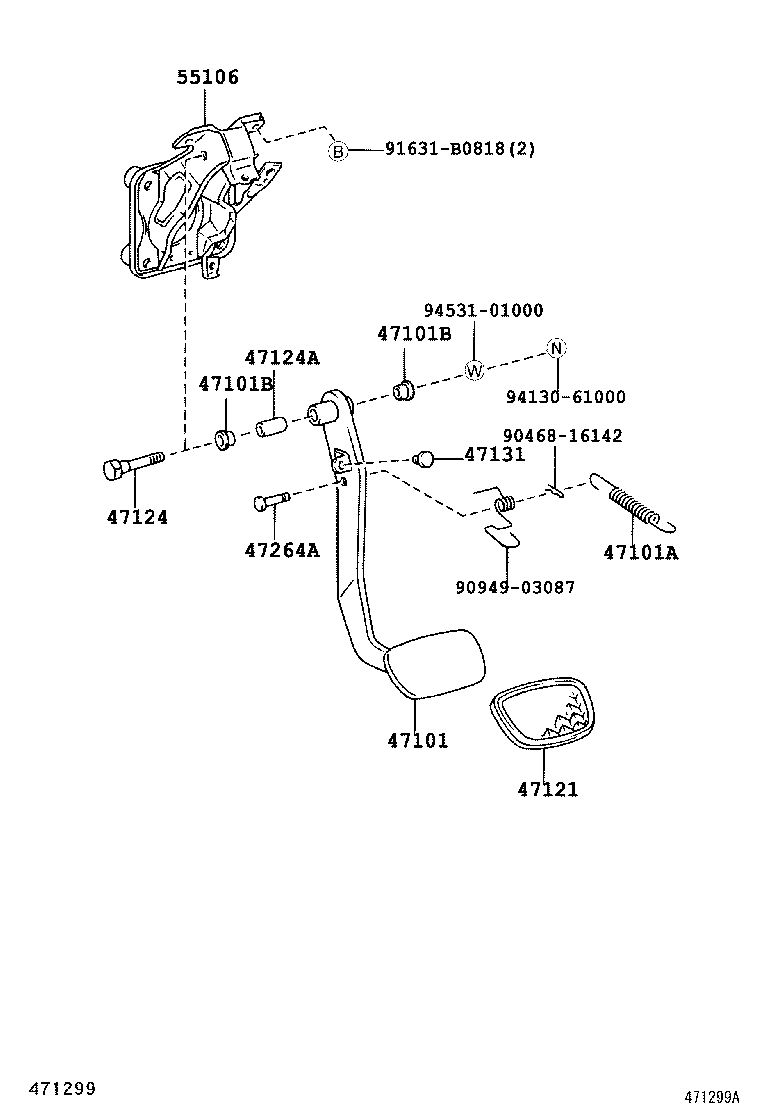

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-40060 |
GZG50..LHD |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14041 |
GZG50..LHD |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
GZG50 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
GZG50 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-50010 |
GZG50 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10039 |
GZG50 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
GZG50 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
GZG50 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-10199 |
GZG50 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-40030 |
GZG50..LHD |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 90949-03087 | ||||
| 91631-B0818 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
