ZZT231L-BLFVFW (2000)

Toyota Celica

Production Aug 2000 - Sep 2005
Engine 2ZZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

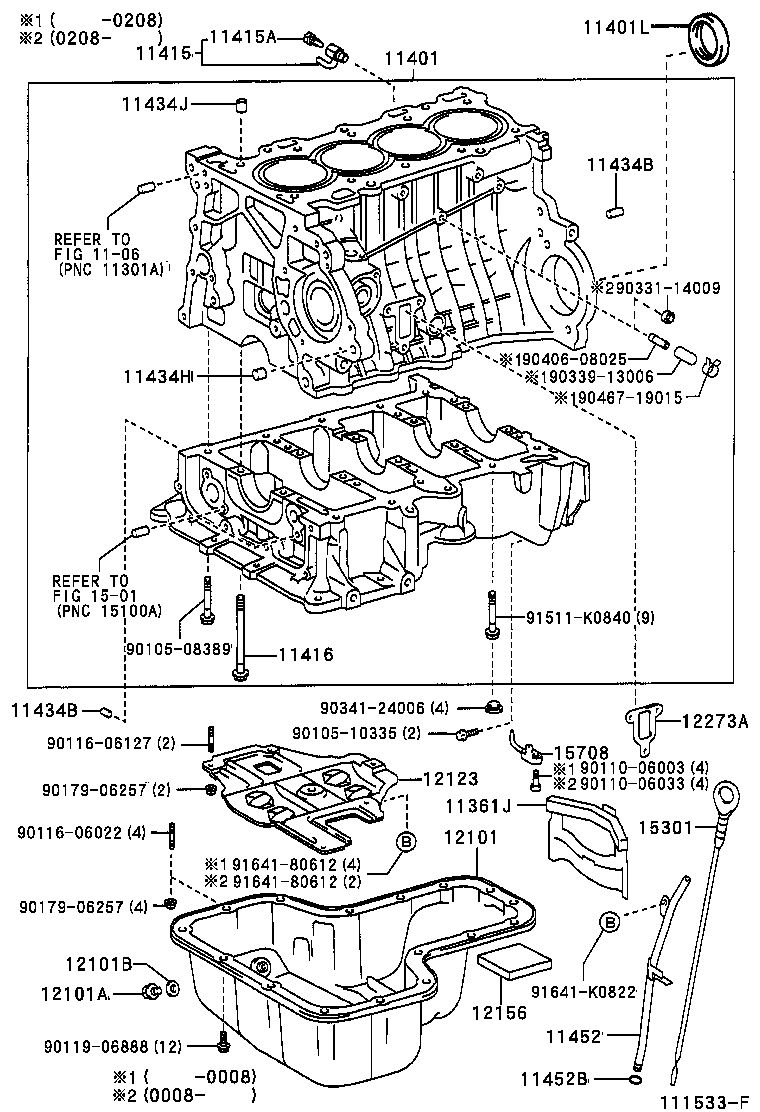

(9908-0507)2ZZGE

Click highlighted areas on diagram

diagram 1106 11361J 11401 11401L 11415 11415A 11416 11434B 11434B 11434H 11434J 11452 11452B 12101 12101A 12101B 12123 12156 12273A 1501 15301 15708 9010508389 9010510335 9011006003 9011006033 9011606022 9011606127 9011906888 9017906257 9017906257 9033114009 9033913006 9034124006 9040608025 9046719015 91511K0840 9164180612 9164180612 91641K0822
Part # Description Qty Price
Common parts
90105-08389
90105-10335
90110-06003
90110-06033
90116-06022
90116-06127
90119-06888
90179-06257
90331-14009
90339-13006
90341-24006
90406-08025
90467-19015
91511-K0840
91641-80612
91641-K0822
Linked diagrams
1106
1501

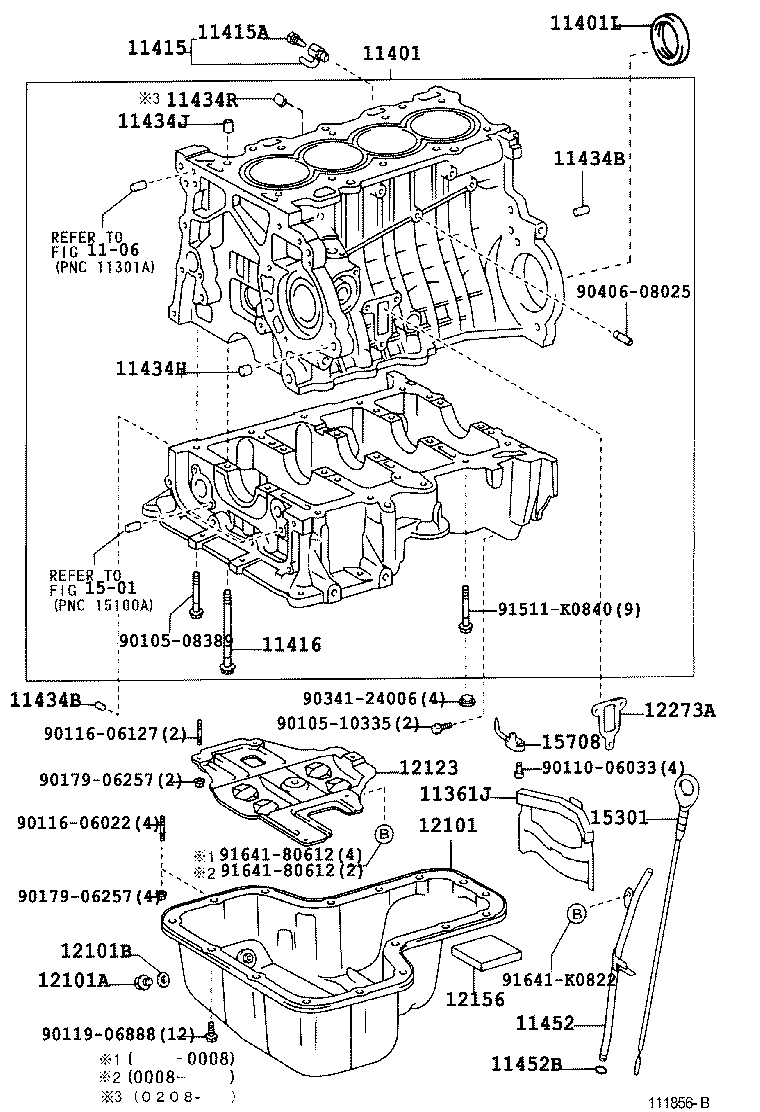

(0008-0509)2ZZGE

Click highlighted areas on diagram

diagram 1106 11361J 11401 11401L 11415 11415A 11416 11434B 11434B 11434H 11434J 11434R 11452 11452B 12101 12101A 12101B 12123 12156 12273A 1501 15301 15708 9010508389 9010510335 9011006033 9011606022 9011606127 9011906888 9017906257 9017906257 9034124006 9040608025 91511K0840 9164180612 9164180612 91641K0822
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-22030

1ZZFE,2ZZGE..ZZT23#

 1
11361-22030

1ZZFE,2ZZGE..ZZT23#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29075

2ZZGE..ZZT231

 1
11410-29075

2ZZGE..ZZT231

 1
11401L - SEAL, ENGINE REAR OIL
90311-85010

2ZZGE..ZZT231

 1
90311-85010

2ZZGE..ZZT231

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

2ZZGE..ZZT231

 1
90910-09075

2ZZGE..ZZT231

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1ZZFE,2ZZGE..ZZT23#

 1
90910-09087

1ZZFE,2ZZGE..ZZT23#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02122

2ZZGE..ZZT231

 10
90910-02122

2ZZGE..ZZT231

 10
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1ZZFE,2ZZGE..ZZT23#

L=22,OD=10

 2
90250-06003

2ZZGE..ZZT231

L=14,OD=6

 2
90250-10113

1ZZFE,2ZZGE..ZZT23#

L=22,OD=10

 2
90250-06003

1ZZFE,2ZZGE..ZZT23#

L=14,OD=6

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1ZZFE,2ZZGE..ZZT23#

L=22,OD=10

 2
90250-06003

2ZZGE..ZZT231

L=14,OD=6

 2
90250-10113

1ZZFE,2ZZGE..ZZT23#

L=22,OD=10

 2
90250-06003

1ZZFE,2ZZGE..ZZT23#

L=14,OD=6

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-14003

1ZZFE,2ZZGE..ZZT23#

 1
90253-14003

1ZZFE,2ZZGE..ZZT23#

 1
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1ZZFE,2ZZGE..ZZT23#

 2
90253-13017

1ZZFE,2ZZGE..ZZT23#

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

1ZZFE,2ZZGE..ZZT23#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-88600

2ZZGE..ZZT231

 1
11452-88600

2ZZGE..ZZT231

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1ZZFE,2ZZGE..ZZT23#

 1
96721-19010

1ZZFE,2ZZGE..ZZT23#

 1
12101 - PAN SUB-ASSY, OIL
12101-22040

2ZZGE..ZZT231

 1
12101-22040

2ZZGE..ZZT231

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

1ZZFE,2ZZGE..ZZT23#

 1
90341-12012

1ZZFE,2ZZGE..ZZT23#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1ZZFE,2ZZGE..ZZT23#

 1
90430-12031

1ZZFE,2ZZGE..ZZT23#

 1
12123 - PLATE, OIL PAN BAFFLE NO.3
12123-88603

2ZZGE..ZZT231

 1
12123-88603

2ZZGE..ZZT231

 1
12156 - INSULATOR, OIL PAN
12156-22010

2ZZGE..ZZT231

 1
12156-22010

2ZZGE..ZZT231

 1
12273A - GASKET, OIL SEPARATOR
12273-88600

2ZZGE..ZZT231

 1
12273-88600

2ZZGE..ZZT231

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-88600

2ZZGE..ZZT231

 1
15301-88600

2ZZGE..ZZT231

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-88601

2ZZGE..ZZT231

 4
15790-88601

2ZZGE..ZZT231

 4
Common parts
90105-08389
90105-10335
90110-06033
90116-06022
90116-06127
90119-06888
90179-06257
90341-24006
90406-08025
91511-K0840
91641-80612
91641-K0822
Linked diagrams
1106
1501
