ZZT230R-BLFGHW (1999)

Toyota Celica

Production Aug 1999 - Sep 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9908-0507)

Click highlighted areas on diagram

diagram 55301 55306A 55307C 55328 55328 55330B 55357B 55359D 55374A 55375A 55378A 55464C 55548A 55950A 73970A 74599C 9011906022 9015960438 9017906214 9017906274 9017908102 9090467040 9153560816 9356855014 9356855016 9356855016
Part # Description Qty Price
Common parts
90119-06022
90159-60438
90179-06214
90179-06274
90179-08102
90904-67040
91535-60816
93568-55014
93568-55016

ILLUST NO. 2 OF 2(9908-0507)

Click highlighted areas on diagram

diagram 55405B 55411G 55431A 55432A 55432D 55435A 55436A 55510 55521C 55521F 55531C 55531C 55539C 55539C 55545 55565 55569 55574 55574 55650 55670 55670A 55670A 58917B 9011906022 9046710203 9046805135 9054105020 9356013008 9356855012 9356855014 9356855016 9356855016
Part # Description Qty Price
Common parts
90119-06022
90467-10203
90468-05135
90541-05020
93560-13008
93568-55012
93568-55014
93568-55016

ILLUST NO. 2 OF 2(9908-0509)RHD

Click highlighted areas on diagram

diagram 55405B 55411G 55432D 55433C 55435A 55436A 55510 55521C 55521F 55531C 55531C 55539C 55539C 55545 55565 55569 55574 55574 55650 55670 55670A 55670A 58917B 9011906022 9046710203 9046805135 9054105020 9356013008 9356855012 9356855014 9356855016 9356855016
Part # Description Qty Price

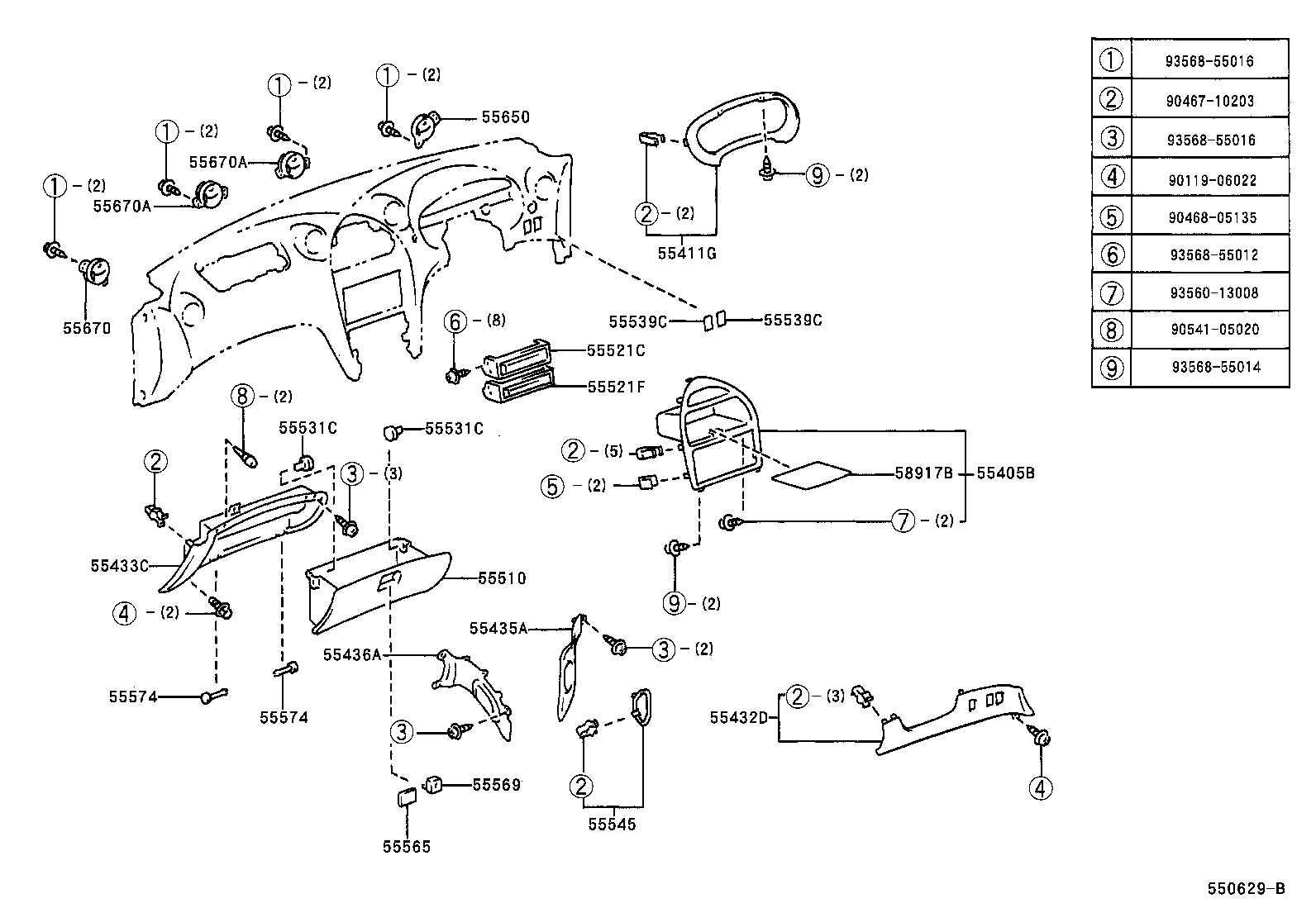

55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-20370

ZZT23#

 1
55405-20340

ZZT23#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-20680

ZZT23#

 1
55411-20680

ZZT23#

 1
55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55432-20370B0

ZZT23#..RHD

AMETHYST,TRIM20,21,22,2#

 1
55432-20370B1

ZZT23#..RHD

DK.GRAY,TRIM20,21,22,23

 1
55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH
55433-20150B1

ZZT23#..RHD

DK.GRAY,TRIM20,21,22,23

 1
55433-20150B0

ZZT23#..RHD

AMETHYST,TRIM20,21,22,2#

 1
55435A - PANEL, INSTRUMENT PANEL FINISH, END RH
55435-20150B1

ZZT23#..RHD

DK.GRAY,TRIM20,21,22,23

 1
55435-20150B0

ZZT23#..RHD

AMETHYST,TRIM20,21,22,2#

 1
55436A - PANEL, INSTRUMENT PANEL FINISH, END LH
55436-20120B0

ZZT23#..RHD

AMETHYST,TRIM20,21,22,2#

 1
55436-20120B1

ZZT23#..RHD

DK.GRAY,TRIM20,21,22,23

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-20200B0

ZZT23#..RHD

AMETHYST,TRIM20,21,22,2#

 1
55550-20200B1

ZZT23#..RHD

DK.GRAY,TRIM20,21,22,23

 1
55521C - COVER, STEREO OPENING
55521-20150

ZZT23#

 1
55521-20150

ZZT23#

 1
55521F - COVER, STEREO OPENING, NO.2
55521-20150

ZZT23#

 1
55521-20150

ZZT23#

 1
55531C - PIN, GLOVE DOOR STOPPER
55531-20170

ZZT23#

 2
55531-20170

ZZT23#

 2
55531C - PIN, GLOVE DOOR STOPPER
55531-20170

ZZT23#

 2
55531-20170

ZZT23#

 2
55539C - COVER, SPARE SWITCH HOLE
55539-32010B8

ZZT23#

AMETHYST,TRIM20,21,22,2#

 1
55539-32010P3

ZZT230

DK.GRAY,TRIM20,21,22,23

 1
55539C - COVER, SPARE SWITCH HOLE
55539-32010B8

ZZT23#

AMETHYST,TRIM20,21,22,2#

 1
55539-32010P3

ZZT230

DK.GRAY,TRIM20,21,22,23

 1
55545 - COVER, FUSE BOX OPENING
55545-20070B1

ZZT23#

DK.GRAY,TRIM20,21,22,23

 1
55545-20070B0

ZZT23#

AMETHYST,TRIM20,21,22,2#

 1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-22020B7

ZZT23#

AMETHYST,TRIM20,21,22,2#

 1
55565-22020P0

ZZT23#

DK.GRAY,TRIM20,21,22,23

 1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-22030B7

ZZT23#

AMETHYST,TRIM20,21,22,2#

 1
55569-22030P0

ZZT23#

DK.GRAY,TRIM20,21,22,23

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

ZZT23#

 2
55574-10010

ZZT23#

 2
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

ZZT23#

 2
55574-10010

ZZT23#

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-20330B1

ZZT23#

DK.GRAY,TRIM20,21,22,23

 1
55650-20330B0

ZZT23#

AMETHYST,TRIM20,21,22,2#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-20270B0

ZZT23#

AMETHYST,TRIM20,21,22,2#

 1
55670-20270B1

ZZT23#

DK.GRAY,TRIM20,21,22,23

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55660-20270B0

ZZT23#

AMETHYST,TRIM20,21,22,2#

 2
55660-20270B1

ZZT23#

DK.GRAY,TRIM20,21,22,23

 2
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55660-20270B0

ZZT23#

AMETHYST,TRIM20,21,22,2#

 2
55660-20270B1

ZZT23#

DK.GRAY,TRIM20,21,22,23

 2
58917B - MAT, BOX BOTTOM
58917-20020

ZZT23#

 1
58917-20020

ZZT23#

 1
Common parts
90119-06022
90467-10203
90468-05135
90541-05020
93560-13008
93568-55012
93568-55014
93568-55016

ILLUST NO. 1 OF 2(9908-0509)RHD

Click highlighted areas on diagram

diagram 55301 55306A 55307C 55328 55328 55330B 55359D 55374A 55375A 55378A 55548A 55950A 73970A 74598B 9015960438 9017906214 9017906274 9017908102 9090467040 9153560816 9356855014 9356855016
Part # Description Qty Price

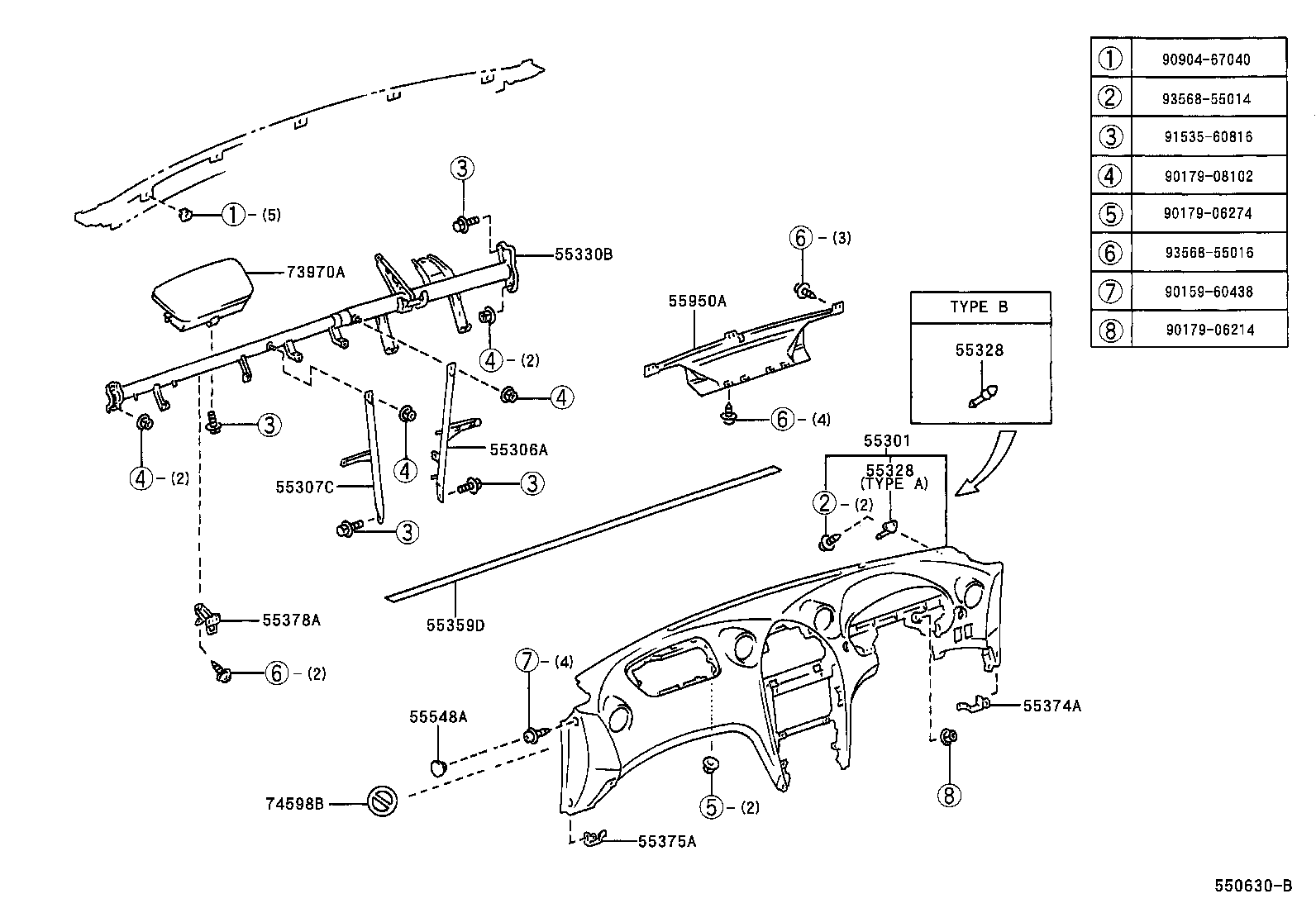

55301 - PANEL SUB-ASSY, INSTRUMENT
55301-20190B1

ZZT23#..RHD

DK.GRAY,TRIM20,21,22,23

 1
55301-20190B0

ZZT23#..RHD

AMETHYST,TRIM2#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-20310

ZZT23#..RHD

 1
55306-20310

ZZT23#..RHD

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-20190

ZZT23#..RHD

 1
55307-20190

ZZT23#..RHD

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-20120

ZZT23#

TYPE A:REFER TO ILLUSTRATION

 2
55328-20120

ZZT23#

TYPE A:REFER TO ILLUSTRATION

 2
90249-04029

ZZT23#

TYPE B:REFER TO ILLUSTRATION

 1
90249-04029

ZZT23#

TYPE B:REFER TO ILLUSTRATION

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-20120

ZZT23#

TYPE A:REFER TO ILLUSTRATION

 2
55328-20120

ZZT23#

TYPE A:REFER TO ILLUSTRATION

 2
90249-04029

ZZT23#

TYPE B:REFER TO ILLUSTRATION

 1
90249-04029

ZZT23#

TYPE B:REFER TO ILLUSTRATION

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-20290

ZZT23#..RHD

 1
55330-20290

ZZT23#..RHD

 1
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-20030

ZZT23#..RHD

 1
55359-20030

ZZT23#..RHD

 1
55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55376-20180

ZZT23#

 1
55376-20180

ZZT23#

 1
55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55375-20110

ZZT23#

 1
55375-20110

ZZT23#

 1
55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55308-20230

ZZT23#

 1
55308-20230

ZZT23#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-20120B0

ZZT23#

AMETHYST,TRIM20,21,22,2#

 4
55548-20120B1

ZZT23#

DK.GRAY,TRIM20,21,22,23

 4
55950A - NOZZLE ASSY, DEFROSTER
55950-20190

ZZT23#

 1
55950-20190

ZZT23#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-20070B1

ZZT23#..RHD

DK.GRAY,TRIM20,21,22,23

 1
73970-20070B0

ZZT23#..RHD

AMETHYST,TRIM20,21,22,2#

 1
74598B - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

ZZT23#

 1
74598-20010

ZZT23#

 1
Common parts
90159-60438
90179-06214
90179-06274
90179-08102
90904-67040
91535-60816
93568-55014
93568-55016
