ZZT230L-BLMSHA (1999)

Toyota Celica

Production Aug 1999 - Jul 2005
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )MTM

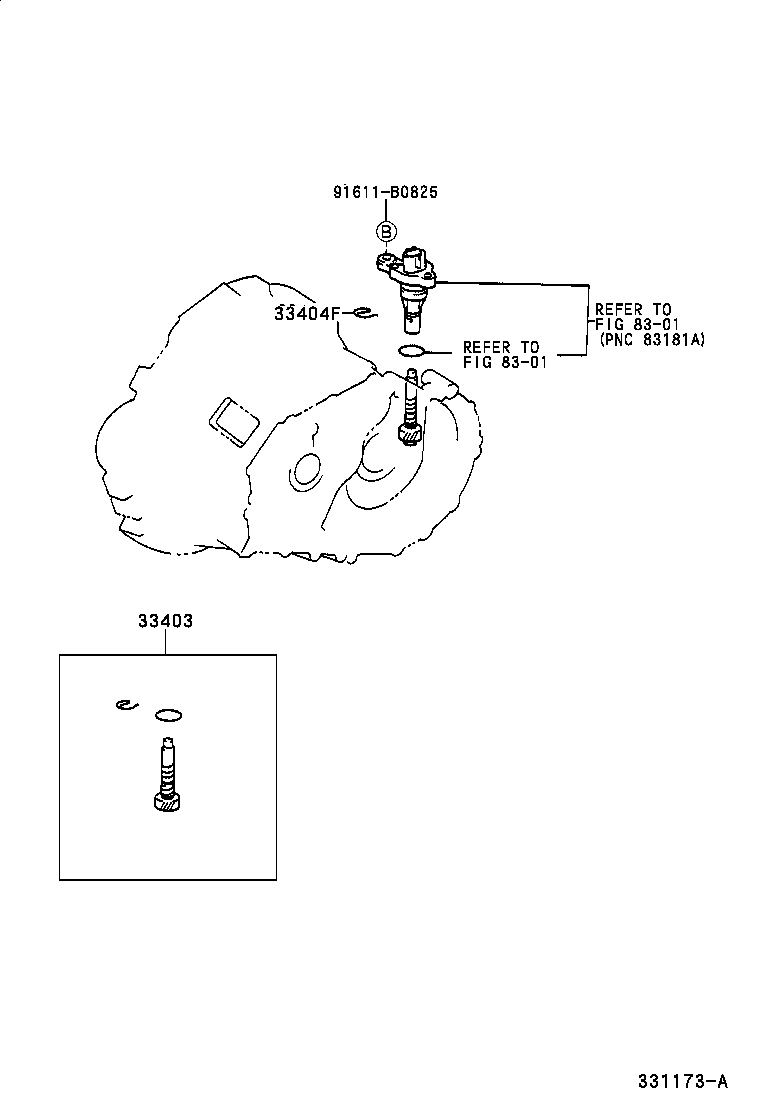

Click highlighted areas on diagram

C56,C60

diagram 33403 33404F 8301 8301 91611B0825
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29395

ZZT23#..MTM

N=29,MARK 29:35

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

ZZT23#..MTM

 1
90468-12005

ZZT23#..MTM

 1
Common parts
91611-B0825
Linked diagrams
8301
