ZZT230L-BLFGHW (1999)

Toyota Celica

Production Aug 1999 - Sep 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9908-0507)

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

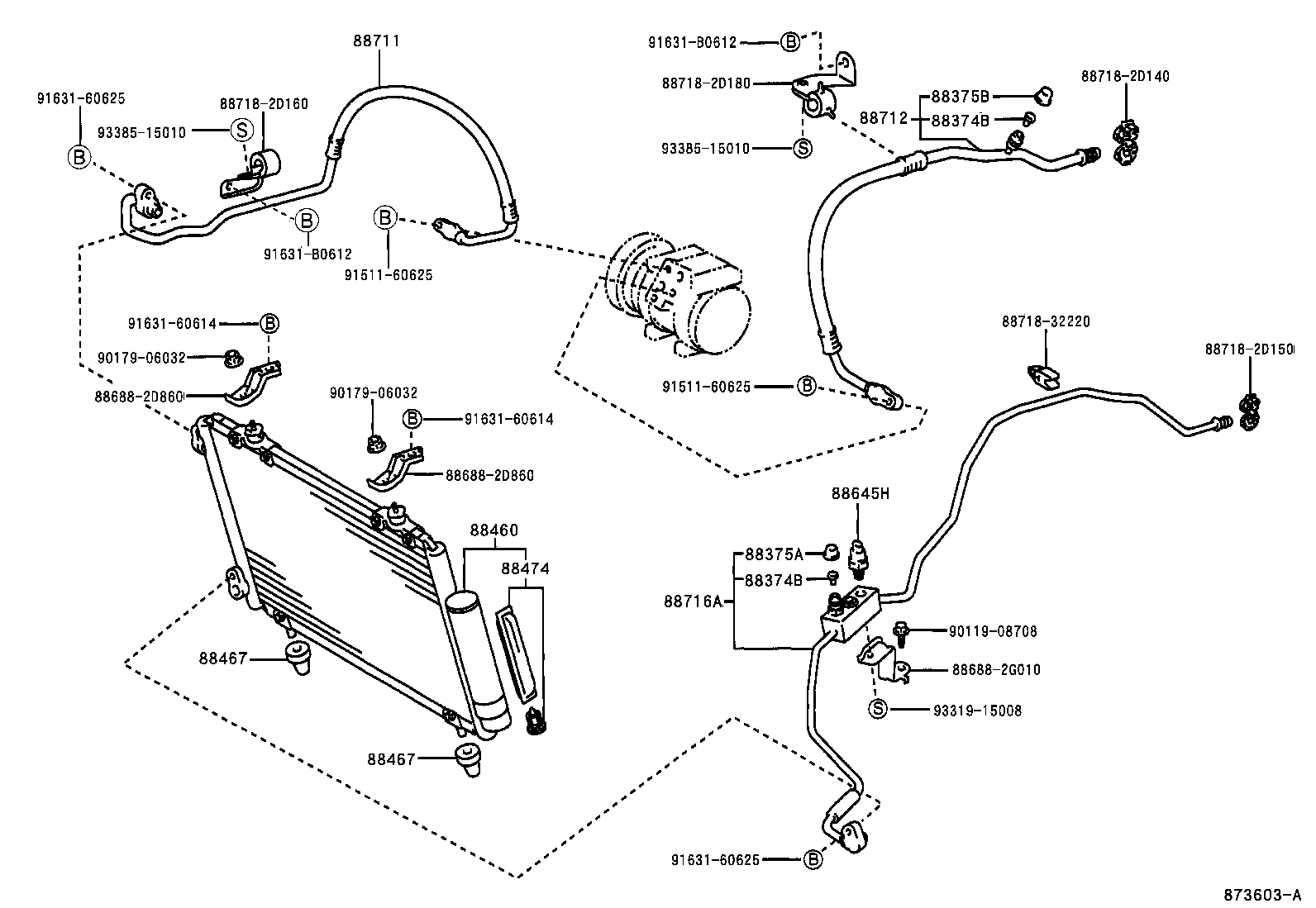

ILLUST NO. 1 OF 2(9908-0208)

Click highlighted areas on diagram

MAKER OPTION

diagram 88374B 88374B 88375A 88375B 88460 88467 88467 88474 88645H 886882D860 886882D860 886882G010 88711 88712 88716A 887182D140 887182D150 887182D160 887182D180 8871832220 9011908708 9017906032 9017906032 9151160625 9151160625 9163160614 9163160614 9163160625 9163160625 91631B0612 91631B0612 9331915008 9338515010 9338515010
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZZT23#

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

ZZT23#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

ZZT23#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZZT23#

 1
88460 - CONDENSER ASSY, COOLER
88460-20600

ZZT23#..LHD

 1
88460-20560

ZZT23#..LHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20190

ZZT23#

 2
88467-32020

ZZT230

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20190

ZZT23#

 2
88467-32020

ZZT230

DEALER OPTION

 2
88474 - DRYER, COOLER
88474-47010

ZZT23#

 1
88474-17010

ZZT23#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ZZT23#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B380

ZZT230

 1
88703-20240

ZZT230

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-20500

ZZT23#..LHD

 1
88712-2D210

ZZT23#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D580

ZZT230..LHD

MAKER OPTION

 1
88716-2D620

ZZT230..LHD

DEALER OPTION

 1
88706-20230

ZZT23#..LHD

MAKER OPTION

 1
88706-20250

ZZT230..LHD

DEALER OPTION

 1
Common parts
88688-2D860
88688-2G010
88718-2D140
88718-2D150
88718-2D160
88718-2D180
88718-32220
90119-08708
90179-06032
91511-60625
91631-60614
91631-60625
91631-B0612
93319-15008
93385-15010

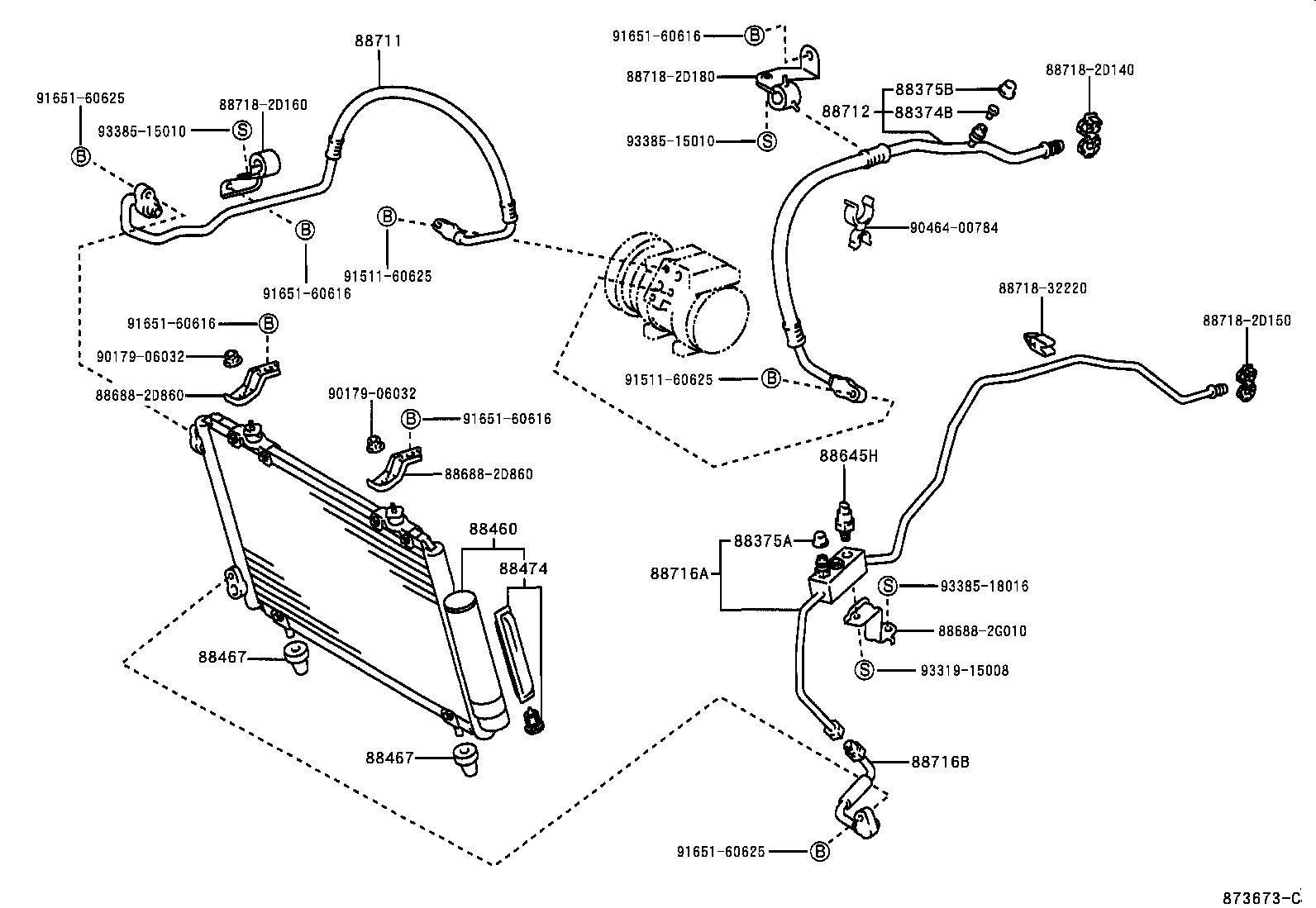

ILLUST NO. 1 OF 2(9908-0208)

Click highlighted areas on diagram

DEALER OPTION

diagram 88374B 88375A 88375B 88460 88467 88467 88474 88645H 886882D860 886882D860 886882G010 88711 88712 88716A 88716B 887182D140 887182D150 887182D160 887182D180 8871832220 9017906032 9017906032 9046400784 9151160625 9151160625 9165160616 9165160616 9165160616 9165160616 9165160625 9165160625 9331915008 9338515010 9338515010 9338518016
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZZT23#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

ZZT23#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZZT23#

 1
88460 - CONDENSER ASSY, COOLER
88460-20600

ZZT23#..LHD

 1
88460-20560

ZZT23#..LHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20190

ZZT23#

 2
88467-32020

ZZT230

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20190

ZZT23#

 2
88467-32020

ZZT230

DEALER OPTION

 2
88474 - DRYER, COOLER
88474-47010

ZZT23#

 1
88474-17010

ZZT23#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ZZT23#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B380

ZZT230

 1
88703-20240

ZZT230

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-20500

ZZT23#..LHD

 1
88712-2D210

ZZT23#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D580

ZZT230..LHD

MAKER OPTION

 1
88716-2D620

ZZT230..LHD

DEALER OPTION

 1
88706-20230

ZZT23#..LHD

MAKER OPTION

 1
88706-20250

ZZT230..LHD

DEALER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D600

ZZT230..LHD

 1
88716-2D600

ZZT230..LHD

 1
Common parts
88688-2D860
88688-2G010
88718-2D140
88718-2D150
88718-2D160
88718-2D180
88718-32220
90179-06032
90464-00784
91511-60625
91651-60616
91651-60625
93319-15008
93385-15010
93385-18016

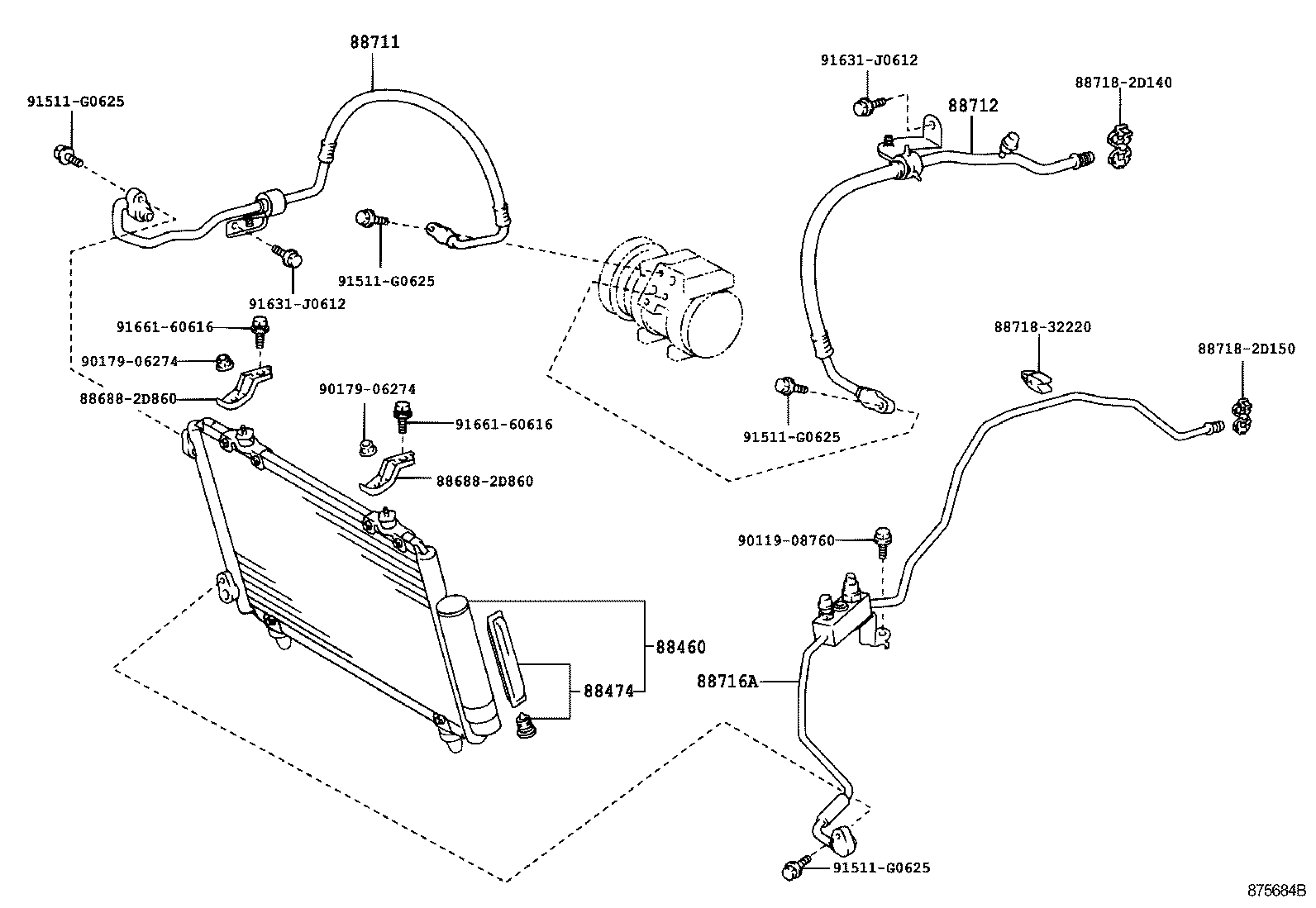

ILLUST NO. 1 OF 2(0208-0507)

Click highlighted areas on diagram

MAKER OPTION

diagram 88460 88474 886882D860 886882D860 88711 88712 88716A 887182D140 887182D150 8871832220 9011908760 9017906274 9017906274 91511G0625 91511G0625 91511G0625 91511G0625 91511G0625 91631J0612 91631J0612 9166160616 9166160616
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20600

ZZT23#..LHD

 1
88460-20560

ZZT23#..LHD

 1
88474 - DRYER, COOLER
88474-47010

ZZT23#

 1
88474-17010

ZZT23#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B380

ZZT230

 1
88703-20240

ZZT230

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-20500

ZZT23#..LHD

 1
88712-2D210

ZZT23#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D580

ZZT230..LHD

MAKER OPTION

 1
88716-2D620

ZZT230..LHD

DEALER OPTION

 1
88706-20230

ZZT23#..LHD

MAKER OPTION

 1
88706-20250

ZZT230..LHD

DEALER OPTION

 1
Common parts
88688-2D860
88718-2D140
88718-2D150
88718-32220
90119-08760
90179-06274
91511-G0625
91631-J0612
91661-60616

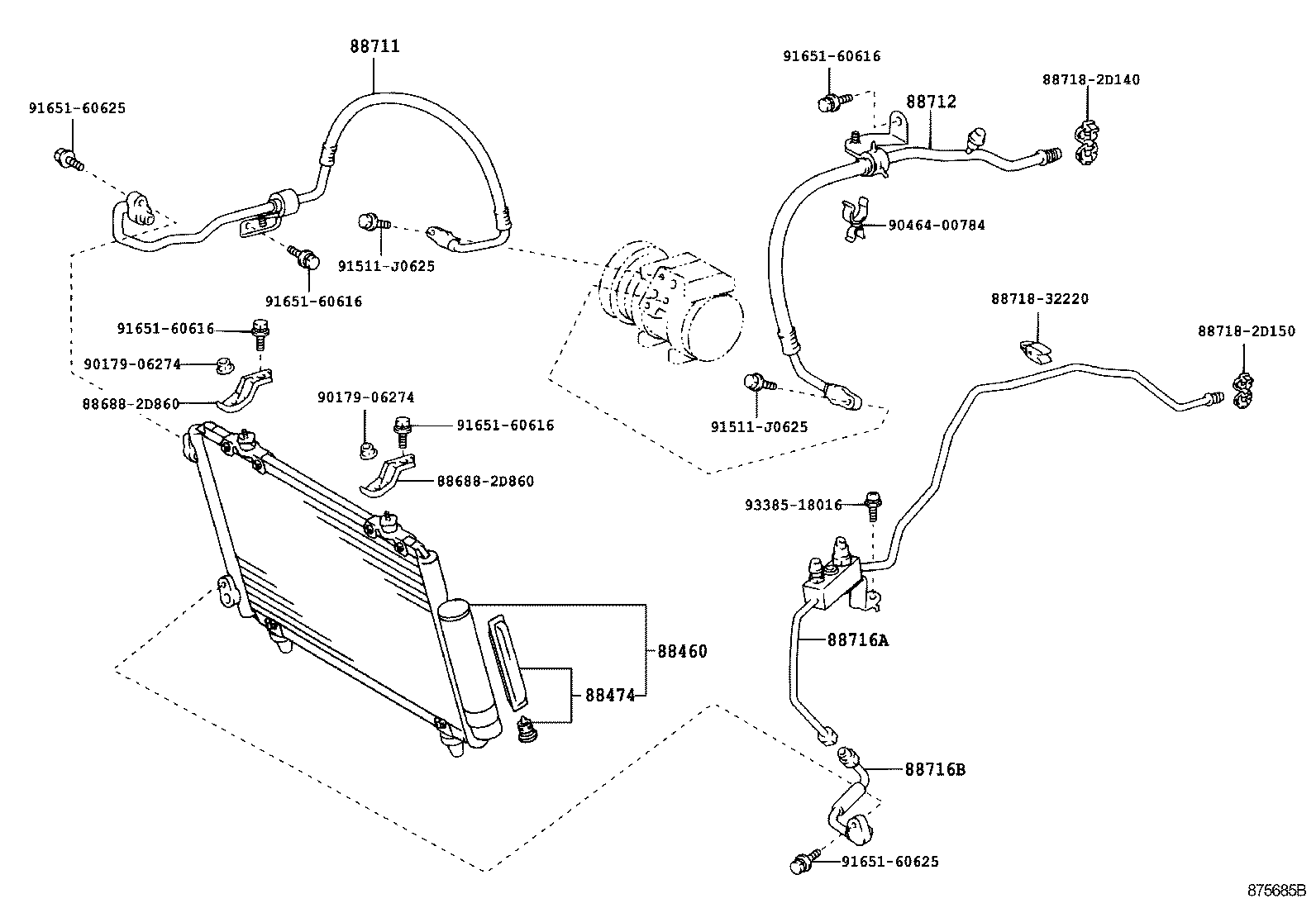

ILLUST NO. 1 OF 2(0208-0507)

Click highlighted areas on diagram

DEALER OPTION

diagram 88460 88474 886882D860 886882D860 88711 88712 88716A 88716B 887182D140 887182D150 8871832220 9017906274 9017906274 9046400784 91511J0625 91511J0625 9165160616 9165160616 9165160616 9165160616 9165160625 9165160625 9338518016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20600

ZZT23#..LHD

 1
88460-20560

ZZT23#..LHD

 1
88474 - DRYER, COOLER
88474-47010

ZZT23#

 1
88474-17010

ZZT23#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B380

ZZT230

 1
88703-20240

ZZT230

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-20500

ZZT23#..LHD

 1
88712-2D210

ZZT23#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D580

ZZT230..LHD

MAKER OPTION

 1
88716-2D620

ZZT230..LHD

DEALER OPTION

 1
88706-20230

ZZT23#..LHD

MAKER OPTION

 1
88706-20250

ZZT230..LHD

DEALER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D600

ZZT230..LHD

 1
88716-2D600

ZZT230..LHD

 1
Common parts
88688-2D860
88718-2D140
88718-2D150
88718-32220
90179-06274
90464-00784
91511-J0625
91651-60616
91651-60625
93385-18016

ILLUST NO. 2 OF 2(9908-0509)

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(9908-0208)LHD

Click highlighted areas on diagram

MAKER OPTION

diagram 88374B 88374B 88375A 88375B 88460 88467 88467 88474 88645H 886882D860 886882D860 886882G010 88711 88712 88716A 887182D140 887182D150 887182D160 887182D180 8871832220 9011908708 9017906032 9017906032 9151160625 9151160625 9163160614 9163160614 9163160625 9163160625 91631B0612 91631B0612 9331915008 9338515010 9338515010
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZZT23#

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

ZZT23#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

ZZT23#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZZT23#

 1
88460 - CONDENSER ASSY, COOLER
88460-20600

ZZT23#..LHD

 1
88460-20560

ZZT23#..LHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20190

ZZT23#

 2
88467-32020

ZZT230

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20190

ZZT23#

 2
88467-32020

ZZT230

DEALER OPTION

 2
88474 - DRYER, COOLER
88474-47010

ZZT23#

 1
88474-17010

ZZT23#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ZZT23#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B380

ZZT230

 1
88703-20240

ZZT230

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-20500

ZZT23#..LHD

 1
88712-2D210

ZZT23#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D580

ZZT230..LHD

MAKER OPTION

 1
88716-2D620

ZZT230..LHD

DEALER OPTION

 1
88706-20230

ZZT23#..LHD

MAKER OPTION

 1
88706-20250

ZZT230..LHD

DEALER OPTION

 1
Common parts
88688-2D860
88688-2G010
88718-2D140
88718-2D150
88718-2D160
88718-2D180
88718-32220
90119-08708
90179-06032
91511-60625
91631-60614
91631-60625
91631-B0612
93319-15008
93385-15010

ILLUST NO. 1 OF 2(9908-0208)LHD

Click highlighted areas on diagram

DEALER OPTION

diagram 88374B 88375A 88375B 88460 88467 88467 88474 88645H 886882D860 886882D860 886882G010 88711 88712 88716A 88716B 887182D140 887182D150 887182D160 887182D180 8871832220 9017906032 9017906032 9046400784 9151160625 9151160625 9165160616 9165160616 9165160616 9165160616 9165160625 9165160625 9331915008 9338515010 9338515010 9338518016
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZZT23#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

ZZT23#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZZT23#

 1
88460 - CONDENSER ASSY, COOLER
88460-20600

ZZT23#..LHD

 1
88460-20560

ZZT23#..LHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20190

ZZT23#

 2
88467-32020

ZZT230

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20190

ZZT23#

 2
88467-32020

ZZT230

DEALER OPTION

 2
88474 - DRYER, COOLER
88474-47010

ZZT23#

 1
88474-17010

ZZT23#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ZZT23#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B380

ZZT230

 1
88703-20240

ZZT230

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-20500

ZZT23#..LHD

 1
88712-2D210

ZZT23#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D580

ZZT230..LHD

MAKER OPTION

 1
88716-2D620

ZZT230..LHD

DEALER OPTION

 1
88706-20230

ZZT23#..LHD

MAKER OPTION

 1
88706-20250

ZZT230..LHD

DEALER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D600

ZZT230..LHD

 1
88716-2D600

ZZT230..LHD

 1
Common parts
88688-2D860
88688-2G010
88718-2D140
88718-2D150
88718-2D160
88718-2D180
88718-32220
90179-06032
90464-00784
91511-60625
91651-60616
91651-60625
93319-15008
93385-15010
93385-18016

ILLUST NO. 1 OF 2(0208-0509)LHD

Click highlighted areas on diagram

MAKER OPTION

diagram 88460 88474 886882D860 886882D860 88711 88712 88716A 887182D140 887182D150 8871832220 9011908760 9017906274 9017906274 91511G0625 91511G0625 91511G0625 91511G0625 91511G0625 91631J0612 91631J0612 9166160616 9166160616
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20600

ZZT23#..LHD

 1
88460-20560

ZZT23#..LHD

 1
88474 - DRYER, COOLER
88474-47010

ZZT23#

 1
88474-17010

ZZT23#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B380

ZZT230

 1
88703-20240

ZZT230

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-20500

ZZT23#..LHD

 1
88712-2D210

ZZT23#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D580

ZZT230..LHD

MAKER OPTION

 1
88716-2D620

ZZT230..LHD

DEALER OPTION

 1
88706-20230

ZZT23#..LHD

MAKER OPTION

 1
88706-20250

ZZT230..LHD

DEALER OPTION

 1
Common parts
88688-2D860
88718-2D140
88718-2D150
88718-32220
90119-08760
90179-06274
91511-G0625
91631-J0612
91661-60616

ILLUST NO. 1 OF 2(0208-0509)LHD

Click highlighted areas on diagram

DEALER OPTION

diagram 88460 88474 886882D860 886882D860 88711 88712 88716A 88716B 887182D140 887182D150 8871832220 9017906274 9017906274 9046400784 91511J0625 91511J0625 9165160616 9165160616 9165160616 9165160616 9165160625 9165160625 9338518016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20600

ZZT23#..LHD

 1
88460-20560

ZZT23#..LHD

 1
88474 - DRYER, COOLER
88474-47010

ZZT23#

 1
88474-17010

ZZT23#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B380

ZZT230

 1
88703-20240

ZZT230

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-20500

ZZT23#..LHD

 1
88712-2D210

ZZT23#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D580

ZZT230..LHD

MAKER OPTION

 1
88716-2D620

ZZT230..LHD

DEALER OPTION

 1
88706-20230

ZZT23#..LHD

MAKER OPTION

 1
88706-20250

ZZT230..LHD

DEALER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D600

ZZT230..LHD

 1
88716-2D600

ZZT230..LHD

 1
Common parts
88688-2D860
88718-2D140
88718-2D150
88718-32220
90179-06274
90464-00784
91511-J0625
91651-60616
91651-60625
93385-18016
