Toyota Celica ZZT230 WINDSHIELD WASHER

ZZT230L-BLFGHW (1999)

Toyota Celica

Production Aug 1999 - Sep 2005

Engine 1ZZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9908- )

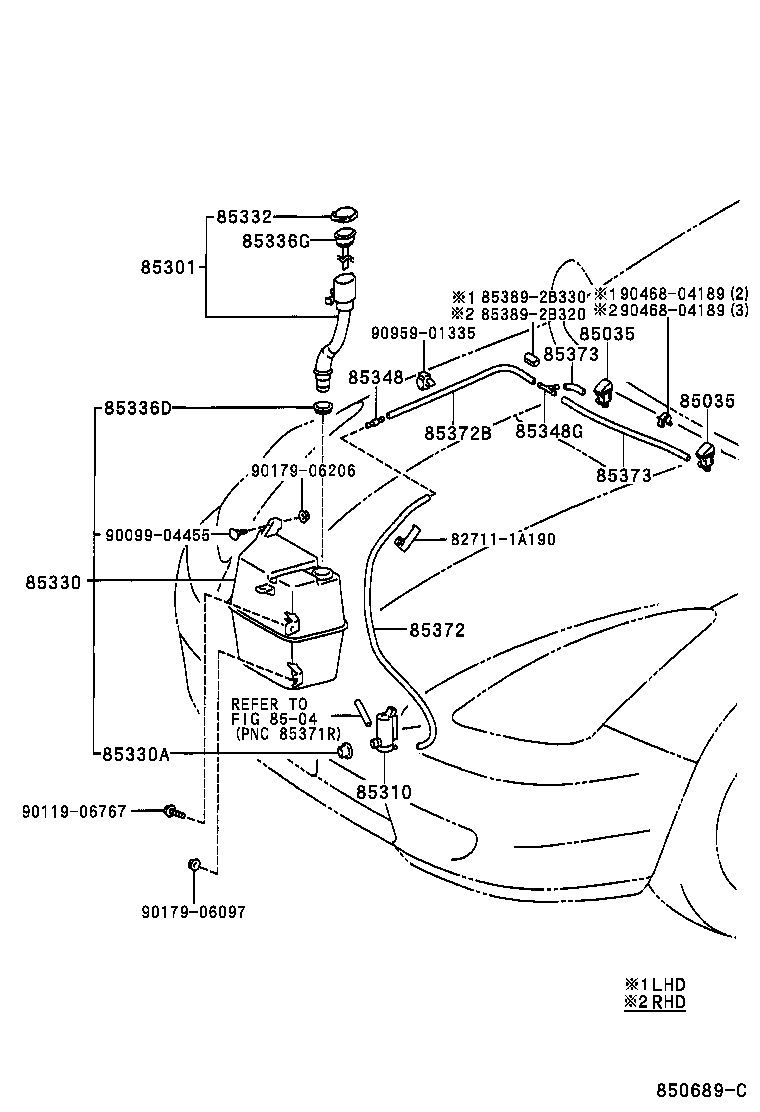

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-1A190
85389-2B330
90099-04455
90119-06767
90179-06097
90179-06206
90468-04189
90959-01335
Linked diagrams
8504

(9908-0509)

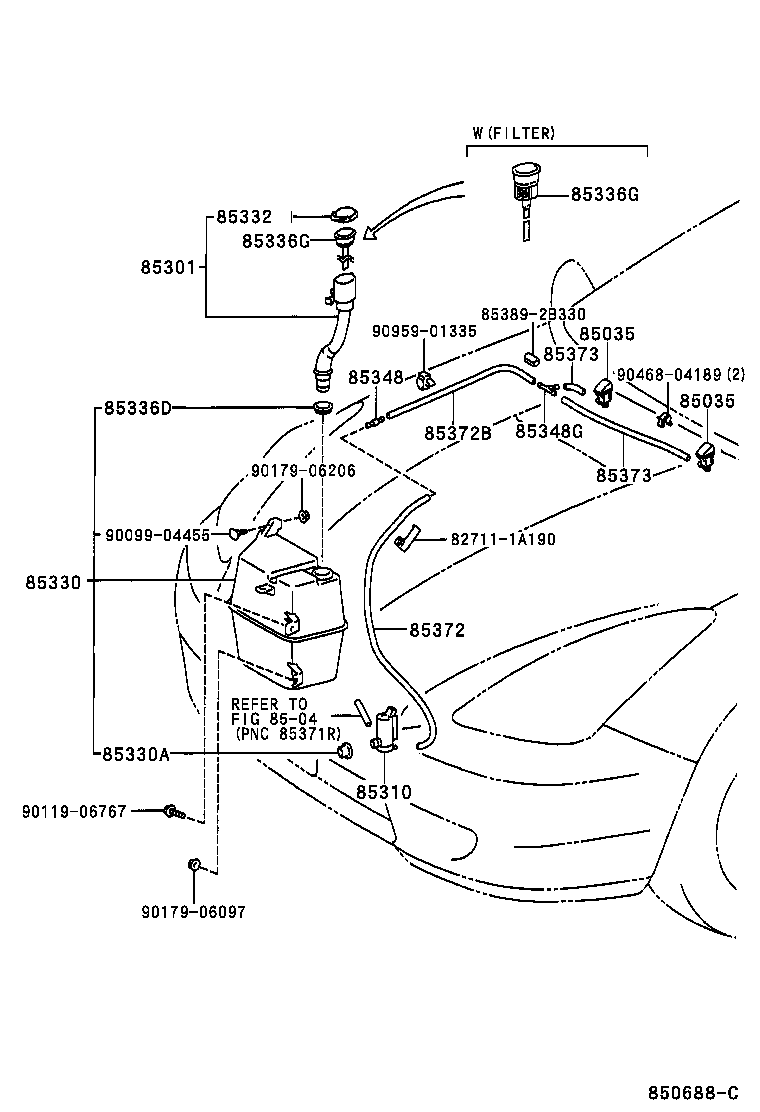

Click highlighted areas on diagram

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-20190	ZZT23#..LHD	08/1999 - 08/2002	2
85381-20190	ZZT23#	08/2002 - 09/2005	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-20190	ZZT23#..LHD	08/1999 - 08/2002	2
85381-20190	ZZT23#	08/2002 - 09/2005	2
85301 - INLET SUB-ASSY, WASHER
85301-20040	ZZT23#	08/2002 - 09/2005	1
85301-20030	ZZT23#	08/1999 - 08/2002	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-20470	ZZT23#	08/1999 - 08/2002	1
85330-20470	ZZT23#	08/2002 - 09/2005	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-20600	ZZT23#	08/2002 - 09/2005	1
85315-20600	ZZT23#	08/1999 - 08/2002	1
85315-20670	ZZT23# W(DISCHARGE HEADLAMP)	08/2002 - 09/2005	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	ZZT23#	08/2002 - 09/2005	1
90099-32089	ZZT23#	08/1999 - 08/2002	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42011	ZZT23#	08/2002 - 09/2005	1
85316-42011	ZZT23#	08/1999 - 08/2002	1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160	ZZT23#	08/2002 - 09/2005	1
85336-30160	ZZT23#	08/1999 - 08/2002	1
85336G - GAGE, WATER LEVEL
85312-24010	ZZT23#	08/1999 - 08/2002	1
85312-24010	ZZT23#	08/2002 - 09/2005	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470	ZZT23#	08/2002 - 09/2005	1
85334-22470	ZZT23#	08/1999 - 08/2002	1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-14390	ZZT23#	08/2002 - 09/2005	1
85348-14390	ZZT23#	08/1999 - 08/2002	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-62012	ZZT23# L=630	04/2002 - 08/2002	1
90099-62012	ZZT23# L=630	08/2002 - 09/2005	1
90099-33075	ZZT23# *H,L=630	08/1999 - 04/2002	1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080	ZZT23#..LHD *H,L=655	08/1999 - 08/2002	1
90099-33080	ZZT23#..LHD *H,L=655	08/2002 - 09/2005	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	ZZT23# *H,L=505	08/1999 - 08/2002	1
90099-33080	ZZT23# *H,L=505	08/2002 - 09/2005	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	ZZT23# *H,L=505	08/1999 - 08/2002	1
90099-33080	ZZT23# *H,L=505	08/2002 - 09/2005	1
Common parts
82711-1A190
85389-2B320
85389-2B330
90099-04455
90119-06767
90179-06097
90179-06206
90468-04189
90959-01335
Linked diagrams
8504

(0208-0509)

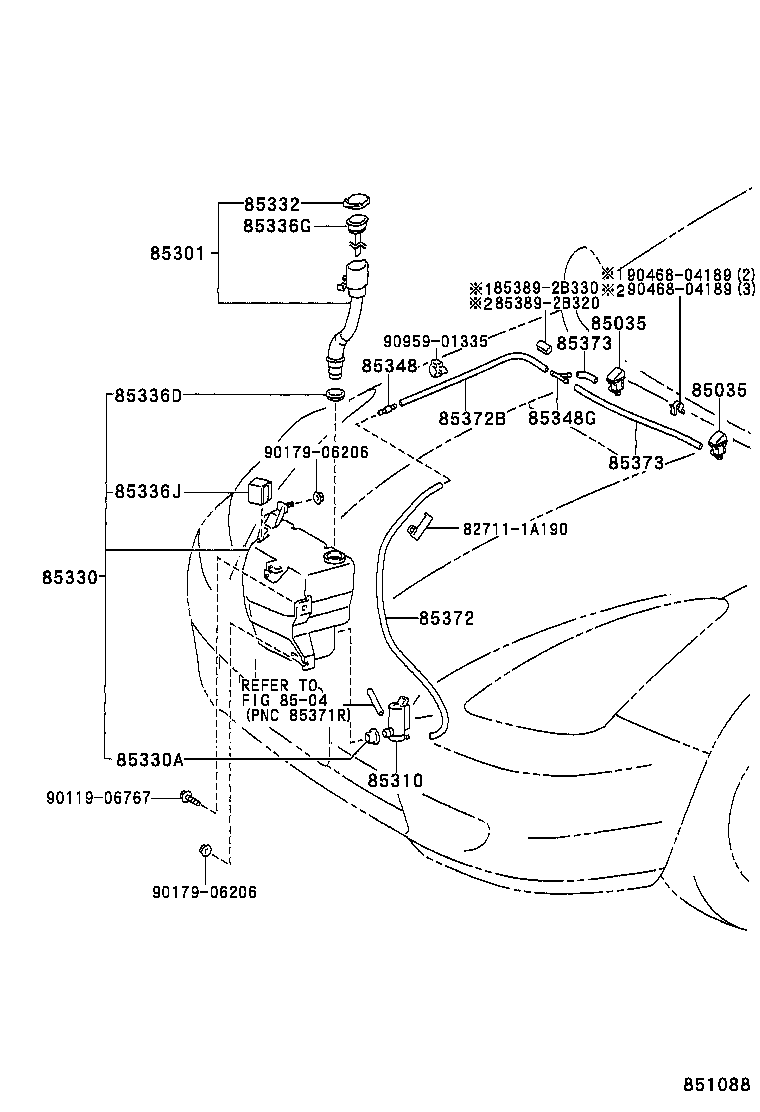

Click highlighted areas on diagram

W(DISCHARGE HEADLAMP)

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-20190	ZZT23#..LHD	08/1999 - 08/2002	2
85381-20190	ZZT23#	08/2002 - 09/2005	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-20190	ZZT23#..LHD	08/1999 - 08/2002	2
85381-20190	ZZT23#	08/2002 - 09/2005	2
85301 - INLET SUB-ASSY, WASHER
85301-20040	ZZT23#	08/2002 - 09/2005	1
85301-20030	ZZT23#	08/1999 - 08/2002	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-20470	ZZT23#	08/1999 - 08/2002	1
85330-20470	ZZT23#	08/2002 - 09/2005	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-20600	ZZT23#	08/2002 - 09/2005	1
85315-20600	ZZT23#	08/1999 - 08/2002	1
85315-20670	ZZT23# W(DISCHARGE HEADLAMP)	08/2002 - 09/2005	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	ZZT23#	08/2002 - 09/2005	1
90099-32089	ZZT23#	08/1999 - 08/2002	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42011	ZZT23#	08/2002 - 09/2005	1
85316-42011	ZZT23#	08/1999 - 08/2002	1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160	ZZT23#	08/2002 - 09/2005	1
85336-30160	ZZT23#	08/1999 - 08/2002	1
85336G - GAGE, WATER LEVEL
85312-24010	ZZT23#	08/1999 - 08/2002	1
85312-24010	ZZT23#	08/2002 - 09/2005	1
85336J - PROTECTOR, WASHER JAR
85336-42050	ZZT23#	08/2002 - 09/2005	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470	ZZT23#	08/2002 - 09/2005	1
85334-22470	ZZT23#	08/1999 - 08/2002	1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-14390	ZZT23#	08/2002 - 09/2005	1
85348-14390	ZZT23#	08/1999 - 08/2002	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-62012	ZZT23# L=630	04/2002 - 08/2002	1
90099-62012	ZZT23# L=630	08/2002 - 09/2005	1
90099-33075	ZZT23# *H,L=630	08/1999 - 04/2002	1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080	ZZT23#..LHD *H,L=655	08/1999 - 08/2002	1
90099-33080	ZZT23#..LHD *H,L=655	08/2002 - 09/2005	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	ZZT23# *H,L=505	08/1999 - 08/2002	1
90099-33080	ZZT23# *H,L=505	08/2002 - 09/2005	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	ZZT23# *H,L=505	08/1999 - 08/2002	1
90099-33080	ZZT23# *H,L=505	08/2002 - 09/2005	1
Common parts
82711-1A190
85389-2B320
85389-2B330
90119-06767
90179-06206
90468-04189
90959-01335
Linked diagrams
8504
