ZZT230L-BLFGHW (1999)

Toyota Celica

Production Aug 1999 - Sep 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

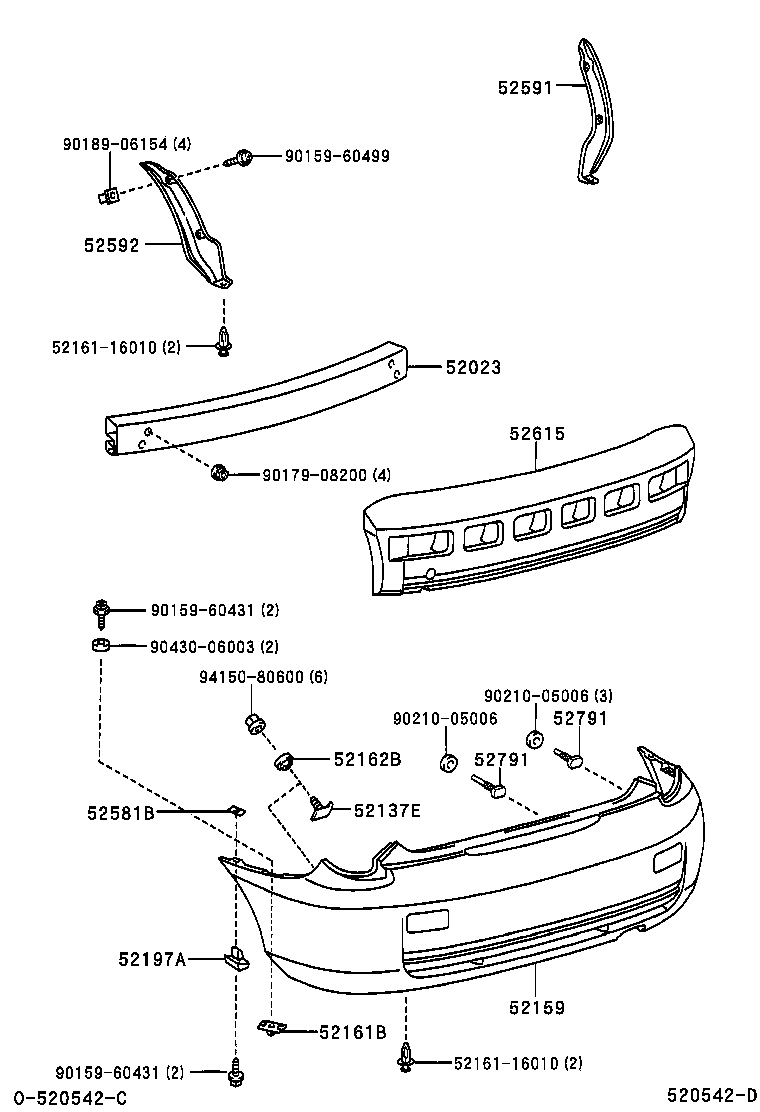

Click highlighted areas on diagram

diagram 52023 52137E 52159 5216116010 5216116010 52161B 52162B 52197A 52581B 52591 52592 52615 52616 52791 52791 9015960431 9015960431 9015960499 9017908200 9018906154 9021005006 9021005006 9043006003 9415080600
Part # Description Qty Price
Common parts
52161-16010
90159-60431
90159-60499
90179-08200
90189-06154
90210-05006
90430-06003
94150-80600

(9908- )

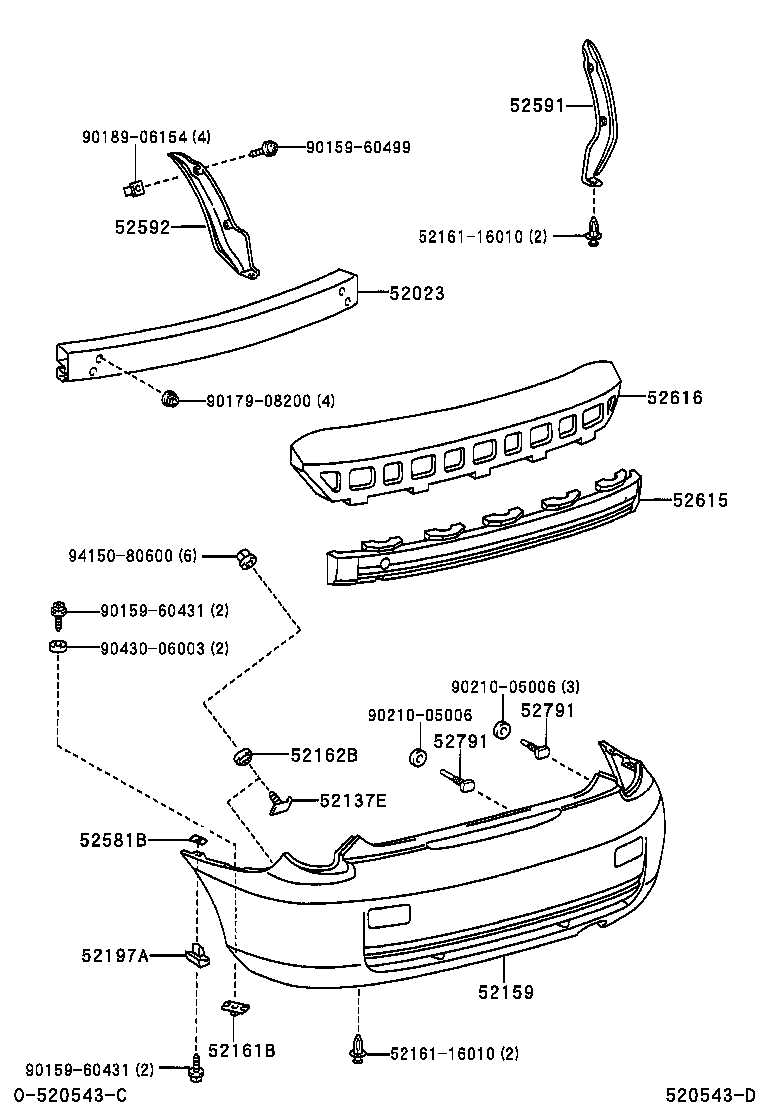

Click highlighted areas on diagram

diagram 52023 52137E 52159 5216116010 5216116010 52161B 52162B 52197A 52581B 52591 52592 52615 52791 52791 9015960431 9015960431 9015960499 9017908200 9018906154 9021005006 9021005006 9043006003 9415080600
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-20370

ZZT23#

 1
52023-20370

ZZT23#

 1
52137E - PLATE, REAR BUMPER BRACKET, NO.1
52137-20070

ZZT23#

 2
52137-20070

ZZT23#

 2
52159 - COVER, REAR BUMPER
52159-20943

ZZT23#

 1
52159-20943

ZZT23#

 1
52161B - PIECE, REAR BUMPER
52161-20020

ZZT23#

 2
52161-20020

ZZT23#

 2
52162B - PLATE, REAR BUMPER, NO.1
52162-12050

ZZT23#

 2
52162-12050

ZZT23#

 2
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-20010

ZZT23#

 2
52197-20010

ZZT23#

 2
52581B - PROTECTOR, REAR BUMPER
52581-20060

ZZT23#

 2
52581-20060

ZZT23#

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-20070

ZZT23#

 1
52591-20070

ZZT23#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-20040

ZZT23#

 1
52592-20040

ZZT23#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20240

ZZT23#

 1
52615-20240

ZZT23#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-32010

ZZT230

 4
52791-12040

ZZT23#

 4
52791-12040

ZZT23#

 4
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-32010

ZZT230

 4
52791-12040

ZZT23#

 4
52791-12040

ZZT23#

 4
Common parts
52161-16010
90159-60431
90159-60499
90179-08200
90189-06154
90210-05006
90430-06003
94150-80600
