ZZT230L-BLFGHW (1999)
Toyota Celica
Production
Aug 1999
-
Sep 2005
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0507)

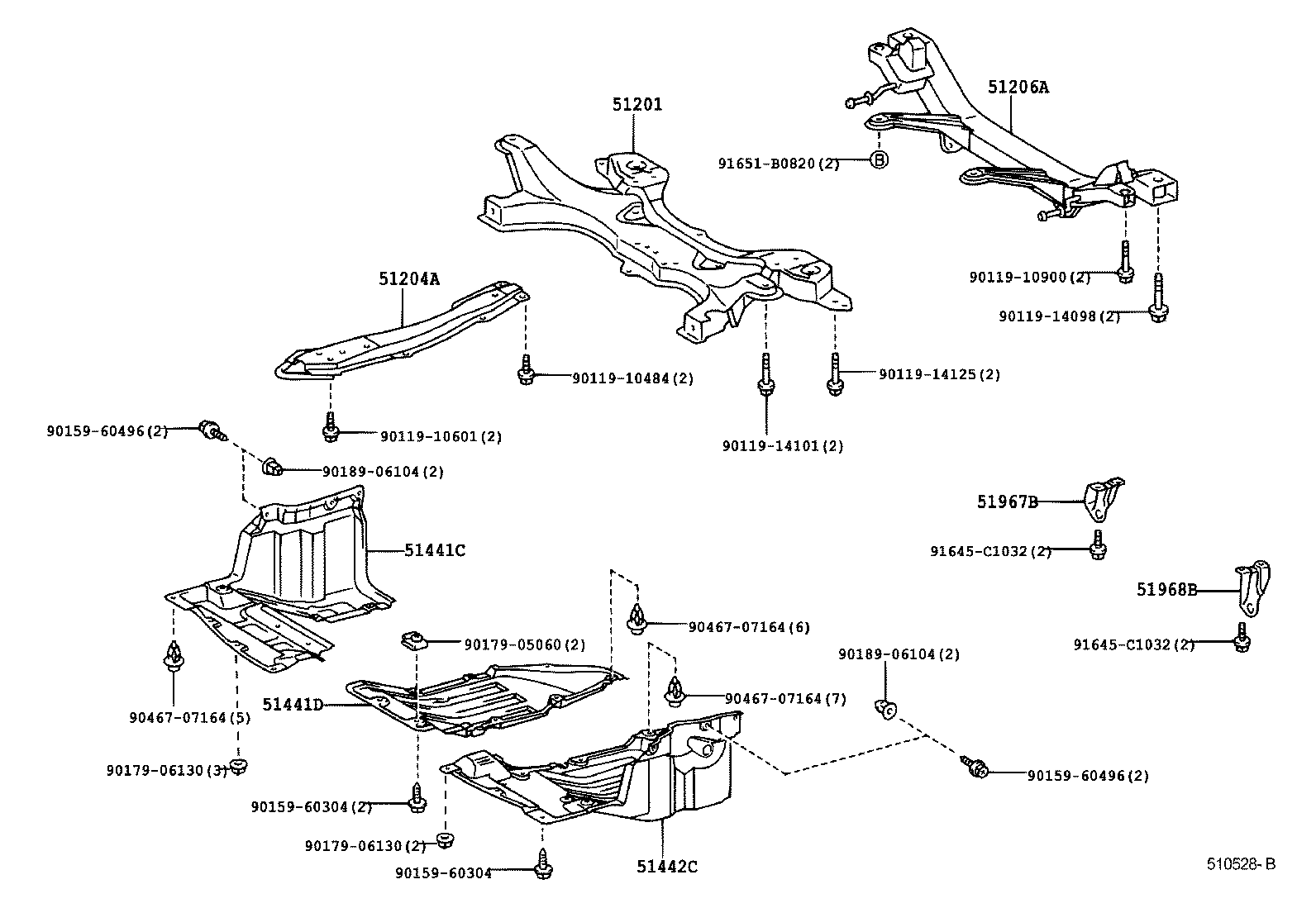

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-20350 |
ZZT23# |
1 | ||
| 51201-20350 |
ZZT23# |
1 | ||
| 51201-20351 |
ZZT23# |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-20160 |
ZZT23# |
1 | ||
| 51204-20160 |
ZZT23# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-20100 |
ZZT23# |
1 | ||
| 51206-20120 |
ZZT23# W(DISCHARGE HEADLAMP) |
1 | ||
| 51206-20100 |
ZZT23# |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51408-20090 |
ZZT23# |
1 | ||
| 51408-20090 |
ZZT23# |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51405-20060 |
ZZT23# |
1 | ||
| 51405-20060 |
ZZT23# |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51409-20120 |
ZZT23# |
1 | ||
| 51409-20120 |
ZZT23# |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-20200 |
ZZT23# |
1 | ||
| 51967-20200 |
ZZT23# |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-20140 |
ZZT23# |
1 | ||
| 51968-20140 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90119-10484 | ||||
| 90119-10601 | ||||
| 90119-10900 | ||||
| 90119-14098 | ||||
| 90119-14101 | ||||
| 90119-14125 | ||||
| 90159-60304 | ||||
| 90159-60496 | ||||
| 90179-05060 | ||||
| 90179-06130 | ||||
| 90189-06104 | ||||
| 90467-07164 | ||||
| 91645-C1032 | ||||
| 91651-B0820 | ||||
(9908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-20350 |
ZZT23# |
1 | ||
| 51201-20350 |
ZZT23# |
1 | ||
| 51201-20351 |
ZZT23# |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-20160 |
ZZT23# |
1 | ||
| 51204-20160 |
ZZT23# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-20100 |
ZZT23# |
1 | ||
| 51206-20120 |
ZZT23# W(DISCHARGE HEADLAMP) |
1 | ||
| 51206-20100 |
ZZT23# |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51408-20090 |
ZZT23# |
1 | ||
| 51408-20090 |
ZZT23# |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51405-20060 |
ZZT23# |
1 | ||
| 51405-20060 |
ZZT23# |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51409-20120 |
ZZT23# |
1 | ||
| 51409-20120 |
ZZT23# |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-20200 |
ZZT23# |
1 | ||
| 51967-20200 |
ZZT23# |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-20140 |
ZZT23# |
1 | ||
| 51968-20140 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90119-10484 | ||||
| 90119-10601 | ||||
| 90119-10900 | ||||
| 90119-14098 | ||||
| 90119-14101 | ||||
| 90119-14125 | ||||
| 90159-60304 | ||||
| 90159-60496 | ||||
| 90179-05060 | ||||
| 90179-06130 | ||||
| 90189-06104 | ||||
| 90467-07164 | ||||
| 91645-C1032 | ||||
| 91651-B0820 | ||||
