ZZT230L-BLFGHW (1999)

Toyota Celica

Production Aug 1999 - Sep 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

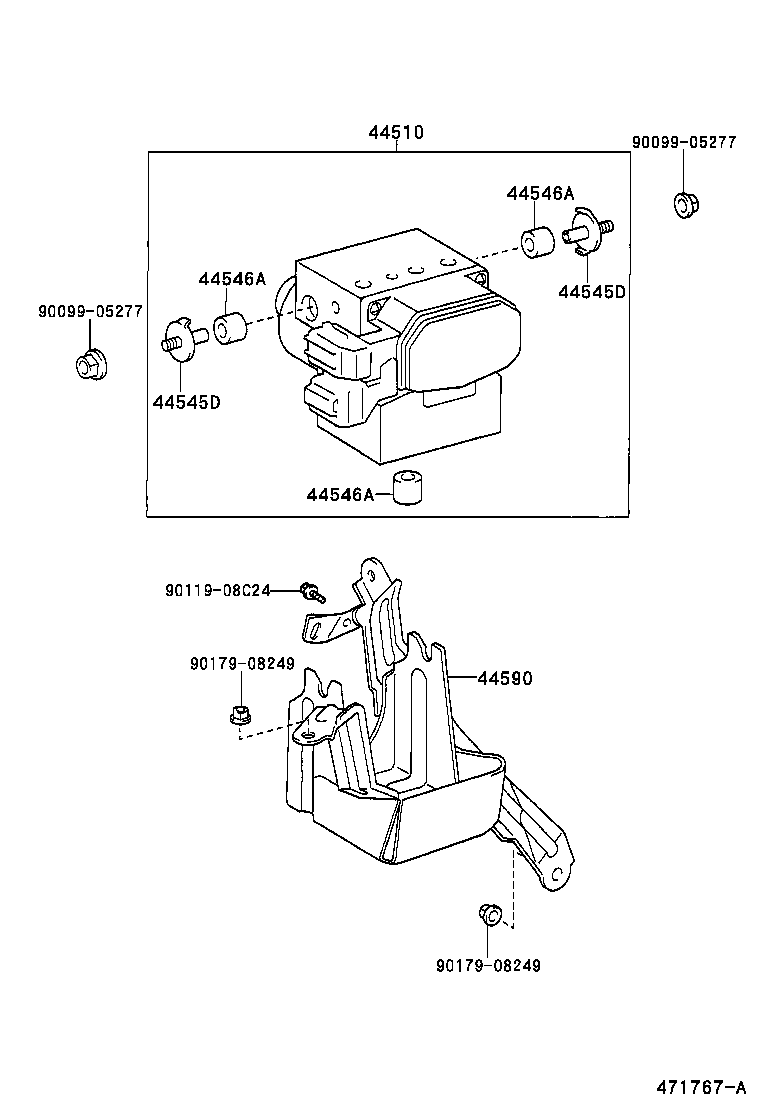

ILLUST NO. 2 OF 2(9908-0208)

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 9011908C24 9017908249 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-20110

ZZT230

W(ABS)

 1
44050-20100

ZZT23#

W(VSC)

 1
44050-32010

ZZT23#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-20040

ZZT23#

 1
44590-20060

ZZT23#

W(VSC)

 1
44590-20050

ZZT230

W(ABS)

 1
Common parts
90099-05277
90119-08C24
90179-08249

(9908-0208)

Click highlighted areas on diagram

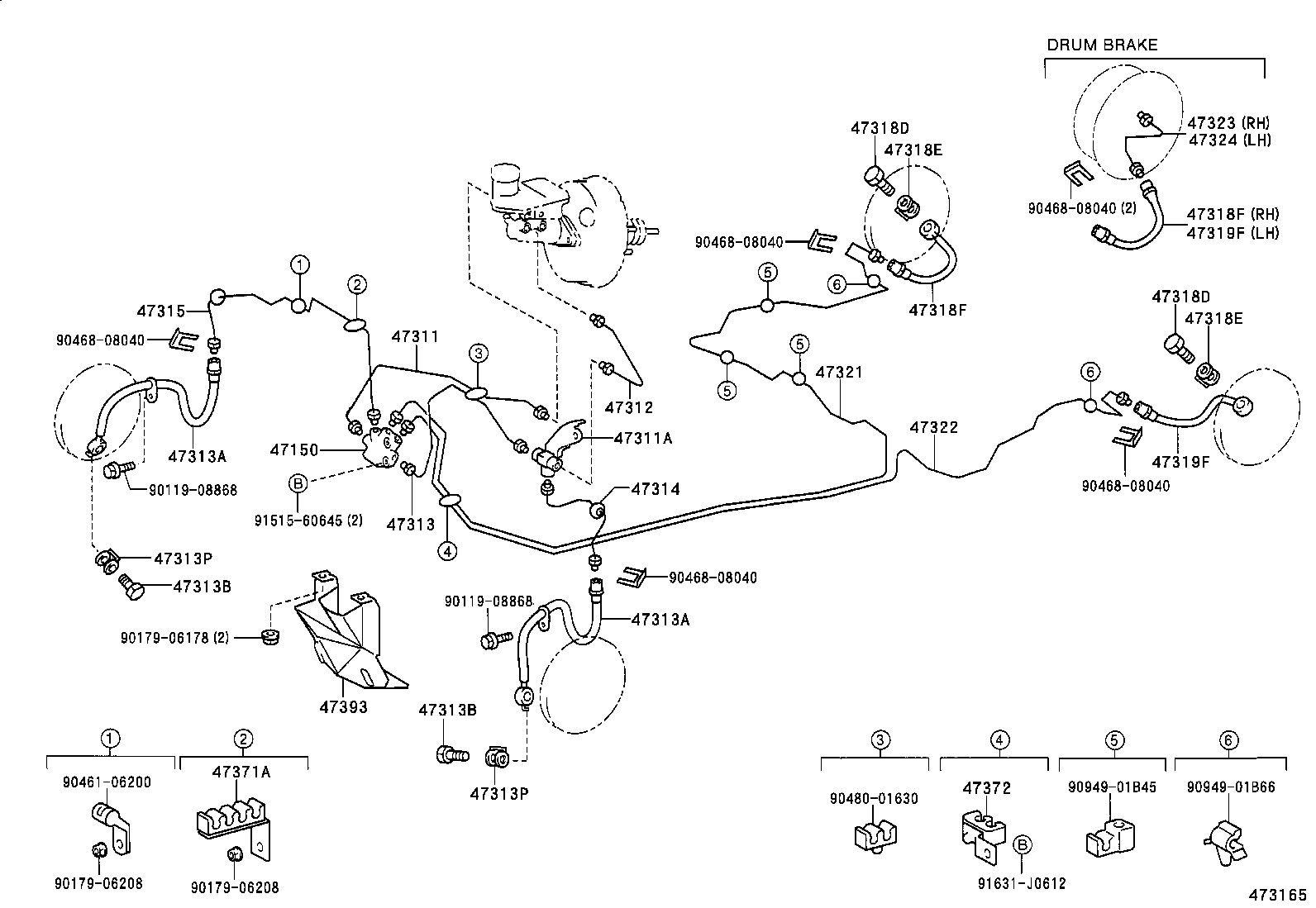

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47318D 47318D 47318E 47318E 47318F 47318F 47319F 47319F 47321 47322 47323 47324 47371A 47372 47393 9011908868 9011908868 9017906208 9017906208 9017906263 9046106200 9046808040 9046808040 9046808040 9046808040 9046808040 9048001630 9094901B45 9094901B66 9151560645 91631B0612
Part # Description Qty Price
Common parts
90119-08868
90179-06208
90179-06263
90461-06200
90468-08040
90480-01630
90949-01B45
90949-01B66
91515-60645
91631-B0612

ILLUST NO. 1 OF 2(9908-0208)

Click highlighted areas on diagram

W(ABS)

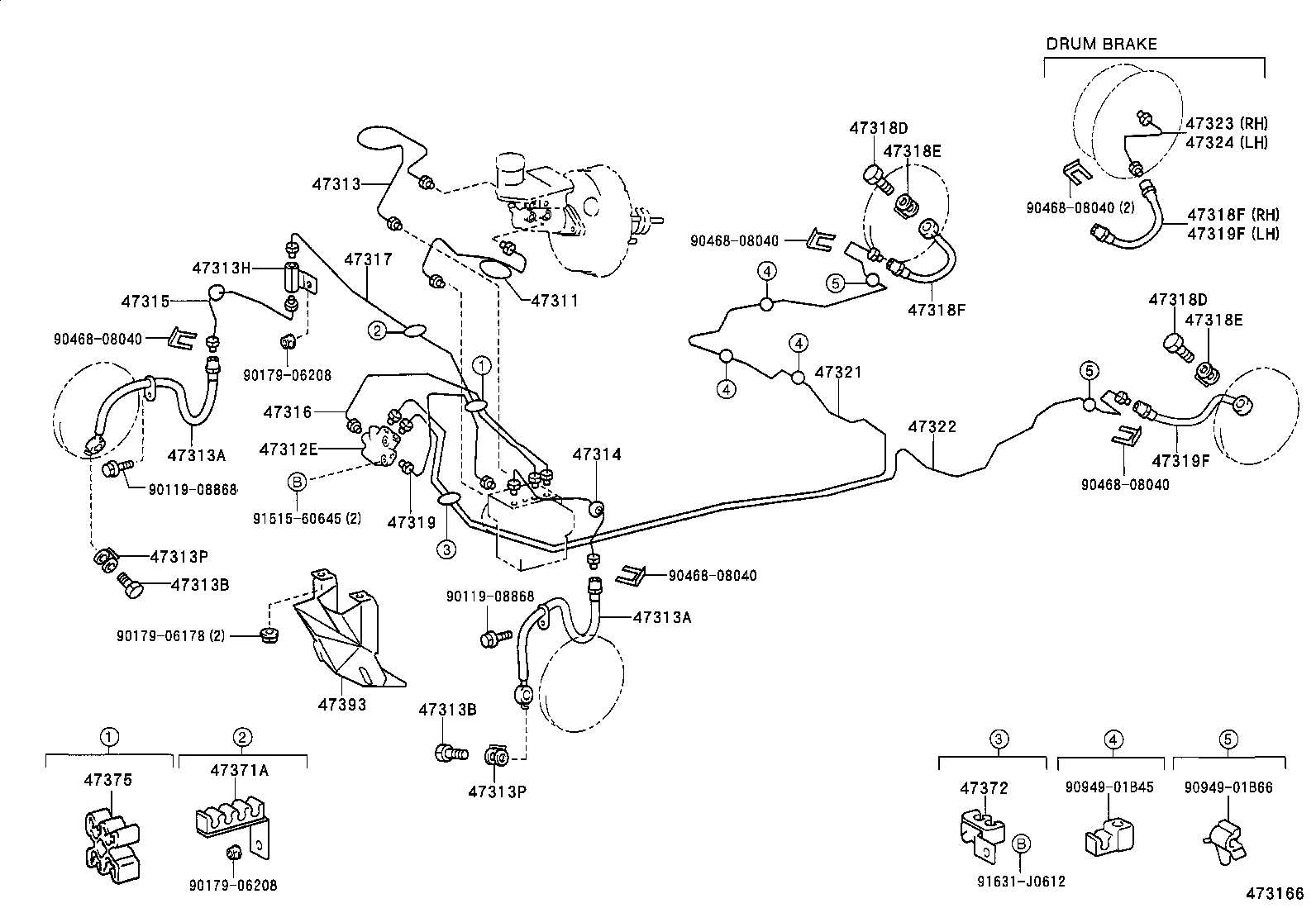

diagram 47311 47312E 47313 47313A 47313A 47313B 47313B 47313H 47313P 47313P 47314 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47318F 47319 47319F 47319F 47321 47322 47323 47324 47371A 47372 47393 9011908868 9011908868 9017906208 9017906208 9017906263 9046808040 9046808040 9046808040 9046808040 9046808040 9048001577 9094901B45 9094901B66 9151560645 91631B0612
Part # Description Qty Price
Common parts
90119-08868
90179-06208
90179-06263
90468-08040
90480-01577
90949-01B45
90949-01B66
91515-60645
91631-B0612

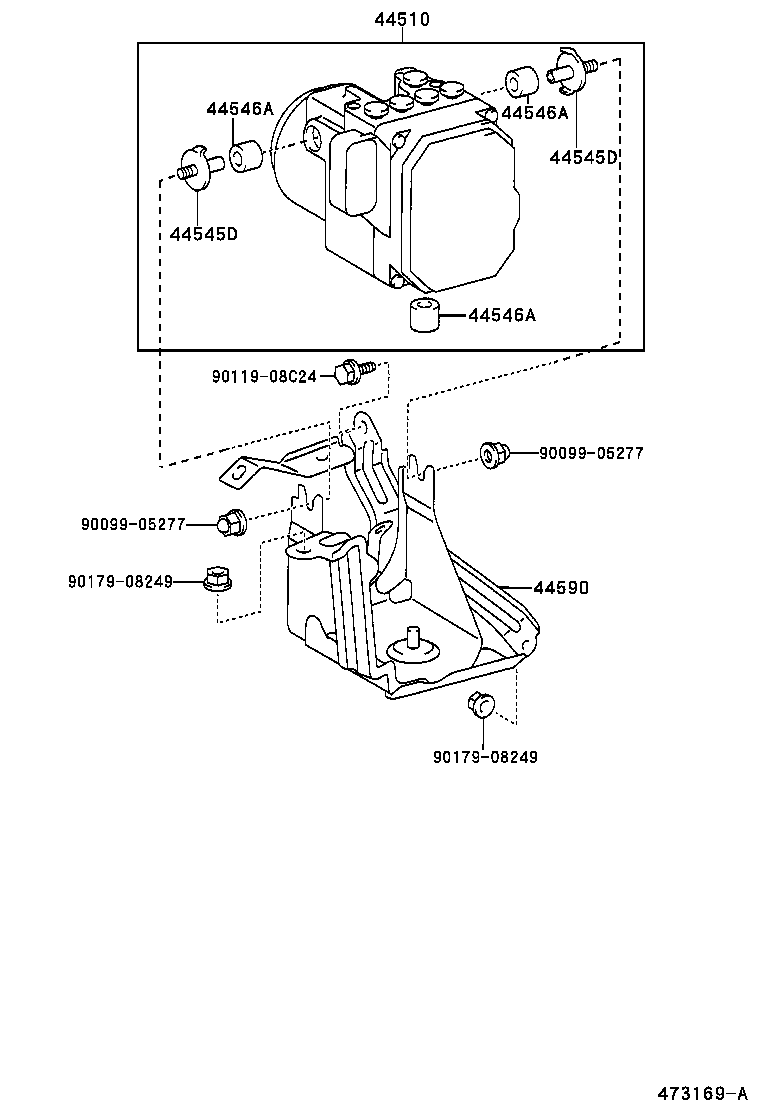

ILLUST NO. 2 OF 2(0208- )

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9011908C24 9017906074 9017906074 9017908249 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-20110

ZZT230

W(ABS)

 1
44050-20100

ZZT23#

W(VSC)

 1
44050-32010

ZZT23#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-20040

ZZT23#

 1
44590-20060

ZZT23#

W(VSC)

 1
44590-20050

ZZT230

W(ABS)

 1
Common parts
90119-08C24
90179-06074
90179-08249

(0208- )

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47318D 47318D 47318E 47318E 47318F 47318F 47319F 47319F 47321 47322 47323 47324 47371A 47372 47393 9011908868 9011908868 9017906178 9017906208 9017906208 9046106200 9046808040 9046808040 9046808040 9046808040 9046808040 9048001630 9094901B45 9094901B66 9151560645 91631J0612
Part # Description Qty Price
Common parts
90119-08868
90179-06178
90179-06208
90461-06200
90468-08040
90480-01630
90949-01B45
90949-01B66
91515-60645
91631-J0612

ILLUST NO. 1 OF 2(0208- )

Click highlighted areas on diagram

W(ABS)

diagram 47311 47312E 47313 47313A 47313A 47313B 47313B 47313H 47313P 47313P 47314 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47318F 47319 47319F 47319F 47321 47322 47323 47324 47371A 47372 47375 47393 9011908868 9011908868 9017906178 9017906208 9017906208 9046808040 9046808040 9046808040 9046808040 9046808040 9094901B45 9094901B66 9151560645 91631J0612
Part # Description Qty Price
Common parts
90119-08868
90179-06178
90179-06208
90468-08040
90949-01B45
90949-01B66
91515-60645
91631-J0612

ILLUST NO. 2 OF 2(9908-0208)

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 9011908C24 9017908249 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-20110

ZZT230

W(ABS)

 1
44050-20100

ZZT23#

W(VSC)

 1
44050-32010

ZZT23#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-20040

ZZT23#

 1
44590-20060

ZZT23#

W(VSC)

 1
44590-20050

ZZT230

W(ABS)

 1
Common parts
90099-05277
90119-08C24
90179-08249

ILLUST NO. 1 OF 2(9908-0208)LHD

Click highlighted areas on diagram

diagram 47311 47312E 47313 47313A 47313A 47313B 47313B 47313H 47313P 47313P 47314 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319 47319F 47321 47322 47371A 47372 47393 9011908868 9011908868 9017906208 9017906208 9017906263 9046808040 9046808040 9046808040 9046808040 9048001577 9094901B45 9094901B66 9151560645 91631B0612
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-2B290

ZZT23#..LHD

 1
47311-2B370

ZZT230..LHD

W(ABS)

 1
47311-2B380

ZZT23#..LHD

W(VSC)

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12084

ZZT23#

 1
90904-12084

ZZT23#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20880

ZZT23#..LHD

 1
47313-2B070

ZZT23#..LHD

W(VSC)

 1
47313-2B060

ZZT230..LHD

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C24

ZZT23#

LH

 1
90947-02C23

ZZT23#

RH

 1
90947-02C23

ZZT23#

RH

 1
90947-02C24

ZZT23#

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C24

ZZT23#

LH

 1
90947-02C23

ZZT23#

RH

 1
90947-02C23

ZZT23#

RH

 1
90947-02C24

ZZT23#

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZZT23#

 2
90401-10058

ZZT23#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZZT23#

 2
90401-10058

ZZT23#

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90412-10167

ZZT23#..LHD

 1
90412-10234

ZZT23#..LHD

 1
90412-10234

ZZT23#..LHD

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZZT23#

 2
47389-50020

ZZT23#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZZT23#

 2
47389-50020

ZZT23#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-20780

ZZT230..LHD

W(ABS)

 1
47314-20790

ZZT23#..LHD

W(VSC)

 1
47314-20720

ZZT23#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20760

ZZT23#..LHD

 1
47315-20760

ZZT23#..LHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-20660

ZZT23#..LHD

 1
47316-20710

ZZT230..LHD

W(ABS)

 1
47316-20720

ZZT23#..LHD

W(VSC)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-20310

ZZT23#..LHD

 1
47317-20370

ZZT23#..LHD

W(VSC)

 1
47317-20360

ZZT230..LHD

W(ABS)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZZT23#

 2
90401-10058

ZZT23#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZZT23#

 2
90401-10058

ZZT23#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZZT23#

 2
47389-50020

ZZT23#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZZT23#

 2
47389-50020

ZZT23#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02A37

ZZT23#

 1
90947-02A37

ZZT23#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-20200

ZZT23#

 1
47319-20230

ZZT230..LHD

W(ABS)

 1
47319-20240

ZZT23#..LHD

W(VSC)

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02A37

ZZT23#

 1
90947-02A37

ZZT23#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20440

ZZT23#

 1
47321-20440

ZZT23#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20540

ZZT23#

 1
47322-20540

ZZT23#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20760

ZZT23#

 1
47371-20760

ZZT23#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-10200

ZZT23#

 1
47371-10200

ZZT23#

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-20010

ZZT23#

 1
47393-20010

ZZT23#

 1
Common parts
90119-08868
90179-06208
90179-06263
90468-08040
90480-01577
90949-01B45
90949-01B66
91515-60645
91631-B0612

ILLUST NO. 2 OF 2(0208- )

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9011908C24 9017906074 9017906074 9017908249 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-20110

ZZT230

W(ABS)

 1
44050-20100

ZZT23#

W(VSC)

 1
44050-32010

ZZT23#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-20040

ZZT23#

 1
44590-20060

ZZT23#

W(VSC)

 1
44590-20050

ZZT230

W(ABS)

 1
Common parts
90119-08C24
90179-06074
90179-08249

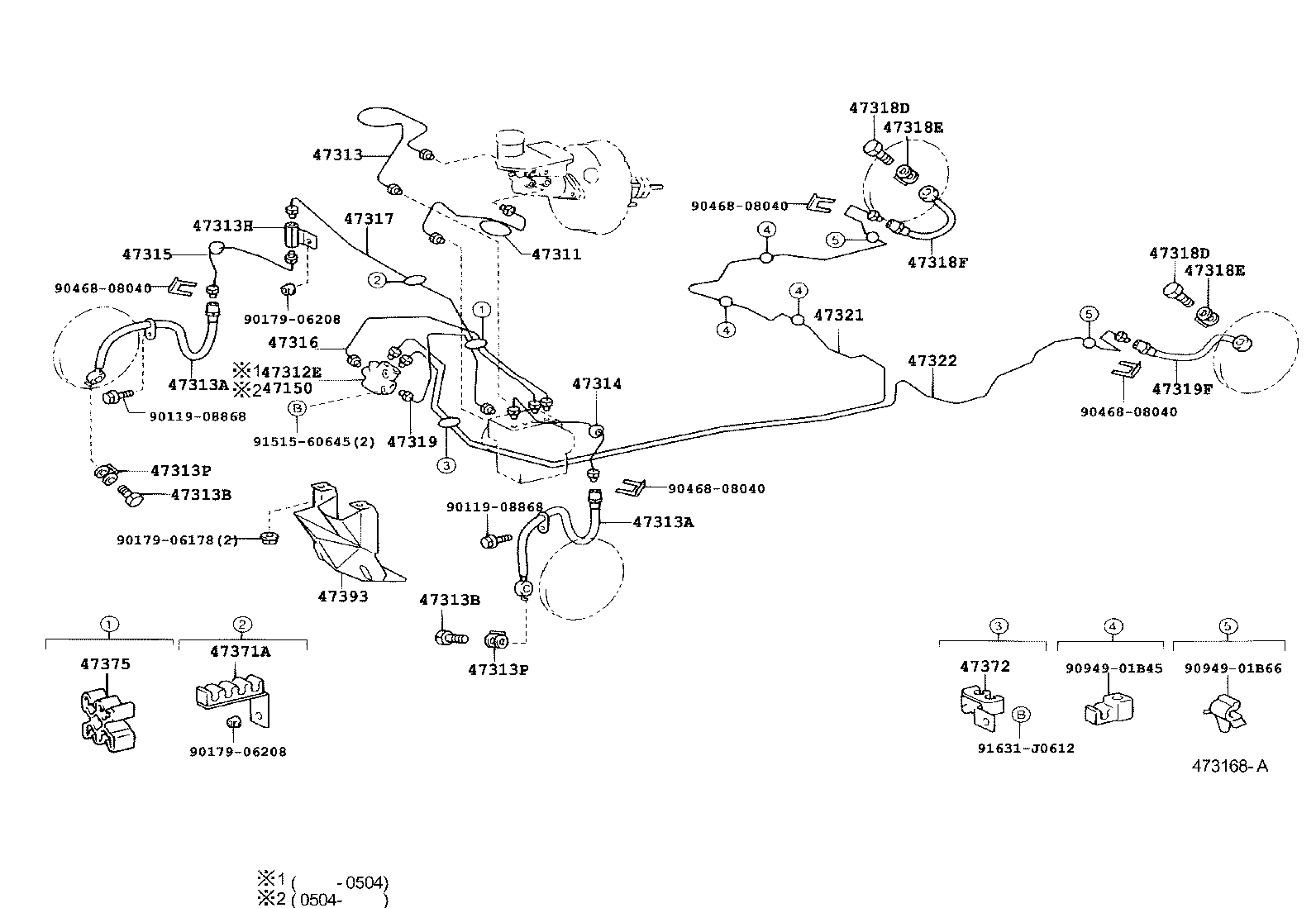

ILLUST NO. 1 OF 2(0208- )LHD

Click highlighted areas on diagram

diagram 47150 47311 47312E 47313 47313A 47313A 47313B 47313B 47313H 47313P 47313P 47314 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319 47319F 47321 47322 47371A 47372 47375 47393 9011908868 9011908868 9017906178 9017906208 9017906208 9046808040 9046808040 9046808040 9046808040 9094901B45 9094901B66 9151560645 91631J0612
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20250

ZZT23#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-2B290

ZZT23#..LHD

 1
47311-2B370

ZZT230..LHD

W(ABS)

 1
47311-2B380

ZZT23#..LHD

W(VSC)

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12084

ZZT23#

 1
90904-12084

ZZT23#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20880

ZZT23#..LHD

 1
47313-2B070

ZZT23#..LHD

W(VSC)

 1
47313-2B060

ZZT230..LHD

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C24

ZZT23#

LH

 1
90947-02C23

ZZT23#

RH

 1
90947-02C23

ZZT23#

RH

 1
90947-02C24

ZZT23#

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02C24

ZZT23#

LH

 1
90947-02C23

ZZT23#

RH

 1
90947-02C23

ZZT23#

RH

 1
90947-02C24

ZZT23#

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZZT23#

 2
90401-10058

ZZT23#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZZT23#

 2
90401-10058

ZZT23#

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90412-10167

ZZT23#..LHD

 1
90412-10234

ZZT23#..LHD

 1
90412-10234

ZZT23#..LHD

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZZT23#

 2
47389-50020

ZZT23#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZZT23#

 2
47389-50020

ZZT23#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-20780

ZZT230..LHD

W(ABS)

 1
47314-20790

ZZT23#..LHD

W(VSC)

 1
47314-20720

ZZT23#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20760

ZZT23#..LHD

 1
47315-20760

ZZT23#..LHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-20660

ZZT23#..LHD

 1
47316-20710

ZZT230..LHD

W(ABS)

 1
47316-20720

ZZT23#..LHD

W(VSC)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-20310

ZZT23#..LHD

 1
47317-20370

ZZT23#..LHD

W(VSC)

 1
47317-20360

ZZT230..LHD

W(ABS)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZZT23#

 2
90401-10058

ZZT23#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZZT23#

 2
90401-10058

ZZT23#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZZT23#

 2
47389-50020

ZZT23#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZZT23#

 2
47389-50020

ZZT23#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02A37

ZZT23#

 1
90947-02A37

ZZT23#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-20200

ZZT23#

 1
47319-20230

ZZT230..LHD

W(ABS)

 1
47319-20240

ZZT23#..LHD

W(VSC)

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02A37

ZZT23#

 1
90947-02A37

ZZT23#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20440

ZZT23#

 1
47321-20440

ZZT23#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20540

ZZT23#

 1
47322-20540

ZZT23#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20760

ZZT23#

 1
47371-20760

ZZT23#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-10200

ZZT23#

 1
47371-10200

ZZT23#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35120

ZZT23#..LHD

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-20010

ZZT23#

 1
47393-20010

ZZT23#

 1
Common parts
90119-08868
90179-06178
90179-06208
90468-08040
90949-01B45
90949-01B66
91515-60645
91631-J0612

ILLUST NO. 2 OF 2(0208- )

Click highlighted areas on diagram

W(VSC)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 9011908C24 9017908249 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-20110

ZZT230

W(ABS)

 1
44050-20100

ZZT23#

W(VSC)

 1
44050-32010

ZZT23#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ZZT230

W(VSC)

 2
44545-42020

ZZT23#

 2
44545-42070

ZZT230

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ZZT230

W(VSC)

 3
44546-42070

ZZT230

 3
44546-42020

ZZT23#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-20040

ZZT23#

 1
44590-20060

ZZT23#

W(VSC)

 1
44590-20050

ZZT230

W(ABS)

 1
Common parts
90099-05277
90119-08C24
90179-08249
