ZZT230L-BLFGHW (1999)

Toyota Celica

Production Aug 1999 - Sep 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

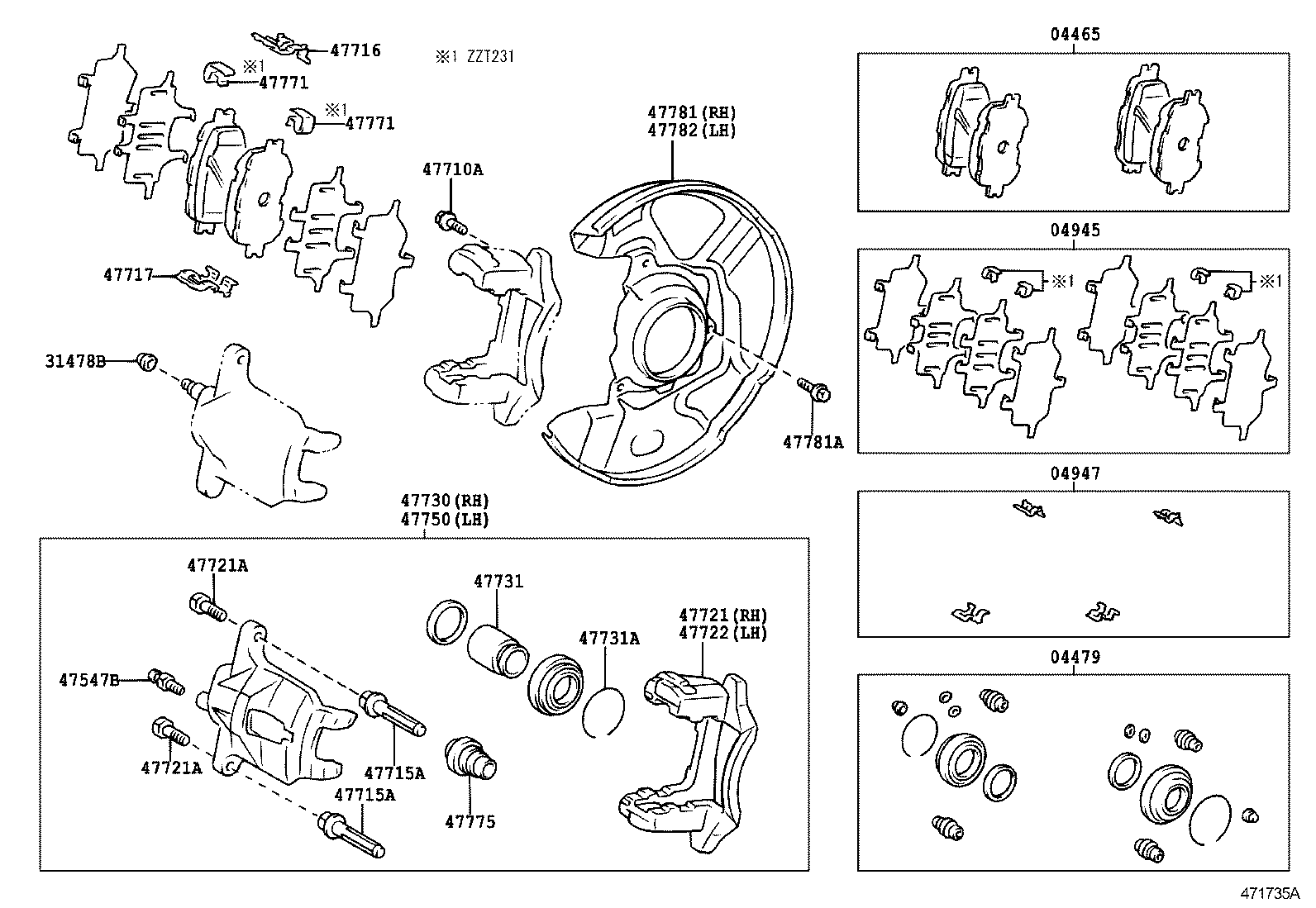

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47716 47717 47721 47721A 47721A 47722 47730 47731 47731A 47750 47771 47771 47775 47781 47781A 47782
Part # Description Qty Price

(9908- )

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47716 47717 47721 47721A 47721A 47722 47730 47731 47731A 47750 47771 47771 47775 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-52010

ZZT230

MARK NBK PN540H

 1
04465-2B040

ZZT23#

MARK AISIN PC553H

 1
04465-52120

ZZT230

MARK NBK PN540H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-20330

ZZT23#

 1
04479-20320

ZZT230

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-20210

ZZT230

 1
04945-13030

ZZT23#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-20120

ZZT23#

 1
04947-20110

ZZT230

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ZZT23#

 2
31478-30010

ZZT23#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

ZZT23#

 2
47547-20010

ZZT23#

 2
47547-20010

ZZT23#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ZZT23#

*12-1.25PX29.5-23

 4
90105-12208

ZZT23#

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-52010

ZZT230

 4
47715-22080

ZZT23#

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-52010

ZZT230

 4
47715-22080

ZZT23#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-20200

ZZT230

 2
47716-20210

ZZT23#

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-20110

ZZT23#

 2
47717-20100

ZZT230

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-20440

ZZT230

 1
47721-20460

ZZT23#

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

ZZT23#

*8-1.00PX23-15

 4
90105-08164

ZZT23#

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

ZZT23#

*8-1.00PX23-15

 4
90105-08164

ZZT23#

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-20130

ZZT230

 1
47722-20150

ZZT23#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-20600

ZZT230

 1
47730-20640

ZZT23#

 1
47730-13050

ZZT23#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-44010

ZZT23#

 2
47731-20260

ZZT230

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-66001

ZZT23#

 2
90520-86005

ZZT230

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-20510

ZZT230

 1
47750-13050

ZZT23#

 1
47750-20640

ZZT23#

 1
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-32040

ZZT23#

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-32040

ZZT23#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

ZZT23#

 4
47775-52010

ZZT230

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-47010

ZZT230

 1
47781-20350

ZZT23#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

ZZT23#

 6
90119-06227

ZZT23#

 6
90109-06134

ZZT23#

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-47010

ZZT230

 1
47782-20350

ZZT23#

 1
