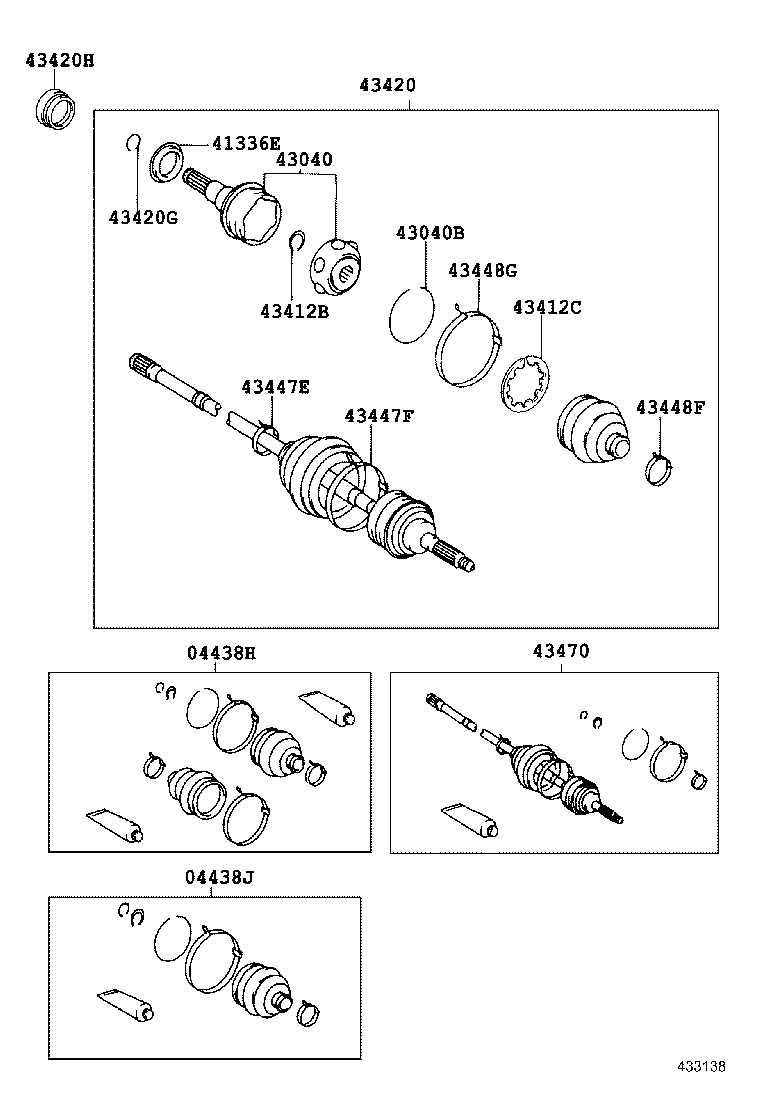

ZZT230L-BLFGHW (1999)
Toyota Celica
(9908-0509)
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-20411 |
ZZT23# |
1 | ||
| 04438-20410 |
ZZT230 |
1 | ||
| 04438-20411 |
ZZT23# |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-20400 |
ZZT230 |
1 | ||
| 04438-20401 |
ZZT23# |
1 | ||
| 04438-20401 |
ZZT23# |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
ZZT23# |
1 | ||
| 41336-32020 |
ZZT23# |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-20070 |
ZZT23# |
1 | ||
| 43040-20070 |
ZZT23# |
1 | ||
| 43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) | ||||
| 90521-79001 |
ZZT23# |
1 | ||
| 90521-79001 |
ZZT23# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-25034 |
ZZT23# |
1 | ||
| 90520-25034 |
ZZT23# |
1 | ||
| 43412C - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER LH) | ||||
| 90520-86003 |
ZZT23# |
1 | ||
| 90520-86003 |
ZZT23# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20590 |
ZZT23# |
1 | ||
| 43420-20590 |
ZZT23# |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
ZZT23# |
1 | ||
| 90521-27005 |
ZZT23# |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35044 |
ZZT23# |
1 | ||
| 90311-35044 |
ZZT23# |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01A65 |
ZZT23# ID=34.1 |
1 | ||
| 90949-01A65 |
ZZT23# |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-20130 |
ZZT23# |
1 | ||
| 42345-20130 |
ZZT23# ID=94.3 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01108 |
ZZT23# |
1 | ||
| 90949-01108 |
ZZT23# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42346-22010 |
ZZT23# |
1 | ||
| 42346-22010 |
ZZT23# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29596 |
ZZT23# |
1 | ||
| 43470-29595 |
ZZT230 |
1 | ||
| 43470-29596 |
ZZT23# |
1 | ||
(9908-0509)
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-20411 |
ZZT23# |
1 | ||
| 04438-20411 |
ZZT23# |
1 | ||
| 04438-20410 |
ZZT230 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-20401 |
ZZT23# |
1 | ||
| 04438-20400 |
ZZT230 |
1 | ||
| 04438-20401 |
ZZT23# |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20050 |
ZZT23# |
1 | ||
| 41336-20050 |
ZZT23# |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-20100 |
ZZT23# |
1 | ||
| 43030-20100 |
ZZT23# |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-79001 |
ZZT23# |
1 | ||
| 90521-79001 |
ZZT23# |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-20040 |
ZZT23# |
1 | ||
| 43045-20040 |
ZZT23# |
1 | ||
| 43045-20010 |
ZZT230 |
1 | ||
| 43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) | ||||
| 96153-00680 |
ZZT23# |
1 | ||
| 96153-00680 |
ZZT23# |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20800 |
ZZT230 |
1 | ||
| 43410-20800 |
ZZT230 |
1 | ||
| 43410-20800 |
ZZT23# |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36004 |
ZZT23# |
1 | ||
| 90363-36004 |
ZZT23# |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-33008 |
ZZT23# |
1 | ||
| 90520-33008 |
ZZT23# |
1 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-06003 |
ZZT23# |
1 | ||
| 90250-06003 |
ZZT23# |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35051 |
ZZT23# TYPE B:REFER ILLUST. |
1 | ||
| 90311-35051 |
ZZT23# TYPE B:REFER ILLUST. |
1 | ||
| 90311-35043 |
ZZT230 TYPE A:REFER ILLUST. |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-25034 |
ZZT23# |
1 | ||
| 90520-25034 |
ZZT23# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01A65 |
ZZT23# ID=34.1 |
1 | ||
| 90949-01A65 |
ZZT23# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-20130 |
ZZT23# ID=94.3 |
1 | ||
| 42345-20130 |
ZZT23# |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
ZZT23# |
1 | ||
| 90949-01108 |
ZZT23# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42346-22010 |
ZZT23# |
1 | ||
| 42346-22010 |
ZZT23# |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20080 |
ZZT23# |
1 | ||
| 43457-20080 |
ZZT23# |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10285 |
ZZT23# *10-1.25PX22-19.5 |
2 | ||
| 90105-10361 |
ZZT23# *10-1.25PX22-19.5 |
2 | ||
| 90105-10381 |
ZZT23# *10-1.25PX32-30 |
3 | ||
| 90105-10381 |
ZZT23# *10-1.25PX32-30 |
3 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10285 |
ZZT23# *10-1.25PX22-19.5 |
2 | ||
| 90105-10361 |
ZZT23# *10-1.25PX22-19.5 |
2 | ||
| 90105-10381 |
ZZT23# *10-1.25PX32-30 |
3 | ||
| 90105-10381 |
ZZT23# *10-1.25PX32-30 |
3 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
ZZT23# |
1 | ||
| 43458-20011 |
ZZT23# |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-29595 |
ZZT230 |
1 | ||
| 43470-29596 |
ZZT23# |
1 | ||
| 43470-29596 |
ZZT230 |
1 | ||
| 43470-29596 |
ZZT23# |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12080 |
ZZT23# |
1 | ||
| 43474-12080 |
ZZT23# |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42346-20010 |
ZZT23# |
1 | ||
| 42346-20010 |
ZZT23# |
1 | ||
