ZZT230L-BLFGHW (1999)

Toyota Celica

Production Aug 1999 - Sep 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0509)

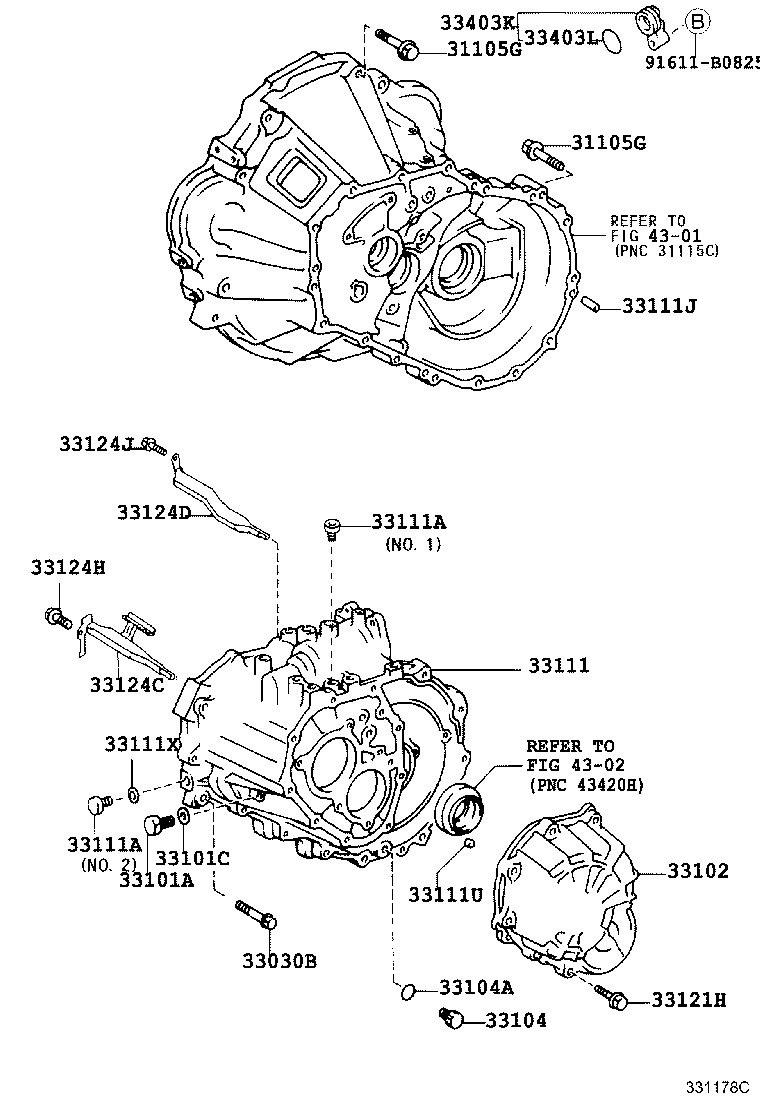

Click highlighted areas on diagram

C63,64

diagram 31105G 31105G 33030B 33101A 33101C 33102 33104 33104A 33111 33111A 33111A 33111J 33111U 33111X 33121H 33124C 33124D 33124H 33124J 33403K 33403L 4301 4302 91611B0825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61255

ZZT23#

*12-1.25PX55-30

 2
91619-61255

ZZT23#

*12-1.25PX55-30

 2
91642-81055

ZZT23#

*10-1.25PX55-30

 2
91642-81055

ZZT23#

*10-1.25PX55-30

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61255

ZZT23#

*12-1.25PX55-30

 2
91619-61255

ZZT23#

*12-1.25PX55-30

 2
91642-81055

ZZT23#

*10-1.25PX55-30

 2
91642-81055

ZZT23#

*10-1.25PX55-30

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086

ZZT23#

*8-1.25PX45-27.5

 3
90105-08086

ZZT23#

*8-1.25PX45-27.5

 3
90105-08353

ZZT23#

*8-1.25PX50-30

 13
90105-08064

ZZT23#

*8-1.25PX51-28

 13
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18038

ZZT23#

 1
90341-18038

ZZT23#

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

ZZT23#

 1
90430-18008

ZZT23#

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-20050

ZZT23#

 1
33102-20050

ZZT23#

 1
33102-12050

ZZT230

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

ZZT23#

 1
90341-18006

ZZT23#

 1
90341-18033

ZZT23#

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

ZZT23#

 1
90430-18008

ZZT23#

 1
33111 - CASE, MANUAL TRANSMISSION
33111-20160

ZZT23#

 1
33111-20160

ZZT23#

 1
33111-20162

ZZT23#

 1
33111-20161

ZZT23#

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-10065

ZZT23#

NO.1

 1
90341-10065

ZZT23#

NO.1

 1
90341-18023

ZZT23#

NO.2

 1
90341-18023

ZZT23#

NO.2

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-10065

ZZT23#

NO.1

 1
90341-10065

ZZT23#

NO.1

 1
90341-18023

ZZT23#

NO.2

 1
90341-18023

ZZT23#

NO.2

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

ZZT23#

L=23,OD=8

 4
90250-08054

ZZT23#

L=23,OD=8

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

ZZT23#

L=11,OD=11

 2
90253-11001

ZZT23#

L=11,OD=11

 2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

ZZT23#

 1
90430-18008

ZZT23#

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
91611-60835

ZZT23#

 9
91611-60835

ZZT23#

 9
90119-08429

ZZT23#

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

ZZT23#

 1
33124-20050

ZZT23#

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-20060

ZZT23#

 1
33124-20060

ZZT23#

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820

ZZT23#

 1
91611-60820

ZZT23#

 1
33124J - BOLT, W/WASHER
91611-60820

ZZT23#

 1
91611-G0820

ZZT23#

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

ZZT23#

 1
33403-35230

ZZT23#

 1
33403L - RING, O
96711-24030

ZZT23#

 1
96711-24030

ZZT23#

 1
Common parts
91611-B0825
