ZZT230L-BLFGHW (1999)
Toyota Celica

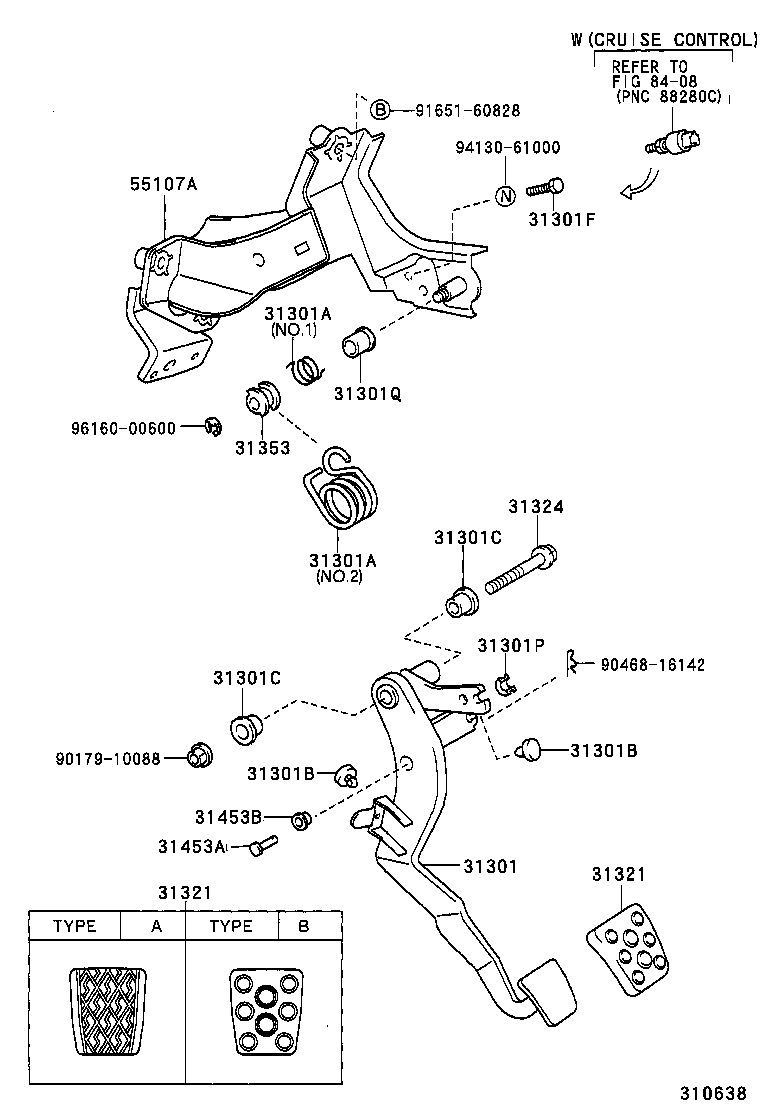

ILLUST NO. 1 OF 2(9908-0509)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20510 |
ZZT23#..LHD |
1 | ||
| 31301-20510 |
ZZT23#..LHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-03091 |
ZZT23#..LHD NO.2 |
1 | ||
| 90949-03091 |
ZZT23#..LHD NO.2 |
1 | ||
| 90949-03017 |
ZZT23# NO.1 |
1 | ||
| 90949-03017 |
ZZT23# NO.1 |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-03091 |
ZZT23#..LHD NO.2 |
1 | ||
| 90949-03091 |
ZZT23#..LHD NO.2 |
1 | ||
| 90949-03017 |
ZZT23# NO.1 |
1 | ||
| 90949-03017 |
ZZT23# NO.1 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ZZT23# |
2 | ||
| 90541-06036 |
ZZT23# |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ZZT23# |
2 | ||
| 90541-06036 |
ZZT23# |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ZZT23# |
2 | ||
| 90386-13015 |
ZZT23# |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ZZT23# |
2 | ||
| 90386-13015 |
ZZT23# |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
ZZT23# |
1 | ||
| 90101-10369 |
ZZT23# |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
ZZT23# |
1 | ||
| 90389-06055 |
ZZT23# |
1 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 90386-13015 |
ZZT23# |
1 | ||
| 90386-13015 |
ZZT23# |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-53010 |
ZZT23# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31321-12040 |
ZZT230 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31321-53010 |
ZZT23# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31321-12040 |
ZZT230 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-53010 |
ZZT23# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31321-12040 |
ZZT230 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31321-53010 |
ZZT23# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31321-12040 |
ZZT230 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90109-10167 |
ZZT23# |
1 | ||
| 90109-10167 |
ZZT23# |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-35010 |
ZZT23# |
1 | ||
| 31353-35010 |
ZZT23# |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-12010 |
ZZT23# L=23.5 |
1 | ||
| 47148-12010 |
ZZT23# L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
ZZT23# |
1 | ||
| 90386-08033 |
ZZT23# |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20450 |
ZZT23#..LHD |
1 | ||
| 55107-20450 |
ZZT23#..LHD |
1 | ||
| Common parts | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| 91651-60828 | ||||
| 94130-61000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8408 | ||||

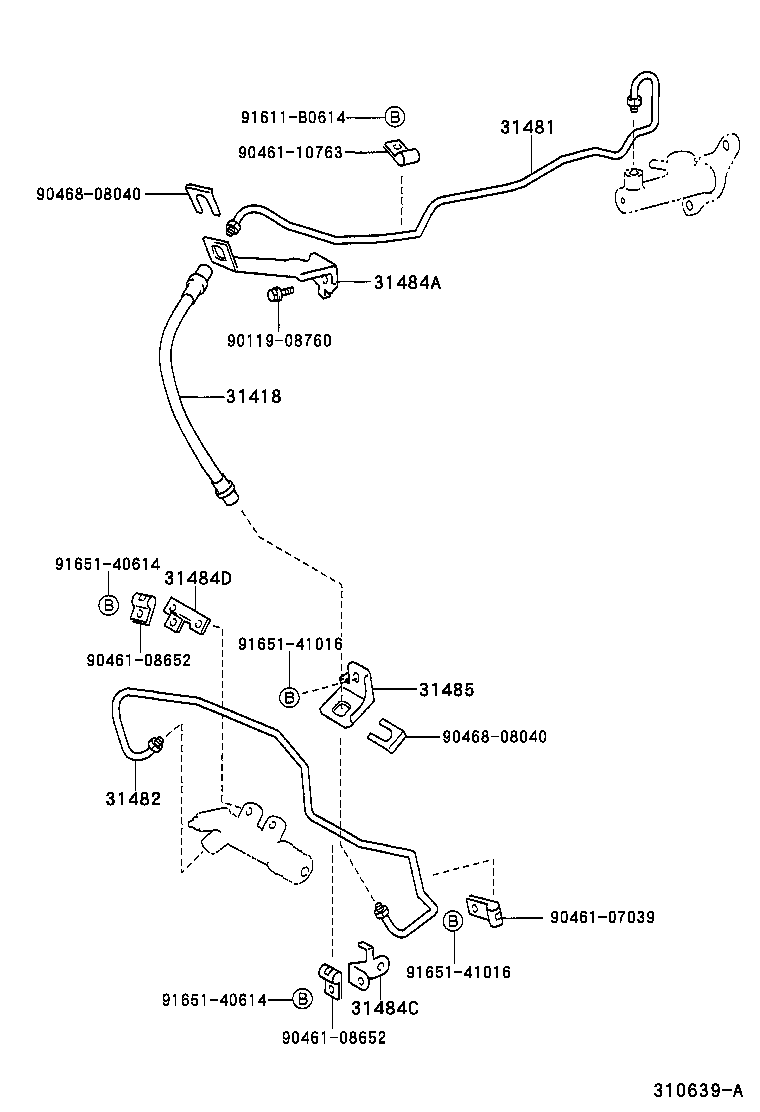

ILLUST NO. 2 OF 2(9908-0509)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02A64 |
ZZT23# |
1 | ||
| 90947-02A64 |
ZZT23# |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-20790 |
ZZT23#..LHD |
1 | ||
| 31481-20790 |
ZZT23#..LHD |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-20600 |
ZZT23# |
1 | ||
| 31482-20600 |
ZZT23# |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-20620 |
ZZT23# |
1 | ||
| 31484-20620 |
ZZT23# |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-12270 |
ZZT23# |
1 | ||
| 31484-12271 |
ZZT23# |
1 | ||
| 31484-12271 |
ZZT23# |
1 | ||
| 31484D - BRACKET, CLUTCH TUBE, NO.2 | ||||
| 31484-20460 |
ZZT23# |
1 | ||
| 31484-20460 |
ZZT23# |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-20610 |
ZZT23# |
1 | ||
| 31484-20610 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90119-08760 | ||||
| 90461-07039 | ||||
| 90461-08652 | ||||
| 90461-10763 | ||||
| 90468-08040 | ||||
| 91611-B0614 | ||||
| 91651-40614 | ||||
| 91651-41016 | ||||
