TA60L-BCMDBW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1983
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

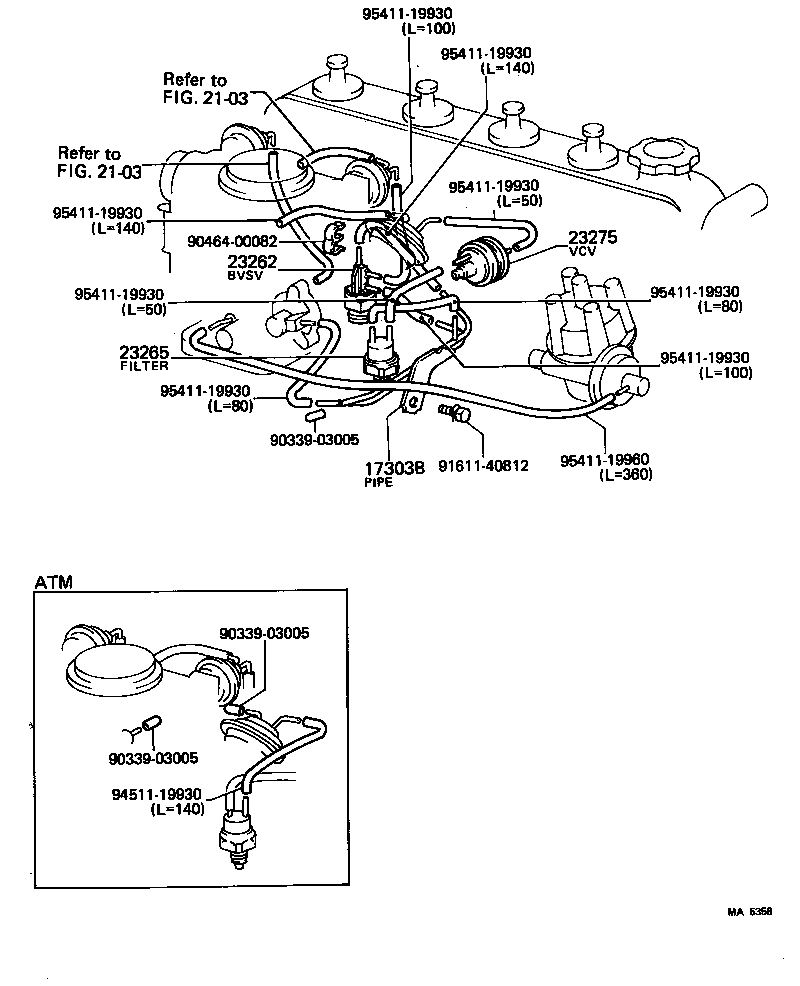

(8108-8308)2T
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-26120 |
2T..TA60 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-15010 |
2T..TA60 |
1 | ||
| 90925-05044 |
2TB..TA60 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2T..TA60 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03074 |
2T..TA60..5F |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90464-00082 | ||||
| 91611-40812 | ||||
| 94511-19930 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||

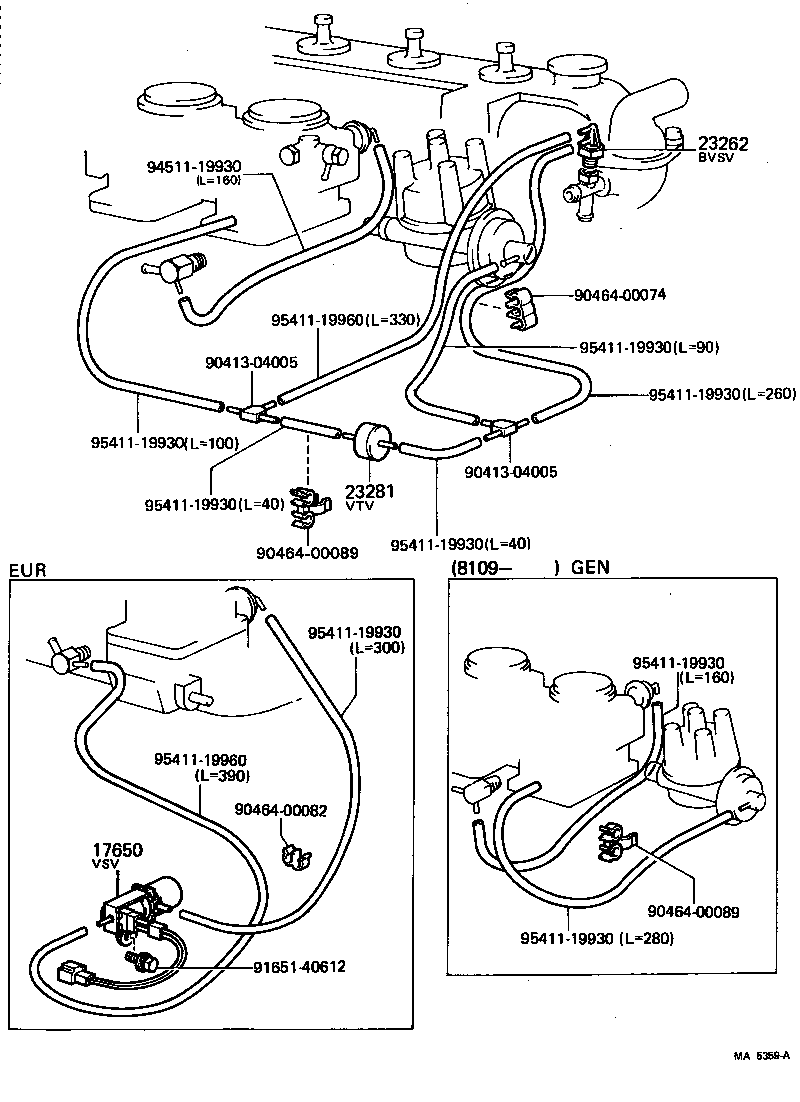

(8108-8507)2TB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12180 |
2TB..TA60..EUG |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-15010 |
2T..TA60 |
1 | ||
| 90925-05044 |
2TB..TA60 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
2TB..TA60 |
2 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 91651-40612 | ||||
| 94511-19930 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
(8108- )2T#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01053 | ||||
| 90925-01054 | ||||
| 90925-01062 | ||||
| 90925-01064 | ||||
