ST205R-BLMVZW (1994)

Toyota Celica

Production Feb 1994 - Jun 1996
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9402- )ST205

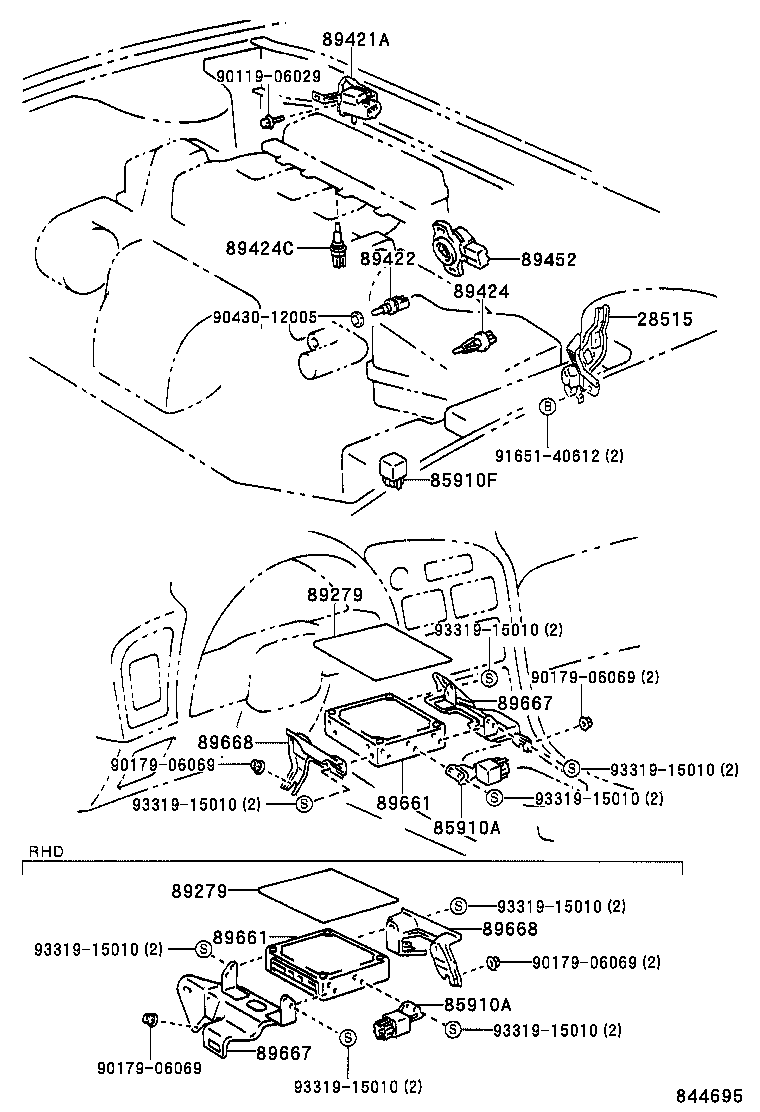

Click highlighted areas on diagram

diagram 28515 85910A 85910A 85910F 89279 89279 89421A 89422 89424 89424C 89452 89661 89661 89667 89667 89668 89668 9011906029 9017906069 9017906069 9017906069 9017906069 9043012005 9165140612 9331915010 9331915010 9331915010 9331915010 9331915010 9331915010 9331915010 9331915010
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28510-74130

3SGTE..ST205

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-20040

AT200,ST20#..RHD

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-20040

AT200,ST20#..RHD

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

AT200,ST20#

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12020

ST20#

 1
89279-12020

AT200,ST20#

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12020

ST20#

 1
89279-12020

AT200,ST20#

 1
89421A - SENSOR, TURBO PRESSURE
89420-20310

ST205

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

AT200,ST20#

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AT200,ST20#

 1
89424C - SENSOR, INLET AIR TEMPERATURE
89424-24010

ST205

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090

AT200,ST20#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-2B850

ST205

 1
89661 - COMPUTER, ENGINE CONTROL
89661-2B850

ST205

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-20320

AT200,ST205..RHD

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-20320

AT200,ST205..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20300

AT200,ST20#..RHD

 1
89668-20300

ST20#..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20300

AT200,ST20#..RHD

 1
89668-20300

ST20#..RHD

 1
Common parts
90119-06029
90179-06069
90430-12005
91651-40612
93319-15010
