ST205R-BLMVZW (1994)

Toyota Celica

Production Feb 1994 - Jun 1996
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9402-9606)ST205

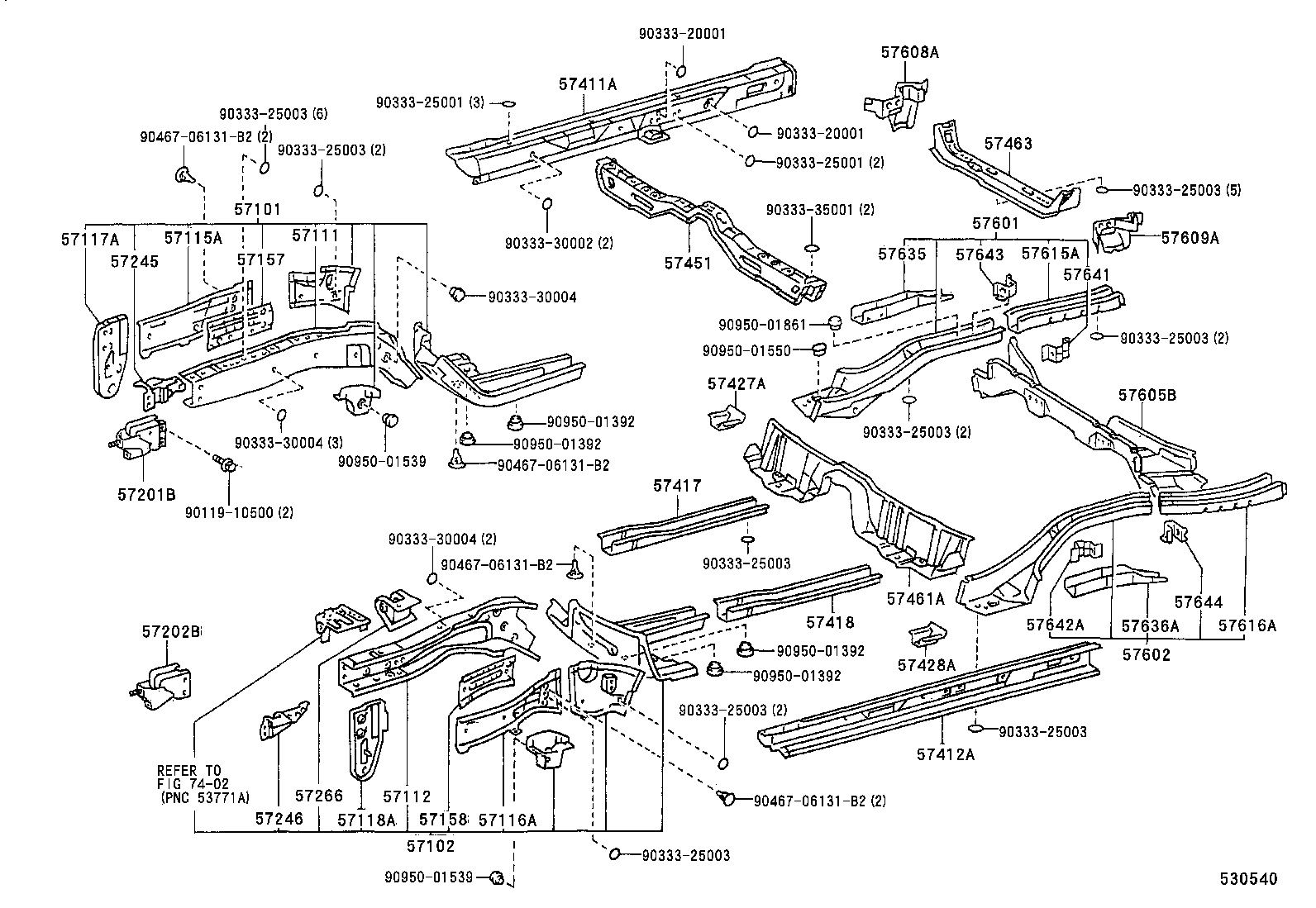

Click highlighted areas on diagram

diagram 57101 57102 57111 57112 57115A 57116A 57117A 57118A 57157 57158 57201B 57202B 57245 57246 57266 57411A 57412A 57417 57418 57427A 57428A 57451 57461A 57463 57601 57602 57605B 57608A 57609A 57615A 57616A 57635 57636A 57641 57642A 57643 57644 7402 9011910500 9033320001 9033320001 9033325001 9033325001 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033330002 9033330004 9033330004 9033330004 9033335001 9046706131B2 9046706131B2 9046706131B2 9046706131B2 9095001392 9095001392 9095001392 9095001392 9095001539 9095001539 9095001550 9095001861
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20770

ST20#..LB

W(SUPER STRUT SUSPENSION)

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20790

ST20#..LB

W(SUPER STRUT SUSPENSION)

 1
57111 - MEMBER, FRONT SIDE, RH
57111-20240

AT200,ST20#

 1
57112 - MEMBER, FRONT SIDE, LH
57112-20250

AT200,ST20#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-20170

AT200,ST20#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-20190

AT200,ST20#

 1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-20100

AT200,ST20#

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57118-20060

AT200,ST20#

 1
57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57157-20090

AT200,ST20#

 1
57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57158-20090

AT200,ST20#

 1
57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57201-20060

ST205

 1
57202B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57202-20070

ST205

 1
57245 - REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH
57245-20020

AT200,ST20#

 1
57246 - REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH
57246-20020

AT200,ST20#

 1
57266 - REINFORCEMENT, TOUSION BAR ANCHOR ARM, LH
57266-20150

ST20#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-20350

AT200,ST20#..LB

 1
57401-20320

AT200,ST20#..LB

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-20350

AT200,ST20#..LB

 1
57402-20380

AT200,ST20#..LB

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-20090

AT200,ST20#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-20090

AT200,ST20#

 1
57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-20020

ST205

 1
57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH
57428-20020

ST205

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-20901

AT200,ST20#

 1
57461A - MEMBER, CENTER FLOOR CROSS
57461-20040

ST205

 1
57463 - MEMBER, CENTER FLOOR CROSS, NO.3
57463-20050

ST205

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20450

ST205

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20440

ST205

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-20120

ST205

 1
57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-20050

ST205

 1
57609A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57609-20050

ST205

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-20913

ST205

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-20903

ST205

 1
57616-20912

ST205

 1
57635 - REINFORCEMENT, REAR FLOOR SIDE MEMBER
57635-20020

ST205

 1
57636A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
57636-20020

ST205

 1
57641 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER RH
57641-20030

ST205

 1
57642A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER LH
57642-20030

ST205

 1
57643 - STIFFENER, REAR FLOOR SIDE MEMBER, CENTER RH
57643-20020

ST205

 1
57644 - STIFFENER, REAR FLOOR SIDE MEMBER, CENTER LH
57644-20020

ST205

 1
Common parts
90119-10500
90333-20001
90333-25001
90333-25003
90333-30002
90333-30004
90333-35001
90467-06131B2
90950-01392
90950-01539
90950-01550
90950-01861
Linked diagrams
7402
