ST205R-BLMVZW (1994)
Toyota Celica
Production
Feb 1994
-
Jun 1996
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

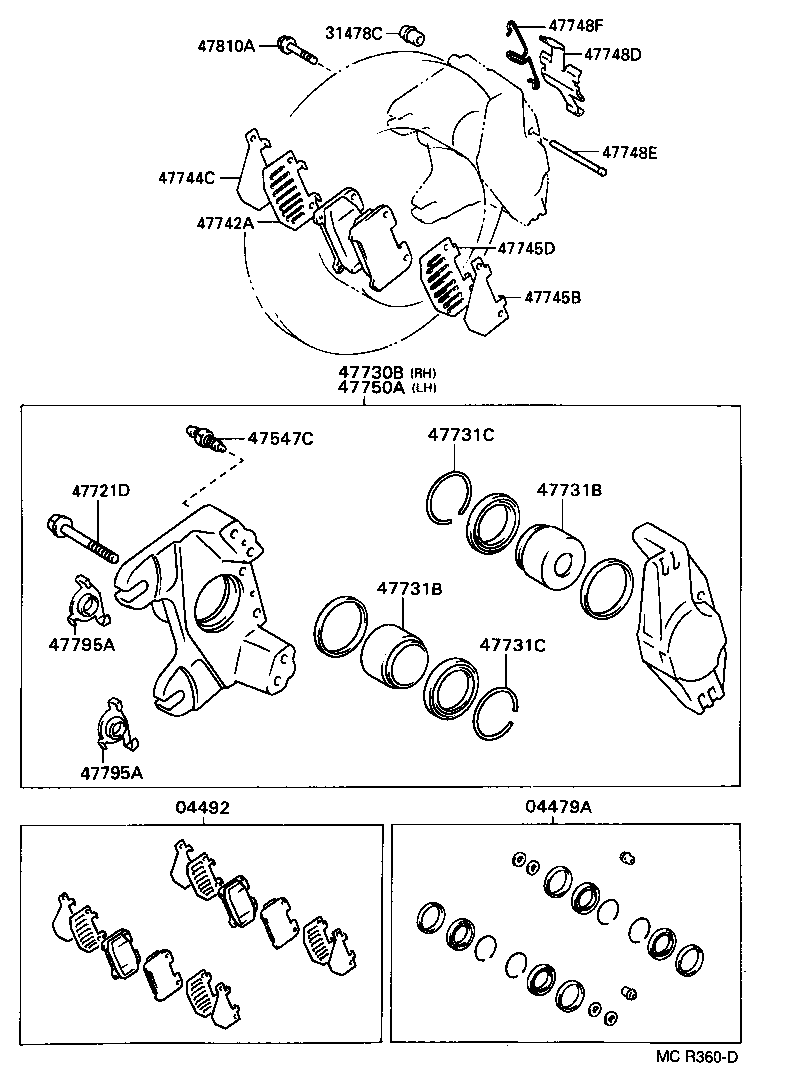

ILLUST NO. 1 OF 2(9402- )ST205
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-20270 |
ST205 |
1 | ||
| 04479-20200 |
ST205 |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-20110 |
ST205 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-14010 |
ST205 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20030 |
ST205 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08317 |
ST205 *8-1.00PX77.5-24 |
8 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-20570 |
ST205 |
1 | ||
| 47730-20571 |
ST205 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-20230 |
ST205 |
4 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-20230 |
ST205 |
4 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-44002 |
ST205 |
4 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-44002 |
ST205 |
4 | ||
| 47742A - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE) | ||||
| 47744-20180 |
ST205 RH |
1 | ||
| 47744-20190 |
ST205 LH |
1 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47745-14120 |
ST205 LH |
1 | ||
| 47745-14090 |
ST205 RH |
1 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47745-14120 |
ST205 RH |
1 | ||
| 47745-14090 |
ST205 LH |
1 | ||
| 47745D - SHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE) | ||||
| 47744-20180 |
ST205 LH |
1 | ||
| 47744-20190 |
ST205 RH |
1 | ||
| 47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-14090 |
ST205 |
2 | ||
| 47748E - PIN, W/HOLE(FOR REAR DISC BRAKE) | ||||
| 90240-06017 |
ST205 |
4 | ||
| 47748F - CLIP(FOR REAR DISC BRAKE) | ||||
| 90468-12020 |
ST205 |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-20571 |
ST205 |
1 | ||
| 47750-20570 |
ST205 |
1 | ||
| 47795A - PLATE, REAR DISC BRAKE CALIPER, NO.1 | ||||
| 47795-20020 |
ST205 |
4 | ||
| 47795A - PLATE, REAR DISC BRAKE CALIPER, NO.1 | ||||
| 47795-20020 |
ST205 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10445 |
ST205 |
4 | ||
