ST205R-BLMVZW (1994)
Toyota Celica
Production
Feb 1994
-
Jun 1996
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9402-9606)ST205

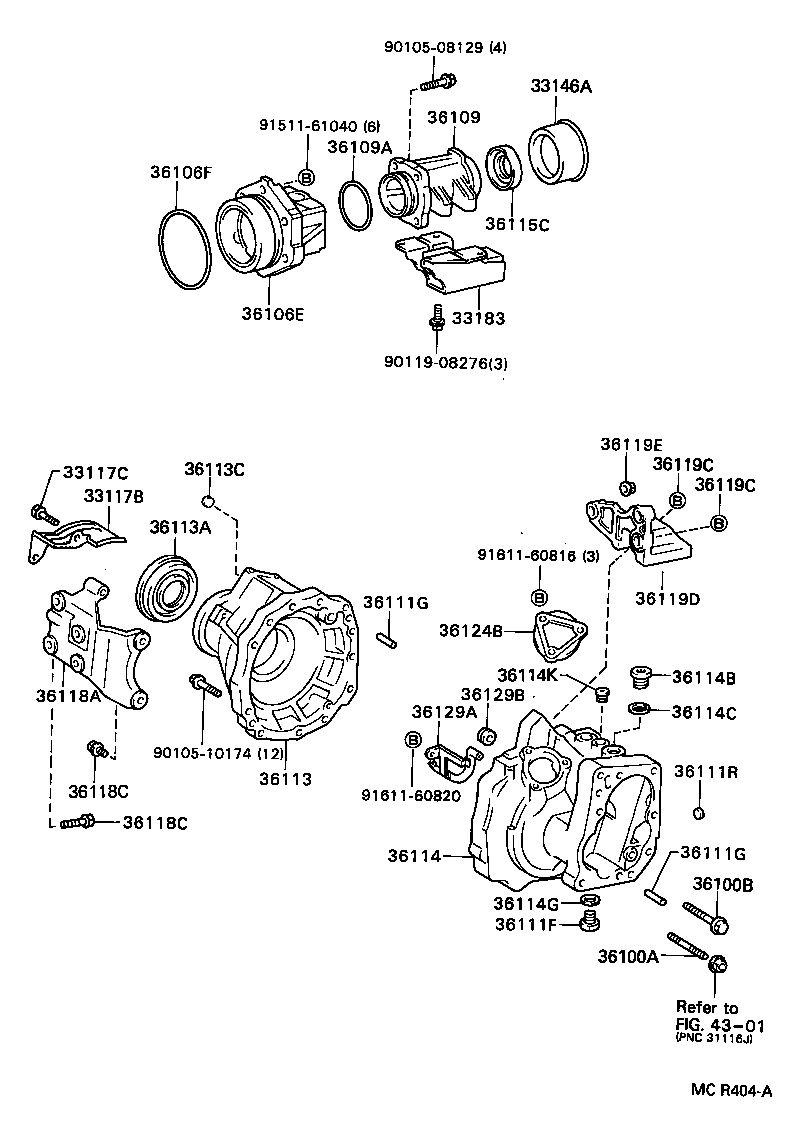

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33117B - PROTECTOR, TRANSFER CASE | ||||
| 33117-20030 |
ST205 |
1 | ||
| 33117C - BOLT(FOR TRANSFER CASE PROTECTOR) | ||||
| 90105-08040 |
ST205 |
2 | ||
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-30020 |
ST205 |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-20050 |
ST205 |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12028 |
ST205 S=22 & 22,L=69 |
2 | ||
| 90116-12018 |
ST205 S=27 & 27,L=75 |
3 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-12137 |
ST205 *12-1.25PX52-30 |
3 | ||
| 36106E - CAGE SUB-ASSY, TRANSFER PINION BEARING | ||||
| 36106-20010 |
ST205 |
1 | ||
| 36106F - RING, O (FOR TRANSFER PINION BEARING CAGE) | ||||
| 90301-99049 |
ST205 |
1 | ||
| 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION | ||||
| 36109-20012 |
ST205 |
1 | ||
| 36109A - RING, O (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90301-63005 |
ST205 |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
ST205 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
ST205 L=20,OD=10 |
2 | ||
| 90250-12005 |
ST205 L=24,OD=12 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
ST205 L=20,OD=10 |
2 | ||
| 90250-12005 |
ST205 L=24,OD=12 |
2 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 90331-08002 |
ST205 |
1 | ||
| 36113 - CASE, TRANSFER, RH | ||||
| 36113-20020 |
ST205 |
1 | ||
| 36113A - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-47003 |
ST205 |
1 | ||
| 36113C - PLUG (FOR TRANSFER CASE) | ||||
| 90331-14004 |
ST205 |
1 | ||
| 36114 - CASE, TRANSFER, LH | ||||
| 36114-20021 |
ST205 |
1 | ||
| 36114-20050 |
ST205 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-22001 |
ST205 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-22002 |
ST205 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
ST205 |
1 | ||
| 36114K - PLUG, TRANSFER SHIFT DETENT BALL | ||||
| 90341-12004 |
ST205 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38032 |
ST205 |
1 | ||
| 36118A - PLATE, TRANSFER STIFFENER, RH | ||||
| 36118-20020 |
ST205 |
1 | ||
| 36118C - BOLT (FOR TRANSFER STIFFENER PLATE) | ||||
| 91511-61020 |
ST205 |
4 | ||
| 36118C - BOLT (FOR TRANSFER STIFFENER PLATE) | ||||
| 91511-61020 |
ST205 |
4 | ||
| 36119C - BOLT (FOR TRANSFER OIL RECEIVER NO.1) | ||||
| 91511-61030 |
ST205 *10-1.25PX30-30 |
4 | ||
| 90105-10216 |
ST205 *10-1.25PX34-34 |
4 | ||
| 91511-61030 |
ST205 *10-1.25PX30-30 |
2 | ||
| 36119C - BOLT (FOR TRANSFER OIL RECEIVER NO.1) | ||||
| 91511-61030 |
ST205 *10-1.25PX30-30 |
4 | ||
| 90105-10216 |
ST205 *10-1.25PX34-34 |
4 | ||
| 91511-61030 |
ST205 *10-1.25PX30-30 |
2 | ||
| 36119D - PLATE, TRANSFER STIFFENER, CENTER | ||||
| 36119-20012 |
ST205 |
1 | ||
| 36119E - NUT (FOR TRANSFER STIFFENER CENTER PLATE) | ||||
| 90179-10016 |
ST205 |
1 | ||
| 36124B - COVER, TRANSFER INSPECTION HOLE | ||||
| 36124-12010 |
ST205 |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-20010 |
ST205 |
1 | ||
| 36129B - CUSHION (FOR TRANSFER OIL TUBE) | ||||
| 90540-06027 |
ST205 |
1 | ||
| Common parts | ||||
| 90105-08129 | ||||
| 90105-10174 | ||||
| 90119-08276 | ||||
| 91511-61040 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 4301 | ||||
