ST205L-BLMVZW (1994)
Toyota Celica
Production
Feb 1994
-
Jun 1996
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

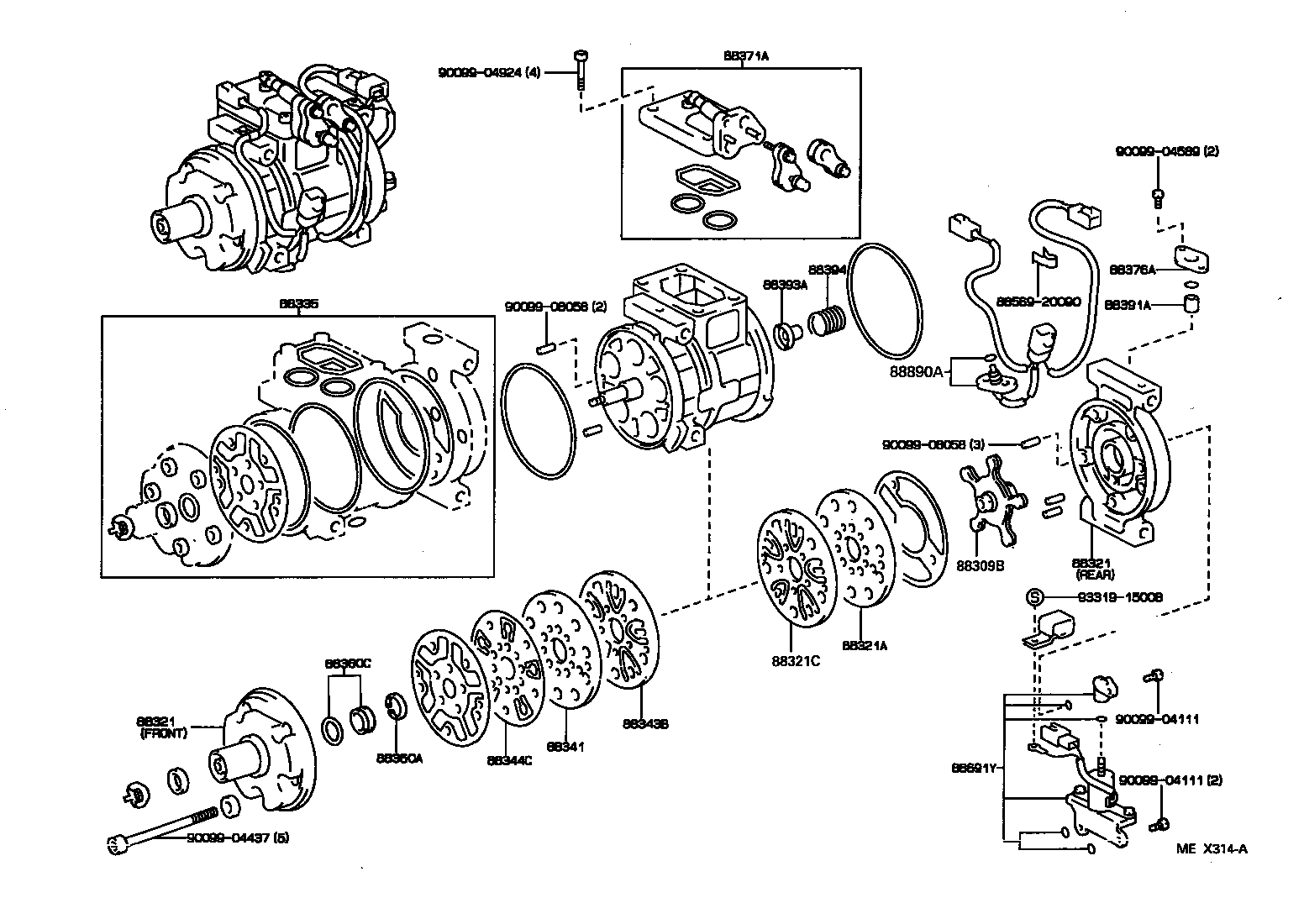

ILLUST NO. 3 OF 3(9402- )ST205
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88309B - PLUNGER SUB-ASSY | ||||
| 88309-2B020 |
ST205 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
AT200,ST20# FRONT |
1 | ||
| 88322-2B020 |
ST205 REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
AT200,ST20# FRONT |
1 | ||
| 88322-2B020 |
ST205 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-20030 |
ST205 |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-32010 |
ST205 |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B020 |
ST205 |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-22010 |
AT200,ST20# |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ST205 |
1 | ||
| 88343-14020 |
AT200,ST20# |
1 | ||
| 88343-14020 |
AT200,ST20#..LB |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
ST205 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AT200,ST20# |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B010 |
AT200,ST20# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-2B120 |
ST20# |
1 | ||
| 88376A - CAP, COMPRESSOR | ||||
| 88376-32010 |
ST205 |
1 | ||
| 88391A - VALVE, FLOAT | ||||
| 88391-32010 |
ST205 |
1 | ||
| 88393A - PLATE, STOPPER | ||||
| 88393-32010 |
ST205 |
1 | ||
| 88394 - SPRING, COMPRESSOR | ||||
| 88394-32010 |
ST205 |
1 | ||
| 88691Y - VALVE, MAGNET | ||||
| 88691-2B010 |
ST205 |
1 | ||
| 88890A - PICK UP, ASSY | ||||
| 88336-2B090 |
ST205 |
1 | ||
| Common parts | ||||
| 88569-20090 | ||||
| 90099-04111 | ||||
| 90099-04437 | ||||
| 90099-04589 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 93319-15008 | ||||
