ST205L-BLMVZW (1994)

Toyota Celica

Production Feb 1994 - Jun 1996
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311-9508)AT200,ST202..LB ; (9402-9606)ST205 ;(9408-9512)CVT

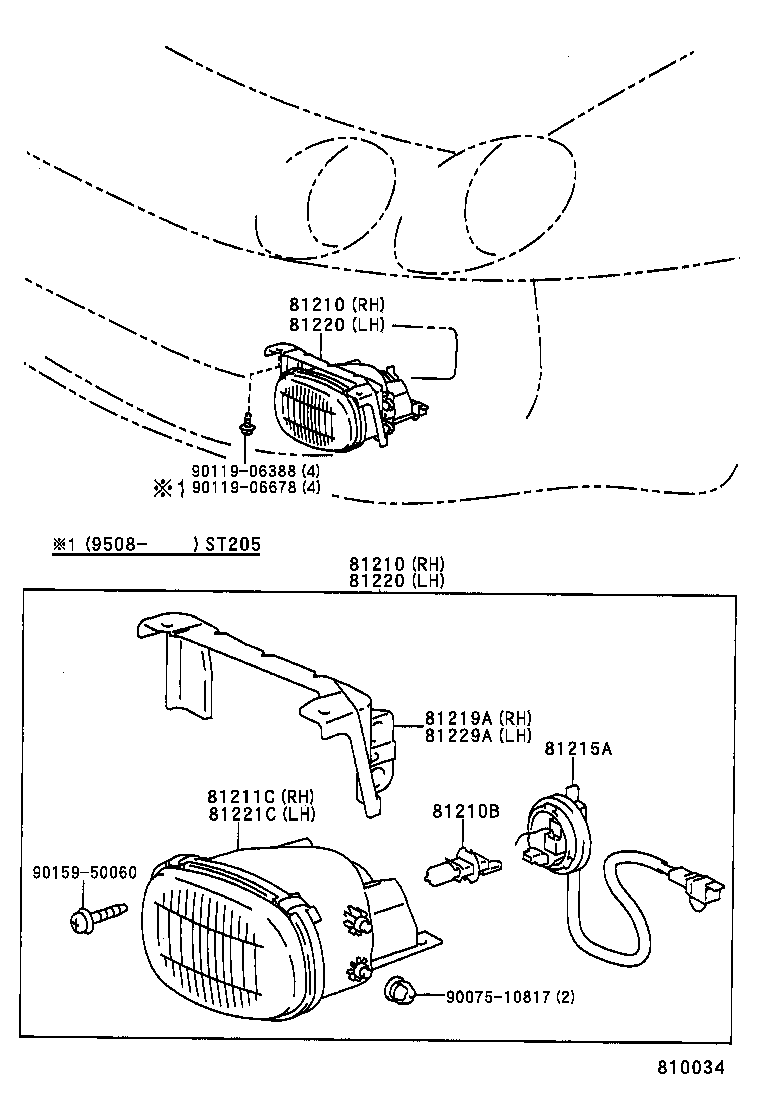

Click highlighted areas on diagram

diagram 81210 81210 81210B 81211C 81215A 81219A 81220 81220 81221C 81229A 9007510817 9011906388 9011906678 9015950060
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-20370

ST205

 1
81210 - LAMP ASSY, FOG
81210-20370

ST205

 1
81210B - BULB, FOG LAMP
90981-13018

AT200,ST20#

12V 55W,HALOGEN

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-20370

ST205

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-20360

ST205

 2
81219A - BRACKET, FOG LAMP, RH
81219-20360

ST205

 1
81220 - LAMP ASSY, FOG, LH
81220-20360

ST205

 1
81220 - LAMP ASSY, FOG, LH
81220-20360

ST205

 1
81221C - LAMP UNIT, FOG LAMP, LH
81211-20370

ST205

 1
81229A - BRACKET, FOG LAMP, LH
81229-20360

ST205

 1
Common parts
90075-10817
90119-06388
90119-06678
90159-50060
