ST205L-BLMVZW (1994)
Toyota Celica
Production
Feb 1994
-
Jun 1996
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9402-9606)3SGTE

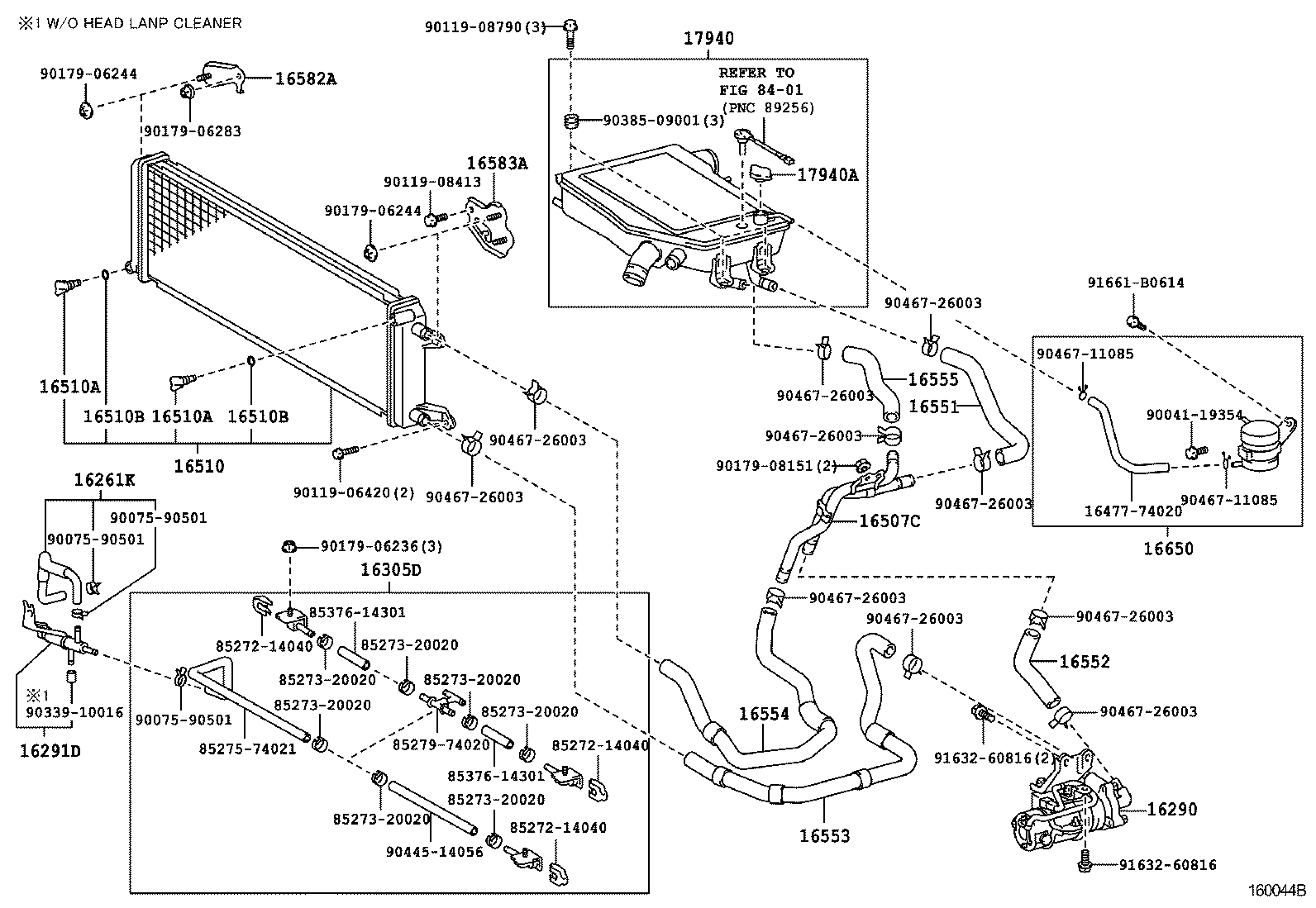

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261K - HOSE, WATER BY-PASS | ||||
| 16261-74091 |
3SGTE..ST205 |
1 | ||
| 16290 - PUMP ASSY, WATER W/MOTOR & BRACKET | ||||
| 16290-74030 |
3SGTE..ST205 |
1 | ||
| 16291D - JOINT, WATER HOSE | ||||
| 16291-74031 |
3SGTE..ST205 |
1 | ||
| 16291-74041 |
3SGTE..ST205 W(HEADLAMP CLEANER) |
1 | ||
| 16305D - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-74021 |
3SGTE..ST205 |
1 | ||
| 16507C - PIPE SUB-ASSY, SUB-RADIATOR, NO.1 | ||||
| 16507-74030 |
3SGTE..ST205 |
1 | ||
| 16510 - SUB-RADIATOR ASSY | ||||
| 16510-74030 |
3SGTE..ST205 |
1 | ||
| 16510A - PLUG, DRAIN COCK(FOR SUB-RADIATOR) | ||||
| 16417-15210 |
3SGTE..ST205 |
2 | ||
| 16510A - PLUG, DRAIN COCK(FOR SUB-RADIATOR) | ||||
| 16417-15210 |
3SGTE..ST205 |
2 | ||
| 16510B - RING, O(FOR SUB-RADIATOR DRAIN COCK PLUG) | ||||
| 16418-15520 |
3SGTE..ST205 |
2 | ||
| 16510B - RING, O(FOR SUB-RADIATOR DRAIN COCK PLUG) | ||||
| 16418-15520 |
3SGTE..ST205 |
2 | ||
| 16551 - HOSE, SUB-RADIATOR, NO.1 | ||||
| 16551-74030 |
3SGTE..ST205 |
1 | ||
| 16552 - HOSE, SUB-RADIATOR, NO.2 | ||||
| 16552-74030 |
3SGTE..ST205 |
1 | ||
| 16553 - HOSE, SUB-RADIATOR, NO.3 | ||||
| 16553-74030 |
3SGTE..ST205 |
1 | ||
| 16554 - HOSE, SUB-RADIATOR, NO.4 | ||||
| 16554-74030 |
3SGTE..ST205 |
1 | ||
| 16555 - HOSE, SUB-RADIATOR, NO.5 | ||||
| 16555-74030 |
3SGTE..ST205 |
1 | ||
| 16582A - BRACKET, RADIATOR, NO.1 | ||||
| 16582-74010 |
3SGTE..ST205 |
1 | ||
| 16583A - BRACKET, RADIATOR, NO.2 | ||||
| 16583-74010 |
3SGTE..ST205 |
1 | ||
| 16650 - TANK ASSY, RESERVE(FOR INTERCOOLER) | ||||
| 16650-74020 |
3SGTE..ST205 |
1 | ||
| 17940 - INTERCOOLER ASSY | ||||
| 17940-74100 |
3SGTE..ST205 GROUP A SPEC |
1 | ||
| 17940-74080 |
3SGTE..ST205 |
1 | ||
| 17940A - CAP SUB-ASSY, INTERCOOLER | ||||
| 16401-63010 |
3SGTE..ST205 |
1 | ||
| Common parts | ||||
| 16477-74020 | ||||
| 85272-14040 | ||||
| 85273-20020 | ||||
| 85275-74021 | ||||
| 85279-74020 | ||||
| 85376-14301 | ||||
| 90041-19354 | ||||
| 90075-90501 | ||||
| 90119-06420 | ||||
| 90119-08413 | ||||
| 90119-08790 | ||||
| 90179-06236 | ||||
| 90179-06244 | ||||
| 90179-06283 | ||||
| 90179-08151 | ||||
| 90339-10016 | ||||
| 90385-09001 | ||||
| 90445-14056 | ||||
| 90467-11085 | ||||
| 90467-26003 | ||||
| 91632-60816 | ||||
| 91661-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
