ST205L-BLMVZW (1994)

Toyota Celica

Production Feb 1994 - Jun 1996
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9402- )3SGTE

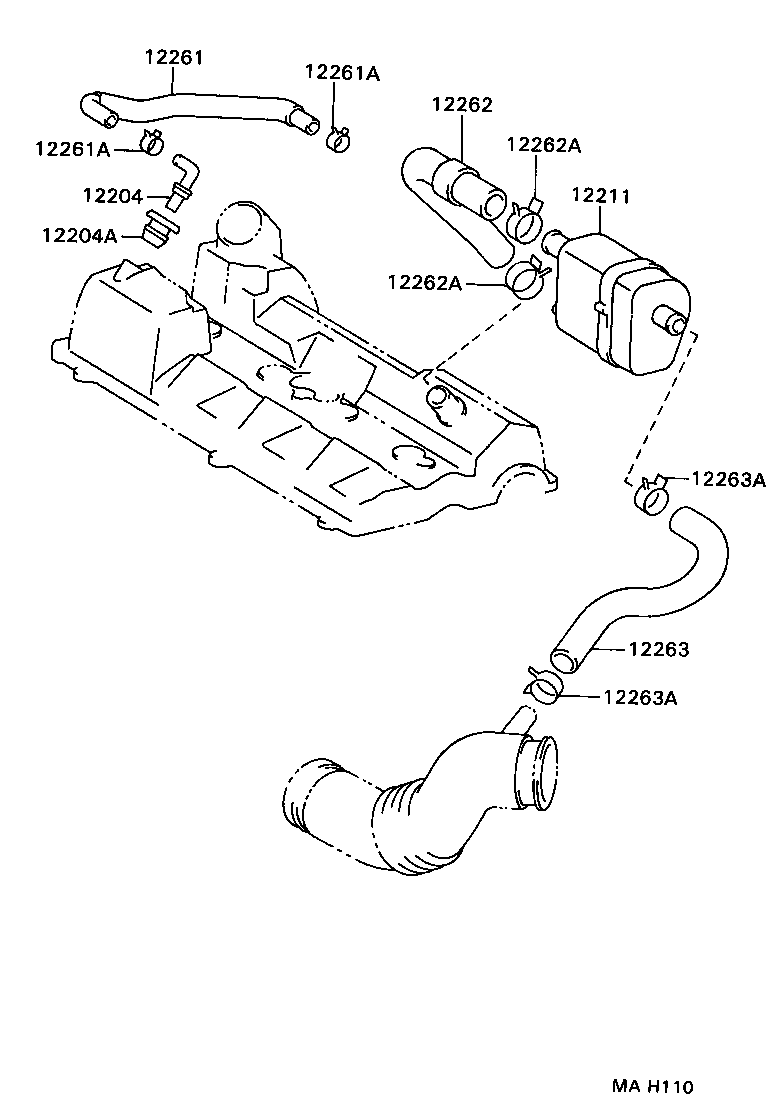

Click highlighted areas on diagram

diagram 12204 12204A 12211 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-88480

3SGTE..ST205

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18008

3SG#..ST20#

 1
12211 - CASE, VENTILATION, NO.1
12211-88480

3SGTE..ST205

 1
12261 - HOSE, VENTILATION
12261-88480

3SGTE..ST205

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14037

3SG#..ST20#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14037

3SG#..ST20#

 2
12262 - HOSE, VENTILATION, NO.2
12262-88480

3SGTE..ST205

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-26007

3SGTE..ST205

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-26007

3SGTE..ST205

 2
12263 - HOSE, VENTILATION, NO.3
12263-74070

3SGTE..ST205

 1
12263A - CLIP(FOR VENTILATION HOSE)
96134-42300

3SGTE..ST205

ENGINE SIDE

 1
90467-22007

3SGTE..ST205

CONNECTOR SIDE

 1
12263A - CLIP(FOR VENTILATION HOSE)
96134-42300

3SGTE..ST205

ENGINE SIDE

 1
90467-22007

3SGTE..ST205

CONNECTOR SIDE

 1
