ST204L-BLPSKA (1997)
Toyota Celica
ILLUST NO. 2 OF 2(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14067 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||

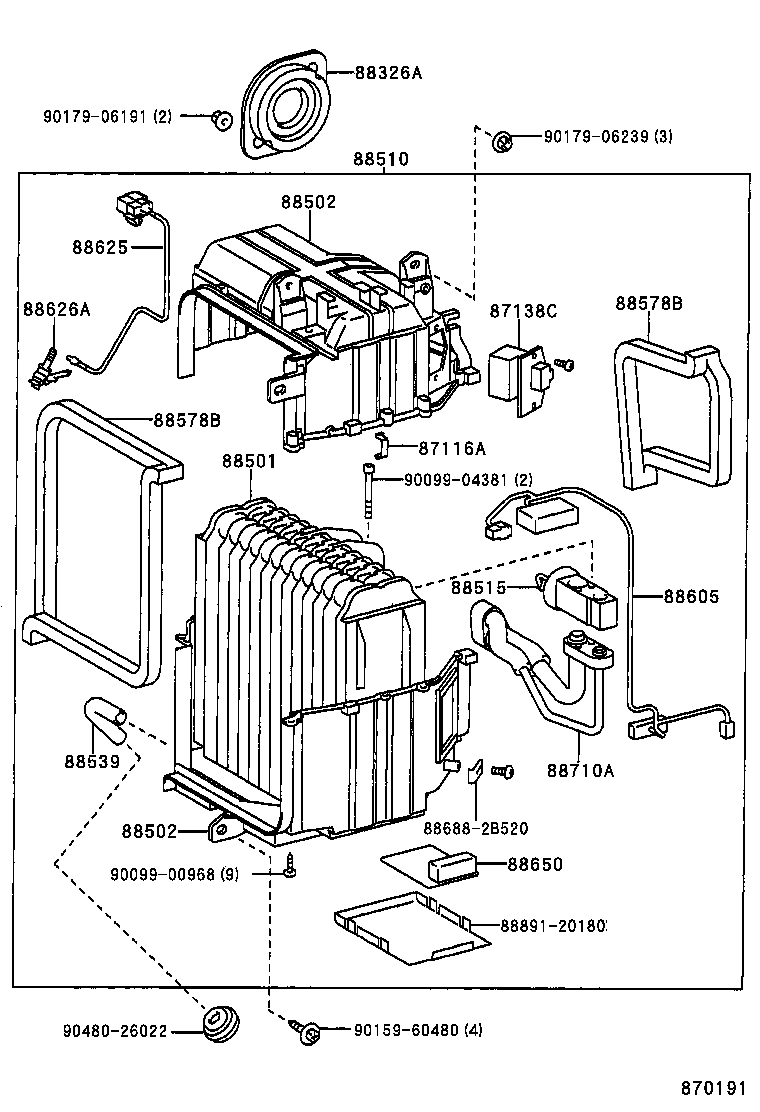

ILLUST NO. 1 OF 2(9309- )
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
AT200,ST204 |
4 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20150 |
ST204 DEALER OPTION |
1 | ||
| 87138-20150 |
ST204..USA DEALER OPTION |
1 | ||
| 87138-20300 |
AT200,ST204 MAKER OPTION |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-20050 |
ST204 |
1 | ||
| 88326-20050 |
ST204;AT200..USA |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20380 |
ST204;AT200..CND |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20260 |
ST204 LOWER |
1 | ||
| 88502-20260 |
ST204;AT200..USA LOWER |
1 | ||
| 88502-20250 |
ST204;AT200..USA UPPER |
1 | ||
| 88502-20250 |
ST204 UPPER |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20260 |
ST204 LOWER |
1 | ||
| 88502-20260 |
ST204;AT200..USA LOWER |
1 | ||
| 88502-20250 |
ST204;AT200..USA UPPER |
1 | ||
| 88502-20250 |
ST204 UPPER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2B480 |
ST204..USA DEALER OPTION |
1 | ||
| 88510-2B390 |
ST204 MAKER OPTION |
1 | ||
| 88510-2B480 |
ST204 DEALER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
ST204..USA DEALER OPTION |
1 | ||
| 88515-20100 |
AT200,ST204 DEALER OPTION |
1 | ||
| 88515-20120 |
ST204;AT200..USA MAKER OPTION |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20460 |
ST204 FRONT |
1 | ||
| 88578-20470 |
AT200,ST204 REAR |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20460 |
ST204 FRONT |
1 | ||
| 88578-20470 |
AT200,ST204 REAR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2D290 |
ST204 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
ST204..ST |
1 | ||
| 88625-20270 |
ST204;AT200..USA MAKER OPTION |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AT200,ST204 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-2B280 |
ST204 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20510 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 88688-2B520 | ||||
| 88891-20180 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90159-60480 | ||||
| 90179-06191 | ||||
| 90179-06239 | ||||
| 90480-26022 | ||||

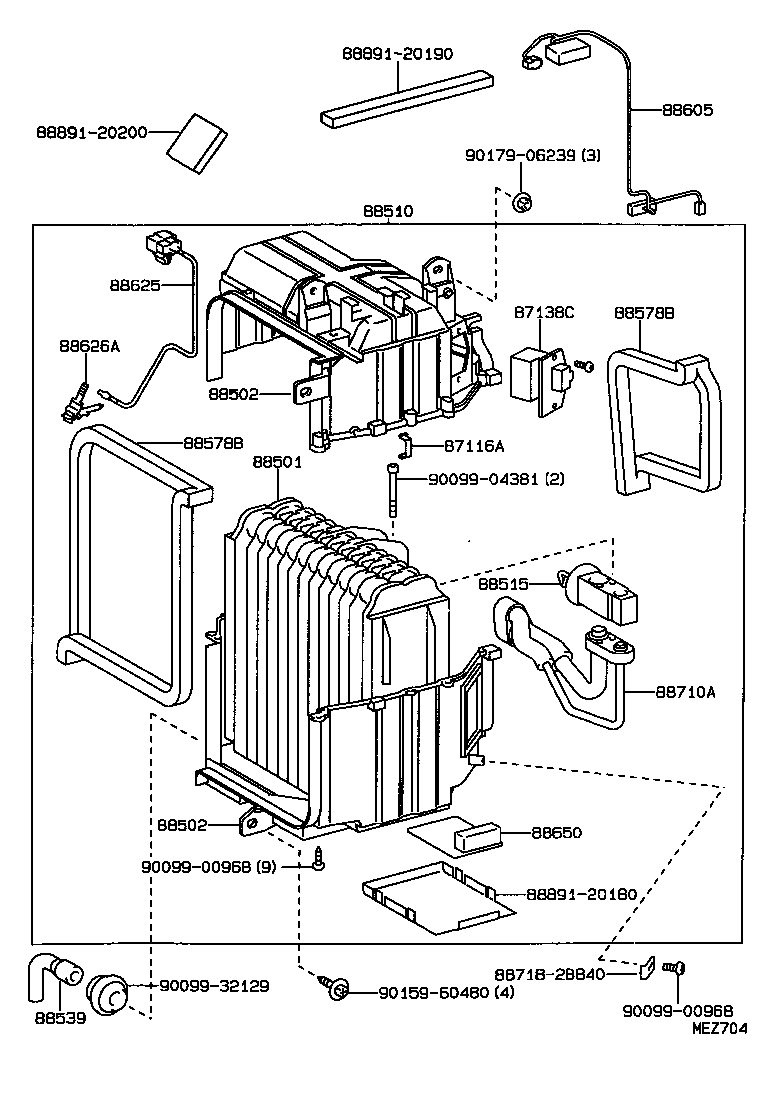

ILLUST NO. 1 OF 2(9309- )
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
AT200,ST204 |
4 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20150 |
ST204 DEALER OPTION |
1 | ||
| 87138-20150 |
ST204..USA DEALER OPTION |
1 | ||
| 87138-20300 |
AT200,ST204 MAKER OPTION |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20380 |
ST204;AT200..CND |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20260 |
ST204 LOWER |
1 | ||
| 88502-20260 |
ST204;AT200..USA LOWER |
1 | ||
| 88502-20250 |
ST204;AT200..USA UPPER |
1 | ||
| 88502-20250 |
ST204 UPPER |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20260 |
ST204 LOWER |
1 | ||
| 88502-20260 |
ST204;AT200..USA LOWER |
1 | ||
| 88502-20250 |
ST204;AT200..USA UPPER |
1 | ||
| 88502-20250 |
ST204 UPPER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2B480 |
ST204..USA DEALER OPTION |
1 | ||
| 88510-2B390 |
ST204 MAKER OPTION |
1 | ||
| 88510-2B480 |
ST204 DEALER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
ST204..USA DEALER OPTION |
1 | ||
| 88515-20100 |
AT200,ST204 DEALER OPTION |
1 | ||
| 88515-20120 |
ST204;AT200..USA MAKER OPTION |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20460 |
ST204 FRONT |
1 | ||
| 88578-20470 |
AT200,ST204 REAR |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20460 |
ST204 FRONT |
1 | ||
| 88578-20470 |
AT200,ST204 REAR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2D290 |
ST204 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
ST204..ST |
1 | ||
| 88625-20270 |
ST204;AT200..USA MAKER OPTION |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AT200,ST204 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-2B280 |
ST204 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20510 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 88718-2B840 | ||||
| 88891-20180 | ||||
| 88891-20190 | ||||
| 88891-20200 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-32129 | ||||
| 90159-60480 | ||||
| 90179-06239 | ||||
ILLUST NO. 2 OF 2(9311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14067 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||
ILLUST NO. 1 OF 2(9311- )
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
AT200,ST204 |
4 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20150 |
ST204 DEALER OPTION |
1 | ||
| 87138-20150 |
ST204..USA DEALER OPTION |
1 | ||
| 87138-20300 |
AT200,ST204 MAKER OPTION |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-20050 |
ST204 |
1 | ||
| 88326-20050 |
ST204;AT200..USA |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20380 |
ST204;AT200..CND |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20260 |
ST204 LOWER |
1 | ||
| 88502-20260 |
ST204;AT200..USA LOWER |
1 | ||
| 88502-20250 |
ST204;AT200..USA UPPER |
1 | ||
| 88502-20250 |
ST204 UPPER |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20260 |
ST204 LOWER |
1 | ||
| 88502-20260 |
ST204;AT200..USA LOWER |
1 | ||
| 88502-20250 |
ST204;AT200..USA UPPER |
1 | ||
| 88502-20250 |
ST204 UPPER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2B480 |
ST204..USA DEALER OPTION |
1 | ||
| 88510-2B390 |
ST204 MAKER OPTION |
1 | ||
| 88510-2B480 |
ST204 DEALER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
ST204..USA DEALER OPTION |
1 | ||
| 88515-20100 |
AT200,ST204 DEALER OPTION |
1 | ||
| 88515-20120 |
ST204;AT200..USA MAKER OPTION |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20460 |
ST204 FRONT |
1 | ||
| 88578-20470 |
AT200,ST204 REAR |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20460 |
ST204 FRONT |
1 | ||
| 88578-20470 |
AT200,ST204 REAR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2D290 |
ST204 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
ST204..ST |
1 | ||
| 88625-20270 |
ST204;AT200..USA MAKER OPTION |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AT200,ST204 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-2B280 |
ST204 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20510 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 88688-2B520 | ||||
| 88891-20180 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90159-60480 | ||||
| 90179-06191 | ||||
| 90179-06239 | ||||
| 90480-26022 | ||||
ILLUST NO. 1 OF 2(9311- )
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
AT200,ST204 |
4 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20150 |
ST204 DEALER OPTION |
1 | ||
| 87138-20150 |
ST204..USA DEALER OPTION |
1 | ||
| 87138-20300 |
AT200,ST204 MAKER OPTION |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20380 |
ST204;AT200..CND |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20260 |
ST204 LOWER |
1 | ||
| 88502-20260 |
ST204;AT200..USA LOWER |
1 | ||
| 88502-20250 |
ST204;AT200..USA UPPER |
1 | ||
| 88502-20250 |
ST204 UPPER |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20260 |
ST204 LOWER |
1 | ||
| 88502-20260 |
ST204;AT200..USA LOWER |
1 | ||
| 88502-20250 |
ST204;AT200..USA UPPER |
1 | ||
| 88502-20250 |
ST204 UPPER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2B480 |
ST204..USA DEALER OPTION |
1 | ||
| 88510-2B390 |
ST204 MAKER OPTION |
1 | ||
| 88510-2B480 |
ST204 DEALER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
ST204..USA DEALER OPTION |
1 | ||
| 88515-20100 |
AT200,ST204 DEALER OPTION |
1 | ||
| 88515-20120 |
ST204;AT200..USA MAKER OPTION |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20460 |
ST204 FRONT |
1 | ||
| 88578-20470 |
AT200,ST204 REAR |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20460 |
ST204 FRONT |
1 | ||
| 88578-20470 |
AT200,ST204 REAR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2D290 |
ST204 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
ST204..ST |
1 | ||
| 88625-20270 |
ST204;AT200..USA MAKER OPTION |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AT200,ST204 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-2B280 |
ST204 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20510 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 88718-2B840 | ||||
| 88891-20180 | ||||
| 88891-20190 | ||||
| 88891-20200 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-32129 | ||||
| 90159-60480 | ||||
| 90179-06239 | ||||
