Toyota Celica ST204 DISTRIBUTOR - JDM Part Detective

ST204L-BLMGKA (1993)

Toyota Celica

Production Sep 1993 - Dec 1997

Engine 5SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9508-9510)5SFE..CP,LB ; (9510- )5SFE

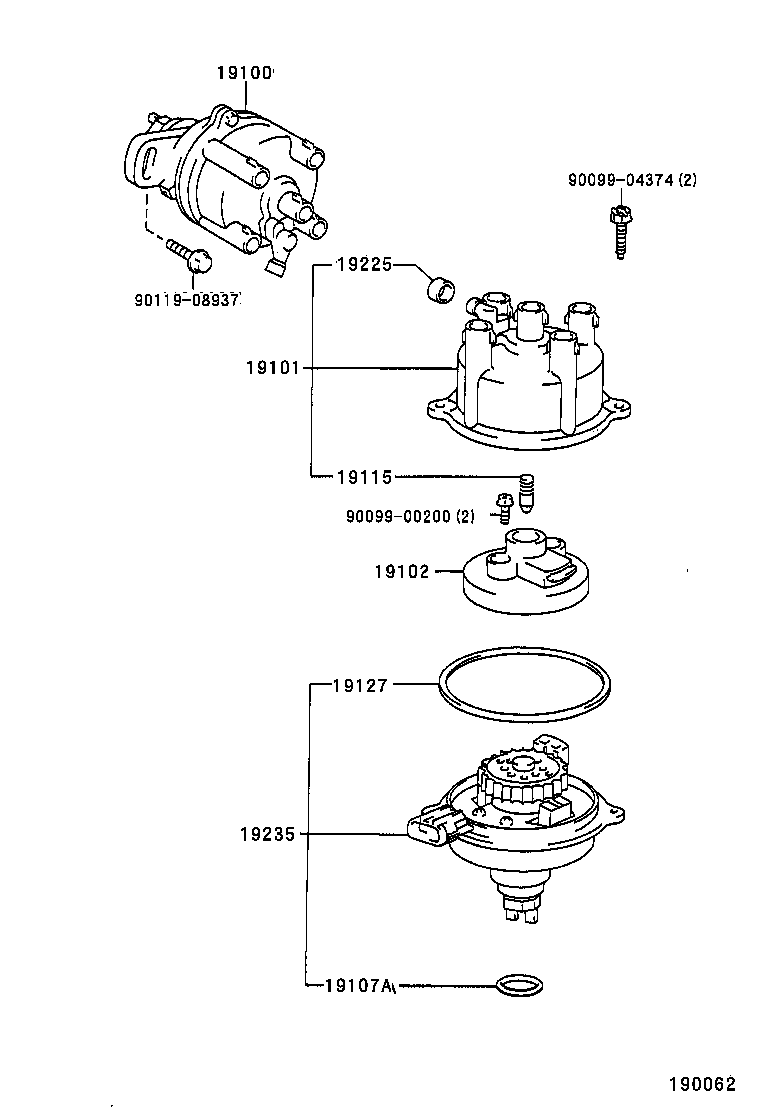

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19100-74230	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19100-74110	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19050-74040	5SFE..ST204	09/1993 - 08/1995	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74110	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19101-74180	5SFE..ST204	09/1993 - 08/1995	1
19101-74110	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-74040	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19102-11031	5SFE..ST204	09/1993 - 08/1995	1
19102-74040	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091	5SFE..ST204..USA CALIFORNIA SPEC	09/1994 - 08/1995	1
90099-14091	5SFE..ST204	09/1993 - 09/1994	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19115-63010	5SFE..ST204	09/1993 - 08/1995	2
19115-88280	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19127 - PACKING, DUST PROOF
19127-74050	5SFE..ST204	09/1993 - 08/1995	1
19127-74040	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19127-74040	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19225 - CAP, RUBBER
19225-74060	5SFE..ST204..USA	09/1993 - 08/1995	1
19235 - HOUSING, DISTRIBUTOR
19235-74230	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19235-74200	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19235-74210	5SFE..ST204	09/1993 - 08/1995	1
Common parts
90099-00200
90099-04374
90119-08937

(9309-9508)5SFE ; (9508-9510)5SFE..CVT

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19100-74230	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19100-74110	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19050-74040	5SFE..ST204	09/1993 - 08/1995	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74110	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19101-74180	5SFE..ST204	09/1993 - 08/1995	1
19101-74110	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-74040	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19102-11031	5SFE..ST204	09/1993 - 08/1995	1
19102-74040	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091	5SFE..ST204..USA CALIFORNIA SPEC	09/1994 - 08/1995	1
90099-14091	5SFE..ST204	09/1993 - 09/1994	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19115-63010	5SFE..ST204	09/1993 - 08/1995	2
19115-88280	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19115-63010	5SFE..ST204	09/1993 - 08/1995	2
19115-88280	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19121 - COVER, DUST PROOF
19121-11080	5SFE..ST204	09/1993 - 08/1995	1
19127 - PACKING, DUST PROOF
19127-74050	5SFE..ST204	09/1993 - 08/1995	1
19127-74040	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19127-74040	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19133 - CONDENSER, DISTRIBUTOR
19133-16240	5SFE..ST204	09/1993 - 08/1995	1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-74100	5SFE..ST204	09/1993 - 08/1995	1
19235 - HOUSING, DISTRIBUTOR
19235-74230	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19235-74200	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19235-74210	5SFE..ST204	09/1993 - 08/1995	1
19500B - COIL ASSY, IGNITION
90919-02163	5SFE..ST204	09/1993 - 08/1995	1
Common parts
90099-00957
90099-00966
90099-04374
90099-05179
90119-08937

(9309-9508)5SFE..USA ; (9508-9510)5SFE..CVT

Click highlighted areas on diagram

CALIFORNIA SPEC

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19100-74230	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19100-74110	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19050-74040	5SFE..ST204	09/1993 - 08/1995	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74110	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19101-74180	5SFE..ST204	09/1993 - 08/1995	1
19101-74110	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-74040	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19102-11031	5SFE..ST204	09/1993 - 08/1995	1
19102-74040	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091	5SFE..ST204..USA CALIFORNIA SPEC	09/1994 - 08/1995	1
90099-14091	5SFE..ST204	09/1993 - 09/1994	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19115-63010	5SFE..ST204	09/1993 - 08/1995	2
19115-88280	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19127 - PACKING, DUST PROOF
19127-74050	5SFE..ST204	09/1993 - 08/1995	1
19127-74040	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19127-74040	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19225 - CAP, RUBBER
19225-74060	5SFE..ST204..USA	09/1993 - 08/1995	1
19235 - HOUSING, DISTRIBUTOR
19235-74230	5SFE..ST204..CP,LB	08/1995 - 10/1995	1
19235-74200	5SFE..ST204..USA CALIFORNIA SPEC	09/1993 - 08/1995	1
19235-74210	5SFE..ST204	09/1993 - 08/1995	1
Common parts
90099-00200
90099-04374
90119-08937

ST204L-BLMGKA (1993)

(9508-9510)5SFE..CP,LB ; (9510- )5SFE

(9309-9508)5SFE ; (9508-9510)5SFE..CVT

(9309-9508)5SFE..USA ; (9508-9510)5SFE..CVT
