ST204L-BKPGKA (1994)
Toyota Celica
Production
Aug 1994
-
May 1999
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

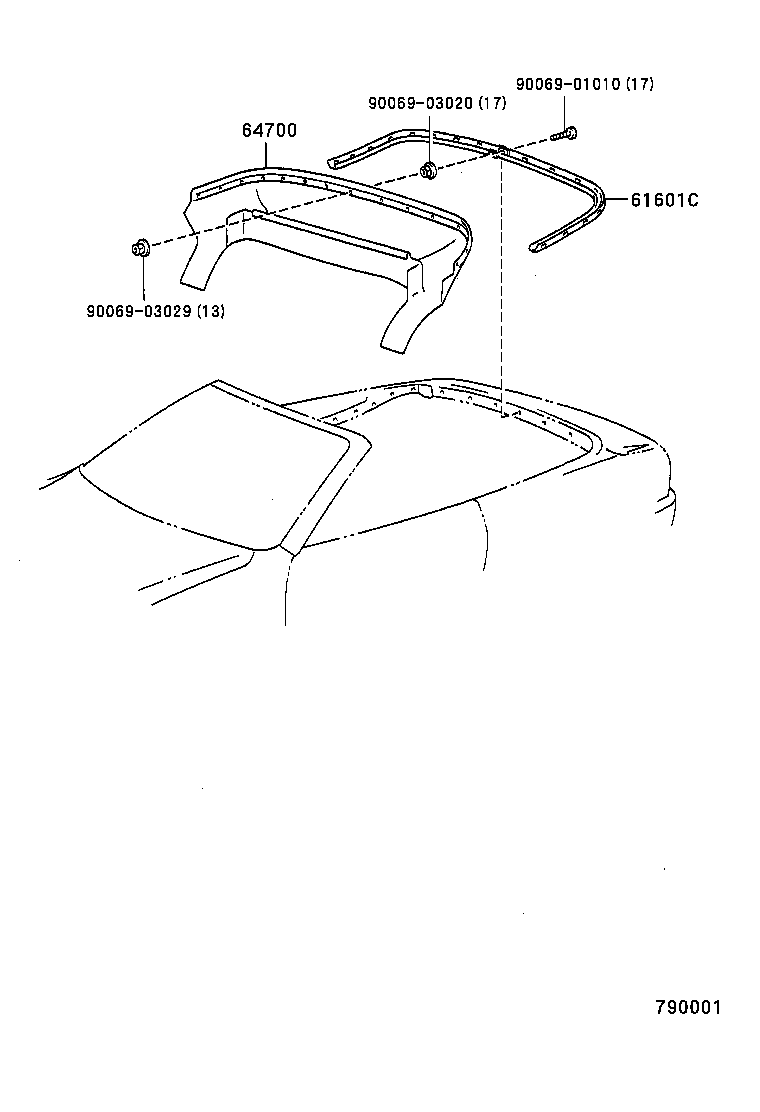

ILLUST NO. 3 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61601C - TROUGH SET, TARPAULIN FRONT RAIL, NO.1 RH | ||||
| 61601-0W010 |
ST204..CVT |
1 | ||
| 64700 - COVER ASSY, TARPAULIN STORAGE | ||||
| 64700-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-01010 | ||||
| 90069-03020 | ||||
| 90069-03029 | ||||

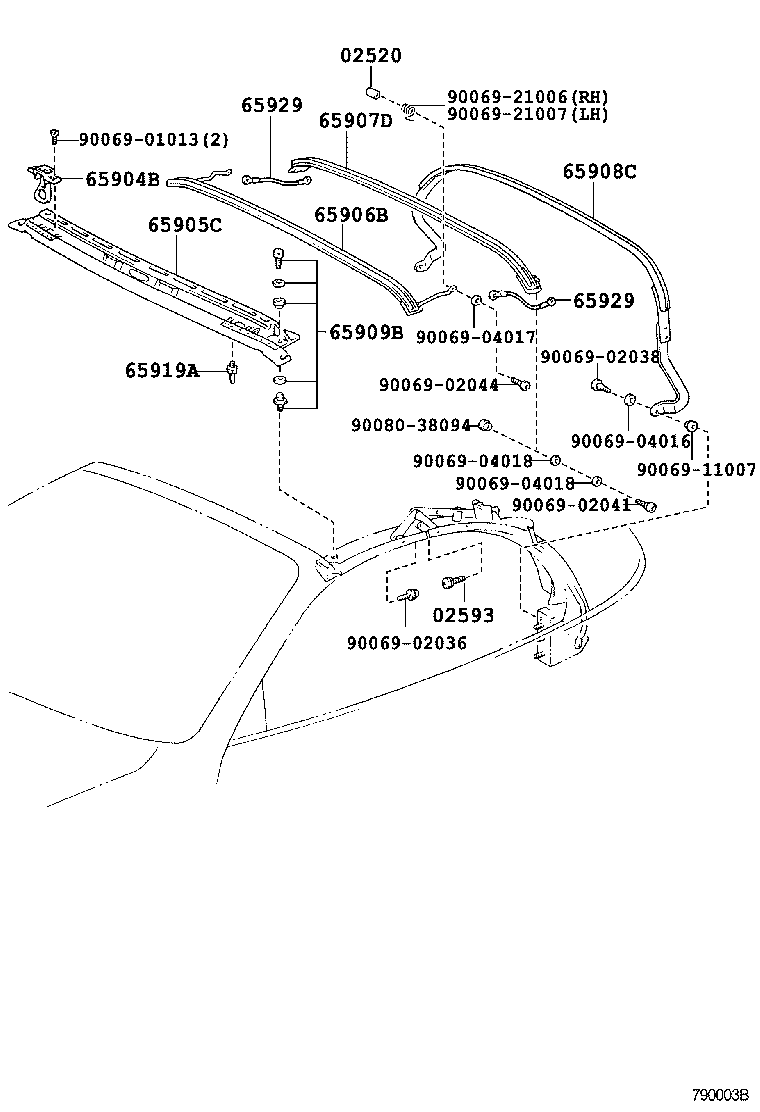

ILLUST NO.16 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02520 - BUSH | ||||
| 02520-86101 |
ST204..CVT |
2 | ||
| 02593 - RETAINER, FRONT HEADER | ||||
| 02593-86101 |
ST204..CVT |
16 | ||
| 65904B - LATCH SUB-ASSY, TARPAULIN | ||||
| 65904-0W010 |
ST204..CVT |
2 | ||
| 65905C - BOW SUB-ASSY, TARPAULIN, NO.1 | ||||
| 65905-0W010 |
ST204..CVT |
1 | ||
| 65906B - BOW SUB-ASSY, TARPAULIN, NO.2 | ||||
| 65906-0W010 |
ST204..CVT |
1 | ||
| 65907D - BOW SUB-ASSY, TARPAULIN, NO.3 | ||||
| 65907-0W010 |
ST204..CVT |
1 | ||
| 65908C - BOW SET, TARPAULIN, NO.4 | ||||
| 65908-0W010 |
ST204..CVT |
1 | ||
| 65909B - BOLT SET, NO.1 BOW | ||||
| 65909-0W010 |
ST204..CVT |
2 | ||
| 65919A - PIN, NO.1 BOW LOCATING | ||||
| 65919-0W010 |
ST204..CVT |
2 | ||
| 65929 - CABLE, TARPAULIN NO.3 BOW | ||||
| 65929-0W010 |
ST204..CVT |
2 | ||
| 65929-0W010 |
ST204..CVT |
2 | ||
| 65929 - CABLE, TARPAULIN NO.3 BOW | ||||
| 65929-0W010 |
ST204..CVT |
2 | ||
| 65929-0W010 |
ST204..CVT |
2 | ||
| Common parts | ||||
| 90069-01013 | ||||
| 90069-02036 | ||||
| 90069-02038 | ||||
| 90069-02041 | ||||
| 90069-02044 | ||||
| 90069-04016 | ||||
| 90069-04017 | ||||
| 90069-04018 | ||||
| 90069-11007 | ||||
| 90069-21006 | ||||
| 90069-21007 | ||||
| 90080-38094 | ||||

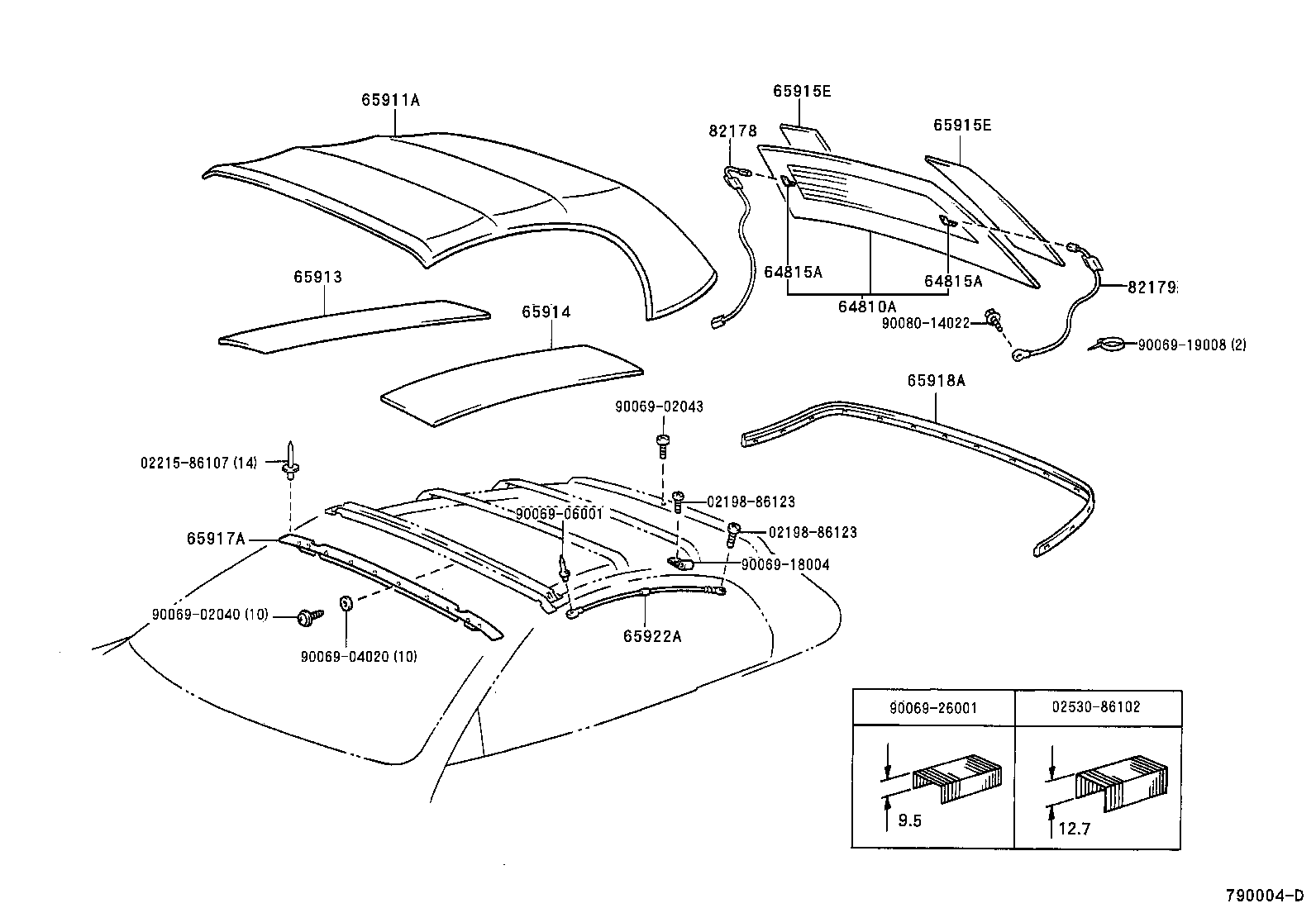

ILLUST NO.12 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64810A - WINDOW ASSY, CONVERTIBLE ROOF TARPAULIN BACK | ||||
| 64810-0W020 |
ST204..CVT TAN |
1 | ||
| 64810-0W010 |
ST204..CVT BLACK |
1 | ||
| 64810-0W010 |
ST204..CVT |
1 | ||
| 64815A - TERMINAL, BACK WINDOW GLASS | ||||
| 64815-0W010 |
ST204..CVT |
2 | ||
| 64815A - TERMINAL, BACK WINDOW GLASS | ||||
| 64815-0W010 |
ST204..CVT |
2 | ||
| 65911A - COVER, TARPAULIN | ||||
| 65911-0W010 |
ST204..CVT |
1 | ||
| 65913 - PAD, TARPAULIN COVER, FRONT RH | ||||
| 65913-0W010 |
ST204..CVT |
1 | ||
| 65914 - PAD, TARPAULIN COVER, FRONT LH | ||||
| 65914-0W010 |
ST204..CVT |
1 | ||
| 65915E - PAD, TARPAULIN COVER, REAR | ||||
| 65915-0W010 |
ST204..CVT |
2 | ||
| 65915E - PAD, TARPAULIN COVER, REAR | ||||
| 65915-0W010 |
ST204..CVT |
2 | ||
| 65917A - RETAINER, TARPAULIN COVER, UPPER | ||||
| 65917-0W010 |
ST204..CVT |
1 | ||
| 65918A - RETAINER, TARPAULIN COVER, LOWER | ||||
| 65918-0W010 |
ST204..CVT |
1 | ||
| 65922A - CABLE, TARPAULIN COVER | ||||
| 65922-0W010 |
ST204..CVT |
2 | ||
| 82178 - CABLE, BACK WINDOW GLASS WIRE, RH | ||||
| 82178-0W010 |
ST204..CVT |
1 | ||
| 82179 - CABLE, BACK WINDOW GLASS WIRE, LH | ||||
| 82179-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 02198-86123 | ||||
| 02215-86107 | ||||
| 02530-86102 | ||||
| 90069-02040 | ||||
| 90069-02043 | ||||
| 90069-04020 | ||||
| 90069-06001 | ||||
| 90069-18004 | ||||
| 90069-19008 | ||||
| 90069-26001 | ||||
| 90080-14022 | ||||

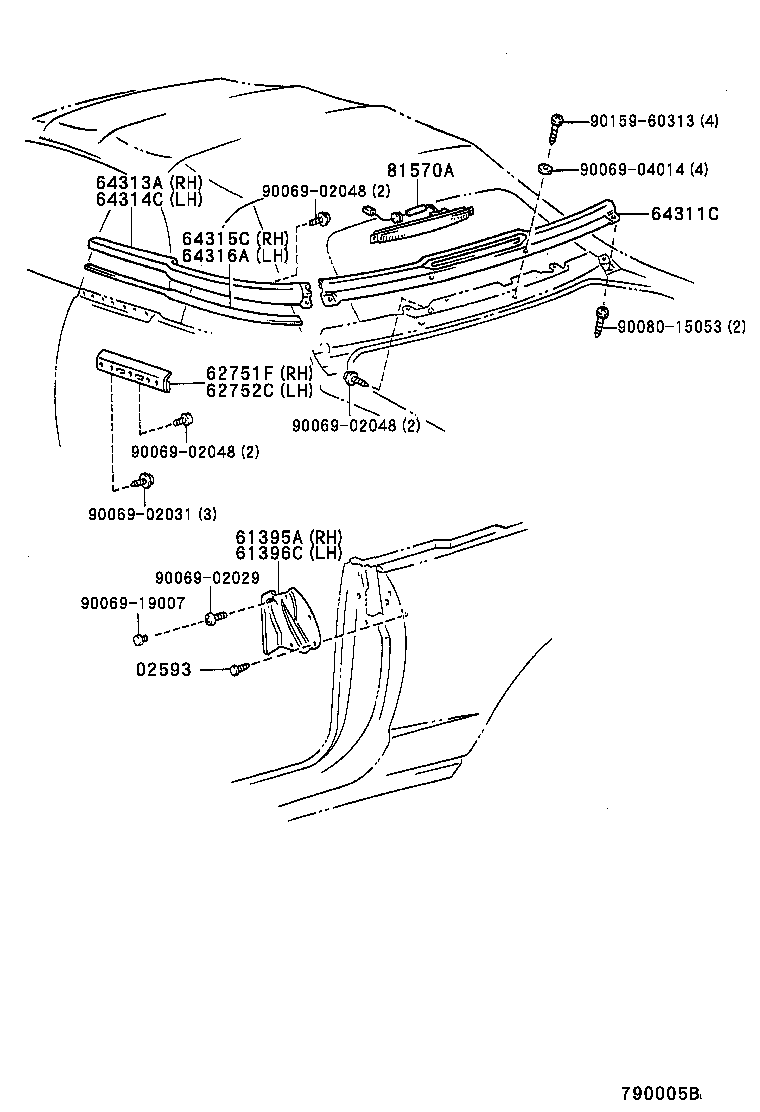

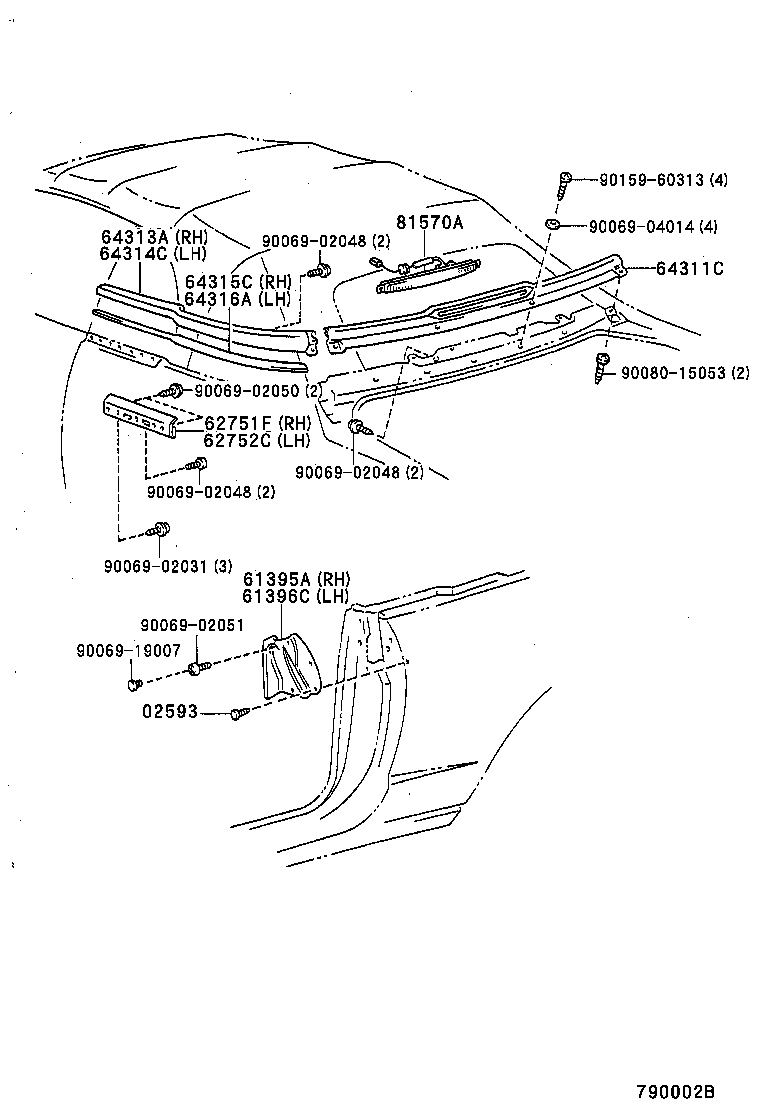

ILLUST NO.10 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02593 - RETAINER, FRONT HEADER | ||||
| 02593-86101 |
ST204..CVT |
16 | ||
| 61395A - DUST PROOF, CENTER PILLAR, RH | ||||
| 61395-0W010 |
ST204..CVT |
1 | ||
| 61396C - DUST PROOF, CENTER PILLAR, LH | ||||
| 61396-0W010 |
ST204..CVT |
1 | ||
| 62751F - WEATHERSTRIP, QUARTER WINDOW GLASS, OUTER RH | ||||
| 62751-0W010 |
ST204..CVT |
1 | ||
| 62752C - WEATHERSTRIP, QUARTER WINDOW GLASS, OUTER LH | ||||
| 62752-0W010 |
ST204..CVT |
1 | ||
| 64311C - MOULDING, BACK BELT | ||||
| 64311-0W010 |
ST204..CVT |
1 | ||
| 64313A - MOULDING, SIDE BELT, RH | ||||
| 64313-0W010 |
ST204..CVT |
1 | ||
| 64314C - MOULDING, SIDE BELT, LH | ||||
| 64314-0W010 |
ST204..CVT |
1 | ||
| 64315C - PROTECTOR, SIDE BELT MOULDING | ||||
| 64315-0W010 |
ST204..CVT |
1 | ||
| 64316A - PROTECTOR, SIDE BELT MOULDING, LH | ||||
| 64316-0W010 |
ST204..CVT |
1 | ||
| 81570A - LAMP ASSY, STOP CENTER | ||||
| 81570-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-02029 | ||||
| 90069-02031 | ||||
| 90069-02048 | ||||
| 90069-04014 | ||||
| 90069-19007 | ||||
| 90080-15053 | ||||
| 90159-60313 | ||||

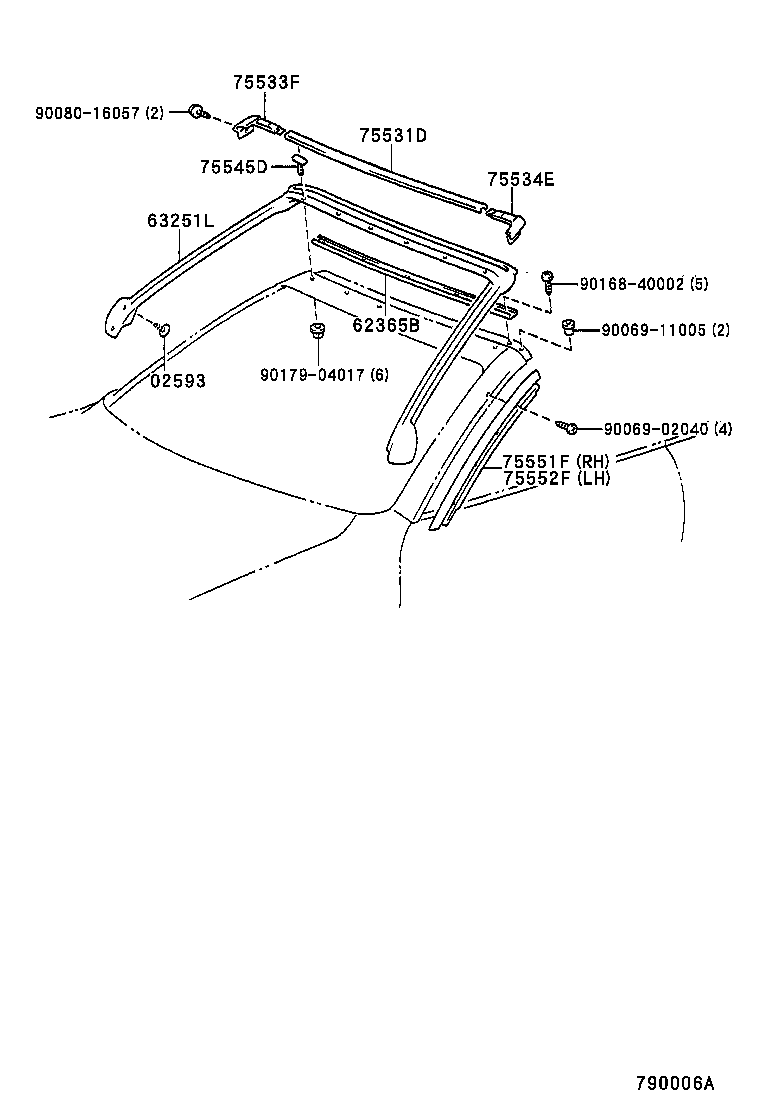

ILLUST NO. 9 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02593 - RETAINER, FRONT HEADER | ||||
| 02593-86101 |
ST204..CVT |
16 | ||
| 62365B - RETAINER, CONVERTIBLE ROOF WEATHERSTRIP | ||||
| 62365-0W010 |
ST204..CVT |
1 | ||
| 63251L - WEATHERSTRIP, CONVERTIBLE ROOF, FRONT | ||||
| 63251-0W020 |
ST204..CVT |
1 | ||
| 75531D - MOULDING, WINDSHIELD, OUTSIDE UPPER | ||||
| 75531-0W010 |
ST204..CVT |
1 | ||
| 75533F - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 75533-0W010 |
ST204..CVT |
1 | ||
| 75534E - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 75534-0W010 |
ST204..CVT |
1 | ||
| 75545D - BOLT, WINDSHIELD OUTSIDE MOULDING | ||||
| 75545-0W010 |
ST204..CVT |
6 | ||
| 75551F - MOULDING, ROOF DRIP SIDE, RH | ||||
| 75551-20510 |
ST204..CVT |
1 | ||
| 75552F - MOULDING, ROOF DRIP SIDE, LH | ||||
| 75552-20510 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-02040 | ||||
| 90069-11005 | ||||
| 90080-16057 | ||||
| 90168-40002 | ||||
| 90179-04017 | ||||

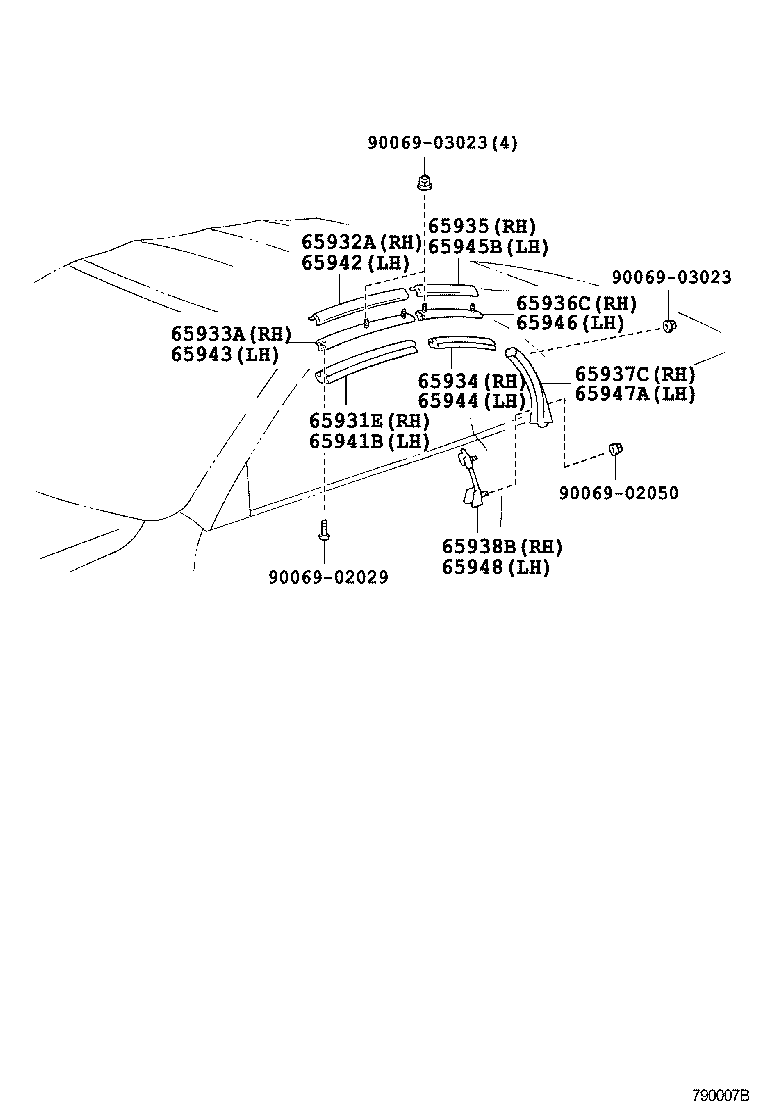

ILLUST NO. 8 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65931E - WEATHERSTRIP, TARPAULIN FRONT RAIL, NO.1 RH | ||||
| 65931-0W010 |
ST204..CVT |
1 | ||
| 65932A - TARPAULIN, SIDE COVER, LH | ||||
| 65932-0W010 |
ST204..CVT |
1 | ||
| 65933A - RETAINER, TARPAULIN FRONT RAIL, RH | ||||
| 65933-0W010 |
ST204..CVT |
1 | ||
| 65934 - WEATHERSTRIP, TARPAULIN CENTER RAIL, NO.1 RH | ||||
| 65934-0W010 |
ST204..CVT |
1 | ||
| 65935 - WEATHERSTRIP, TARPAULIN CENTER RAIL, NO.2 RH | ||||
| 65935-0W010 |
ST204..CVT |
1 | ||
| 65936C - RETAINER, TARPAULIN CENTER RAIL, RH | ||||
| 65936-0W010 |
ST204..CVT |
1 | ||
| 65937C - WEATHERSTRIP, TARPAULIN REAR RAIL, RH | ||||
| 65937-0W010 |
ST204..CVT |
1 | ||
| 65938B - RETAINER, TARPAULIN REAR RAIL, RH | ||||
| 65938-0W010 |
ST204..CVT |
1 | ||
| 65941B - WEATHERSTRIP, TARPAULIN FRONT RAIL, NO.1 LH | ||||
| 65941-0W010 |
ST204..CVT |
1 | ||
| 65942 - WEATHERSTRIP, TARPAULIN FRONT RAIL, NO.2 LH | ||||
| 65942-0W010 |
ST204..CVT |
1 | ||
| 65943 - RETAINER, TARPAULIN FRONT RAIL, LH | ||||
| 65943-0W010 |
ST204..CVT |
1 | ||
| 65944 - WEATHERSTRIP, TARPAULIN CENTER RAIL, NO.1 LH | ||||
| 65944-0W010 |
ST204..CVT |
1 | ||
| 65945B - WEATHERSTRIP, TARPAULIN CENTER RAIL, NO.2 LH | ||||
| 65945-0W010 |
ST204..CVT |
1 | ||
| 65946 - RAIL, CURTAIN, NO.6 | ||||
| 65946-0W010 |
ST204..CVT |
1 | ||
| 65947A - WEATHERSTRIP, TARPAULIN REAR RAIL, LH | ||||
| 65947-0W010 |
ST204..CVT |
1 | ||
| 65948 - RETAINER, TARPAULIN REAR RAIL, LH | ||||
| 65948-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-02029 | ||||
| 90069-02050 | ||||
| 90069-03023 | ||||

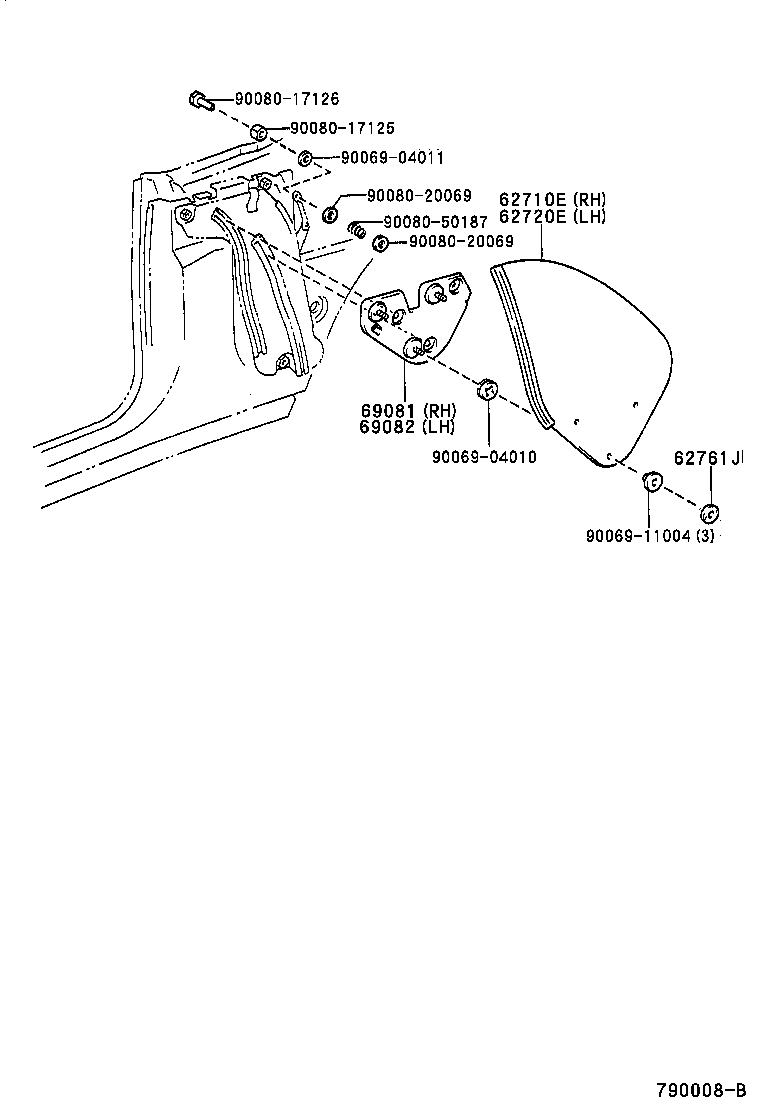

ILLUST NO. 7 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62710E - WINDOW ASSY, QUARTER, RH | ||||
| 62710-0W010 |
ST204..CVT |
1 | ||
| 62710-0W020 |
ST204..CVT |
1 | ||
| 62720E - WINDOW ASSY, QUARTER, LH | ||||
| 62720-0W010 |
ST204..CVT |
1 | ||
| 62720-0W020 |
ST204..CVT |
1 | ||
| 62761J - RETAINER, QUARTER WINDOW GLASS, FRONT RH | ||||
| 62761-0W010 |
ST204..CVT |
6 | ||
| 69081 - PLATE SUB-ASSY, QUARTER WINDOW, RH | ||||
| 69081-0W010 |
ST204..CVT |
1 | ||
| 69082 - PLATE SUB-ASSY, QUARTER WINDOW, LH | ||||
| 69082-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-04010 | ||||
| 90069-04011 | ||||
| 90069-11004 | ||||
| 90080-17125 | ||||
| 90080-17126 | ||||
| 90080-20069 | ||||
| 90080-50187 | ||||

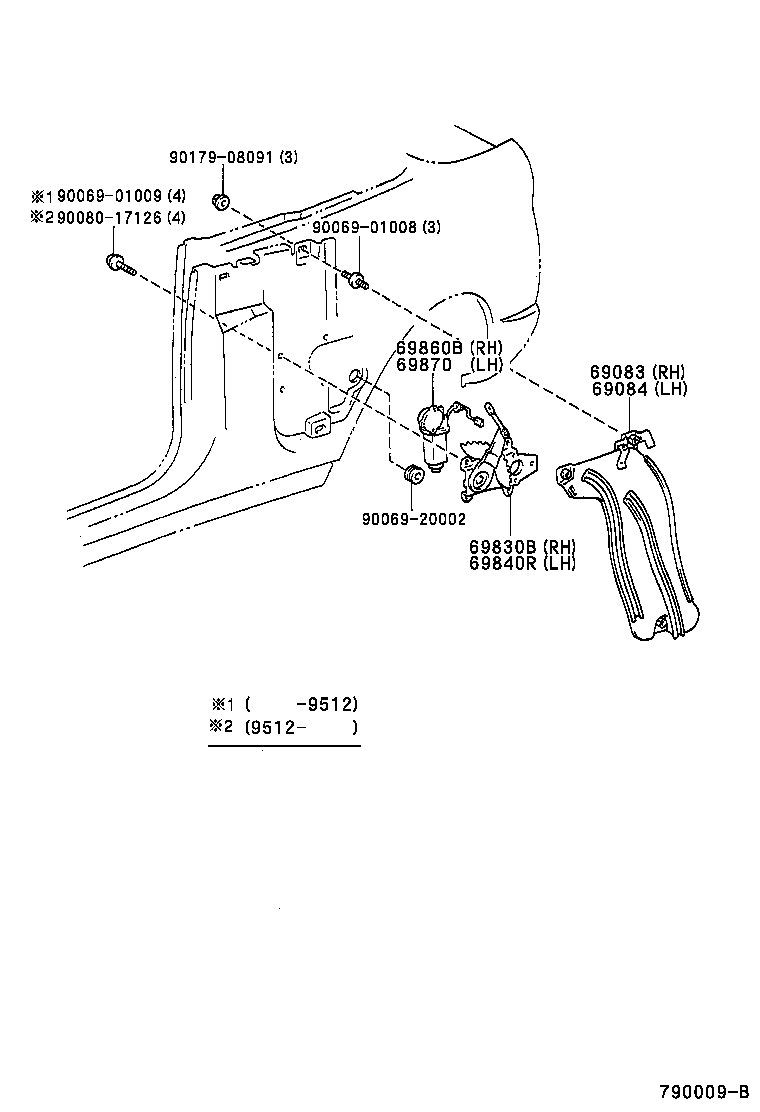

ILLUST NO. 6 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69083 - GUIDE SUB-ASSY, QUARTER WINDOW, RH | ||||
| 69083-0W010 |
ST204..CVT |
1 | ||
| 69084 - GUIDE SUB-ASSY, QUARTER WINDOW, LH | ||||
| 69084-0W010 |
ST204..CVT |
1 | ||
| 69830B - REGULATOR ASSY, QUARTER WINDOW, RH | ||||
| 69830-0W011 |
ST204..CVT |
1 | ||
| 69830-0W010 |
ST204..CVT |
1 | ||
| 69840R - REGULATOR ASSY, QUARTER WINDOW, LH | ||||
| 69840-0W010 |
ST204..CVT |
1 | ||
| 69840-0W011 |
ST204..CVT |
1 | ||
| 69860B - MOTOR ASSY, QUARTER WINDOW REGULATOR, RH | ||||
| 69860-0W010 |
ST204..CVT |
1 | ||
| 69860-0W011 |
ST204..CVT |
1 | ||
| 69870 - MOTOR ASSY, QUARTER WINDOW REGULATOR, LH | ||||
| 69870-0W011 |
ST204..CVT |
1 | ||
| 69870-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-01008 | ||||
| 90069-01009 | ||||
| 90069-20002 | ||||
| 90080-17126 | ||||
| 90179-08091 | ||||

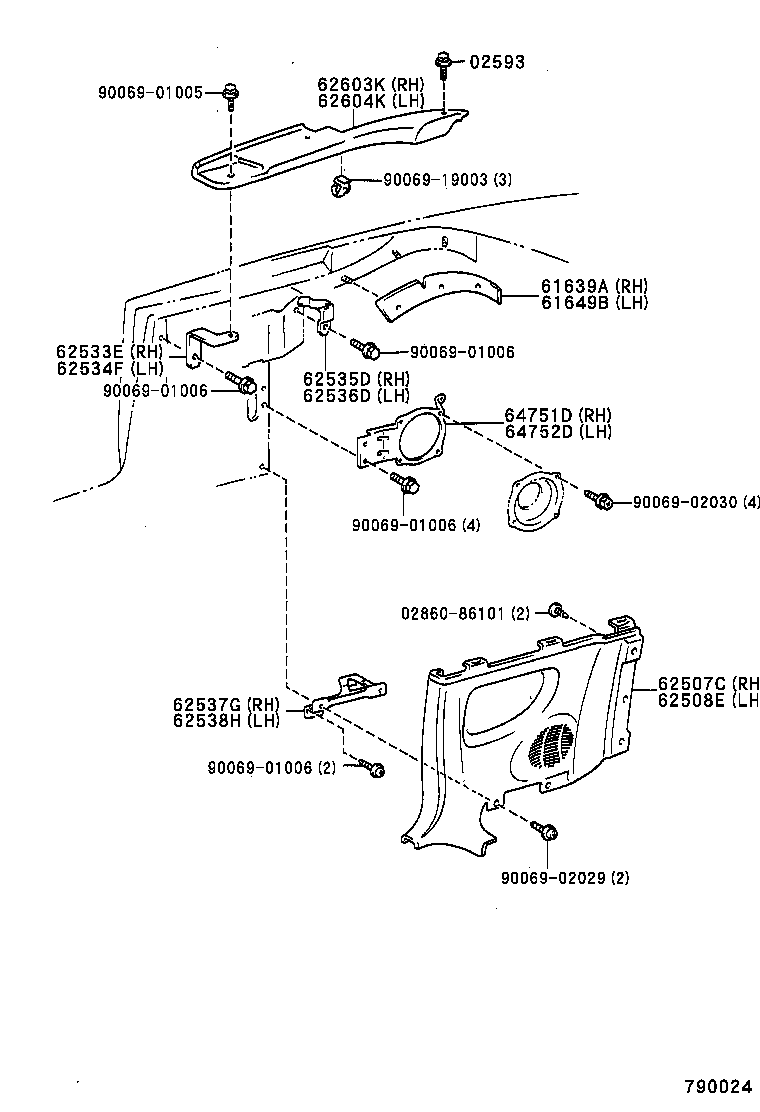

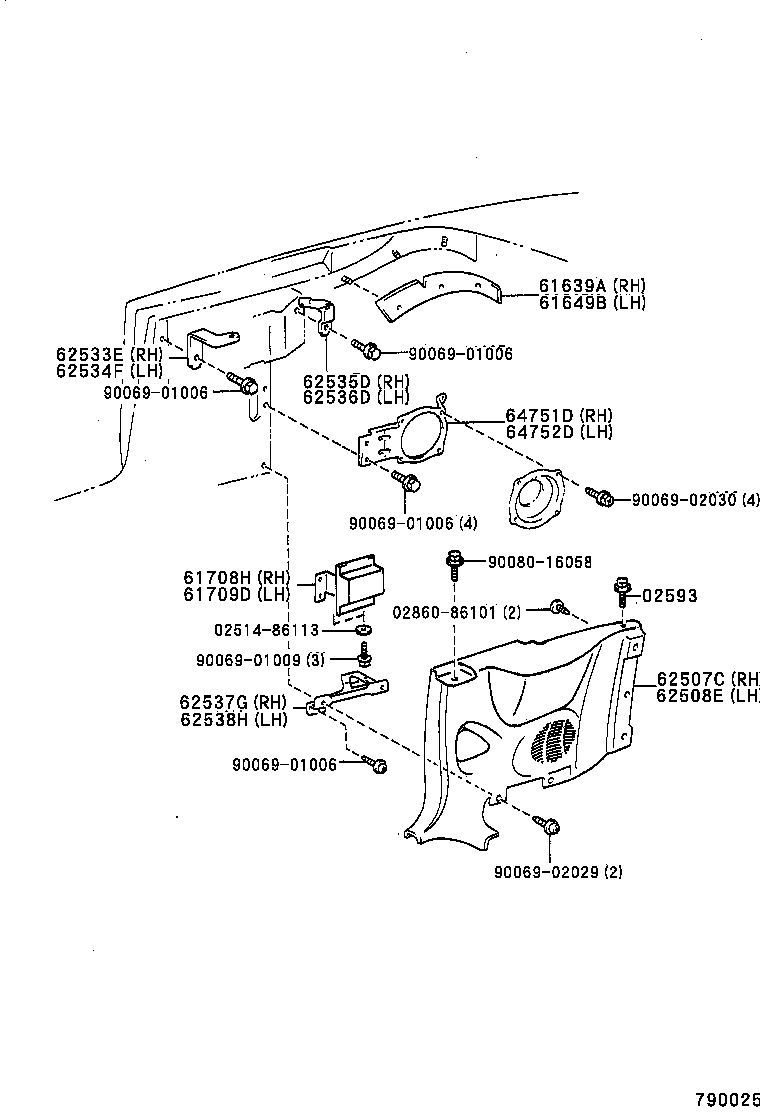

ILLUST NO.11 OF16(9510- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02593 - RETAINER, FRONT HEADER | ||||
| 02593-86101 |
ST204..CVT |
16 | ||
| 61639A - COVER, QUARTER PANEL REINFORCEMENT, RH | ||||
| 61639-0W010 |
ST204..CVT |
1 | ||
| 61649B - COVER, QUARTER PANEL REINFORCEMENT, LH | ||||
| 61649-0W010 |
ST204..CVT |
1 | ||
| 61708H - BUMPER SUB-ASSY, PIVOT MOUNTING SUPPORT PLATE, RH | ||||
| 61708-0W010 |
ST204..CVT |
1 | ||
| 61709D - BUMPER SUB-ASSY, PIVOT MOUNTING SUPPORT PLATE, LH | ||||
| 61709-0W010 |
ST204..CVT |
1 | ||
| 62507C - PANEL SUB-ASSY, QUARTER TRIM, RH | ||||
| 62507-0W020 |
ST204..CVT |
1 | ||
| 62507-0W010 |
ST204..CVT |
1 | ||
| 62508E - PANEL SUB-ASSY, QUARTER TRIM, LH | ||||
| 62508-0W020 |
ST204..CVT |
1 | ||
| 62508-0W010 |
ST204..CVT |
1 | ||
| 62533E - BRACKET, QUARTER TRIM PANEL, NO.1 RH | ||||
| 62533-0W010 |
ST204..CVT |
1 | ||
| 62534F - BRACKET, QUARTER TRIM PANEL, NO.1 LH | ||||
| 62534-0W010 |
ST204..CVT |
1 | ||
| 62535D - BRACKET, QUARTER TRIM PANEL, NO.2 | ||||
| 62535-0W010 |
ST204..CVT |
1 | ||
| 62536D - BRACKET, QUARTER TRIM PANEL, NO.2 LH | ||||
| 62536-0W010 |
ST204..CVT |
1 | ||
| 62537G - BRACKET, QUARTER TRIM PANEL, N0.3 RH | ||||
| 62537-0W010 |
ST204..CVT |
1 | ||
| 62538H - BRACKET, QUARTER TRIM PANEL, NO.3 LH | ||||
| 62538-0W010 |
ST204..CVT |
1 | ||
| 64751D - BRACKET, SPEAKER SETTING, RH | ||||
| 64751-0W010 |
ST204..CVT |
1 | ||
| 64752D - BRACKET, SPEAKER SETTING, LH | ||||
| 64752-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 02514-86113 | ||||
| 02860-86101 | ||||
| 90069-01006 | ||||
| 90069-01009 | ||||
| 90069-02029 | ||||
| 90069-02030 | ||||
| 90080-16058 | ||||

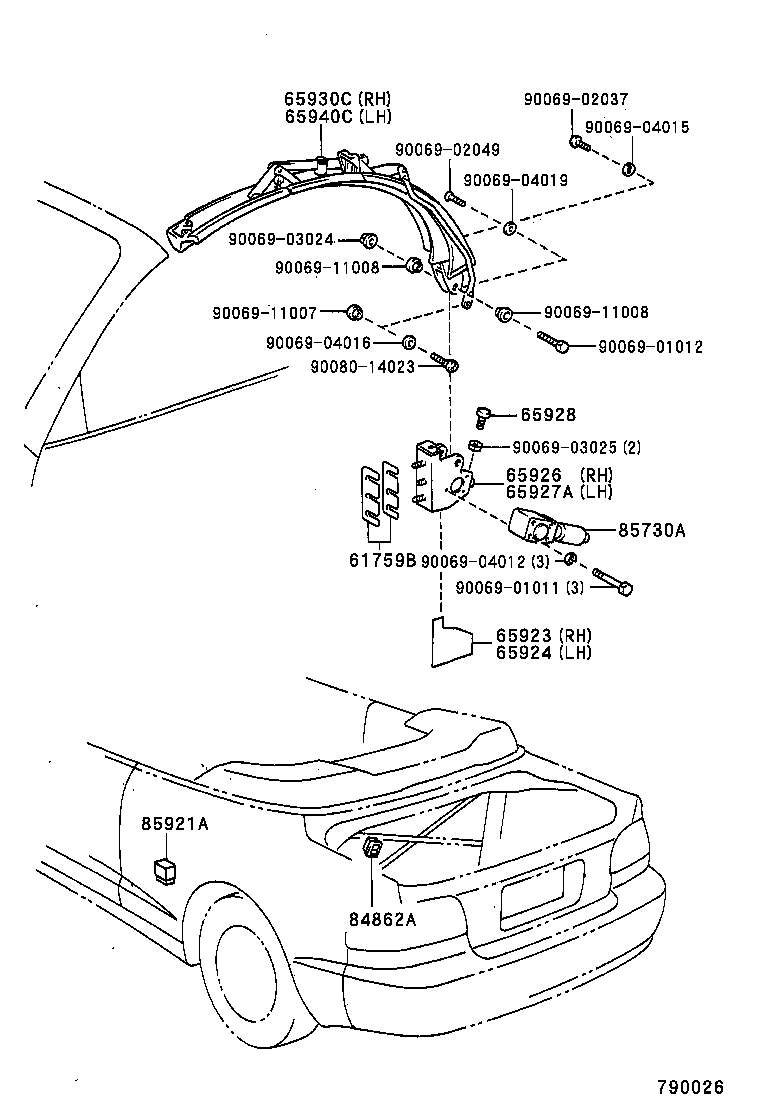

ILLUST NO.15 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61759B - SHIM, PIVOT MOUNTING SUPPORT | ||||
| 61759-0W010 |
ST204..CVT |
2 | ||
| 65923 - BRACKET, BEZEL STAND | ||||
| 65923-0W010 |
ST204..CVT |
1 | ||
| 65924 - COVER, TARPAULIN RAIL PIVOT BRACKET, LH | ||||
| 65924-0W010 |
ST204..CVT |
1 | ||
| 65926 - BRACKET, TARPAULIN RAIL PIVOT, RH | ||||
| 65926-0W010 |
ST204..CVT |
1 | ||
| 65927A - BRACKET, TARPAULIN RAIL PIVOT, LH | ||||
| 65927-0W010 |
ST204..CVT |
1 | ||
| 65928 - STOPPER, TARPAULIN RAIL | ||||
| 65928-0W010 |
ST204..CVT |
4 | ||
| 65930C - RAIL ASSY, TARPAULIN, RH | ||||
| 65930-0W010 |
ST204..CVT |
1 | ||
| 65940C - RAIL ASSY, TARPAULIN, LH | ||||
| 65940-0W010 |
ST204..CVT |
1 | ||
| 84862A - SWITCH, CONVERTIBLE ROOF MOTOR | ||||
| 84862-0W010 |
ST204..CVT |
1 | ||
| 85730A - MOTOR ASSY, CONVERTIBLE ROOF | ||||
| 85730-0W010 |
ST204..CVT |
2 | ||
| 85921A - RELAY, CONVERTIBLE ROOF CONTROL | ||||
| 85921-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-01011 | ||||
| 90069-01012 | ||||
| 90069-02037 | ||||
| 90069-02049 | ||||
| 90069-03024 | ||||
| 90069-03025 | ||||
| 90069-04012 | ||||
| 90069-04015 | ||||
| 90069-04016 | ||||
| 90069-04019 | ||||
| 90069-11007 | ||||
| 90069-11008 | ||||
| 90080-14023 | ||||

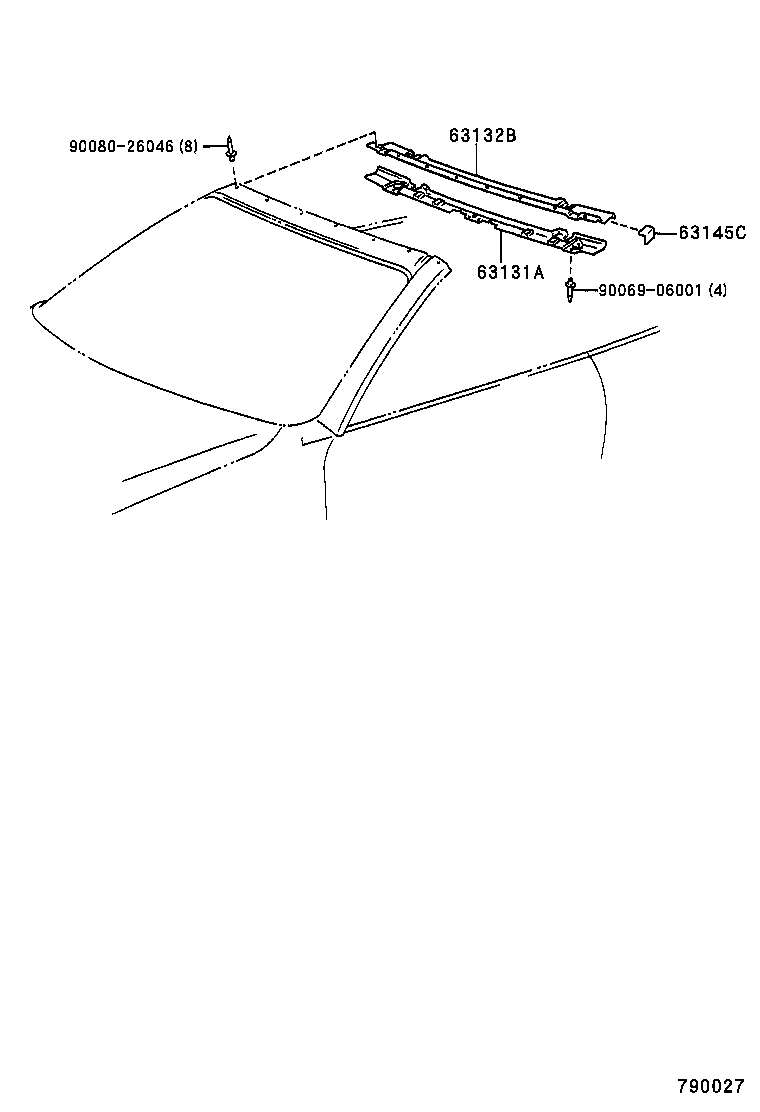

ILLUST NO. 1 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63131A - PANEL, WINDSHIELD HEADER, OUTER | ||||
| 63131-0W010 |
ST204..CVT |
1 | ||
| 63132B - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-0W010 |
ST204..CVT |
1 | ||
| 63145C - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-0W010 |
ST204..CVT |
2 | ||
| Common parts | ||||
| 90069-06001 | ||||
| 90080-26046 | ||||

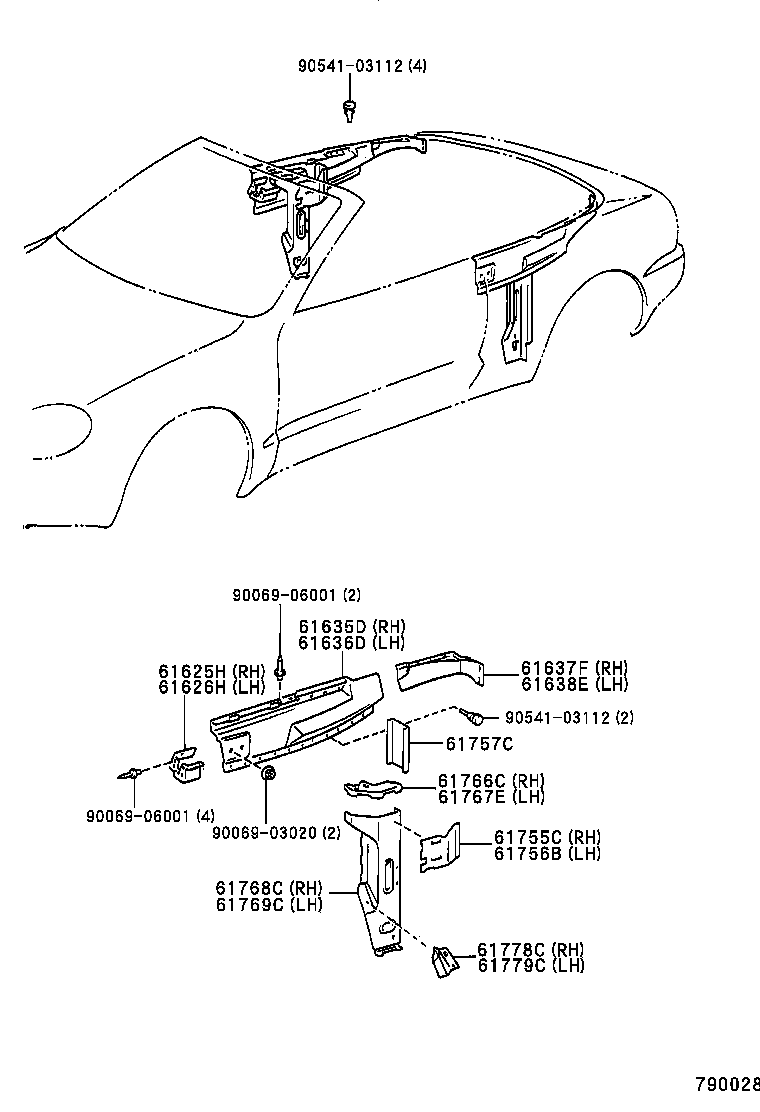

ILLUST NO. 2 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61625H - BRACKET, QUARTER PANEL REINFORCEMENT, RH | ||||
| 61625-0W010 |
ST204..CVT |
1 | ||
| 61626H - BRACKET, QUARTER PANEL REINFORCEMENT, LH | ||||
| 61626-0W010 |
ST204..CVT |
1 | ||
| 61635D - REINFORCEMENT, QUARTER PANEL, UPPER RH | ||||
| 61635-0W010 |
ST204..CVT |
1 | ||
| 61636D - REINFORCEMENT, QUARTER PANEL, UPPER LH | ||||
| 61636-0W010 |
ST204..CVT |
1 | ||
| 61637F - REINFORCEMENT, QUARTER PANEL, UPPER RH NO.2 | ||||
| 61637-0W010 |
ST204..CVT |
1 | ||
| 61638E - REINFORCEMENT, QUARTER PANEL, UPPER LH NO.2 | ||||
| 61638-0W010 |
ST204..CVT |
1 | ||
| 61755C - PLATE, PIVOT MOUNTING SUPPORT, RH | ||||
| 61755-0W010 |
ST204..CVT |
1 | ||
| 61756B - PLATE, PIVOT MOUNTING SUPPORT, LH | ||||
| 61756-0W010 |
ST204..CVT |
1 | ||
| 61757C - SUPPORT, PIVOT MOUNTING, RH | ||||
| 61757-0W010 |
ST204..CVT |
2 | ||
| 61766C - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 RH | ||||
| 61766-0W010 |
ST204..CVT |
1 | ||
| 61767E - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 LH | ||||
| 61767-0W010 |
ST204..CVT |
1 | ||
| 61768C - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.2 RH | ||||
| 61768-0W010 |
ST204..CVT |
1 | ||
| 61769C - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.2 LH | ||||
| 61769-0W010 |
ST204..CVT |
1 | ||
| 61778C - BRACKET, BELT ANCHOR TO QUARTER REINFORCEMENT, RH | ||||
| 61778-0W010 |
ST204..CVT |
1 | ||
| 61779C - BRACKET, BELT ANCHOR TO QUARTER REINFORCEMENT, LH | ||||
| 61779-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-03020 | ||||
| 90069-06001 | ||||
| 90541-03112 | ||||

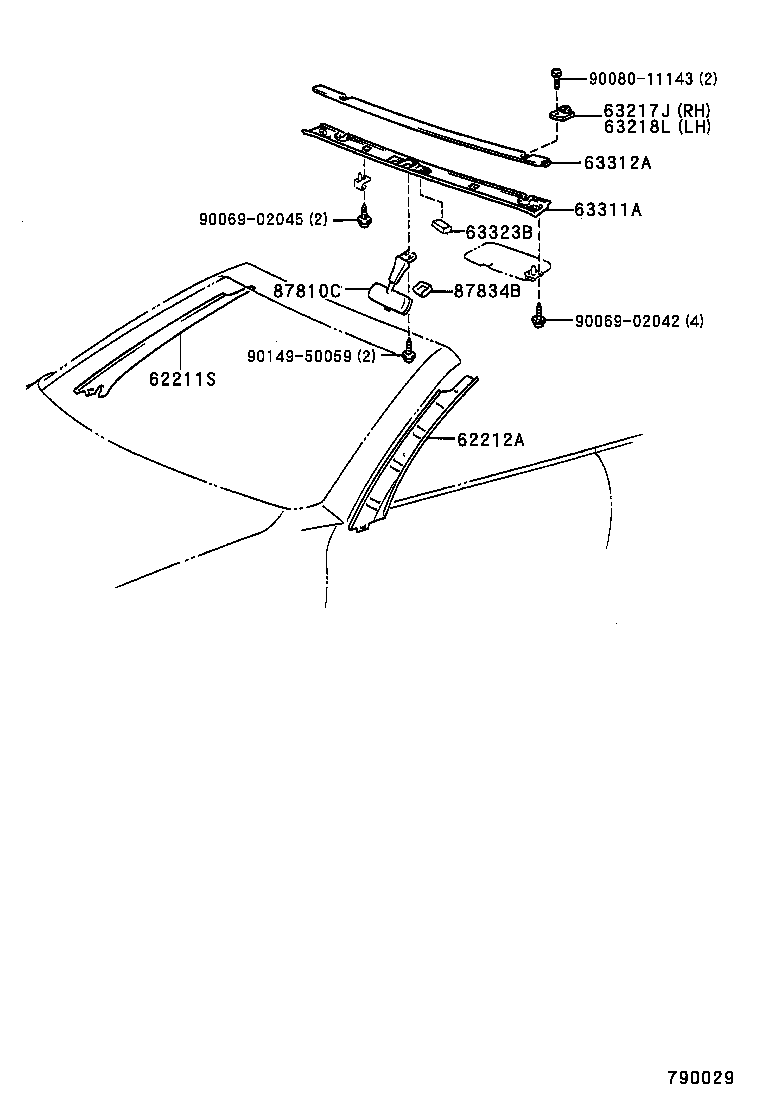

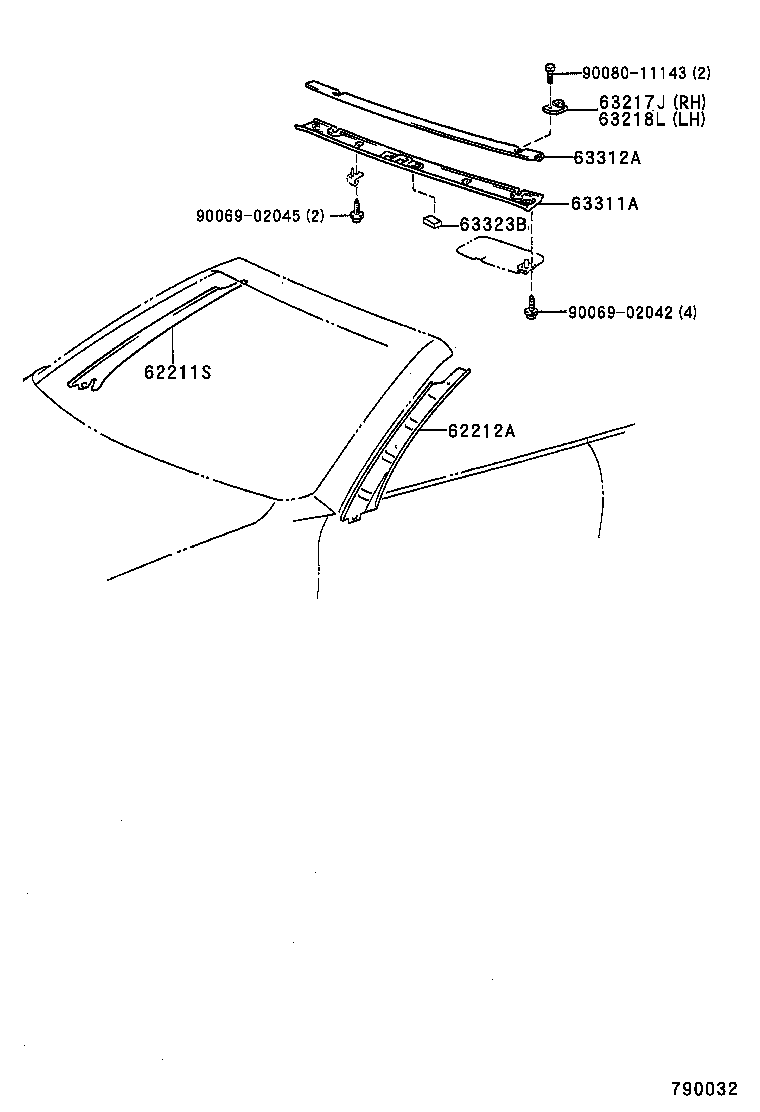

ILLUST NO. 5 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211S - GARNISH ASSY, FRONT PILLAR, RH | ||||
| 62211-20260C0 |
ST204..CVT BLACK,TRIM2# |
1 | ||
| 62212A - GARNISH ASSY, FRONT PILLAR, LH | ||||
| 62212-20260C0 |
ST204..CVT BLACK,TRIM2# |
1 | ||
| 63217J - HOOK, CONVERTIBLE ROOF, RH | ||||
| 63217-0W020 |
ST204..CVT |
1 | ||
| 63218L - HOOK, CONVERTIBLE ROOF, LH | ||||
| 63218-0W020 |
ST204..CVT |
1 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63311-0W010 |
ST204..CVT |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63312-0W010 |
ST204..CVT |
1 | ||
| 63323B - CASE, HEADLINING LAMP | ||||
| 63323-0W010 |
ST204..CVT |
2 | ||
| 87810C - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0W020 |
ST204..CVT |
1 | ||
| 87834B - COVER, INNER MIRROR STAY | ||||
| 87834-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-02042 | ||||
| 90069-02045 | ||||
| 90080-11143 | ||||
| 90149-50059 | ||||

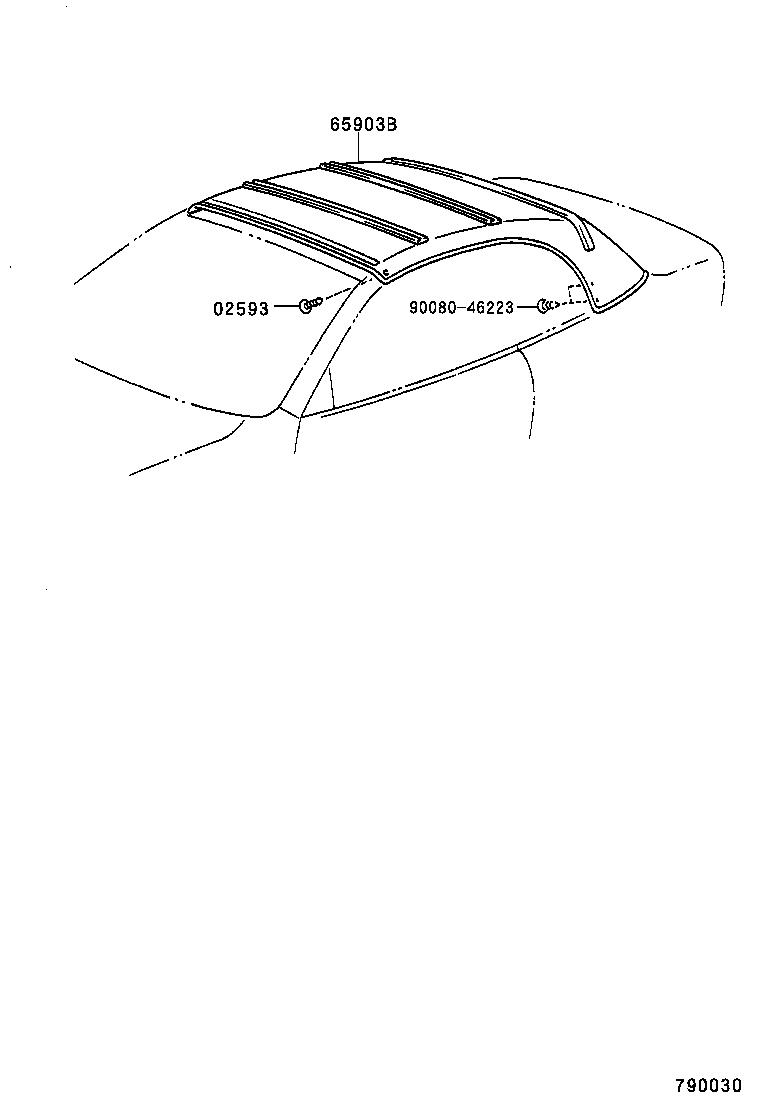

ILLUST NO.13 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02593 - RETAINER, FRONT HEADER | ||||
| 02593-86101 |
ST204..CVT |
16 | ||
| 65903B - HEADLINING SUB-ASSY, TARPAULIN | ||||
| 65903-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90080-46223 | ||||
ILLUST NO.11 OF16(9408-9510)CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02593 - RETAINER, FRONT HEADER | ||||
| 02593-86101 |
ST204..CVT |
16 | ||
| 61639A - COVER, QUARTER PANEL REINFORCEMENT, RH | ||||
| 61639-0W010 |
ST204..CVT |
1 | ||
| 61649B - COVER, QUARTER PANEL REINFORCEMENT, LH | ||||
| 61649-0W010 |
ST204..CVT |
1 | ||
| 62507C - PANEL SUB-ASSY, QUARTER TRIM, RH | ||||
| 62507-0W020 |
ST204..CVT |
1 | ||
| 62507-0W010 |
ST204..CVT |
1 | ||
| 62508E - PANEL SUB-ASSY, QUARTER TRIM, LH | ||||
| 62508-0W020 |
ST204..CVT |
1 | ||
| 62508-0W010 |
ST204..CVT |
1 | ||
| 62533E - BRACKET, QUARTER TRIM PANEL, NO.1 RH | ||||
| 62533-0W010 |
ST204..CVT |
1 | ||
| 62534F - BRACKET, QUARTER TRIM PANEL, NO.1 LH | ||||
| 62534-0W010 |
ST204..CVT |
1 | ||
| 62535D - BRACKET, QUARTER TRIM PANEL, NO.2 | ||||
| 62535-0W010 |
ST204..CVT |
1 | ||
| 62536D - BRACKET, QUARTER TRIM PANEL, NO.2 LH | ||||
| 62536-0W010 |
ST204..CVT |
1 | ||
| 62537G - BRACKET, QUARTER TRIM PANEL, N0.3 RH | ||||
| 62537-0W010 |
ST204..CVT |
1 | ||
| 62538H - BRACKET, QUARTER TRIM PANEL, NO.3 LH | ||||
| 62538-0W010 |
ST204..CVT |
1 | ||
| 62603K - PANEL SUB-ASSY, QUARTER TRIM, UPPER RH | ||||
| 62603-0W010 |
ST204..CVT |
1 | ||
| 62604K - PANEL SUB-ASSY, QUARTER TRIM, UPPER LH | ||||
| 62604-0W010 |
ST204..CVT |
1 | ||
| 64751D - BRACKET, SPEAKER SETTING, RH | ||||
| 64751-0W010 |
ST204..CVT |
1 | ||
| 64752D - BRACKET, SPEAKER SETTING, LH | ||||
| 64752-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 02860-86101 | ||||
| 90069-01005 | ||||
| 90069-01006 | ||||
| 90069-02029 | ||||
| 90069-02030 | ||||
| 90069-19003 | ||||

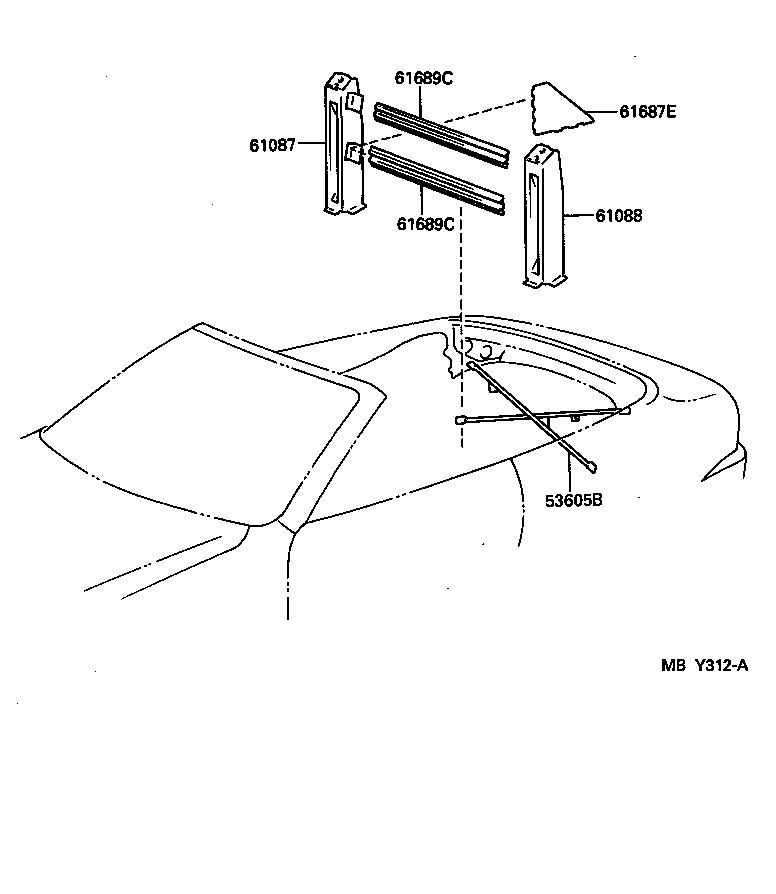

ILLUST NO. 4 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53605B - BRACE SUB-ASSY, REAR SUSPENSION | ||||
| 53605-0W010 |
ST204..CVT |
1 | ||
| 61087 - BRACE SUB-ASSY, REAR SEAT BACK SIDE MOUNTING, RH | ||||
| 61087-0W010 |
ST204..CVT |
1 | ||
| 61088 - BRACE SUB-ASSY, REAR SEAT BACK SIDE MOUNTING, LH | ||||
| 61088-0W010 |
ST204..CVT |
1 | ||
| 61687E - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61687-0W010 |
ST204..CVT |
2 | ||
| 61689C - REINFORCEMENT, REAR SEAT BACK SIDE MOUNTING BRACE | ||||
| 61689-0W010 |
ST204..CVT |
2 | ||
| 61689C - REINFORCEMENT, REAR SEAT BACK SIDE MOUNTING BRACE | ||||
| 61689-0W010 |
ST204..CVT |
2 | ||

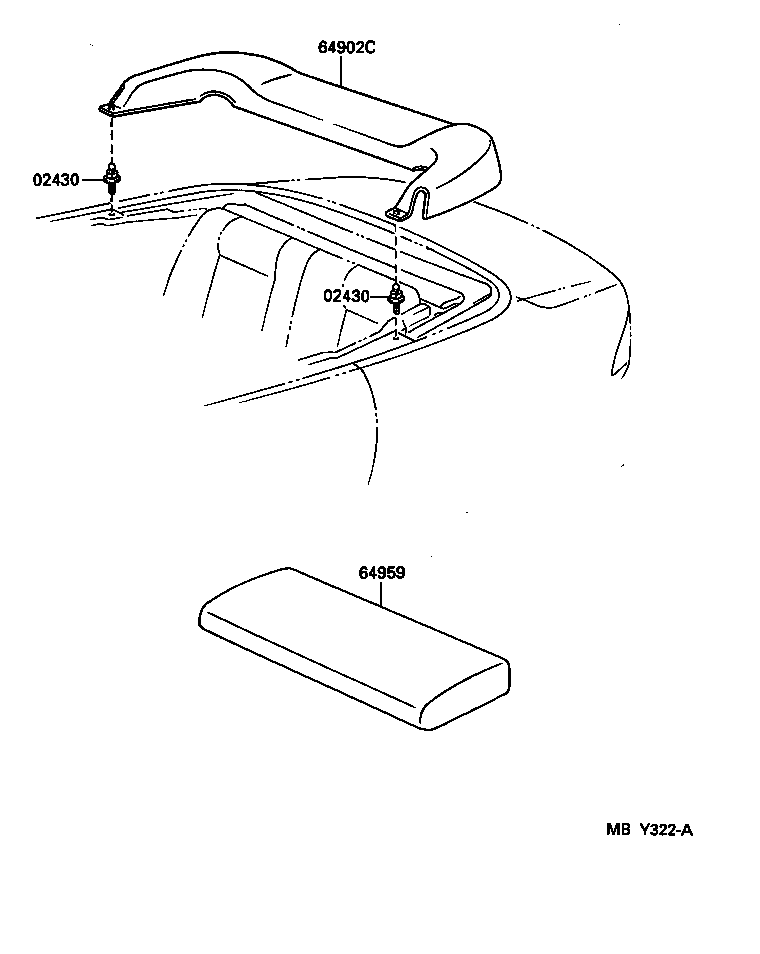

ILLUST NO.14 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02430 - SNAP | ||||
| 02430-86101 |
ST204..CVT |
2 | ||
| 02430 - SNAP | ||||
| 02430-86101 |
ST204..CVT |
2 | ||
| 64902C - COVER SUB-ASSY, TONNEAU | ||||
| 64902-0W020 |
ST204..CVT |
1 | ||
| 64902-0W040 |
ST204..CVT |
1 | ||
| 64959 - BAG, TONNEAU COVER | ||||
| 64959-0W010 |
ST204..CVT |
1 | ||
ILLUST NO. 3 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61601C - TROUGH SET, TARPAULIN FRONT RAIL, NO.1 RH | ||||
| 61601-0W010 |
ST204..CVT |
1 | ||
| 64700 - COVER ASSY, TARPAULIN STORAGE | ||||
| 64700-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-01010 | ||||
| 90069-03020 | ||||
| 90069-03029 | ||||
ILLUST NO.10 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-02031 | ||||
| 90069-02048 | ||||
| 90069-02050 | ||||
| 90069-02051 | ||||
| 90069-04014 | ||||
| 90069-19007 | ||||
| 90080-15053 | ||||
| 90159-60313 | ||||
ILLUST NO.16 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02520 - BUSH | ||||
| 02520-86101 |
ST204..CVT |
2 | ||
| 02593 - RETAINER, FRONT HEADER | ||||
| 02593-86101 |
ST204..CVT |
16 | ||
| 65904B - LATCH SUB-ASSY, TARPAULIN | ||||
| 65904-0W010 |
ST204..CVT |
2 | ||
| 65905C - BOW SUB-ASSY, TARPAULIN, NO.1 | ||||
| 65905-0W010 |
ST204..CVT |
1 | ||
| 65906B - BOW SUB-ASSY, TARPAULIN, NO.2 | ||||
| 65906-0W010 |
ST204..CVT |
1 | ||
| 65907D - BOW SUB-ASSY, TARPAULIN, NO.3 | ||||
| 65907-0W010 |
ST204..CVT |
1 | ||
| 65908C - BOW SET, TARPAULIN, NO.4 | ||||
| 65908-0W010 |
ST204..CVT |
1 | ||
| 65909B - BOLT SET, NO.1 BOW | ||||
| 65909-0W010 |
ST204..CVT |
2 | ||
| 65919A - PIN, NO.1 BOW LOCATING | ||||
| 65919-0W010 |
ST204..CVT |
2 | ||
| 65929 - CABLE, TARPAULIN NO.3 BOW | ||||
| 65929-0W010 |
ST204..CVT |
2 | ||
| 65929-0W010 |
ST204..CVT |
2 | ||
| 65929 - CABLE, TARPAULIN NO.3 BOW | ||||
| 65929-0W010 |
ST204..CVT |
2 | ||
| 65929-0W010 |
ST204..CVT |
2 | ||
| Common parts | ||||
| 90069-01013 | ||||
| 90069-02036 | ||||
| 90069-02038 | ||||
| 90069-02041 | ||||
| 90069-02044 | ||||
| 90069-04016 | ||||
| 90069-04017 | ||||
| 90069-04018 | ||||
| 90069-11007 | ||||
| 90069-21006 | ||||
| 90069-21007 | ||||
| 90080-38094 | ||||
ILLUST NO.11 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64810A - WINDOW ASSY, CONVERTIBLE ROOF TARPAULIN BACK | ||||
| 64810-0W020 |
ST204..CVT TAN |
1 | ||
| 64810-0W010 |
ST204..CVT BLACK |
1 | ||
| 64810-0W010 |
ST204..CVT |
1 | ||
| 64815A - TERMINAL, BACK WINDOW GLASS | ||||
| 64815-0W010 |
ST204..CVT |
2 | ||
| 64815A - TERMINAL, BACK WINDOW GLASS | ||||
| 64815-0W010 |
ST204..CVT |
2 | ||
| 65911A - COVER, TARPAULIN | ||||
| 65911-0W010 |
ST204..CVT |
1 | ||
| 65913 - PAD, TARPAULIN COVER, FRONT RH | ||||
| 65913-0W010 |
ST204..CVT |
1 | ||
| 65914 - PAD, TARPAULIN COVER, FRONT LH | ||||
| 65914-0W010 |
ST204..CVT |
1 | ||
| 65915E - PAD, TARPAULIN COVER, REAR | ||||
| 65915-0W010 |
ST204..CVT |
2 | ||
| 65915E - PAD, TARPAULIN COVER, REAR | ||||
| 65915-0W010 |
ST204..CVT |
2 | ||
| 65917A - RETAINER, TARPAULIN COVER, UPPER | ||||
| 65917-0W010 |
ST204..CVT |
1 | ||
| 65918A - RETAINER, TARPAULIN COVER, LOWER | ||||
| 65918-0W010 |
ST204..CVT |
1 | ||
| 65922A - CABLE, TARPAULIN COVER | ||||
| 65922-0W010 |
ST204..CVT |
2 | ||
| 82178 - CABLE, BACK WINDOW GLASS WIRE, RH | ||||
| 82178-0W010 |
ST204..CVT |
1 | ||
| 82179 - CABLE, BACK WINDOW GLASS WIRE, LH | ||||
| 82179-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 02198-86123 | ||||
| 02215-86107 | ||||
| 02530-86102 | ||||
| 90069-02040 | ||||
| 90069-02043 | ||||
| 90069-04020 | ||||
| 90069-06001 | ||||
| 90069-18004 | ||||
| 90069-19008 | ||||
| 90069-26001 | ||||
| 90080-14022 | ||||
ILLUST NO. 9 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02593 - RETAINER, FRONT HEADER | ||||
| 02593-86101 |
ST204..CVT |
16 | ||
| 62365B - RETAINER, CONVERTIBLE ROOF WEATHERSTRIP | ||||
| 62365-0W010 |
ST204..CVT |
1 | ||
| 63251L - WEATHERSTRIP, CONVERTIBLE ROOF, FRONT | ||||
| 63251-0W020 |
ST204..CVT |
1 | ||
| 75531D - MOULDING, WINDSHIELD, OUTSIDE UPPER | ||||
| 75531-0W010 |
ST204..CVT |
1 | ||
| 75533F - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 75533-0W010 |
ST204..CVT |
1 | ||
| 75534E - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 75534-0W010 |
ST204..CVT |
1 | ||
| 75545D - BOLT, WINDSHIELD OUTSIDE MOULDING | ||||
| 75545-0W010 |
ST204..CVT |
6 | ||
| 75551F - MOULDING, ROOF DRIP SIDE, RH | ||||
| 75551-20510 |
ST204..CVT |
1 | ||
| 75552F - MOULDING, ROOF DRIP SIDE, LH | ||||
| 75552-20510 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-02040 | ||||
| 90069-11005 | ||||
| 90080-16057 | ||||
| 90168-40002 | ||||
| 90179-04017 | ||||
ILLUST NO. 8 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65931E - WEATHERSTRIP, TARPAULIN FRONT RAIL, NO.1 RH | ||||
| 65931-0W010 |
ST204..CVT |
1 | ||
| 65932A - TARPAULIN, SIDE COVER, LH | ||||
| 65932-0W010 |
ST204..CVT |
1 | ||
| 65933A - RETAINER, TARPAULIN FRONT RAIL, RH | ||||
| 65933-0W010 |
ST204..CVT |
1 | ||
| 65934 - WEATHERSTRIP, TARPAULIN CENTER RAIL, NO.1 RH | ||||
| 65934-0W010 |
ST204..CVT |
1 | ||
| 65935 - WEATHERSTRIP, TARPAULIN CENTER RAIL, NO.2 RH | ||||
| 65935-0W010 |
ST204..CVT |
1 | ||
| 65936C - RETAINER, TARPAULIN CENTER RAIL, RH | ||||
| 65936-0W010 |
ST204..CVT |
1 | ||
| 65937C - WEATHERSTRIP, TARPAULIN REAR RAIL, RH | ||||
| 65937-0W010 |
ST204..CVT |
1 | ||
| 65938B - RETAINER, TARPAULIN REAR RAIL, RH | ||||
| 65938-0W010 |
ST204..CVT |
1 | ||
| 65941B - WEATHERSTRIP, TARPAULIN FRONT RAIL, NO.1 LH | ||||
| 65941-0W010 |
ST204..CVT |
1 | ||
| 65942 - WEATHERSTRIP, TARPAULIN FRONT RAIL, NO.2 LH | ||||
| 65942-0W010 |
ST204..CVT |
1 | ||
| 65943 - RETAINER, TARPAULIN FRONT RAIL, LH | ||||
| 65943-0W010 |
ST204..CVT |
1 | ||
| 65944 - WEATHERSTRIP, TARPAULIN CENTER RAIL, NO.1 LH | ||||
| 65944-0W010 |
ST204..CVT |
1 | ||
| 65945B - WEATHERSTRIP, TARPAULIN CENTER RAIL, NO.2 LH | ||||
| 65945-0W010 |
ST204..CVT |
1 | ||
| 65946 - RAIL, CURTAIN, NO.6 | ||||
| 65946-0W010 |
ST204..CVT |
1 | ||
| 65947A - WEATHERSTRIP, TARPAULIN REAR RAIL, LH | ||||
| 65947-0W010 |
ST204..CVT |
1 | ||
| 65948 - RETAINER, TARPAULIN REAR RAIL, LH | ||||
| 65948-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-02029 | ||||
| 90069-02050 | ||||
| 90069-03023 | ||||
ILLUST NO. 7 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62710E - WINDOW ASSY, QUARTER, RH | ||||
| 62710-0W010 |
ST204..CVT |
1 | ||
| 62710-0W020 |
ST204..CVT |
1 | ||
| 62720E - WINDOW ASSY, QUARTER, LH | ||||
| 62720-0W010 |
ST204..CVT |
1 | ||
| 62720-0W020 |
ST204..CVT |
1 | ||
| 62761J - RETAINER, QUARTER WINDOW GLASS, FRONT RH | ||||
| 62761-0W010 |
ST204..CVT |
6 | ||
| 69081 - PLATE SUB-ASSY, QUARTER WINDOW, RH | ||||
| 69081-0W010 |
ST204..CVT |
1 | ||
| 69082 - PLATE SUB-ASSY, QUARTER WINDOW, LH | ||||
| 69082-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-04010 | ||||
| 90069-04011 | ||||
| 90069-11004 | ||||
| 90080-17125 | ||||
| 90080-17126 | ||||
| 90080-20069 | ||||
| 90080-50187 | ||||
ILLUST NO. 6 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69083 - GUIDE SUB-ASSY, QUARTER WINDOW, RH | ||||
| 69083-0W010 |
ST204..CVT |
1 | ||
| 69084 - GUIDE SUB-ASSY, QUARTER WINDOW, LH | ||||
| 69084-0W010 |
ST204..CVT |
1 | ||
| 69830B - REGULATOR ASSY, QUARTER WINDOW, RH | ||||
| 69830-0W011 |
ST204..CVT |
1 | ||
| 69830-0W010 |
ST204..CVT |
1 | ||
| 69840R - REGULATOR ASSY, QUARTER WINDOW, LH | ||||
| 69840-0W010 |
ST204..CVT |
1 | ||
| 69840-0W011 |
ST204..CVT |
1 | ||
| 69860B - MOTOR ASSY, QUARTER WINDOW REGULATOR, RH | ||||
| 69860-0W010 |
ST204..CVT |
1 | ||
| 69860-0W011 |
ST204..CVT |
1 | ||
| 69870 - MOTOR ASSY, QUARTER WINDOW REGULATOR, LH | ||||
| 69870-0W011 |
ST204..CVT |
1 | ||
| 69870-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-01008 | ||||
| 90069-01009 | ||||
| 90069-20002 | ||||
| 90080-17126 | ||||
| 90179-08091 | ||||
ILLUST NO.12 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 02860-86101 | ||||
| 90069-01006 | ||||
| 90069-02029 | ||||
| 90069-02030 | ||||
| 90069-19003 | ||||
| 90080-16058 | ||||
ILLUST NO.15 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61759B - SHIM, PIVOT MOUNTING SUPPORT | ||||
| 61759-0W010 |
ST204..CVT |
2 | ||
| 65923 - BRACKET, BEZEL STAND | ||||
| 65923-0W010 |
ST204..CVT |
1 | ||
| 65924 - COVER, TARPAULIN RAIL PIVOT BRACKET, LH | ||||
| 65924-0W010 |
ST204..CVT |
1 | ||
| 65926 - BRACKET, TARPAULIN RAIL PIVOT, RH | ||||
| 65926-0W010 |
ST204..CVT |
1 | ||
| 65927A - BRACKET, TARPAULIN RAIL PIVOT, LH | ||||
| 65927-0W010 |
ST204..CVT |
1 | ||
| 65928 - STOPPER, TARPAULIN RAIL | ||||
| 65928-0W010 |
ST204..CVT |
4 | ||
| 65930C - RAIL ASSY, TARPAULIN, RH | ||||
| 65930-0W010 |
ST204..CVT |
1 | ||
| 65940C - RAIL ASSY, TARPAULIN, LH | ||||
| 65940-0W010 |
ST204..CVT |
1 | ||
| 84862A - SWITCH, CONVERTIBLE ROOF MOTOR | ||||
| 84862-0W010 |
ST204..CVT |
1 | ||
| 85730A - MOTOR ASSY, CONVERTIBLE ROOF | ||||
| 85730-0W010 |
ST204..CVT |
2 | ||
| 85921A - RELAY, CONVERTIBLE ROOF CONTROL | ||||
| 85921-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-01011 | ||||
| 90069-01012 | ||||
| 90069-02037 | ||||
| 90069-02049 | ||||
| 90069-03024 | ||||
| 90069-03025 | ||||
| 90069-04012 | ||||
| 90069-04015 | ||||
| 90069-04016 | ||||
| 90069-04019 | ||||
| 90069-11007 | ||||
| 90069-11008 | ||||
| 90080-14023 | ||||
ILLUST NO. 1 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63131A - PANEL, WINDSHIELD HEADER, OUTER | ||||
| 63131-0W010 |
ST204..CVT |
1 | ||
| 63132B - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-0W010 |
ST204..CVT |
1 | ||
| 63145C - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-0W010 |
ST204..CVT |
2 | ||
| Common parts | ||||
| 90069-06001 | ||||
| 90080-26046 | ||||
ILLUST NO. 2 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61625H - BRACKET, QUARTER PANEL REINFORCEMENT, RH | ||||
| 61625-0W010 |
ST204..CVT |
1 | ||
| 61626H - BRACKET, QUARTER PANEL REINFORCEMENT, LH | ||||
| 61626-0W010 |
ST204..CVT |
1 | ||
| 61635D - REINFORCEMENT, QUARTER PANEL, UPPER RH | ||||
| 61635-0W010 |
ST204..CVT |
1 | ||
| 61636D - REINFORCEMENT, QUARTER PANEL, UPPER LH | ||||
| 61636-0W010 |
ST204..CVT |
1 | ||
| 61637F - REINFORCEMENT, QUARTER PANEL, UPPER RH NO.2 | ||||
| 61637-0W010 |
ST204..CVT |
1 | ||
| 61638E - REINFORCEMENT, QUARTER PANEL, UPPER LH NO.2 | ||||
| 61638-0W010 |
ST204..CVT |
1 | ||
| 61755C - PLATE, PIVOT MOUNTING SUPPORT, RH | ||||
| 61755-0W010 |
ST204..CVT |
1 | ||
| 61756B - PLATE, PIVOT MOUNTING SUPPORT, LH | ||||
| 61756-0W010 |
ST204..CVT |
1 | ||
| 61757C - SUPPORT, PIVOT MOUNTING, RH | ||||
| 61757-0W010 |
ST204..CVT |
2 | ||
| 61766C - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 RH | ||||
| 61766-0W010 |
ST204..CVT |
1 | ||
| 61767E - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 LH | ||||
| 61767-0W010 |
ST204..CVT |
1 | ||
| 61768C - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.2 RH | ||||
| 61768-0W010 |
ST204..CVT |
1 | ||
| 61769C - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.2 LH | ||||
| 61769-0W010 |
ST204..CVT |
1 | ||
| 61778C - BRACKET, BELT ANCHOR TO QUARTER REINFORCEMENT, RH | ||||
| 61778-0W010 |
ST204..CVT |
1 | ||
| 61779C - BRACKET, BELT ANCHOR TO QUARTER REINFORCEMENT, LH | ||||
| 61779-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-03020 | ||||
| 90069-06001 | ||||
| 90541-03112 | ||||
ILLUST NO.13 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 02593 - RETAINER, FRONT HEADER | ||||
| 02593-86101 |
ST204..CVT |
16 | ||
| 65903B - HEADLINING SUB-ASSY, TARPAULIN | ||||
| 65903-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90080-46223 | ||||
ILLUST NO. 5 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-02042 | ||||
| 90069-02045 | ||||
| 90080-11143 | ||||
ILLUST NO. 4 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53605B - BRACE SUB-ASSY, REAR SUSPENSION | ||||
| 53605-0W010 |
ST204..CVT |
1 | ||
| 61087 - BRACE SUB-ASSY, REAR SEAT BACK SIDE MOUNTING, RH | ||||
| 61087-0W010 |
ST204..CVT |
1 | ||
| 61088 - BRACE SUB-ASSY, REAR SEAT BACK SIDE MOUNTING, LH | ||||
| 61088-0W010 |
ST204..CVT |
1 | ||
| 61687E - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61687-0W010 |
ST204..CVT |
2 | ||
| 61689C - REINFORCEMENT, REAR SEAT BACK SIDE MOUNTING BRACE | ||||
| 61689-0W010 |
ST204..CVT |
2 | ||
| 61689C - REINFORCEMENT, REAR SEAT BACK SIDE MOUNTING BRACE | ||||
| 61689-0W010 |
ST204..CVT |
2 | ||
ILLUST NO.14 OF16(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
