ST204L-BKPGKA (1994)
Toyota Celica
Production
Aug 1994
-
May 1999
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9408- )CVT

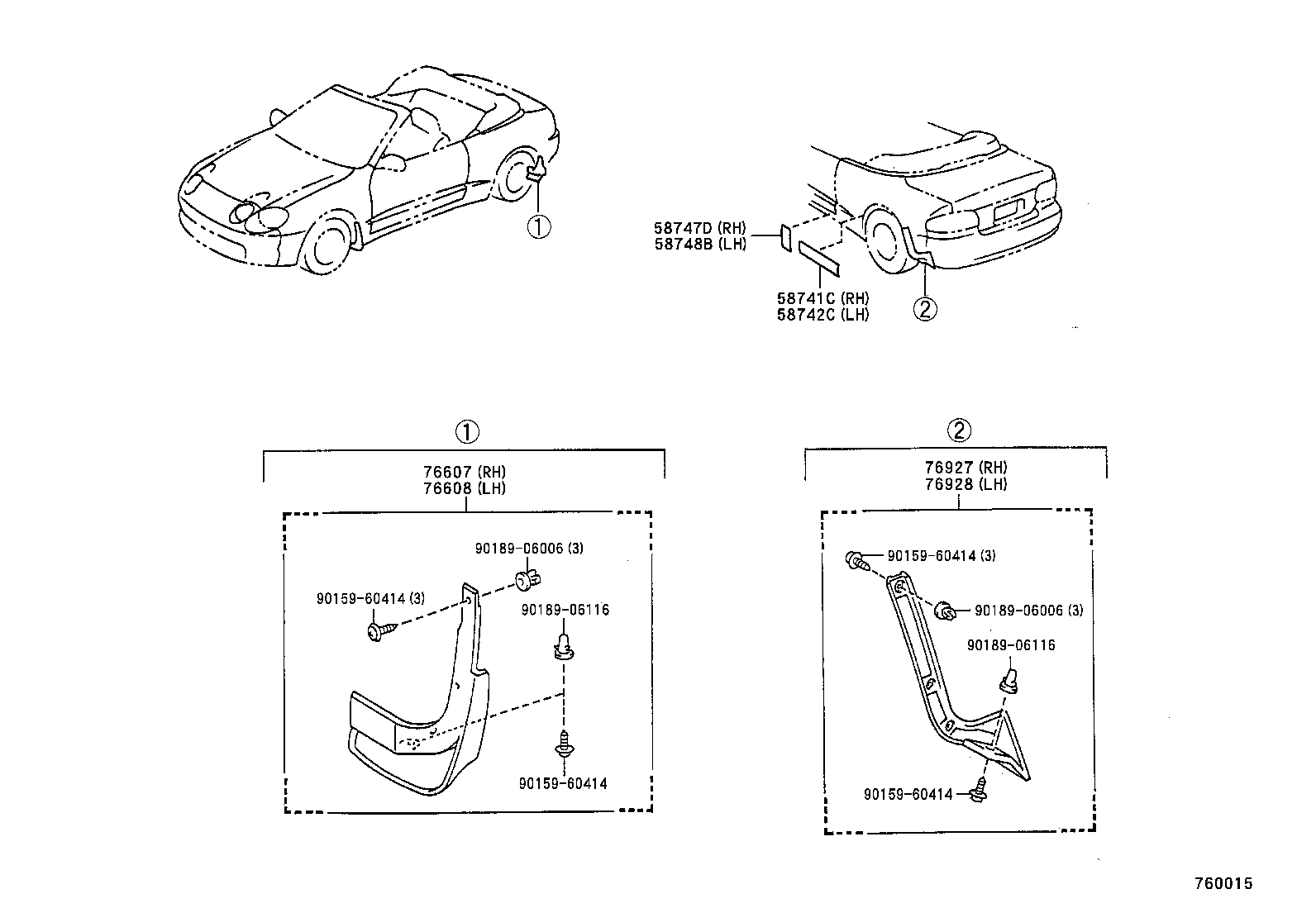

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58747D - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-20020 |
AT200,ST204 |
1 | ||
| 58748B - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-20020 |
AT200,ST204 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-29195 |
AT200,ST204 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-29195 |
AT200,ST204 |
1 | ||
| 76927 - PROTECTER, REAR MUDGUARD, RH | ||||
| 76927-29015 |
ST204..USA |
1 | ||
| 76928 - PROTECTER, REAR MUDGUARD, LH | ||||
| 76928-29015 |
ST204..USA |
1 | ||
| Common parts | ||||
| 90159-60414 | ||||
| 90189-06006 | ||||
| 90189-06116 | ||||
(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58747D - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-20020 |
AT200,ST204 |
1 | ||
| 58748B - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-20020 |
AT200,ST204 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-29195 |
AT200,ST204 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-29195 |
AT200,ST204 |
1 | ||
| 76927 - PROTECTER, REAR MUDGUARD, RH | ||||
| 76927-29015 |
ST204..USA |
1 | ||
| 76928 - PROTECTER, REAR MUDGUARD, LH | ||||
| 76928-29015 |
ST204..USA |
1 | ||
| Common parts | ||||
| 90159-60414 | ||||
| 90189-06006 | ||||
| 90189-06116 | ||||
