ST204L-BKPGKA (1994)
Toyota Celica
Production
Aug 1994
-
May 1999
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9408- )CVT

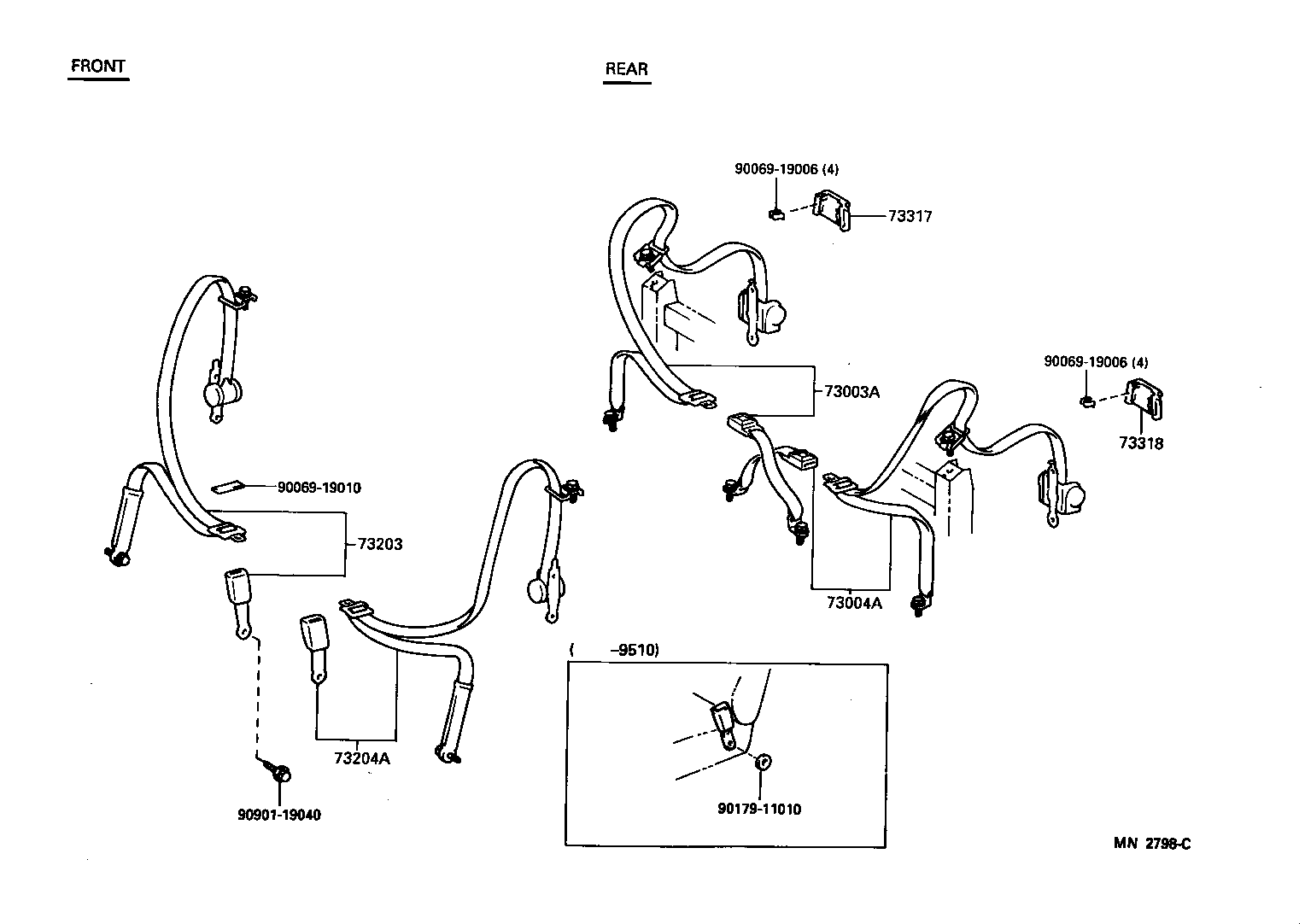

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73003A - BELT SET, REAR SEAT 3 POINT TYPE, RH | ||||
| 73003-0W010 |
ST204..CVT |
1 | ||
| 73004A - BELT SET, REAR SEAT 3 POINT TYPE, LH | ||||
| 73004-0W010 |
ST204..CVT |
1 | ||
| 73203 - BELT SET, FRONT SEAT, RH | ||||
| 73203-0W010 |
ST204..CVT |
1 | ||
| 73203-0W040 |
ST204..CVT |
1 | ||
| 73204A - BELT SET, FRONT SEAT, LH | ||||
| 73204-0W040 |
ST204..CVT |
1 | ||
| 73204-0W010 |
ST204..CVT |
1 | ||
| 73317 - CAP, REAR SEAT BELT, RH | ||||
| 73317-0W010 |
ST204..CVT |
1 | ||
| 73318 - CAP, REAR SEAT BELT, LH | ||||
| 73318-0W010 |
ST204..CVT |
1 | ||
| Common parts | ||||
| 90069-19006 | ||||
| 90069-19010 | ||||
| 90179-11010 | ||||
| 90901-19040 | ||||
(9408- )CVT

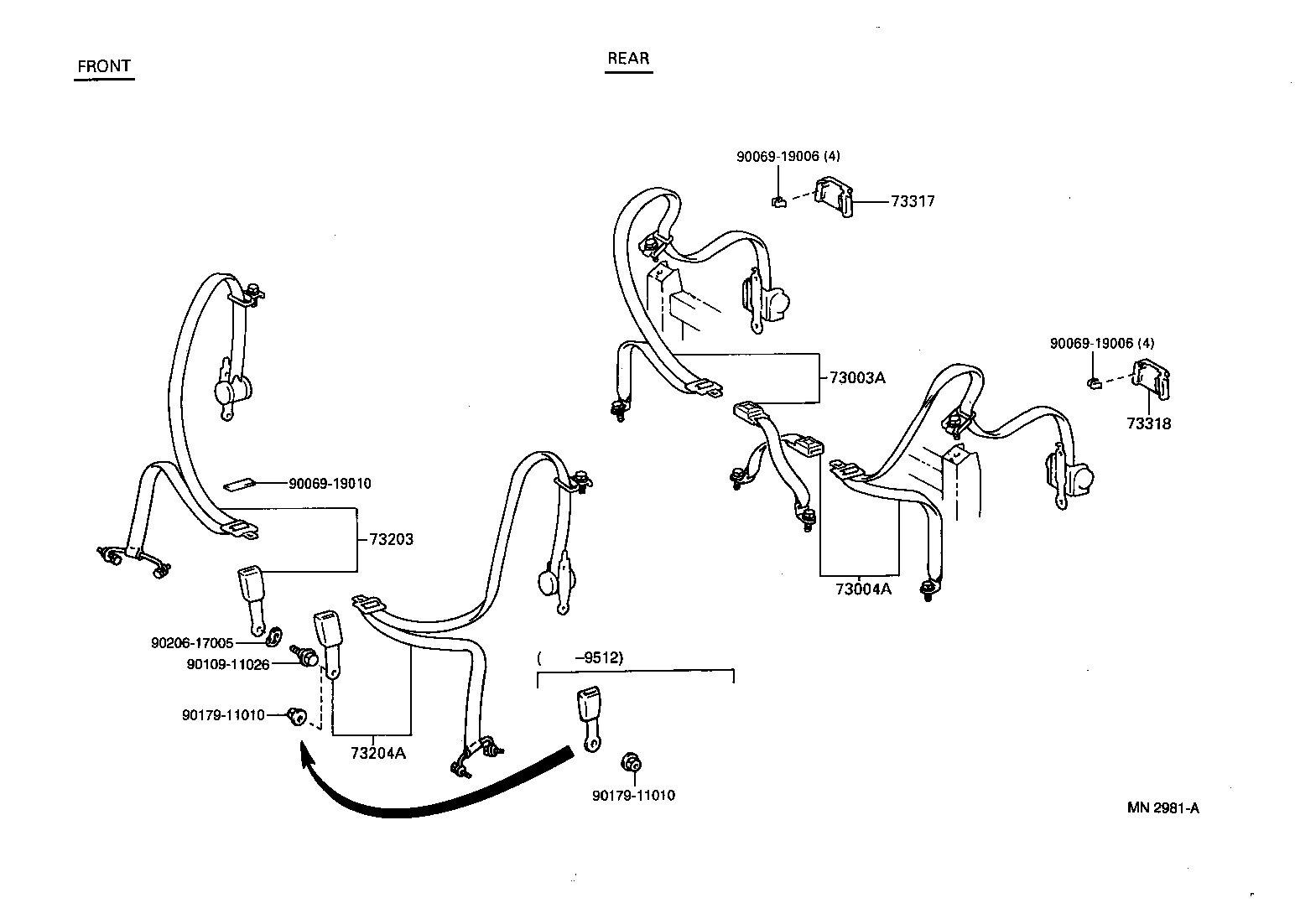

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-19006 | ||||
| 90069-19010 | ||||
| 90109-11026 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||
