ST204L-BKPGKA (1994)
Toyota Celica
Production
Aug 1994
-
May 1999
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9408- )CVT

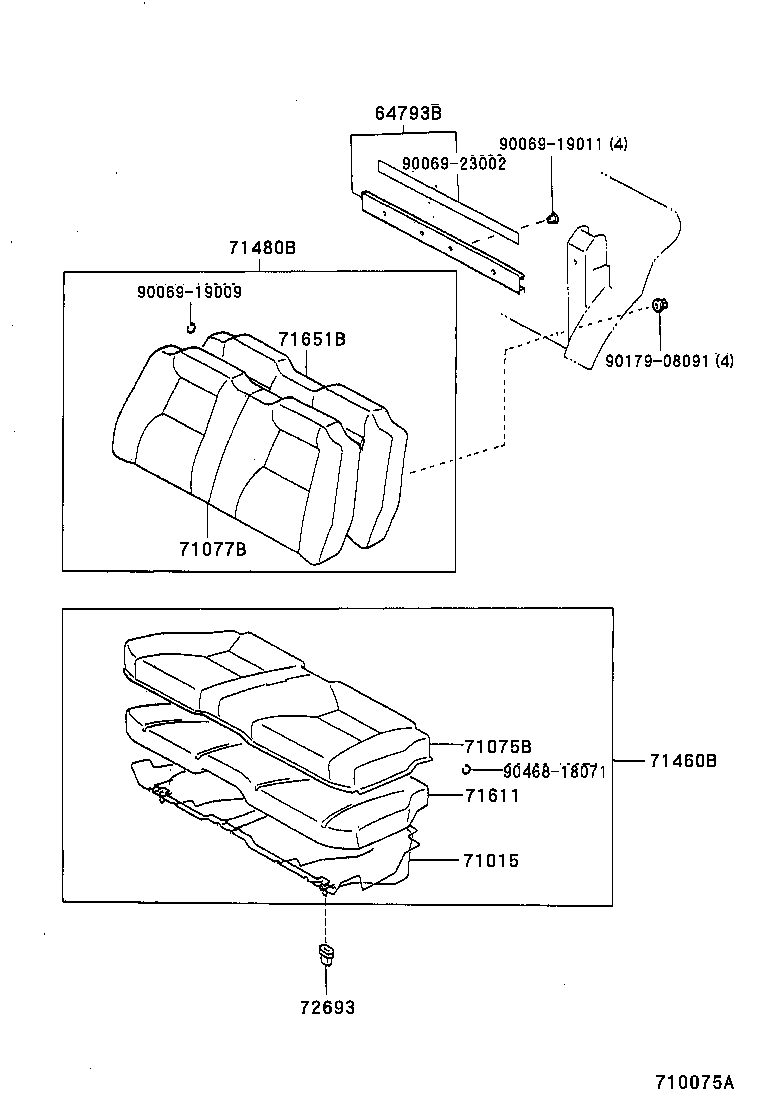

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64793B - RETAINER, TARPAULIN STORAGE COVER | ||||
| 64793-0W010 |
ST204..CVT |
1 | ||
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20470 |
ST204..CVT |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2B360A0 |
ST204 LEATHER,IV0RY,TRIM0# |
1 | ||
| 71065-2B440C0 |
ST204..CVT BLACK,TRIM2# |
1 | ||
| 71065-2B360C0 |
ST204 LEATHER,BLACK,TRIM2# |
1 | ||
| 71065-2B590C0 |
ST204..CVT BLACK,TRIM2# |
1 | ||
| 71065-2B590A0 |
ST204..CVT IVORY,TRIM0# |
1 | ||
| 71065-2B580C2 |
ST204..GT..USA BLACK,TRIM2# |
1 | ||
| 71065-2B510C0 |
ST204..CVT LEATHER,BLACK,TRIM2# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-0W040 |
ST204..GT..USA |
1 | ||
| 71077-0W060 |
ST204..CVT LIMITED EDITION |
1 | ||
| 71077-0W030 |
ST204..CVT LEATHER |
1 | ||
| 71077-0W020 |
ST204..CVT |
1 | ||
| 71077-0W050 |
ST204..CVT |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2B660C0 |
ST204..CVT ***,W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71560-2B750C2 |
ST204..GT..USA ***,BLACK,TRIM2# |
1 | ||
| 71560-2B760C0 |
ST204..CVT ***,BLACK,TRIM2# |
1 | ||
| 71560-2B760A0 |
ST204..CVT IVORY,TRIM0# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-0W020 |
ST204..CVT |
1 | ||
| 71480-0W080 |
ST204..CVT LIMITED EDITION |
1 | ||
| 71480-0W050 |
ST204..CVT |
1 | ||
| 71480-0W040 |
ST204..GT..USA |
1 | ||
| 71480-0W030 |
ST204..CVT LEATHER |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20540 |
ST204..CVT |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71017-0W010 |
ST204..CVT |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20060 |
AT200,ST204 |
2 | ||
| Common parts | ||||
| 90069-19009 | ||||
| 90069-19011 | ||||
| 90069-23002 | ||||
| 90179-08091 | ||||
| 90468-18071 | ||||
(9408- )CVT

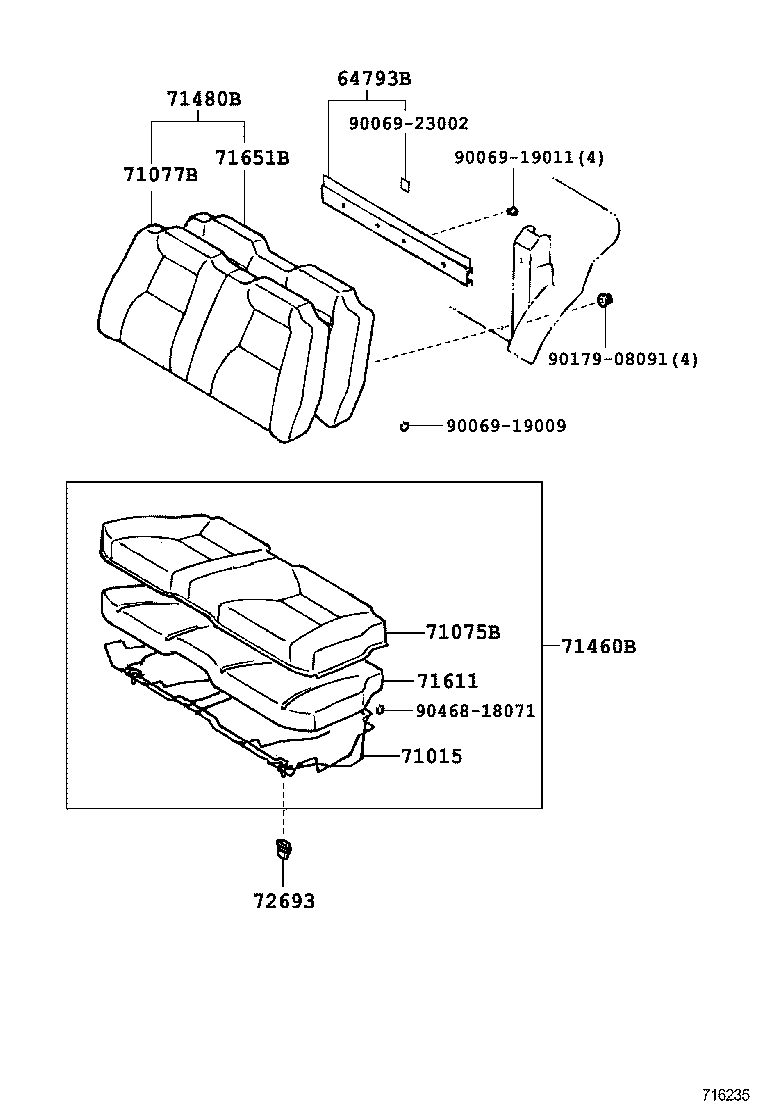

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-19009 | ||||
| 90069-19011 | ||||
| 90069-23002 | ||||
| 90179-08091 | ||||
| 90468-18071 | ||||
