ST204L-BKPGKA (1994)
Toyota Celica

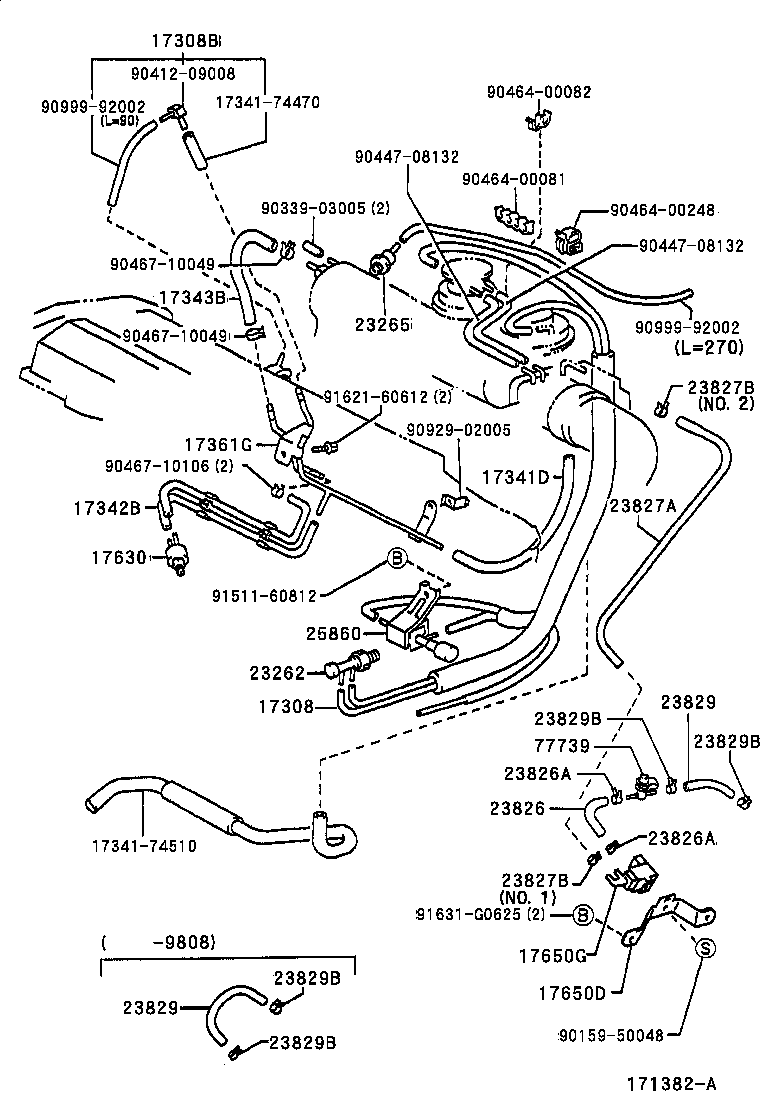

(9508-9510)5SFE..CP,LB ; (9510- )5SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-74131 |
5SFE..ST204 |
1 | ||
| 17308-74460 |
5SFE..ST204 |
1 | ||
| 17308-74460 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 17308-74510 |
5SFE..ST204 |
1 | ||
| 17308-74131 |
5SFE..ST204..CVT |
1 | ||
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 17308-74490 |
5SFE..ST204 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74520 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 17341-74340 |
5SFE..ST204 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17343-74100 |
5SFE..ST204 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74040 |
5SFE..ST204 |
1 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-74130 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 17361-74130 |
5SFE..ST204..CVT CALIFORNIA SPEC |
1 | ||
| 17361-74100 |
5SFE..ST204 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
5SFE..ST204 |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-74120 |
5SFE..ST204..USA |
1 | ||
| 25861-74120 |
5SFE..ST204 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12149 |
5SFE..ST204..USA |
1 | ||
| 90910-12149 |
5SFE..ST204 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05068 |
5SFE..ST204 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
5SFE..ST204 |
1 | ||
| 90917-11023 |
5SFE..ST204..CVT |
1 | ||
| 90917-11022 |
5SFE..ST204 |
1 | ||
| 90917-11037 |
5SFE..ST204 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-74100 |
5SFE..ST204 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41100 |
5SFE..ST204 |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41100 |
5SFE..ST204 |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-74070 |
5SFE..ST204..USA |
1 | ||
| 23827-74070 |
5SFE..ST204 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-51000 |
5SFE..ST204..USA NO.2 |
1 | ||
| 96132-41100 |
5SFE..ST204..USA NO.1 |
1 | ||
| 96132-41100 |
5SFE..ST204 NO.1 |
1 | ||
| 96132-51000 |
5SFE..ST204 NO.2 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-51000 |
5SFE..ST204..USA NO.2 |
1 | ||
| 96132-41100 |
5SFE..ST204..USA NO.1 |
1 | ||
| 96132-41100 |
5SFE..ST204 NO.1 |
1 | ||
| 96132-51000 |
5SFE..ST204 NO.2 |
1 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-74100 |
5SFE..ST204 |
1 | ||
| 23829-74060 |
5SFE..ST204..USA |
1 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-74100 |
5SFE..ST204 |
1 | ||
| 23829-74060 |
5SFE..ST204..USA |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41100 |
5SFE..ST204..USA |
2 | ||
| 96132-41100 |
5SFE..ST204 |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41100 |
5SFE..ST204..USA |
2 | ||
| 96132-41100 |
5SFE..ST204 |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41100 |
5SFE..ST204..USA |
2 | ||
| 96132-41100 |
5SFE..ST204 |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41100 |
5SFE..ST204..USA |
2 | ||
| 96132-41100 |
5SFE..ST204 |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-74050 |
5SFE..ST204 |
1 | ||
| 77739 - VALVE, EVAP SERVICE PORT | ||||
| 77739-33010 |
ST204 |
1 | ||
| Common parts | ||||
| 17341-74470 | ||||
| 17341-74510 | ||||
| 90159-50048 | ||||
| 90339-03005 | ||||
| 90412-09008 | ||||
| 90447-08132 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00248 | ||||
| 90467-10049 | ||||
| 90467-10106 | ||||
| 90929-02005 | ||||
| 90999-92002 | ||||
| 91511-60812 | ||||
| 91621-60612 | ||||
| 91631-G0625 | ||||

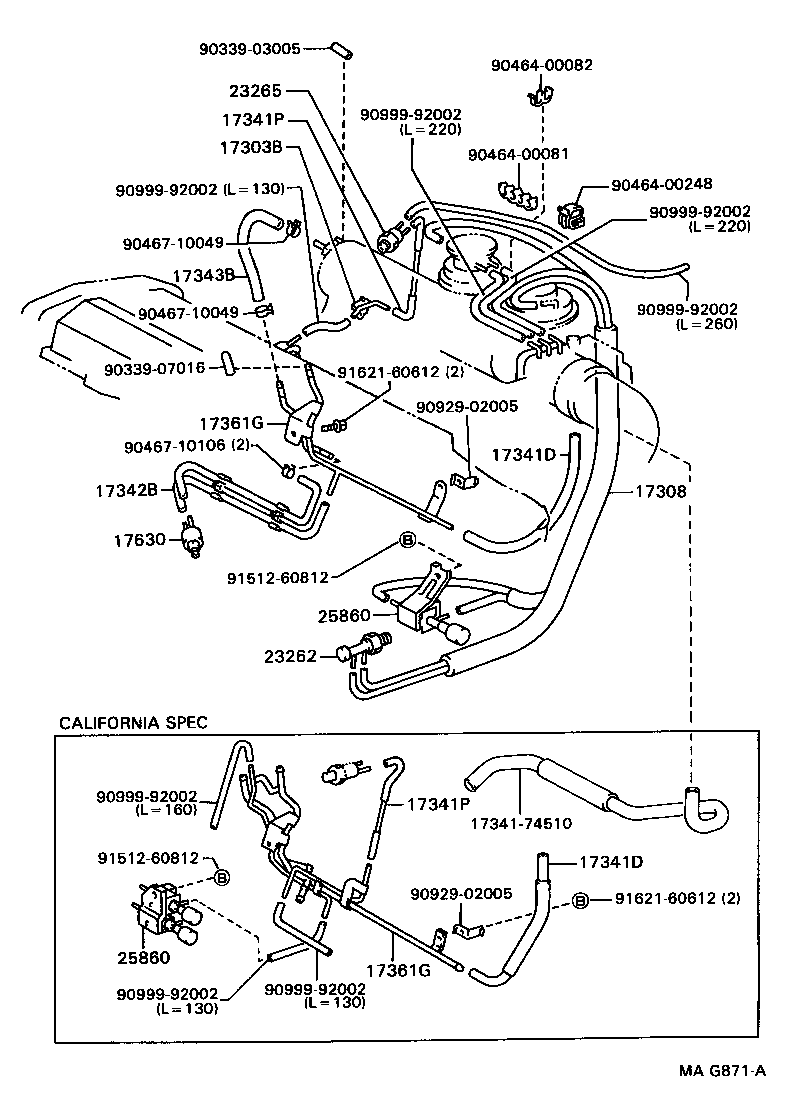

(9309-9508)5SFE ; (9508-9510)5SFE..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-74040 |
5SFE..ST204..CVT |
1 | ||
| 17303-74040 |
5SFE..ST204 |
1 | ||
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-74131 |
5SFE..ST204 |
1 | ||
| 17308-74460 |
5SFE..ST204 |
1 | ||
| 17308-74460 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 17308-74510 |
5SFE..ST204 |
1 | ||
| 17308-74131 |
5SFE..ST204..CVT |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74520 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 17341-74340 |
5SFE..ST204 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74520 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 17341-74340 |
5SFE..ST204 |
1 | ||
| 17341P - HOSE, AIR | ||||
| 17341-74350 |
5SFE..ST204 |
1 | ||
| 17341-74350 |
5SFE..ST204..CVT |
1 | ||
| 17341P - HOSE, AIR | ||||
| 17341-74350 |
5SFE..ST204 |
1 | ||
| 17341-74350 |
5SFE..ST204..CVT |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17343-74100 |
5SFE..ST204 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74040 |
5SFE..ST204 |
1 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-74130 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 17361-74130 |
5SFE..ST204..CVT CALIFORNIA SPEC |
1 | ||
| 17361-74100 |
5SFE..ST204 |
1 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-74130 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 17361-74130 |
5SFE..ST204..CVT CALIFORNIA SPEC |
1 | ||
| 17361-74100 |
5SFE..ST204 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
5SFE..ST204 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05068 |
5SFE..ST204 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
5SFE..ST204 |
1 | ||
| 90917-11023 |
5SFE..ST204..CVT |
1 | ||
| 90917-11022 |
5SFE..ST204 |
1 | ||
| 90917-11037 |
5SFE..ST204 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-74050 |
5SFE..ST204 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-74050 |
5SFE..ST204 |
1 | ||
| Common parts | ||||
| 17341-74510 | ||||
| 90339-03005 | ||||
| 90339-07016 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00248 | ||||
| 90467-10049 | ||||
| 90467-10106 | ||||
| 90929-02005 | ||||
| 90999-92002 | ||||
| 91512-60812 | ||||
| 91621-60612 | ||||
