Toyota Celica ST204 TIMING GEAR COVER & REAR END PLATE

Manufacturers Home
Toyota
EU
CELICA
ST204L-BKPGKA (1994)
1106 - TIMING GEAR COVER & REAR END PLATE

ST204L-BKPGKA (1994)

Toyota Celica

Production Aug 1994 - May 1999

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9309-9508)5SFE ; (9508-9510)5SFE..CVT

Click highlighted areas on diagram

Part #	Description	Period	Qty
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-74030	5SFE..ST204..CVT	08/1995 - 10/1995	1
11302-74040	5SFE..ST204	10/1995 - 05/1999	1
11302-74030	5SFE..ST204	09/1993 - 08/1995	1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-74040	5SFE..ST204..CVT	08/1995 - 10/1995	1
11303-74040	5SFE..ST204	09/1993 - 08/1995	1
11303-74050	5SFE..ST204	10/1995 - 05/1999	1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489	5SFE..ST204 OD=33	09/1993 - 05/1999	1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-74030	5SFE..ST204..CVT	08/1995 - 10/1995	1
11304-74030	5SFE..ST204	09/1993 - 08/1995	1
11304-74040	5SFE..ST204	10/1995 - 05/1999	1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-74020	5SFE..ST204..CVT	08/1995 - 10/1995	1
11319-74020	5SFE..ST204	09/1993 - 08/1995	1
11319-74030	5SFE..ST204	10/1995 - 05/1999	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-74040	5SFE..ST204..CVT	08/1995 - 10/1995	1
11328-74040	5SFE..ST204	09/1993 - 08/1995	1
11328-74060	5SFE..ST204	10/1995 - 05/1999	1
11329 - GASKET, TIMING GEAR REAR COVER
11329-74070	5SFE..ST204..CVT	08/1995 - 10/1995	1
11329-74070	5SFE..ST204	09/1993 - 08/1995	1
11329-74080	5SFE..ST204	10/1995 - 05/1999	1
11355 - PLATE, REAR END
11355-74010	5SFE..ST204	09/1993 - 05/1999	1
11377 - STIFFENER, REAR END PLATE
11377-74030	5SFE..ST204	09/1993 - 12/2999	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012	5SFE..ST204	09/1993 - 05/1999	1
11381A - SEAL, ENGINE REAR OIL
90311-85006	5SFE..ST204	09/1993 - 01/1998	1
90311-85009	5SFE..ST204	01/1998 - 05/1999	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-74021	5SFE..ST204	09/1993 - 05/1999	1
Common parts
90105-06229
90119-10744
90179-10015
91511-F0620
91511-F0635
91512-61025
91512-61030
91611-60610
91611-61025
91611-B1020
91632-60830
91651-60614
92112-61032

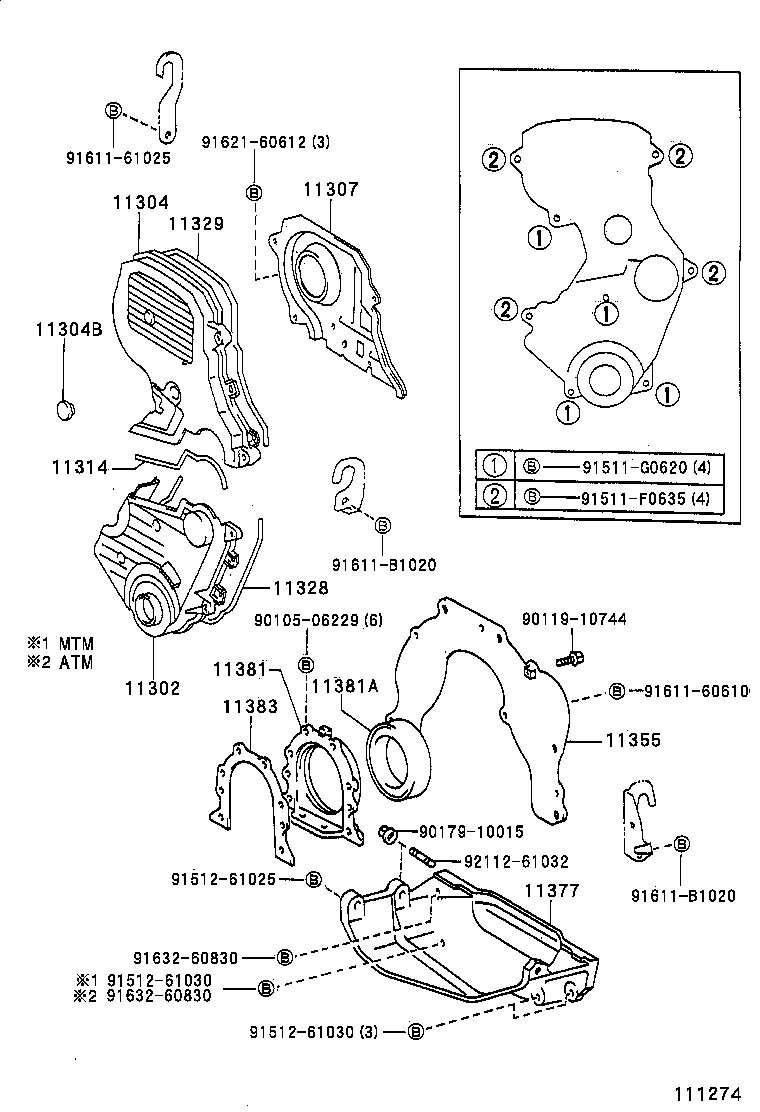

(9508-9510)5SFE..CP,LB ; (9510- )5SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-74030	5SFE..ST204..CVT	08/1995 - 10/1995	1
11302-74040	5SFE..ST204	10/1995 - 05/1999	1
11302-74030	5SFE..ST204	09/1993 - 08/1995	1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-74040	5SFE..ST204..CVT	08/1995 - 10/1995	1
11303-74040	5SFE..ST204	09/1993 - 08/1995	1
11303-74050	5SFE..ST204	10/1995 - 05/1999	1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489	5SFE..ST204 OD=33	09/1993 - 05/1999	1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-74030	5SFE..ST204..CVT	08/1995 - 10/1995	1
11304-74030	5SFE..ST204	09/1993 - 08/1995	1
11304-74040	5SFE..ST204	10/1995 - 05/1999	1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-74020	5SFE..ST204..CVT	08/1995 - 10/1995	1
11319-74020	5SFE..ST204	09/1993 - 08/1995	1
11319-74030	5SFE..ST204	10/1995 - 05/1999	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-74040	5SFE..ST204..CVT	08/1995 - 10/1995	1
11328-74040	5SFE..ST204	09/1993 - 08/1995	1
11328-74060	5SFE..ST204	10/1995 - 05/1999	1
11329 - GASKET, TIMING GEAR REAR COVER
11329-74070	5SFE..ST204..CVT	08/1995 - 10/1995	1
11329-74070	5SFE..ST204	09/1993 - 08/1995	1
11329-74080	5SFE..ST204	10/1995 - 05/1999	1
11355 - PLATE, REAR END
11355-74010	5SFE..ST204	09/1993 - 05/1999	1
11377 - STIFFENER, REAR END PLATE
11377-74030	5SFE..ST204	09/1993 - 12/2999	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012	5SFE..ST204	09/1993 - 05/1999	1
11381A - SEAL, ENGINE REAR OIL
90311-85006	5SFE..ST204	09/1993 - 01/1998	1
90311-85009	5SFE..ST204	01/1998 - 05/1999	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-74021	5SFE..ST204	09/1993 - 05/1999	1
Common parts
90105-06229
90119-10744
90179-10015
91511-F0635
91511-G0620
91512-61025
91512-61030
91611-60610
91611-61025
91611-B1020
91621-60612
91632-60830
92112-61032

ST204L-BKPGKA (1994)

(9309-9508)5SFE ; (9508-9510)5SFE..CVT

(9508-9510)5SFE..CP,LB ; (9510- )5SFE
