ST204L-BKMGKA (1994)
Toyota Celica
Production
Aug 1994
-
May 1999
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9408- )CVT

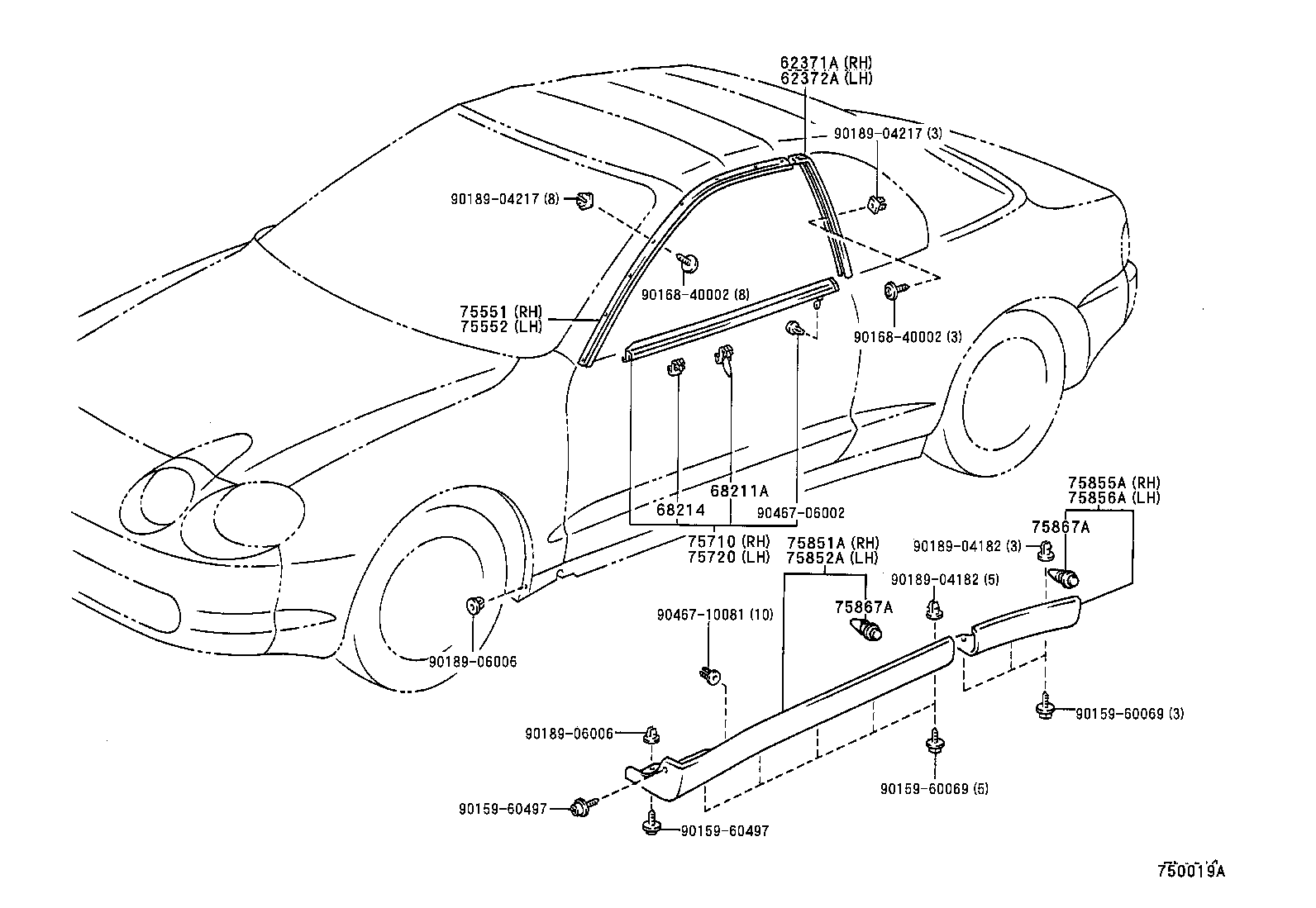

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62371A - RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH | ||||
| 62371-20080 |
AT200,ST204 |
1 | ||
| 62372A - RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH | ||||
| 62372-20080 |
AT200,ST204 |
1 | ||
| 68211A - CLIP, DOOR BELT MOULDING | ||||
| 68211-20150 |
AT200,ST204 |
10 | ||
| 68214 - CLIP, DOOR BELT MOULDING | ||||
| 68214-20010 |
AT200,ST204 |
4 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-20510 |
ST204..CVT |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-20510 |
ST204..CVT |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-20400 |
AT200,ST204 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-20400 |
AT200,ST204 |
1 | ||
| 75851A - MOULDING, ROCKER PANEL, FRONT RH | ||||
| 75851-20220 |
ST204..CVT |
1 | ||
| 75852A - MOULDING, ROCKER PANEL, FRONT LH | ||||
| 75852-20070 |
ST204..CVT |
1 | ||
| 75855A - MOULDING, ROCKER PANEL, REAR RH | ||||
| 75855-20030 |
ST204..CVT |
1 | ||
| 75856A - MOULDING, ROCKER PANEL, REAR LH | ||||
| 75856-20030 |
ST204..CVT |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-20110 |
ST204..CVT |
20 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-20110 |
ST204..CVT |
20 | ||
| Common parts | ||||
| 90159-60069 | ||||
| 90159-60497 | ||||
| 90168-40002 | ||||
| 90189-04182 | ||||
| 90189-04217 | ||||
| 90189-06006 | ||||
| 90467-06002 | ||||
| 90467-10081 | ||||
(9408- )CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62371A - RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH | ||||
| 62371-20080 |
AT200,ST204 |
1 | ||
| 62372A - RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH | ||||
| 62372-20080 |
AT200,ST204 |
1 | ||
| 68211A - CLIP, DOOR BELT MOULDING | ||||
| 68211-20150 |
AT200,ST204 |
10 | ||
| 68214 - CLIP, DOOR BELT MOULDING | ||||
| 68214-20010 |
AT200,ST204 |
4 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-20510 |
ST204..CVT |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-20510 |
ST204..CVT |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-20400 |
AT200,ST204 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-20400 |
AT200,ST204 |
1 | ||
| 75851A - MOULDING, ROCKER PANEL, FRONT RH | ||||
| 75851-20220 |
ST204..CVT |
1 | ||
| 75852A - MOULDING, ROCKER PANEL, FRONT LH | ||||
| 75852-20070 |
ST204..CVT |
1 | ||
| 75855A - MOULDING, ROCKER PANEL, REAR RH | ||||
| 75855-20030 |
ST204..CVT |
1 | ||
| 75856A - MOULDING, ROCKER PANEL, REAR LH | ||||
| 75856-20030 |
ST204..CVT |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-20110 |
ST204..CVT |
20 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-20110 |
ST204..CVT |
20 | ||
| Common parts | ||||
| 90159-60069 | ||||
| 90159-60497 | ||||
| 90168-40002 | ||||
| 90189-04182 | ||||
| 90189-04217 | ||||
| 90189-06006 | ||||
| 90467-06002 | ||||
| 90467-10081 | ||||
