ST204L-BKMGKA (1994)

Toyota Celica

Production Aug 1994 - May 1999
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )CVT

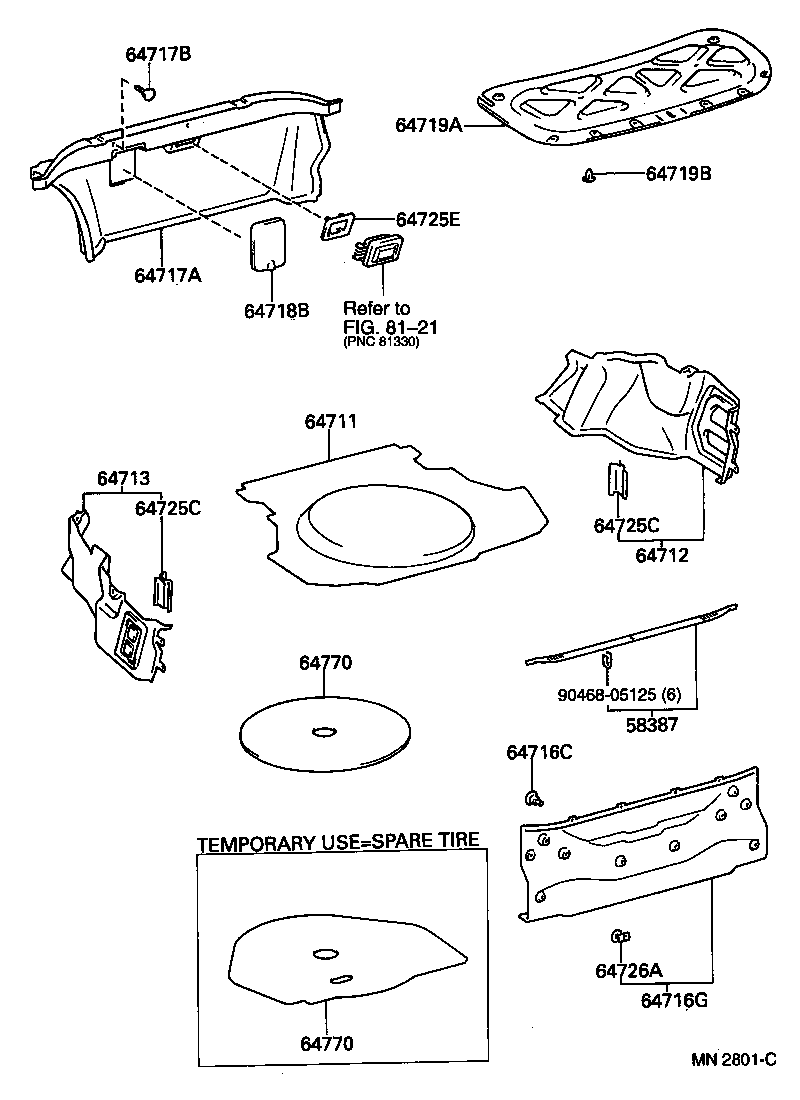

Click highlighted areas on diagram

diagram 58387 64711 64712 64713 64716C 64716G 64717A 64717B 64718B 64719A 64719B 64725C 64725C 64725E 64726A 64770 8121 9046805125
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-20050C0

ST204..CVT

BLACK,TRIM2#

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-2B020C0

ST204..CVT

BLACK,TRIM2#

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-20210C0

ST204..CVT

BLACK,TRIM2#

 1
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64713-20210C0

ST204..CVT

BLACK,TRIM2#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-07146

ST204..CVT

 8
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-20510C0

ST204..CVT

BLACK,TRIM2#

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-0W010

ST204..CVT

 1
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
02860-86101

ST204..CVT

 3
64718B - COVER, LUGGAGE TRIM SERVICE HOLE
64718-0W010

ST204..CVT

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-20060C0

ST204..CVT

BLACK,TRIM2#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-07146

AT200,ST204..CP,CVT

 13
90467-07146

ST204..CP,CVT

 13
64725C - RETAINER, LUGGAGE COMPARTMENT COVER
64725-20050C1

ST204..CVT

BLACK,TRIM2#

 2
64725C - RETAINER, LUGGAGE COMPARTMENT COVER
64725-20050C1

ST204..CVT

BLACK,TRIM2#

 2
64725E - RETAINER, LUGGAGE COMPARTMENT COVER
64725-0W010

ST204..CVT

 1
64726A - CLIP, LUGGAGE TRIM, REAR
64726-20020C0

ST204..CVT

BLACK,TRIM2#

 6
64770 - COVER ASSY, SPARE WHEEL
64770-20230

AT200,ST204..(CP,CVT)..USA

 1
Common parts
90468-05125
Linked diagrams
8121

(9408- )CVT

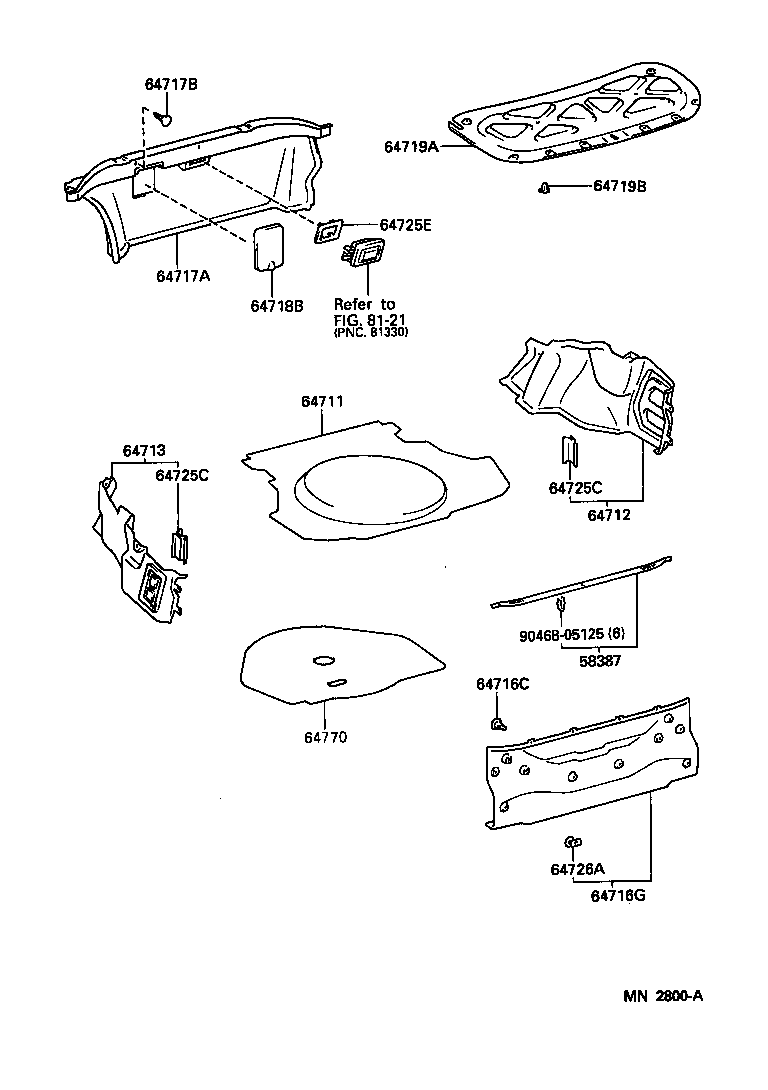

Click highlighted areas on diagram

diagram 58387 64711 64712 64713 64716C 64716G 64717A 64717B 64718B 64719A 64719B 64725C 64725C 64725E 64726A 64770 64770 8121 9046805125
Part # Description Qty Price
Common parts
90468-05125
Linked diagrams
8121
