ST204L-BKMGKA (1994)
Toyota Celica

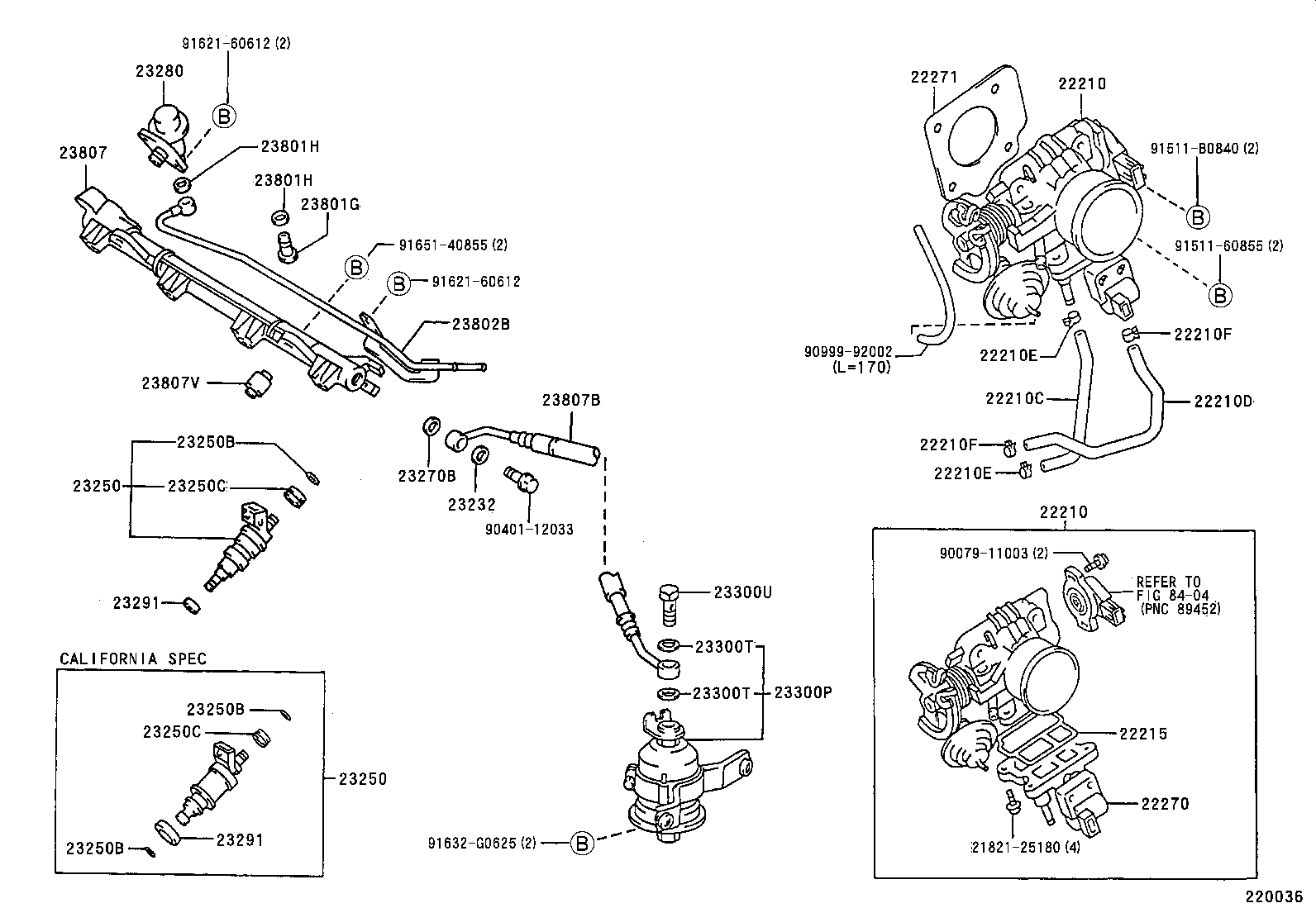

ILLUST NO. 1 OF 2(9508-9510)5SFE..CP,LB ; (9510- )5SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A140 |
5SFE..ST204..MTM |
1 | ||
| 22210-7A140 |
5SFE..ST204..CVT..MTM |
1 | ||
| 22210-7A160 |
5SFE..ST204..CVT..MTM CALIFORNIA SPEC |
1 | ||
| 22210-7A160 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A510 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A500 |
5SFE..ST204 |
1 | ||
| 22210-7A520 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A670 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A780 |
5SFE..ST204 |
1 | ||
| 22210-7A490 |
5SFE..ST204..MTM |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A140 |
5SFE..ST204..MTM |
1 | ||
| 22210-7A140 |
5SFE..ST204..CVT..MTM |
1 | ||
| 22210-7A160 |
5SFE..ST204..CVT..MTM CALIFORNIA SPEC |
1 | ||
| 22210-7A160 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A510 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A500 |
5SFE..ST204 |
1 | ||
| 22210-7A520 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A670 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A780 |
5SFE..ST204 |
1 | ||
| 22210-7A490 |
5SFE..ST204..MTM |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16282-74100 |
5SFE..ST204 |
1 | ||
| 16282-74050 |
5SFE..ST204 |
1 | ||
| 16282-74080 |
5SFE..ST204..CVT |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16283-74010 |
5SFE..ST204..CVT |
1 | ||
| 16283-74050 |
5SFE..ST204 |
1 | ||
| 16283-74010 |
5SFE..ST204 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
5SFE..ST204 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
5SFE..ST204 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
5SFE..ST204 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
5SFE..ST204 |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
5SFE..ST204 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74200 |
5SFE..ST204..MTM |
1 | ||
| 22270-74170 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22270-74200 |
5SFE..ST204..CVT..MTM |
1 | ||
| 22270-74170 |
5SFE..ST204..CVT..MTM CALIFORNIA SPEC |
1 | ||
| 22270-74280 |
5SFE..ST204 |
1 | ||
| 22270-74290 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74022 |
5SFE..ST204 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
5SFE..ST204 |
1 | ||
| 23279-74010 |
5SFE..ST204 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74140 |
5SFE..ST204..USA CALIFORNIA SPEC |
4 | ||
| 23209-74100 |
5SFE..ST204 |
4 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74140 |
5SFE..ST204..USA CALIFORNIA SPEC |
4 | ||
| 23209-74100 |
5SFE..ST204 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 90301-07001 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 90301-07001 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 90301-07001 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5SFE..ST204 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5SFE..ST204 |
4 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
5SFE..ST204 |
1 | ||
| 23232-41081 |
5SFE..ST204 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74100 |
5SFE..ST204 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5SFE..ST204 |
4 | ||
| 23291-62010 |
5SFE..ST204..USA CALIFORNIA SPEC |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5SFE..ST204 |
4 | ||
| 23291-62010 |
5SFE..ST204..USA CALIFORNIA SPEC |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79425 |
5SFE..ST204 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
5SFE..ST204 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
5SFE..ST204 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 96341-11200 |
5SFE..ST204 |
1 | ||
| 90401-12097 |
5SFE..ST204 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
5SFE..ST204 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
5SFE..ST204 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
5SFE..ST204 |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-74023 |
5SFE..ST204 |
1 | ||
| 23802-74070 |
5SFE..ST204 |
1 | ||
| 23802-74023 |
5SFE..ST204..CVT |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-74060 |
5SFE..ST204..CVT |
1 | ||
| 23807-74060 |
5SFE..ST204 |
1 | ||
| 23814-74110 |
5SFE..ST204 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-74450 |
5SFE..ST204 |
1 | ||
| 23271-74450 |
5SFE..ST204..CVT |
1 | ||
| 23271-74550 |
5SFE..ST204 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
5SFE..ST204 |
2 | ||
| 90561-08053 |
5SFE..ST204 |
2 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11003 | ||||
| 90401-12033 | ||||
| 90999-92002 | ||||
| 91511-60855 | ||||
| 91511-B0840 | ||||
| 91621-60612 | ||||
| 91632-G0625 | ||||
| 91651-40855 | ||||
| Linked diagrams | ||||
| 8404 | ||||

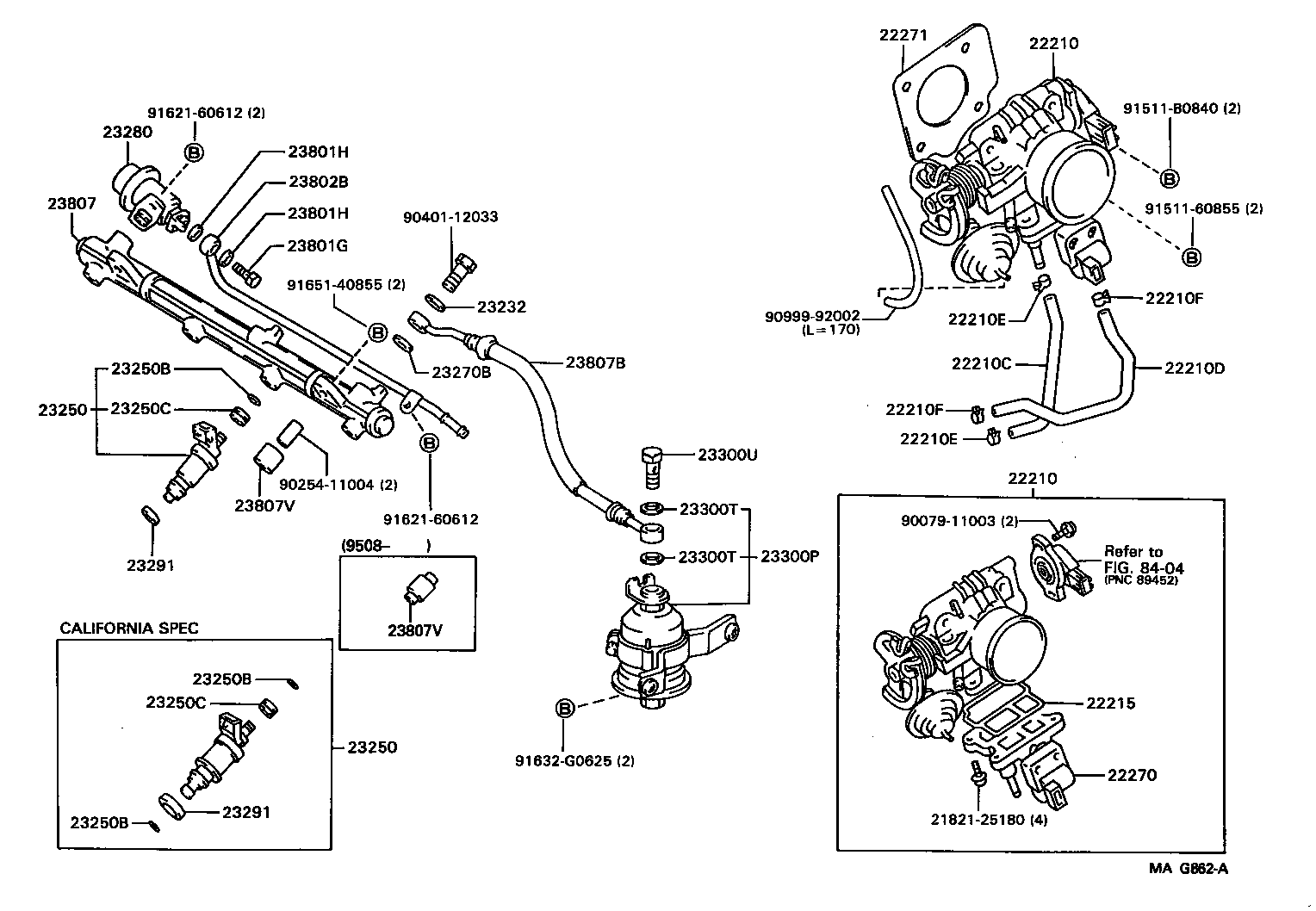

ILLUST NO. 1 OF 2(9309-9508)5SFE ; (9508-9510)5SFE..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A140 |
5SFE..ST204..MTM |
1 | ||
| 22210-7A140 |
5SFE..ST204..CVT..MTM |
1 | ||
| 22210-7A160 |
5SFE..ST204..CVT..MTM CALIFORNIA SPEC |
1 | ||
| 22210-7A160 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A510 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A500 |
5SFE..ST204 |
1 | ||
| 22210-7A520 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A670 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A780 |
5SFE..ST204 |
1 | ||
| 22210-7A490 |
5SFE..ST204..MTM |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A140 |
5SFE..ST204..MTM |
1 | ||
| 22210-7A140 |
5SFE..ST204..CVT..MTM |
1 | ||
| 22210-7A160 |
5SFE..ST204..CVT..MTM CALIFORNIA SPEC |
1 | ||
| 22210-7A160 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A510 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A500 |
5SFE..ST204 |
1 | ||
| 22210-7A520 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A670 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22210-7A780 |
5SFE..ST204 |
1 | ||
| 22210-7A490 |
5SFE..ST204..MTM |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16282-74100 |
5SFE..ST204 |
1 | ||
| 16282-74050 |
5SFE..ST204 |
1 | ||
| 16282-74080 |
5SFE..ST204..CVT |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16283-74010 |
5SFE..ST204..CVT |
1 | ||
| 16283-74050 |
5SFE..ST204 |
1 | ||
| 16283-74010 |
5SFE..ST204 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
5SFE..ST204 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
5SFE..ST204 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
5SFE..ST204 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
5SFE..ST204 |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
5SFE..ST204 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74200 |
5SFE..ST204..MTM |
1 | ||
| 22270-74170 |
5SFE..ST204..MTM..USA CALIFORNIA SPEC |
1 | ||
| 22270-74200 |
5SFE..ST204..CVT..MTM |
1 | ||
| 22270-74170 |
5SFE..ST204..CVT..MTM CALIFORNIA SPEC |
1 | ||
| 22270-74280 |
5SFE..ST204 |
1 | ||
| 22270-74290 |
5SFE..ST204..USA CALIFORNIA SPEC |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74022 |
5SFE..ST204 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
5SFE..ST204 |
1 | ||
| 23279-74010 |
5SFE..ST204 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74140 |
5SFE..ST204..USA CALIFORNIA SPEC |
4 | ||
| 23209-74100 |
5SFE..ST204 |
4 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74140 |
5SFE..ST204..USA CALIFORNIA SPEC |
4 | ||
| 23209-74100 |
5SFE..ST204 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 90301-07001 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 90301-07001 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204 |
4 | ||
| 90301-07024 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 90301-07001 |
5SFE..ST204..USA CALIFORNIA SPEC |
8 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5SFE..ST204 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5SFE..ST204 |
4 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
5SFE..ST204 |
1 | ||
| 23232-41081 |
5SFE..ST204 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74100 |
5SFE..ST204 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5SFE..ST204 |
4 | ||
| 23291-62010 |
5SFE..ST204..USA CALIFORNIA SPEC |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5SFE..ST204 |
4 | ||
| 23291-62010 |
5SFE..ST204..USA CALIFORNIA SPEC |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79425 |
5SFE..ST204 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
5SFE..ST204 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
5SFE..ST204 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 96341-11200 |
5SFE..ST204 |
1 | ||
| 90401-12097 |
5SFE..ST204 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08004 |
5SFE..ST204 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
5SFE..ST204 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08014 |
5SFE..ST204 |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-74023 |
5SFE..ST204 |
1 | ||
| 23802-74070 |
5SFE..ST204 |
1 | ||
| 23802-74023 |
5SFE..ST204..CVT |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-74060 |
5SFE..ST204..CVT |
1 | ||
| 23807-74060 |
5SFE..ST204 |
1 | ||
| 23814-74110 |
5SFE..ST204 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-74450 |
5SFE..ST204 |
1 | ||
| 23271-74450 |
5SFE..ST204..CVT |
1 | ||
| 23271-74550 |
5SFE..ST204 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
5SFE..ST204 |
2 | ||
| 90561-08053 |
5SFE..ST204 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
5SFE..ST204 |
2 | ||
| 90561-08053 |
5SFE..ST204 |
2 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11003 | ||||
| 90254-11004 | ||||
| 90401-12033 | ||||
| 90999-92002 | ||||
| 91511-60855 | ||||
| 91511-B0840 | ||||
| 91621-60612 | ||||
| 91632-G0625 | ||||
| 91651-40855 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
