ST204L-BCPSKA (1997)
Toyota Celica
Production
Dec 1997
-
Aug 1998
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9309-9908)ST204..ATM

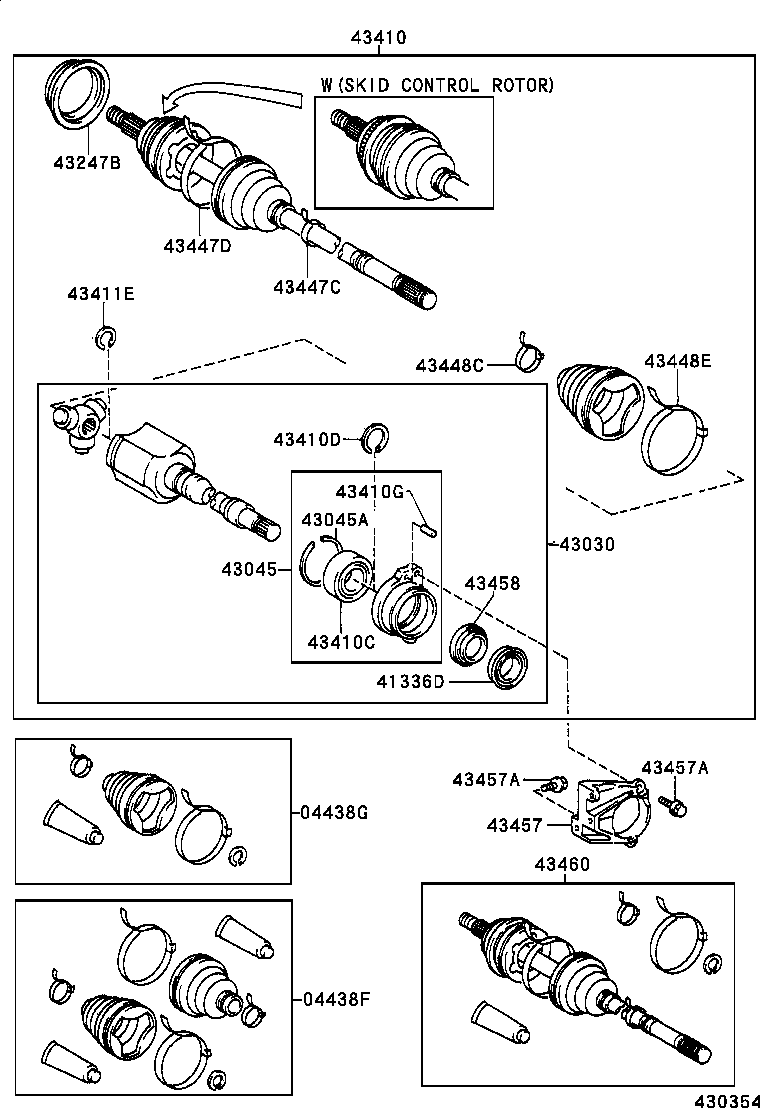

Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-20130 |
AT200;ST204..ATM |
1 | ||
| 04438-20131 |
ST204..ATM |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-20120 |
AT200;ST204..ATM |
1 | ||
| 04438-20121 |
ST204..ATM |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20011 |
ST204 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-32060 |
ST204..ATM |
1 | ||
| 43030-20030 |
ST204..ATM |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-20010 |
ST204 |
1 | ||
| 43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) | ||||
| 96153-00680 |
ST204 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-33010 |
AT200,ST204 |
1 | ||
| 43247-12010 |
AT200,ST204 W(ABS) |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20720 |
ST204..ATM |
1 | ||
| 43410-20610 |
ST204..ATM W(ABS) |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36001 |
ST204 |
1 | ||
| 90363-36004 |
ST204 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-33008 |
ST204 |
1 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-06003 |
ST204 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
AT200;ST204..ATM |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16030 |
AT200;ST204..ATM |
1 | ||
| 42345-16030 |
AT200;ST204..ATM ID=35.75 |
1 | ||
| 42345-16040 |
AT200;ST204..ATM ID=92.2 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
AT200;ST204..ATM ID=91.9 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
AT200;ST204..ATM ID=92.2 |
1 | ||
| 42345-16010 |
AT200;ST204..ATM |
1 | ||
| 42345-16010 |
AT200;ST204..ATM ID=32.7 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
AT200;ST204..ATM |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20040 |
ST204 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST204 *10-1.25PX22-19.5 |
5 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST204 *10-1.25PX22-19.5 |
5 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
ST204 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-29335 |
ST204..ATM W(ABS) |
1 | ||
| 43470-29375 |
ST204..ATM |
1 | ||
