8401 - SWITCH & RELAY & COMPUTER

ST204L-BCPSKA (1997)

Toyota Celica

Production Dec 1997 - Aug 1998

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 6 OF 6(9309- )

Click highlighted areas on diagram

ROOF,DOOR SEAT,FLOOR & LUGGAGE

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80295	AT200,ST204	09/1993 - 08/1998	1
83320-20550	ST204..USA CALIFORNIA SPEC	12/1997 - 08/1998	1
83320 - GAGE ASSY, FUEL SENDER
83320-80295	AT200,ST204	09/1993 - 08/1998	1
83320-20550	ST204..USA CALIFORNIA SPEC	12/1997 - 08/1998	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-32050	AT200,ST204	09/1993 - 12/2999	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-32050	AT200,ST204	09/1993 - 12/2999	2
84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM
84231-32060	AT200,ST204..CP,CVT	09/1993 - 12/2999	1
84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM
84231-32060	AT200,ST204..CP,CVT	09/1993 - 12/2999	1
84242 - SWITCH, GLOVE BOX LAMP
84242-20030	AT200,ST204	09/1993 - 12/2999	1
84340 - SWITCH ASSY, STOP LAMP
84340-32110	AT200,ST204 W(CRUISE CONTOROL)	09/1993 - 12/2999	1
84340-32090	AT200,ST204	09/1993 - 12/2999	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060	AT200,ST204	09/1993 - 12/2999	1
84727 - SWITCH, SHIFT LOCK CONTROL
84727-20070	AT200,ST204..ATM	09/1993 - 12/2999	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-14110	AT200,ST204 NO.1	09/1993 - 12/2999	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-20440	AT200,ST204	09/1993 - 12/2999	1
84862 - SWITCH, SLIDE ROOF MOTOR
84862-20050B0	AT200,ST204..CP,LB LI.GRAY,TRIM2#	09/1993 - 08/1995	1
84862-20050A0	AT200,ST204..CP,LB IVORY,TRIM0#	09/1993 - 12/2999	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-20110	AT200,ST204 W(POWER WINDOW)	09/1993 - 12/2999	1
84870-20160	AT200,ST204..ST	09/1993 - 12/2999	1
84930 - SWITCH ASSY, DOOR CONTROL
84930-14090	AT200,ST204	09/1993 - 12/2999	1
84931B - SWITCH, DOOR CONTROL
84931-20130	AT200,ST204 RH	09/1993 - 04/1999	1
84931-20180	AT200,ST204 LH	09/1993 - 04/1999	1
85431 - SOLENOID, SHIFT LOCK
85431-20070	AT200,ST204..ATM	09/1993 - 12/2999	1
85921 - RELAY, SLIDING ROOF CONTROL
85921-20100	AT200,ST204..CP,LB	09/1993 - 12/2999	1
85933 - COMPUTER, SHIFT LOCK CONTROL
85933-20090	AT200,ST204..ATM	09/1993 - 06/1996	1
Common parts
82711-10380
90119-06601
90164-40103
91511-60616
93269-15008
93315-14014
93319-14008
93319-14010
93568-15014

ILLUST NO. 4 OF 6(9309- )

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
81980 - FLASHER ASSY, TURN SIGNAL
81980-12070	AT200,ST204	09/1993 - 05/1997	1
82600F - FUSE, FUSE BLOCK
90982-09008	AT200,ST204 7.5A,MINI FUSE,BRN	09/1993 - 12/2999	1
90982-09009	AT200,ST204 10A,MINI FUSE,RED	09/1993 - 12/2999	1
90982-09010	AT200,ST204 15A,MINI FUSE,BLUE	09/1993 - 12/2999	1
90982-09011	AT200,ST204 20A,MINI FUSE,YELLOW	09/1993 - 12/2999	1
90982-09013	AT200,ST204 30A,MINI FUSE,GRN	09/1993 - 12/2999	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-20120	AT200,ST204	09/1993 - 06/1996	1
82600M - FUSE, MEDIUM CURRENT
90982-10002	AT200,ST204 40A,GREEN	09/1993 - 12/2999	1
90982-10001	AT200,ST204 30A,PINK	09/1993 - 12/2999	1
82641 - RELAY, INTEGRATION NO.1
82641-33041	AT200,ST204	09/1993 - 12/2999	1
82672B - COVER, JUNCTION BLOCK
82672-2B110	AT200,ST204	09/1993 - 12/2999	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-20020	AT200,ST204	09/1993 - 12/2999	1
82731 - BLOCK, DRIVER SIDE JUNCTION
82731-20020	AT200,ST204	09/1993 - 12/2999	1
82734A - BLOCK, CENTER JUNCTION
82734-20020	AT200,ST204	09/1993 - 12/2999	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	AT200,ST204	09/1993 - 12/2999	1
85912 - RELAY, DEFOGGER
90987-02009	AT200,ST204	09/1993 - 12/2999	1
85916N - RELAY, TAIL LAMP
90987-02009	AT200,ST204	09/1993 - 12/2999	1
85921 - RELAY, SLIDING ROOF CONTROL
85921-20100	AT200,ST204..CP,LB	09/1993 - 12/2999	1
85939 - RELAY, POWER WINDOW
90987-02009	AT200,ST204	09/1993 - 12/2999	1
85980 - RELAY ASSY, DOOR CONTROL
85980-20370	AT200,ST204	09/1993 - 04/1999	1
Common parts
90159-60047
90176-06022
90179-06132
Linked diagrams
8202

ILLUST NO. 3 OF 6(9309- )

Click highlighted areas on diagram

INSTRUMENT PANEL & DOOR SWITCH

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-20050	AT200,ST204	09/1993 - 12/2999	1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-20030	AT200,ST204	09/1993 - 12/2999	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-20250	AT200,ST204	09/1993 - 12/2999	1
84119A - BOLT OR NUT, RHEOSTAT CONTROL SET
90170-09002	AT200,ST204	09/1993 - 12/2999	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20340	AT200,ST204	09/1993 - 12/2999	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10320	AT200,ST204 14V 0.84W	09/1993 - 12/2999	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-20260	AT200,ST204	09/1993 - 12/2999	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-20460	ST204;AT200..CND	09/1993 - 12/2999	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10700	AT200,ST204 14V 0.63W	09/1993 - 12/2999	1
84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84998-10660	AT200,ST204	09/1993 - 12/2999	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-14110	AT200,ST204 NO.1	09/1993 - 12/2999	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-14110	AT200,ST204 NO.1	09/1993 - 12/2999	1
85432 - SOLENOID, KEY INTER LOCK
85432-20060	AT200,ST204..ATM	09/1993 - 12/2999	1
85500 - LIGHTER ASSY, CIGARETTE
85500-28050	AT200,ST204	09/1993 - 12/2999	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	AT200,ST204	09/1993 - 12/2999	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-14010	AT200,ST204	09/1993 - 12/2999	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	AT200,ST204	09/1993 - 12/2999	1
Common parts
84999-10250
90149-40013
90464-00551
93319-13008
93319-14012
94120-41000

ILLUST NO. 1 OF 6(9309- )ST204

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040	ST204	09/1993 - 08/1995	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30090	AT200,ST204	09/1993 - 02/1998	1
83530-28020	ST204 NIPPONDENSO	02/1998 - 12/2999	1
83530-60020	ST204 YAZAKI	02/1998 - 12/2999	1
84540 - SWITCH ASSY, NEUTRAL START
84540-20220	ST204..ATM	09/1993 - 12/2999	1
89465 - SENSOR, OXYGEN
89465-29785	ST204..USA CALIFORNIA SPEC,FRONT	09/1993 - 08/1995	1
89465-29775	ST204	09/1993 - 08/1994	1
89465-20420	ST204..USA CALIFORNIA SPEC,REAR	09/1993 - 08/1995	1
89465 - SENSOR, OXYGEN
89465-29785	ST204..USA CALIFORNIA SPEC,FRONT	09/1993 - 08/1995	1
89465-29775	ST204	09/1993 - 08/1994	1
89465-20420	ST204..USA CALIFORNIA SPEC,REAR	09/1993 - 08/1995	1
89466 - GASKET, OXYGEN SENSOR
89466-20020	ST204	09/1993 - 04/1999	1
89615 - SENSOR, KNOCK CONTROL
89615-33020	ST204 NIPPON DENSO	09/1993 - 04/1999	1
89615-20030	ST204 TOYOTA	09/1993 - 04/1999	1
Common parts
90179-08059
90430-18008
91651-40620

ILLUST NO. 5 OF 6(9309- )

Click highlighted areas on diagram

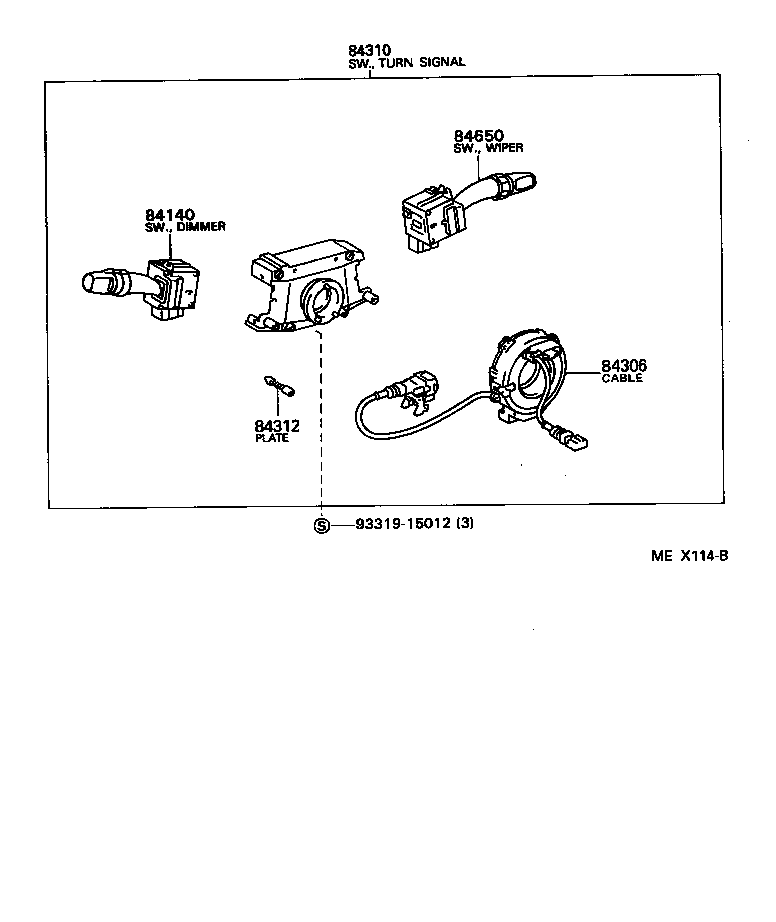

COMBINATION SWITCH

Part #	Description	Period	Qty
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-20520	AT200,ST204	09/1993 - 08/1995	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-12070	ST204	12/1997 - 12/2999	1
84306-20040	AT200,ST204 W(CRUISE CONTOROL)	09/1993 - 08/1995	1
84306-20030	AT200,ST204..USA	09/1993 - 08/1995	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-2L080	AT200..USA;ST204..CP,CVT W(CRUISE CONTOROL)	09/1993 - 08/1995	1
84310-2L060	AT200..USA;ST204..(CP,CVT)..USA	09/1993 - 08/1995	1
84310-2L690	ST204..USA W(FOG LAMP)	12/1997 - 12/2999	1
84310-3D010	ST204..USA W(CRUISE CONTOROL)	12/1997 - 12/2999	1
84310-2L650	ST204..USA W(CRUISE CONTROL & FOG LAMP)	12/1997 - 12/2999	1
84310-2L670	ST204..USA	12/1997 - 12/2999	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-2G290	AT200..USA;ST204..CP,CVT	09/1993 - 08/1995	1
Common parts
93319-15012

ILLUST NO. 3 OF 6(9311- )

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty	Price
Common parts
84999-10250
90149-40013
93319-13008

ILLUST NO. 6 OF 6(9311- )

Click highlighted areas on diagram

ROOF,DOOR SEAT,FLOOR & LUG

Part #	Description	Period	Qty	Price
Common parts
82711-10380
90119-06601
90159-40155
90164-40103
91511-60616
93269-15008
93315-14014
93319-14008
93568-15014

ILLUST NO. 2 OF 6(9311- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty	Price
Common parts
87616-22010
90119-06005
90119-06311
90119-06400
91642-80616
Linked diagrams
1901
8202

ILLUST NO. 4 OF 6(9311- )

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty	Price
Common parts
90159-60047
90176-06022
90179-06026
90179-06132
Linked diagrams
8202

ILLUST NO. 1 OF 6(9311- )ST20#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty	Price
Common parts
90179-08059
90430-18008
93385-16014

ILLUST NO. 5 OF 6(9311- )

Click highlighted areas on diagram

COMBINATION SWITCH

Part #	Description	Period	Qty	Price
Common parts
93319-15012
