ST204L-BCPSKA (1997)

Toyota Celica

Production Dec 1997 - Aug 1998
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )CP,CVT

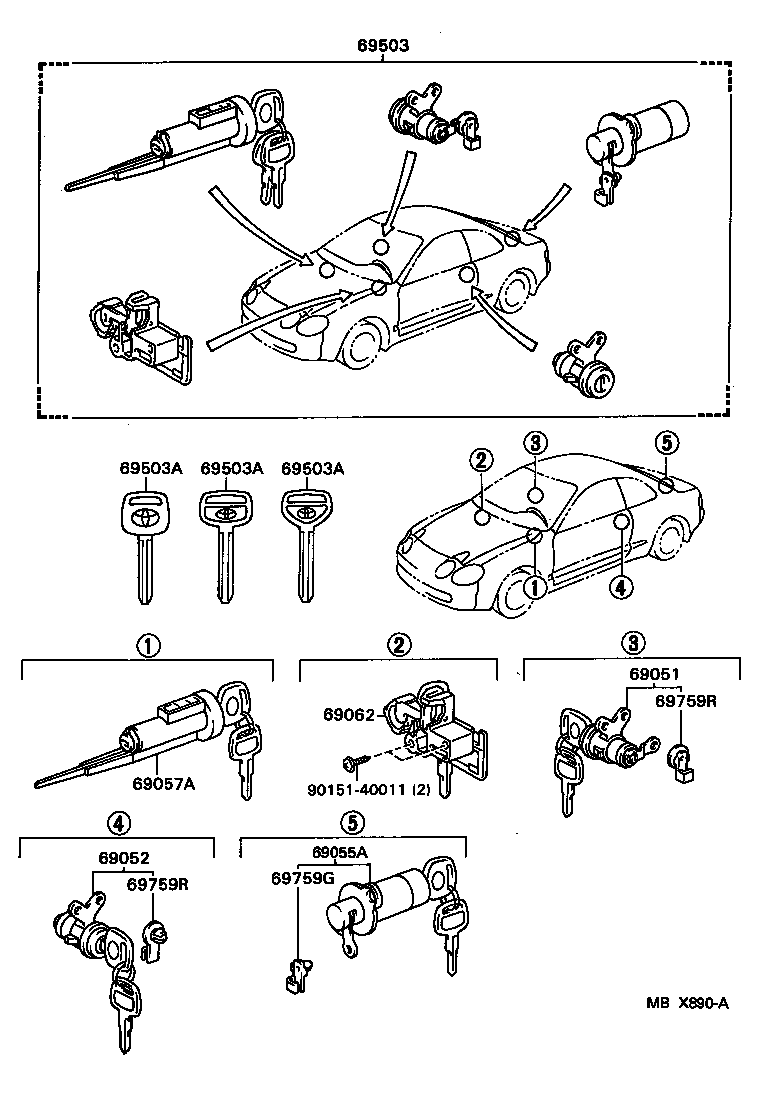

Click highlighted areas on diagram

diagram 69051 69052 69055A 69057A 69062 69503 69503A 69503A 69503A 69759G 69759R 69759R 9015140011
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-20370

AT200,ST204

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-20370

AT200,ST204

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-20620

AT200,ST204..CP,CVT

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-20360

AT200,ST204

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-20280

AT200,ST204

 1
69503 - CYLINDER SET, LOCK
69005-2B350

AT200,ST204..CP,CVT

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

AT200,ST204..CP,CVT

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080

AT200,ST204

ORANGE

 1
69759-22090

AT200,ST204

PINK

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080

AT200,ST204

ORANGE

 1
69759-22090

AT200,ST204

PINK

 1
Common parts
90151-40011
