Toyota Celica ST204 INSTRUMENT PANEL & GLOVE COMPARTMENT

Manufacturers Home
Toyota
EU
CELICA
ST204L-BCPSKA (1997)
5501 - INSTRUMENT PANEL & GLOVE COMPARTMENT

ST204L-BCPSKA (1997)

Toyota Celica

Production Dec 1997 - Aug 1998

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

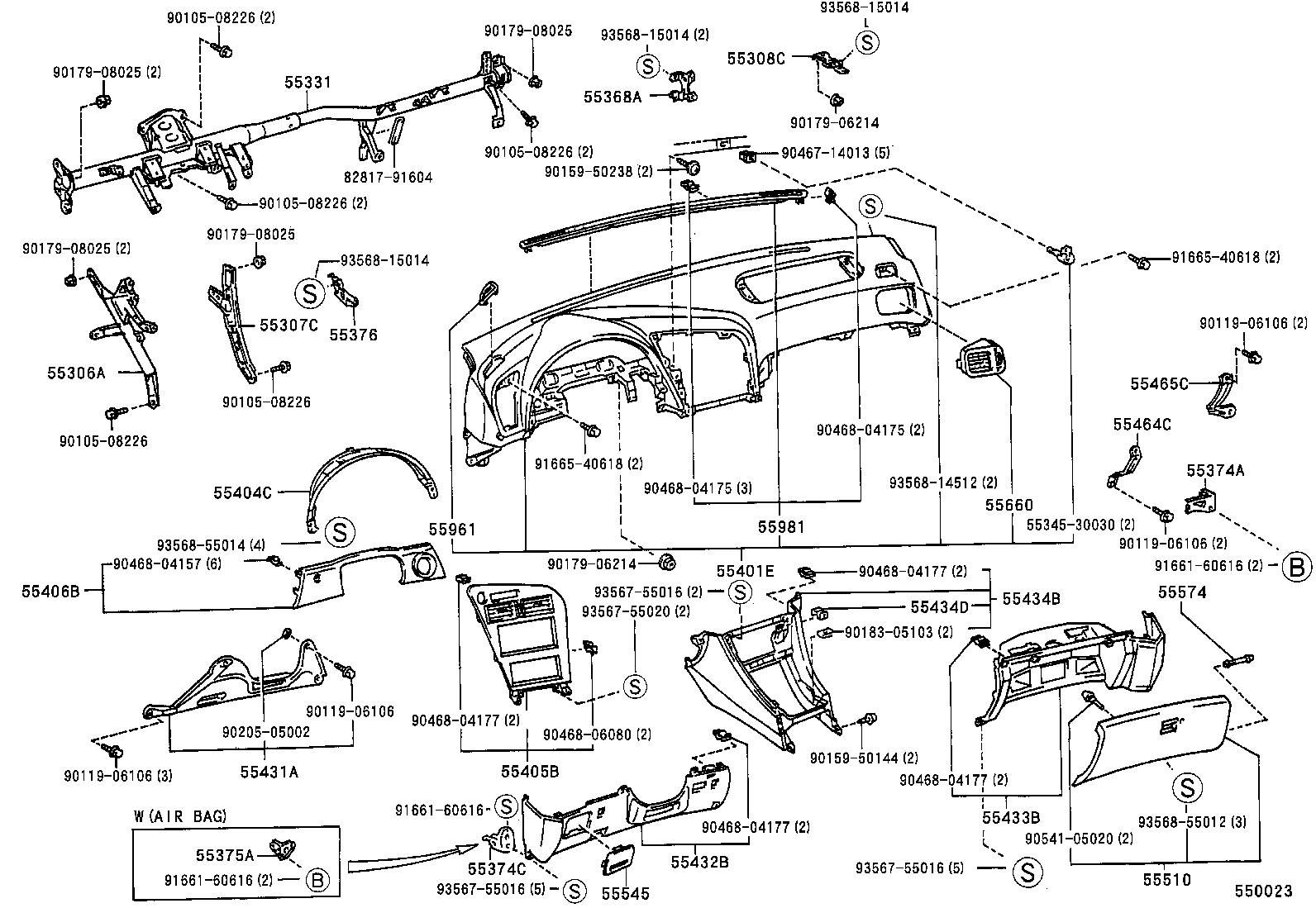

ILLUST NO. 1 OF 2(9309- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-20240	AT200,ST204	09/1993 - 12/2999	1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-20180	ST204..ST	12/1997 - 12/2999	1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-20200	AT200,ST204	09/1993 - 12/2999	1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-20210	AT200,ST204 W(80;DRIVER SIDE & 80;FRONT PASSENGER SIDE)	09/1993 - 08/1995	1
55330-20240	ST204..ST	12/1997 - 12/2999	1
55368A - BRACKET, RADIO MOUNTING, NO.2
55368-20100	AT200,ST204	09/1993 - 12/2999	1
55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55374-20040	ST204..ST	12/1997 - 12/2999	1
55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55375-20050	AT200,ST204	09/1993 - 12/2999	1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-20140	AT200,ST204	09/1993 - 12/2999	1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-20690C0	ST204..ST BLACK,TRIM0#,2#	12/1997 - 12/2999	1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55411-20660	AT200,ST204	09/1993 - 12/2999	1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-20210	AT200,ST204	09/1993 - 12/2999	1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-20070	AT200,ST204	09/1993 - 12/2999	1
55431A - PANEL, INSTRUMENT PANEL FINISH
55431-20190	AT200,ST204	09/1993 - 12/2999	1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-20340C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/2999	1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-20140C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/2999	1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-20180C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/2999	1
55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER
90183-05018	AT200,ST204	09/1993 - 02/1994	2
55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH
55464-20160	AT200,ST204	09/1993 - 12/2999	1
55465C - INSERT, INSTRUMENT PANEL LOWER PAD, LH
55465-20080	AT200,ST204	09/1993 - 12/2999	1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-20150C0	ST204..ST BLACK,TRIM0#,2#	12/1997 - 12/2999	1
55545 - COVER, FUSE BOX OPENING
55545-20060C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/2999	1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010	AT200,ST204	09/1993 - 12/2999	2
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-20240C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/2999	1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-20240C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/2999	1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-20120	AT200,ST204	09/1993 - 12/2999	1
Common parts
55345-30030
82817-91604
90105-08226
90119-06106
90159-50144
90159-50238
90179-06214
90179-08025
90183-05103
90205-05002
90467-14013
90468-04157
90468-04175
90468-04177
90468-06080
90541-05020
91661-60616
91665-40618
93567-55016
93567-55020
93568-14512
93568-15014
93568-55012
93568-55014

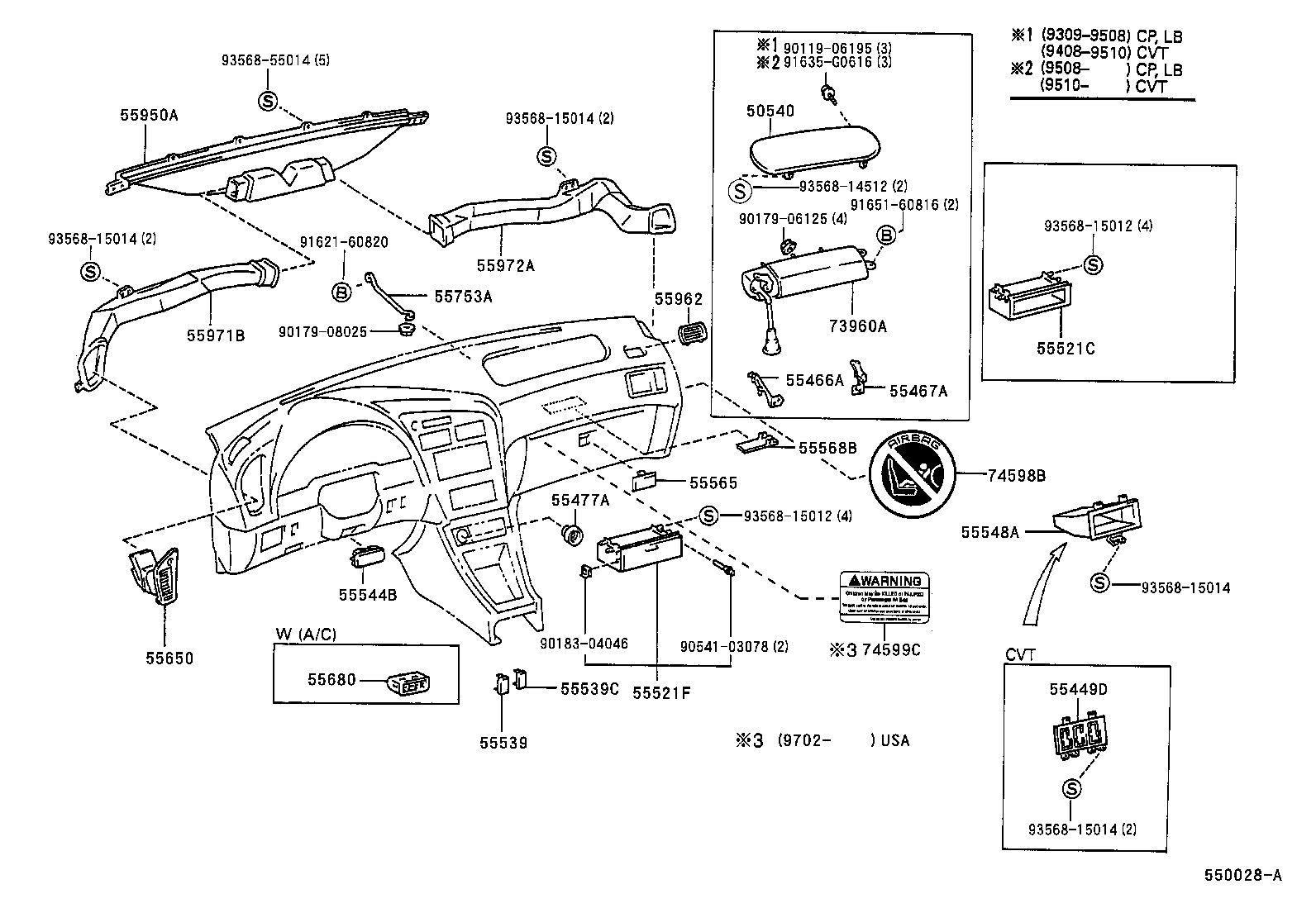

ILLUST NO. 2 OF 2(9309- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
50540 - DO0R ASSY, AIR BAG PASSENGER
50540-20010C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/2999	1
55466A - RETAINER, INSTRUMENT PANEL SAFETY PAD
55466-20120	AT200,ST204	09/1993 - 12/2999	1
55467A - RETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2
55467-20130	AT200,ST204	09/1993 - 12/2999	1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-20110	AT200,ST204	09/1993 - 12/2999	1
55521F - COVER, STEREO OPENING, NO.2
55520-14050	AT200,ST204	09/1993 - 12/2999	1
55539 - COVER, SPARE SWITCH HOLE
55539-20080C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 09/1994	1
55539C - COVER, SPARE SWITCH HOLE
55539-20080C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 09/1994	1
55544B - COVER, INSTRUMENT PANEL LOWER REGISTER HOLE
55544-22030C0	ST204..ST BLACK,TRIM0#,2#	12/1997 - 12/2999	1
55544-22030C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/1997	1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-20090	AT200,ST204..CP,LB	09/1993 - 12/2999	1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-2007022	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/2999	1
55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH
55568-24020	AT200,ST204	09/1993 - 12/2999	1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-20270	AT200,ST204	09/1993 - 12/2999	1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-14030C0	AT200..USA;ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 08/1995	1
55753A - BRACKET, INSTRUMENT PANEL TO COWL
55753-20090	AT200,ST204	09/1993 - 12/2999	1
55950A - NOZZLE ASSY, DEFROSTER
55950-20140	AT200,ST204	09/1993 - 12/2999	1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-20240C0	AT200,ST204..CP,LB BLACK,TRIM0#,2#	09/1993 - 12/2999	1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-20120	AT200,ST204	09/1993 - 12/2999	1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-20070	AT200,ST204	09/1993 - 12/2999	1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-20012	ST204	12/1997 - 12/2999	1
73960-20010	AT200,ST204	09/1993 - 08/1995	1
Common parts
90119-06195
90179-06125
90179-08025
90183-04046
90541-03078
91621-60820
91635-G0616
91651-60816
93568-14512
93568-15012
93568-15014
93568-55014

ST204L-BCPSKA (1997)

ILLUST NO. 1 OF 2(9309- )

ILLUST NO. 2 OF 2(9309- )
