ST204L-BCPSKA (1997)
Toyota Celica
Production
Dec 1997
-
Aug 1998
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9309- )5SFE

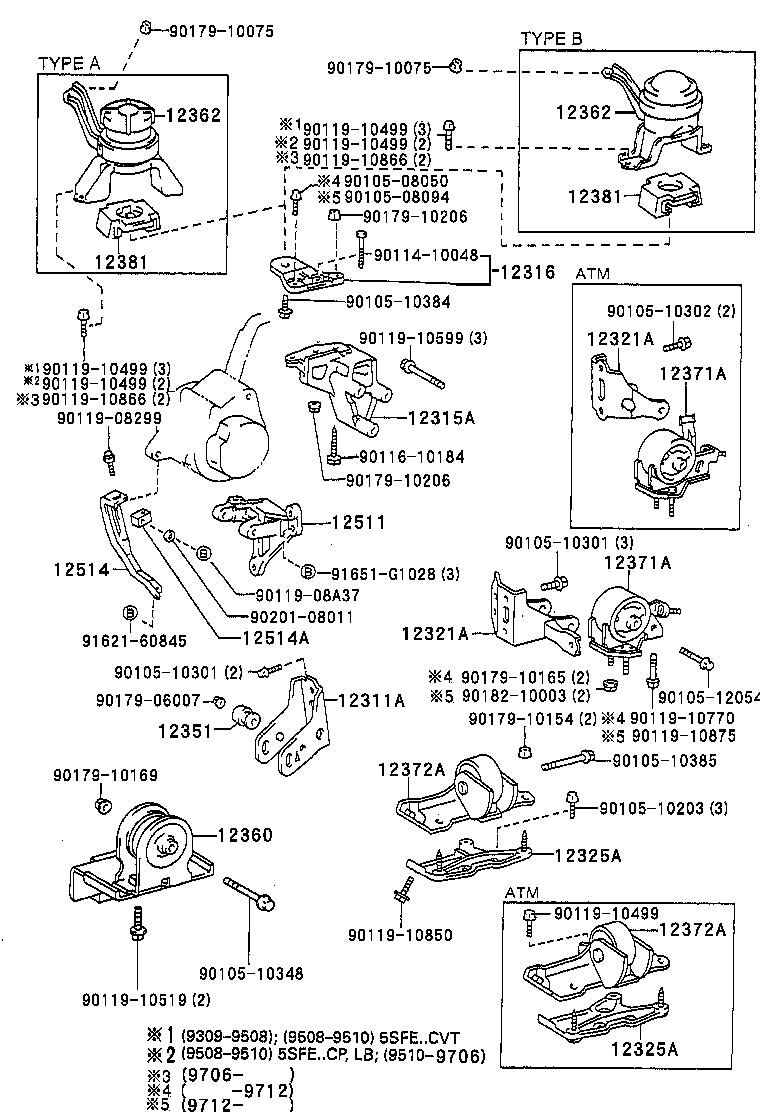

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74180 |
5SFE..ST204 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74120 |
5SFE..ST204 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-74070 |
5SFE..ST204 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74330 |
5SFE..ST204..ATM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74330 |
5SFE..ST204..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74250 |
5SFE..ST204..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74250 |
5SFE..ST204..ATM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
5SFE..ST204 |
1 | ||
| 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT | ||||
| 12360-74040 |
5SFE..ST204..ATM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74340 |
5SFE..ST204..CP,LB TYPE B |
1 | ||
| 12362-74330 |
5SFE..ST204..CP,LB TYPE A |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74340 |
5SFE..ST204..CP,LB TYPE B |
1 | ||
| 12362-74330 |
5SFE..ST204..CP,LB TYPE A |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74420 |
5SFE..ST204..ATM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74420 |
5SFE..ST204..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74510 |
5SFE..ST204..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74510 |
5SFE..ST204..ATM |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-74020 |
5SFE..ST204..CP,LB TYPE A |
1 | ||
| 12381-74030 |
5SFE..ST204..CP,LB TYPE B |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-74020 |
5SFE..ST204..CP,LB TYPE A |
1 | ||
| 12381-74030 |
5SFE..ST204..CP,LB TYPE B |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74051 |
5SFE..ST204 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74040 |
5SFE..ST204 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
5SFE..ST204 |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08094 | ||||
| 90105-10203 | ||||
| 90105-10301 | ||||
| 90105-10302 | ||||
| 90105-10348 | ||||
| 90105-10384 | ||||
| 90105-10385 | ||||
| 90105-12054 | ||||
| 90114-10048 | ||||
| 90116-10184 | ||||
| 90119-08299 | ||||
| 90119-08A37 | ||||
| 90119-10499 | ||||
| 90119-10519 | ||||
| 90119-10599 | ||||
| 90119-10770 | ||||
| 90119-10850 | ||||
| 90119-10866 | ||||
| 90119-10875 | ||||
| 90179-06007 | ||||
| 90179-10075 | ||||
| 90179-10154 | ||||
| 90179-10165 | ||||
| 90179-10169 | ||||
| 90179-10206 | ||||
| 90182-10003 | ||||
| 90201-08011 | ||||
| 91621-60845 | ||||
| 91651-G1028 | ||||
