ST202L-BLMGFW (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

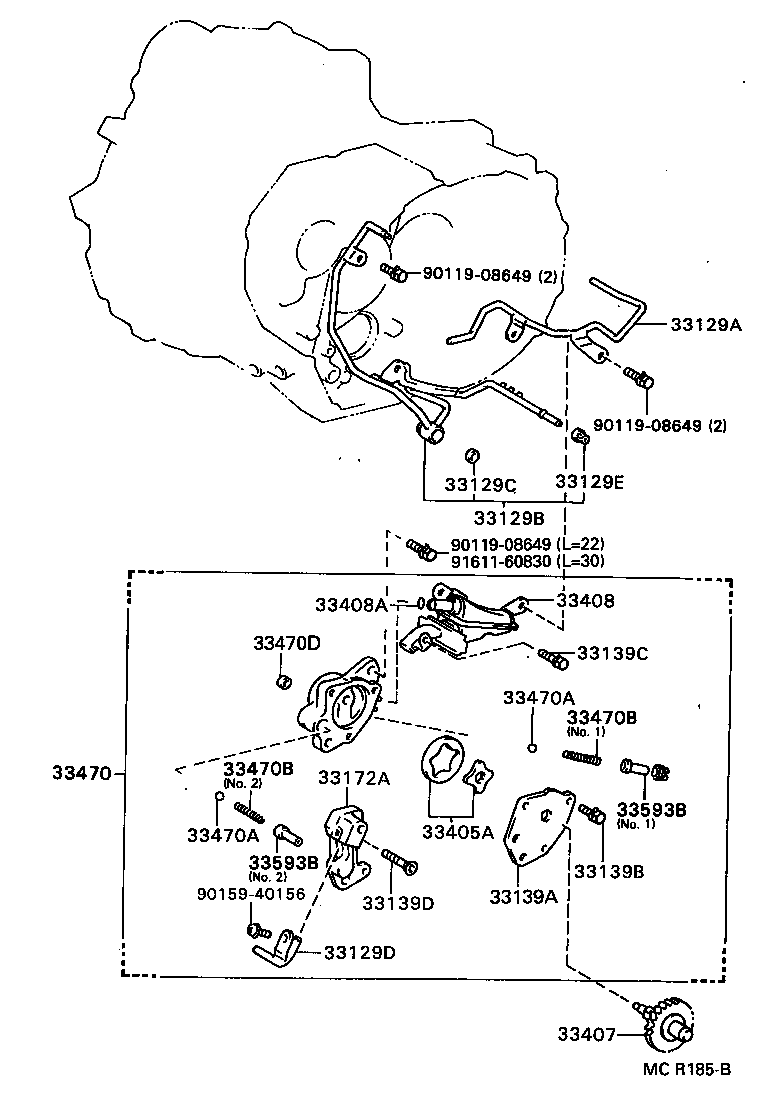

ILLUST NO. 1 OF 2(9311-9606)ST20#
Click highlighted areas on diagram
E56,E154F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33129A - PIPE, MANUAL TRANSMISSION OIL, NO.1 | ||||
| 33129-32010 |
ST20#..LB |
1 | ||
| 33129B - PIPE, MANUAL TRANSMISSION OIL, NO.2 | ||||
| 33106-12040 |
ST202..LB |
1 | ||
| 33129C - GASKET(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90430-09004 |
ST20#..LB |
1 | ||
| 33129D - PIPE, TRANSMISSION OIL, NO.3 | ||||
| 33129-20040 |
ST20#..LB |
1 | ||
| 33129E - BUSH(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90389-05012 |
ST20#..LB |
1 | ||
| 33139A - COVER, OIL PUMP(FOR MANUAL TRANSMISSION) | ||||
| 33139-20020 |
ST20#..LB |
1 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
ST20#..LB |
1 | ||
| 33139C - BOLT(FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06268 |
ST20#..LB |
1 | ||
| 33139D - SCREW(FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90149-60064 |
ST20#..LB |
1 | ||
| 33172A - BY-PASS, TRANSMISSION OIL PUMP | ||||
| 33172-20020 |
ST20#..LB |
1 | ||
| 33405A - ROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP | ||||
| 33405-20020 |
ST20#..LB |
1 | ||
| 33407 - GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE | ||||
| 33407-12041 |
ST202..LB |
1 | ||
| 33408 - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33408-20020 |
ST20#..LB |
1 | ||
| 33408A - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER) | ||||
| 96721-19012 |
ST20#..LB |
1 | ||
| 33470 - PUMP ASSY, MANUAL TRANSMISSION OIL | ||||
| 33470-20030 |
ST20#..LB |
1 | ||
| 33470A - BALL (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90360-09001 |
ST20#..LB |
2 | ||
| 33470A - BALL (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90360-09001 |
ST20#..LB |
2 | ||
| 33470B - SPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90501-07062 |
ST20#..LB NO.2 |
1 | ||
| 90501-08094 |
ST20#..LB NO.1 |
1 | ||
| 33470B - SPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90501-07062 |
ST20#..LB NO.2 |
1 | ||
| 90501-08094 |
ST20#..LB NO.1 |
1 | ||
| 33470D - GASKET (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90430-09004 |
ST20#..LB |
1 | ||
| 33593B - HOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33593-20030 |
ST20#..LB NO.2 |
1 | ||
| 33593-20020 |
ST20#..LB NO.1 |
1 | ||
| 33593B - HOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33593-20030 |
ST20#..LB NO.2 |
1 | ||
| 33593-20020 |
ST20#..LB NO.1 |
1 | ||
| Common parts | ||||
| 90119-08649 | ||||
| 90159-40156 | ||||
| 91611-60830 | ||||

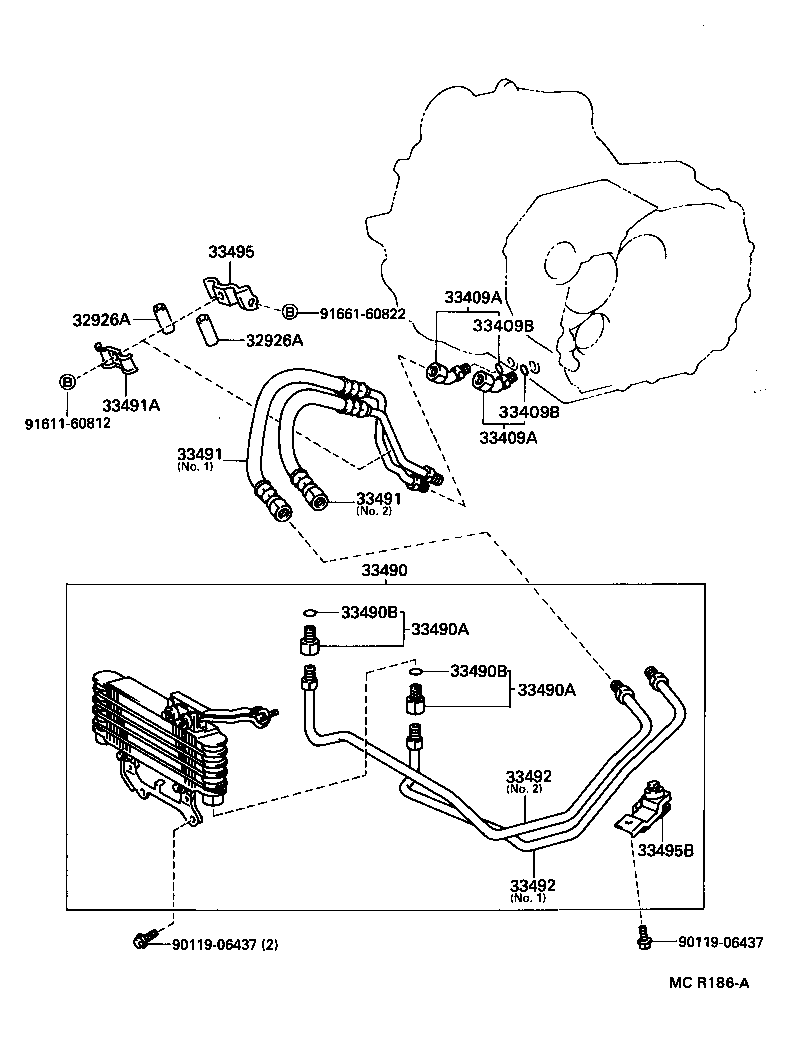

ILLUST NO. 1 OF 2(9311-9508)ST202..LB
Click highlighted areas on diagram
E56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32926A - CUSHION, OIL COOLER TUBE(MTM) | ||||
| 32926-30020 |
ST20#..LB |
2 | ||
| 32926A - CUSHION, OIL COOLER TUBE(MTM) | ||||
| 32926-30020 |
ST20#..LB |
2 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
ST20#..LB |
2 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
ST20#..LB |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
ST20#..LB |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
ST20#..LB |
2 | ||
| 33490 - COOLER ASSY, MANUAL TRANSMISSION OIL | ||||
| 33490-20070 |
ST202..LB |
1 | ||
| 33490A - UNION (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90404-14020 |
ST20#..LB |
2 | ||
| 90404-16023 |
ST202..LB |
2 | ||
| 33490A - UNION (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90404-14020 |
ST20#..LB |
2 | ||
| 90404-16023 |
ST202..LB |
2 | ||
| 33490B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
ST20#..LB |
2 | ||
| 33490B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
ST20#..LB |
2 | ||
| 33491 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.1 | ||||
| 33491-20130 |
ST20#..LB NO.1 |
1 | ||
| 33491-20140 |
ST20#..LB NO.2 |
1 | ||
| 33491 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.1 | ||||
| 33491-20130 |
ST20#..LB NO.1 |
1 | ||
| 33491-20140 |
ST20#..LB NO.2 |
1 | ||
| 33491A - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90462-16066 |
ST20#..LB |
1 | ||
| 33492 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.2 | ||||
| 33492-20060 |
ST202..LB NO.1 |
1 | ||
| 33492-20071 |
ST202..LB NO.2 |
1 | ||
| 33492-20070 |
ST202..LB NO.2 |
1 | ||
| 33492-20061 |
ST202..LB NO.1 |
1 | ||
| 33492 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.2 | ||||
| 33492-20060 |
ST202..LB NO.1 |
1 | ||
| 33492-20071 |
ST202..LB NO.2 |
1 | ||
| 33492-20070 |
ST202..LB NO.2 |
1 | ||
| 33492-20061 |
ST202..LB NO.1 |
1 | ||
| 33495 - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.2 | ||||
| 33495-20010 |
ST20#..LB |
1 | ||
| 33495B - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.3 | ||||
| 33495-20020 |
ST20#..LB |
1 | ||
| Common parts | ||||
| 90119-06437 | ||||
| 91611-60812 | ||||
| 91661-60822 | ||||
