ST202L-BLMGFW (1993)
Toyota Celica

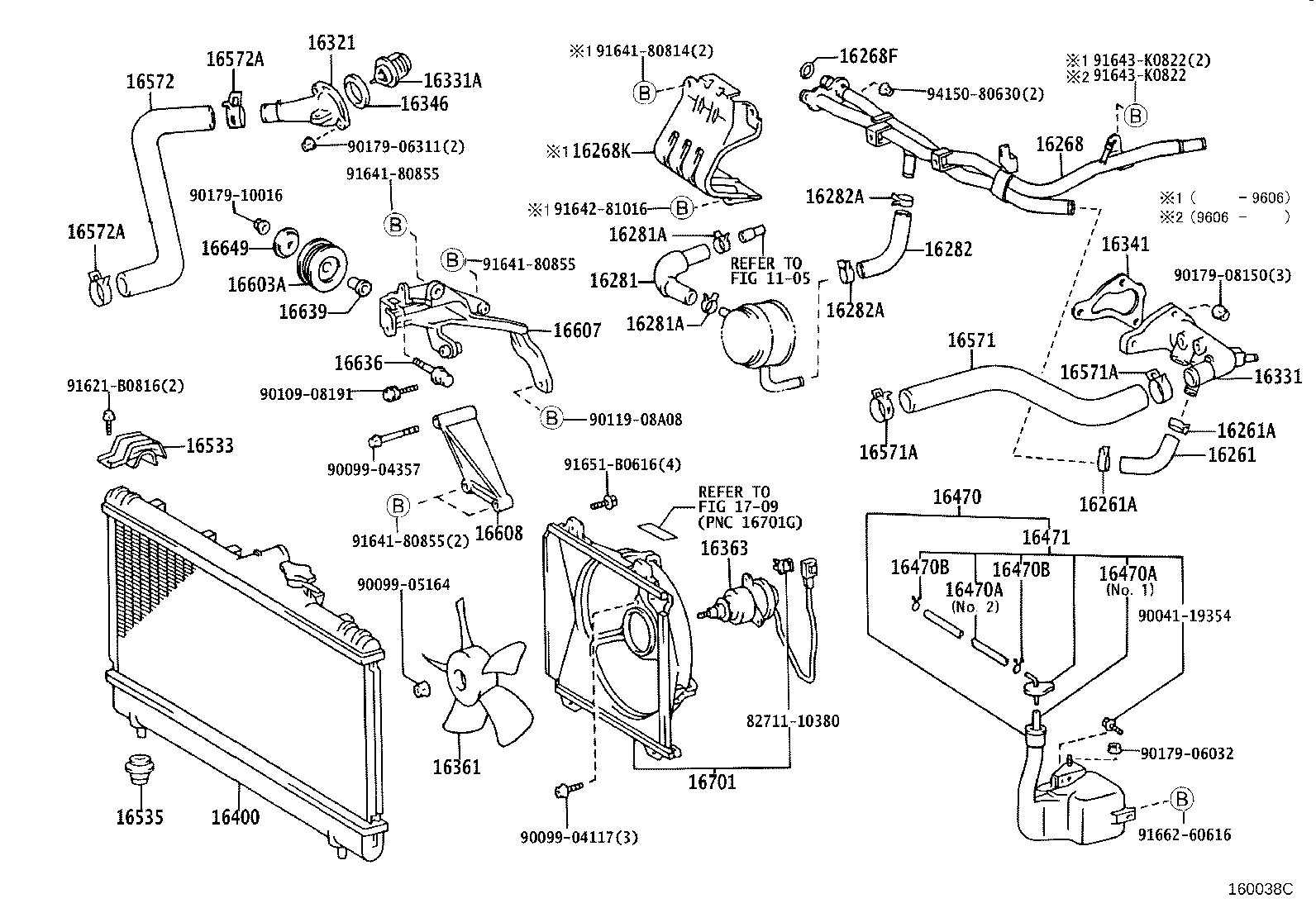

ILLUST NO. 1 OF 2(9311- )3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88460 |
3SG#..ST20# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23013 |
3SG#..ST20# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23013 |
3SG#..ST20# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88462 |
3SGE..ST202 |
1 | ||
| 16268-88460 |
3SGE..ST202 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24019 |
3SG#..ST20# |
1 | ||
| 16268K - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-88460 |
3SGE..ST202 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-88460 |
3SGE..ST202 |
1 | ||
| 16281-88461 |
3SG#..ST20# |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-22003 |
3SG#..ST20# |
2 | ||
| 90467-20011 |
3SGE..ST202 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-22003 |
3SG#..ST20# |
2 | ||
| 90467-20011 |
3SGE..ST202 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-88462 |
3SGE..ST202 |
1 | ||
| 16282-88461 |
3SGE..ST202 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
3SGE..ST202 |
2 | ||
| 90467-20011 |
3SGE..ST202 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
3SGE..ST202 |
2 | ||
| 90467-20011 |
3SGE..ST202 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88460 |
3SG#..ST20# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-88461 |
3SGE..ST202 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03100 |
3SG#..ST20# *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-88460 |
3SG#..ST20# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-17010 |
3SG#..ST20# |
1 | ||
| 16346-32010 |
3SGE..ST202 |
1 | ||
| 16361 - FAN | ||||
| 16361-74060 |
3SGE..ST202 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74020 |
3SGE..ST202 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-7A060 |
3SGE..ST202 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74260 |
3SGE..ST202 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12066 |
3SGE..ST202 *H,L=300,NO.2 |
1 | ||
| 90445-12078 |
3SG#..ST20# *H,L=210,NO.1 |
1 | ||
| 90445-12078 |
3SG#..ST20# *H,L=210,NO.1 |
1 | ||
| 90445-12066 |
3SGE..ST202..LB *H,L=300,NO.2 |
1 | ||
| 90445-12078 |
3SG#..ST20#..LB *H,L=210,NO.1 |
1 | ||
| 90445-12066 |
3SGE..ST202 *H,L=300,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12066 |
3SGE..ST202 *H,L=300,NO.2 |
1 | ||
| 90445-12078 |
3SG#..ST20# *H,L=210,NO.1 |
1 | ||
| 90445-12078 |
3SG#..ST20# *H,L=210,NO.1 |
1 | ||
| 90445-12066 |
3SGE..ST202..LB *H,L=300,NO.2 |
1 | ||
| 90445-12078 |
3SG#..ST20#..LB *H,L=210,NO.1 |
1 | ||
| 90445-12066 |
3SGE..ST202 *H,L=300,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SG#..ST20# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SG#..ST20# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74250 |
3SGE..ST202 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74260 |
3SG#..ST20# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90916-04002 |
3SG#..ST20# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74280 |
3SGE..ST202 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3SG#..ST20# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3SG#..ST20# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74230 |
3SGE..ST202 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3SG#..ST20# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3SG#..ST20# |
2 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-88360 |
3SG#..ST20# |
1 | ||
| 16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1 | ||||
| 16631-88480 |
3SG#..ST20# |
1 | ||
| 16608 - BRACKET SUB-ASSY, IDLER PULLEY, NO.2 | ||||
| 16632-74030 |
3SG#..ST20# |
1 | ||
| 16632-74020 |
3SGE..ST202 |
1 | ||
| 16636 - SHAFT, IDLER PULLY, NO.1 | ||||
| 16636-74020 |
3SG#..ST20# |
1 | ||
| 16639 - SPACER, IDLER PULLEY | ||||
| 16639-88361 |
3SG#..ST20# |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-88360 |
3SG#..ST20# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74510 |
3SGE..ST202 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90041-19354 | ||||
| 90099-04117 | ||||
| 90099-04357 | ||||
| 90099-05164 | ||||
| 90109-08191 | ||||
| 90119-08A08 | ||||
| 90179-06032 | ||||
| 90179-06311 | ||||
| 90179-08150 | ||||
| 90179-10016 | ||||
| 91621-B0816 | ||||
| 91641-80814 | ||||
| 91641-80855 | ||||
| 91642-81016 | ||||
| 91643-K0822 | ||||
| 91651-B0616 | ||||
| 91662-60616 | ||||
| 94150-80630 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1709 | ||||

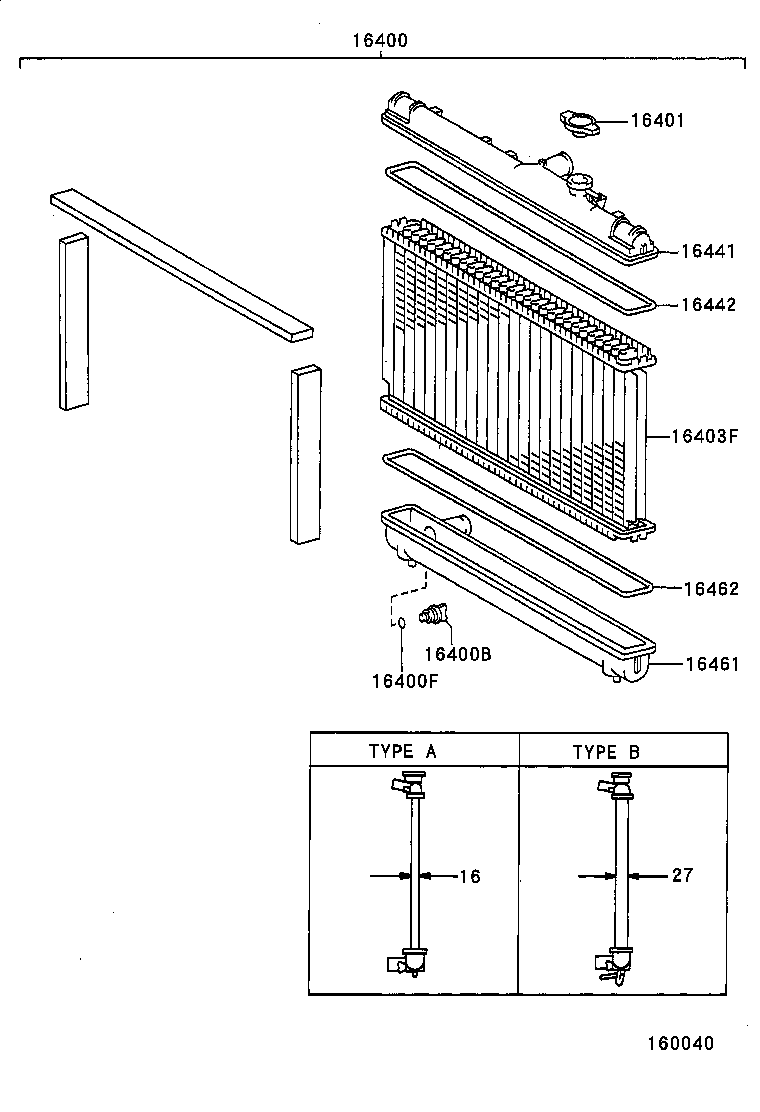

ILLUST NO. 2 OF 2(9311- )3SG#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-7A060 |
3SGE..ST202 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3SG#..ST20# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3SGE..ST202 |
1 | ||
| 96711-19007 |
3SG#..ST20# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3SG#..ST20# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-7A061 |
3SGE..ST202 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16403-7A060 |
3SGE..ST202 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-7A060 |
3SGE..ST202 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-11380 |
3SGE..ST202 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-7A060 |
3SGE..ST202 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-42240 |
3SG#..ST20# |
1 | ||
