ST202L-BKMGFW (1994)
Toyota Celica
Production
Aug 1994
-
May 1999
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

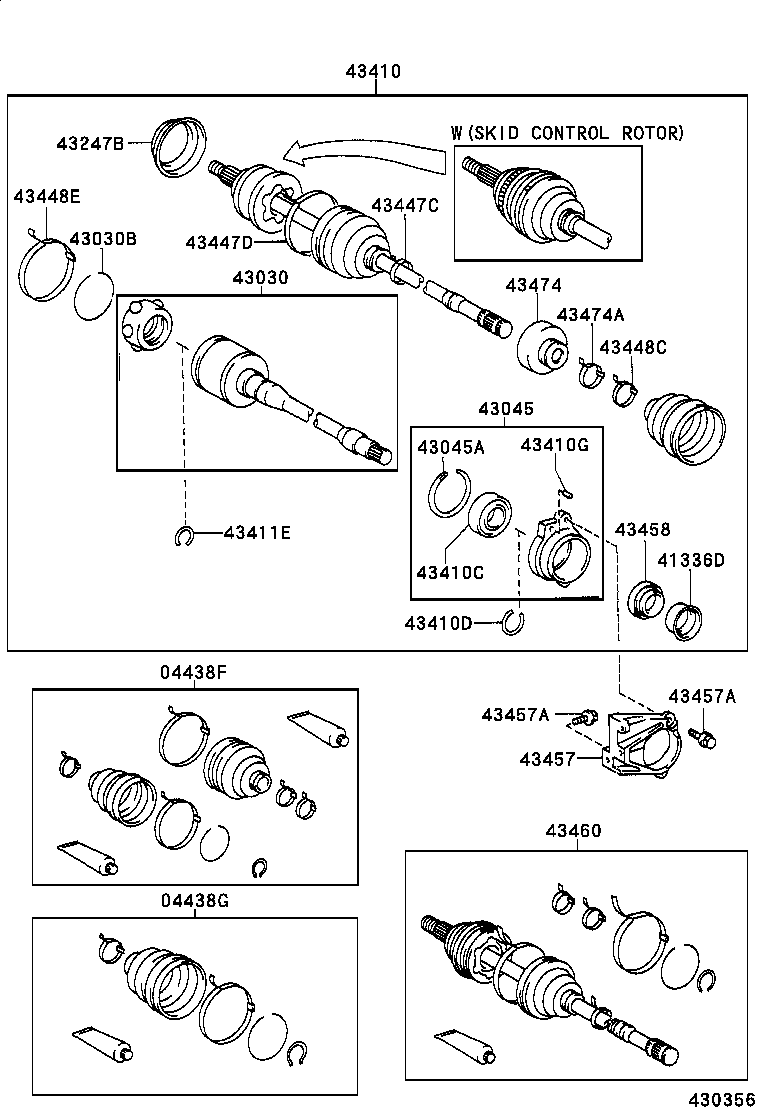

(9311-9908)ST202
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-20160 |
ST202 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-20081 |
ST202 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20011 |
ST202 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-32010 |
ST202 |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-79001 |
ST20# |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-20010 |
ST202 |
1 | ||
| 43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) | ||||
| 96153-00680 |
ST202 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-33010 |
AT200,ST202 |
1 | ||
| 43247-12010 |
AT200,ST20# W(ABS) |
1 | ||
| 43247-33010 |
AT200..LHD;ST202..CVT |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20742 |
ST202 |
1 | ||
| 43410-20741 |
ST202 |
1 | ||
| 43410-20730 |
ST202..CVT |
1 | ||
| 43410-20730 |
ST202 |
1 | ||
| 43410-20740 |
ST202 W(ABS) |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36001 |
ST202 |
1 | ||
| 90363-36004 |
ST202 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-33008 |
ST202 |
1 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-06003 |
ST202 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-25034 |
ST20# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
ST202 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01107 |
ST202 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
ST20# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42346-22010 |
ST20# |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20040 |
ST202 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST202 *10-1.25PX22-19.5 |
5 | ||
| 90105-10202 |
ST202 *10-1.25PX22-19.5,W(SUPER STRUT SUSPENSION) |
2 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST202 *10-1.25PX22-19.5 |
5 | ||
| 90105-10202 |
ST202 *10-1.25PX22-19.5,W(SUPER STRUT SUSPENSION) |
2 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
ST202 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-29385 |
ST202 |
1 | ||
| 43470-29395 |
ST202 W(ABS) |
1 | ||
| 43470-29385 |
ST202..CVT |
1 | ||
| 43470-29397 |
ST202 |
1 | ||
| 43470-29396 |
ST202 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-20090 |
ST202 |
1 | ||
| 43474-20090 |
ST20# |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 90949-01696 |
ST202 |
1 | ||

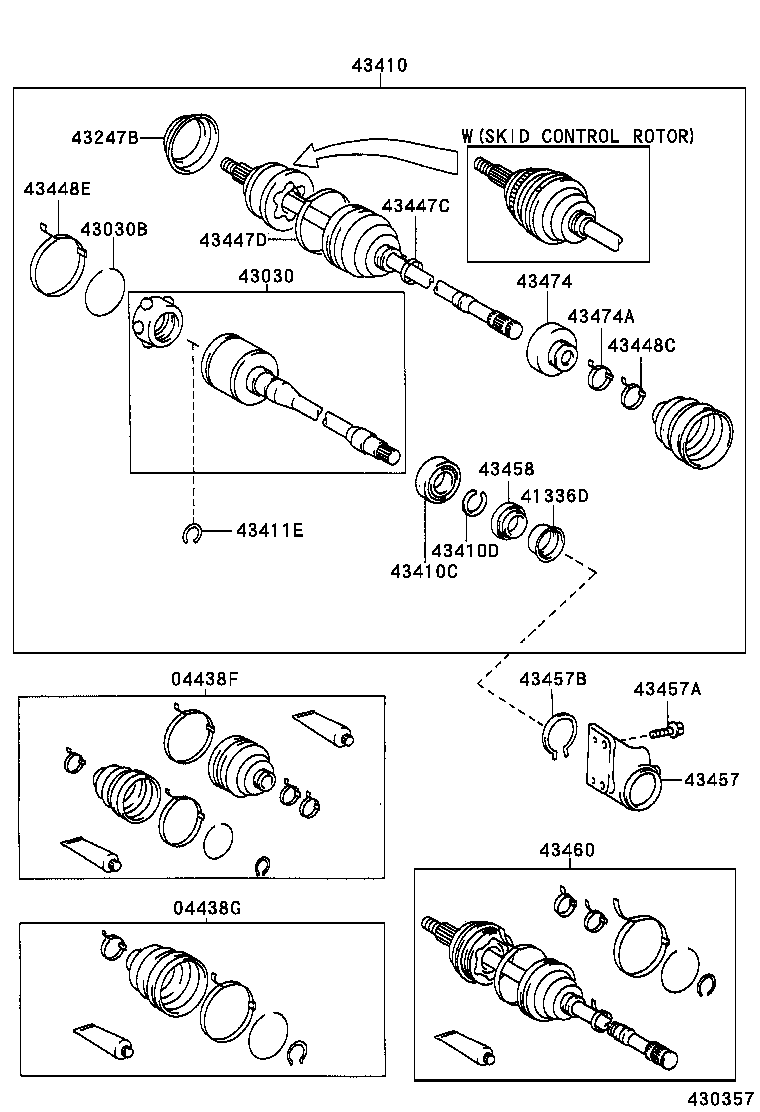

(9311-9908)ST202
Click highlighted areas on diagram
RH,W(SUPER STRUT SUSPENSION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-20160 |
ST202 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-20081 |
ST202 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20011 |
ST202 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-32010 |
ST202 |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-79001 |
ST20# |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-33010 |
AT200,ST202 |
1 | ||
| 43247-12010 |
AT200,ST20# W(ABS) |
1 | ||
| 43247-33010 |
AT200..LHD;ST202..CVT |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20742 |
ST202 |
1 | ||
| 43410-20741 |
ST202 |
1 | ||
| 43410-20730 |
ST202..CVT |
1 | ||
| 43410-20740 |
ST202 W(ABS) |
1 | ||
| 43410-20730 |
ST202 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36001 |
ST202 |
1 | ||
| 90363-36004 |
ST202 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-33008 |
ST202 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-25034 |
ST20# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
ST202 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01107 |
ST202 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
ST20# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42346-22010 |
ST20# |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20040 |
ST202 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST202 *10-1.25PX22-19.5 |
5 | ||
| 90105-10202 |
ST202 *10-1.25PX22-19.5,W(SUPER STRUT SUSPENSION) |
2 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
ST202 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-29385 |
ST202 |
1 | ||
| 43470-29395 |
ST202 W(ABS) |
1 | ||
| 43470-29385 |
ST202..CVT |
1 | ||
| 43470-29397 |
ST202 |
1 | ||
| 43470-29396 |
ST202 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-20090 |
ST202 |
1 | ||
| 43474-20090 |
ST20# |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 90949-01696 |
ST202 |
1 | ||
(9311-9908)ST202 ; (9402-9606)ST205
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-20160 |
ST202 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-20081 |
ST202 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
ST202 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-32010 |
ST202 |
1 | ||
| 43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) | ||||
| 90521-79001 |
ST20# |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-33010 |
AT200,ST202 |
1 | ||
| 43247-12010 |
AT200,ST20# W(ABS) |
1 | ||
| 43247-33010 |
AT200..LHD;ST202..CVT |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-25034 |
ST20# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20500 |
ST202..CVT |
1 | ||
| 43420-20510 |
ST202 W(ABS) |
1 | ||
| 43420-20512 |
ST202 |
1 | ||
| 43420-20500 |
ST202 |
1 | ||
| 43420-20511 |
ST202 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
ST202 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01108 |
ST202 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01107 |
ST202 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01108 |
ST20# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42346-22010 |
ST20# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29385 |
ST202 |
1 | ||
| 43470-29395 |
ST202 W(ABS) |
1 | ||
| 43470-29385 |
ST202..CVT |
1 | ||
| 43470-29396 |
ST202 |
1 | ||
| 43470-29397 |
ST202 |
1 | ||
