ST185R-BLMQZG (1991)

Toyota Celica

Production Aug 1991 - Feb 1992
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )LB

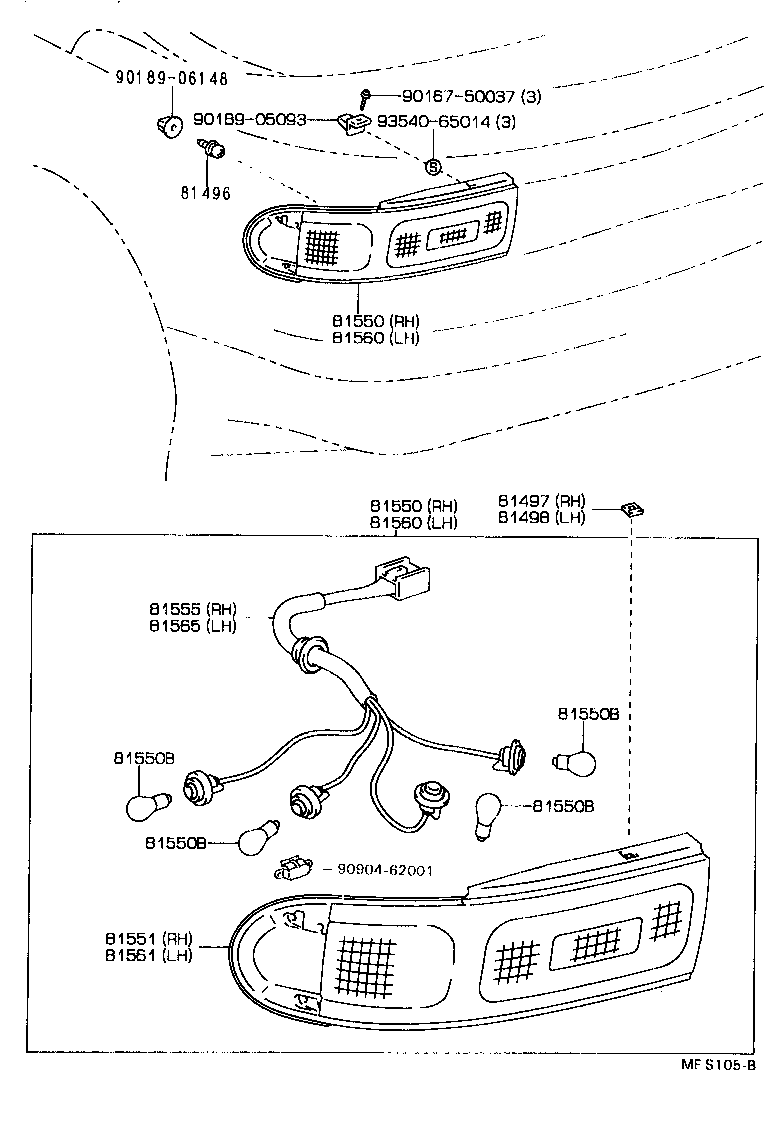

Click highlighted areas on diagram

diagram 81496 81497 81498 81550 81550 81550B 81550B 81550B 81550B 81551 81555 81560 81560 81561 81565 9016750037 9018905093 9018906148 9090462001 9354065014
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-20010

AT180,ST18#..CP,LB

 4
81497 - COVER, REAR COMBINATION LAMP, RH
81497-20030

AT180,ST18#..LB

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-20020

AT180,ST18#..LB

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B080

AT180,ST18#..LB

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B080

AT180,ST18#..LB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT180,ST18#..CP,LB

12V 21W

 6
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
99132-21210

AT180,ST18#..CP,LB

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT180,ST18#..CP,LB

12V 21W

 6
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
99132-21210

AT180,ST18#..CP,LB

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT180,ST18#..CP,LB

12V 21W

 6
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
99132-21210

AT180,ST18#..CP,LB

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT180,ST18#..CP,LB

12V 21W

 6
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
99132-21210

AT180,ST18#..CP,LB

12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-2B080

AT180,ST18#..LB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2B080

AT180,ST18#..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B080

AT180,ST18#..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B080

AT180,ST18#..LB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-2B080

AT180,ST18#..LB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2B080

AT180,ST18#..LB

 1
Common parts
90167-50037
90189-05093
90189-06148
90904-62001
93540-65014

(9108- )LB

Click highlighted areas on diagram

diagram 81496 81497 81498 81550 81550 81550B 81550B 81550B 81550B 81551 81555 81560 81560 81561 81565 9016750037 9018905093 9018906148 9090462001 9354065014
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-20010

AT180,ST18#..CP,LB

 4
81497 - COVER, REAR COMBINATION LAMP, RH
81497-20030

AT180,ST18#..LB

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-20020

AT180,ST18#..LB

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B080

AT180,ST18#..LB

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B080

AT180,ST18#..LB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT180,ST18#..CP,LB

12V 21W

 6
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
99132-21210

AT180,ST18#..CP,LB

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT180,ST18#..CP,LB

12V 21W

 6
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
99132-21210

AT180,ST18#..CP,LB

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT180,ST18#..CP,LB

12V 21W

 6
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
99132-21210

AT180,ST18#..CP,LB

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AT180,ST18#..CP,LB

12V 21W

 6
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
99132-21210

AT180,ST18#..CP,LB

12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-2B080

AT180,ST18#..LB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2B080

AT180,ST18#..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B080

AT180,ST18#..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B080

AT180,ST18#..LB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-2B080

AT180,ST18#..LB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2B080

AT180,ST18#..LB

 1
Common parts
90167-50037
90189-05093
90189-06148
90904-62001
93540-65014
