ST185L-BLMVZG (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )

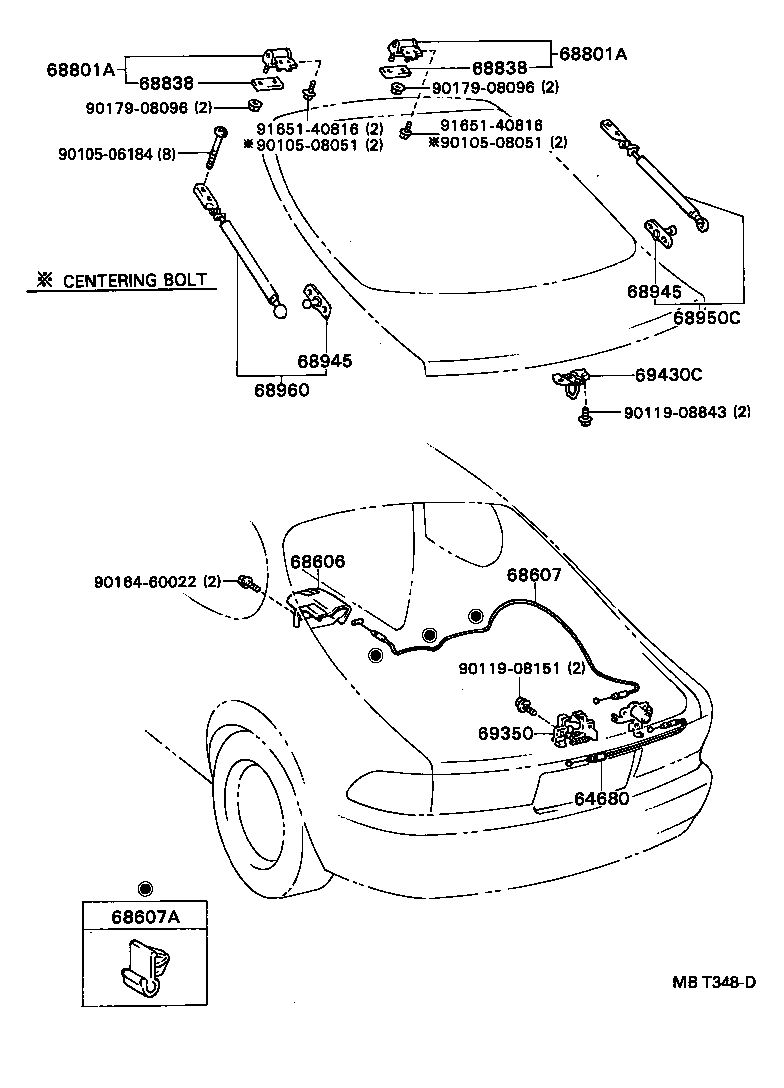

Click highlighted areas on diagram

diagram 64680 68606 68607 68607A 68801A 68801A 68838 68838 68945 68945 68950C 68960 69350 69430C 9010506184 9010508051 9010508051 9011908151 9011908843 9016460022 9017908096 9017908096 9165140816 9165140816
Part # Description Qty Price
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-20030

AT180,ST18#..LB

 1
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64640-2039003

AT180,ST18#..LHD..LB

SHADOW GRAY,TRIM1#

 1
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-20540

AT180,ST18#..LHD..LB

 1
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-20060

AT180,ST18#..LB

 2
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-20060

AT180,ST18#..LB

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14022

AT180,ST18#..LB

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14022

AT180,ST18#..LB

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-20030

AT180,ST18#..LB

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-20030

AT180,ST18#..LB

 2
68950C - STAY ASSY, BACK DOOR, RH
68950-80001

ST18#

KAYABA

 1
68950-80006

ST18#

GAS SPRING

 1
68950-80001

ST18#..WIB

KAYABA

 1
68950-80024

ST18#..WIB

KAYABA

 1
68950-80006

ST18#..WIB

GAS SPRING

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-29715

ST18#

GAS SPRING

 1
68960-29705

ST18#..WIB

KAYABA

 1
68960-29715

ST18#..WIB

GAS SPRING

 1
68960-29706

ST18#..WIB

KAYABA

 1
68960-29705

ST18#

KAYABA

 1
69350 - LOCK ASSY, BACK DOOR
69350-20060

AT180,ST18#..LB

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-20090

AT180,ST18#..LB

 1
Common parts
90105-06184
90105-08051
90119-08151
90119-08843
90164-60022
90179-08096
91651-40816
