ST185L-BLMVZG (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

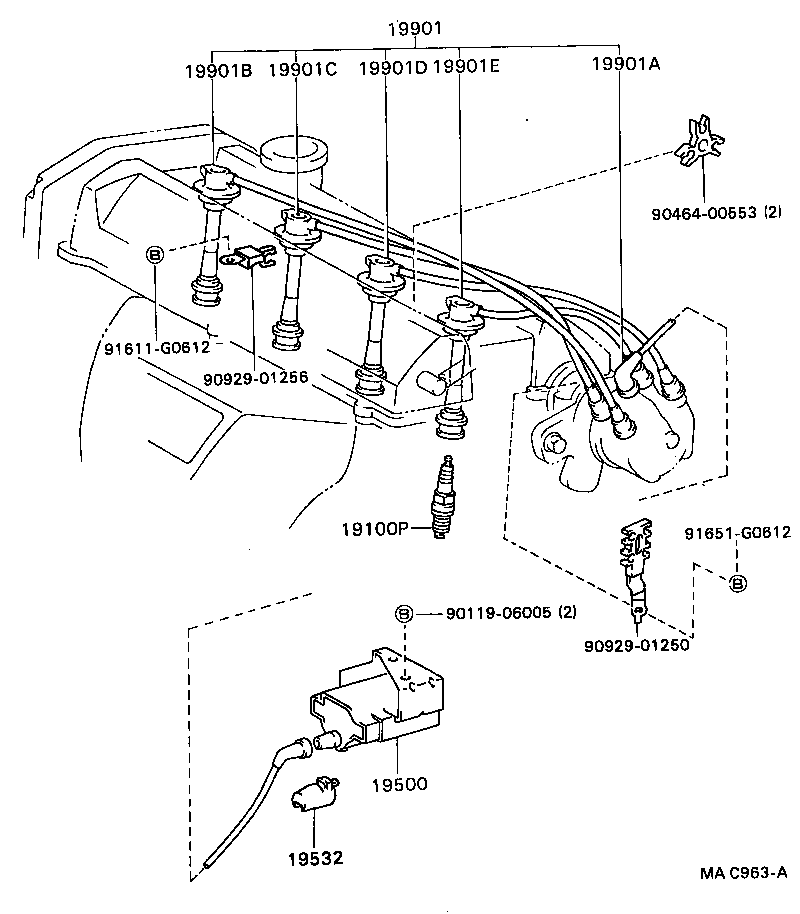

(8910-9108)3SGTE

Click highlighted areas on diagram

diagram 19100P 19500 19532 19901 19901A 19901B 19901C 19901D 19901E 9011906005 9046400553 9092901250 9092901256 91611G0612 91651G0612
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01180

3SG#..ST18#..G

PK20R8

 4
19500 - COIL ASSY, IGNITION
19500-74030

3SGTE..ST185..LHD

 1
19500-74050

3SG#..ST18#..LHD..LB

 1
19500-74050

3SG#..ST18#..LHD

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-74010

3SGTE..ST185

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21473

3SGTE..ST185

 1
90919-21524

3SGTE..ST185

 1
19901A - CORD, COIL RESISTIVE
19590-74050

3SGTE..ST185

 1
19590-74150

3SG#..ST18#..LB

 1
19590-74150

3SG#..ST18#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15054

3SGTE..ST185

 1
90919-15266

3SGTE..ST185

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15055

3SGTE..ST185

 1
90919-15267

3SGTE..ST185

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15268

3SGTE..ST185

 1
90919-15056

3SGTE..ST185

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15269

3SGTE..ST185

 1
90919-15057

3SGTE..ST185

 1
Common parts
90119-06005
90464-00553
90929-01250
90929-01256
91611-G0612
91651-G0612

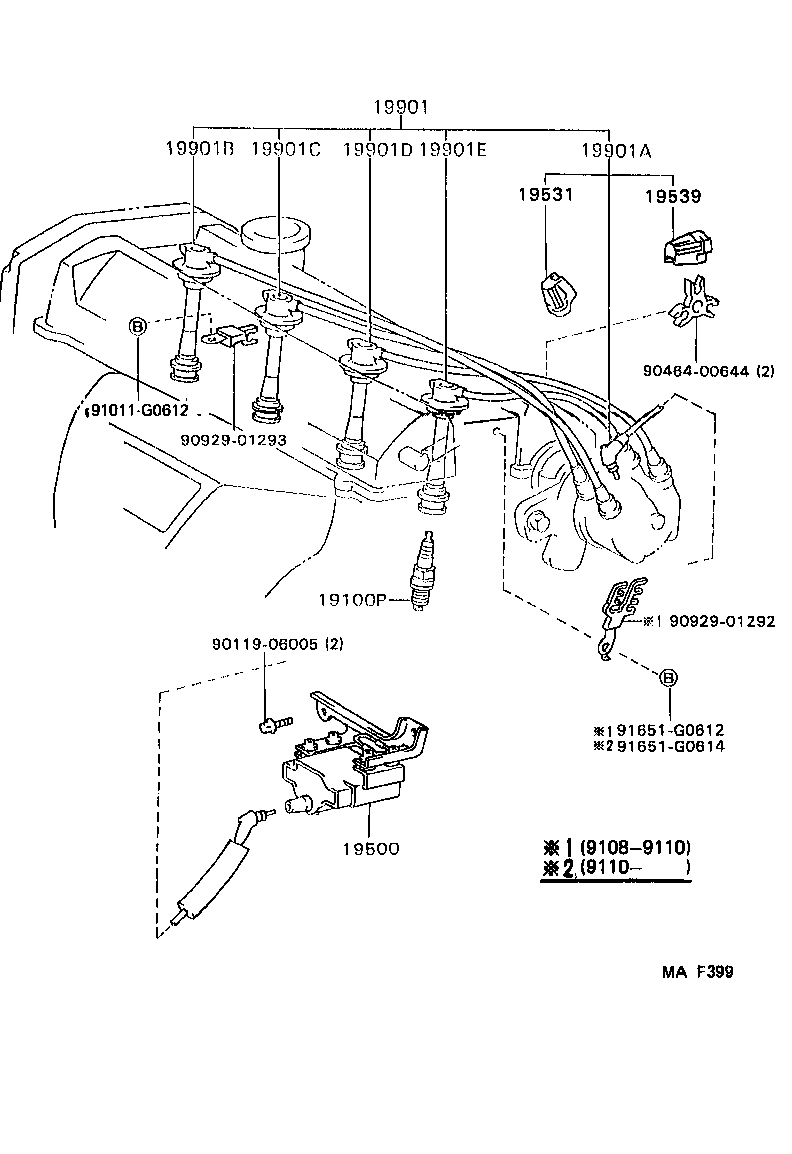

(9108- )3SGTE

Click highlighted areas on diagram

diagram 19100P 19500 19531 19539 19901 19901A 19901B 19901C 19901D 19901E 9011906005 9046400644 9092901292 9092901293 91011G0612 91651G0612 91651G0614
Part # Description Qty Price
Common parts
90119-06005
90464-00644
90929-01292
90929-01293
91011-G0612
91651-G0612
91651-G0614

(8910-9108)3SGTE

Click highlighted areas on diagram

diagram 19100P 19500 19532 19901 19901A 19901B 19901C 19901D 19901E 9011906005 9046400553 9092901250 9092901256 91611G0612 91651G0612
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01180

3SG#..ST18#..G

PK20R8

 4
19500 - COIL ASSY, IGNITION
19500-74030

3SGTE..ST185..LHD

 1
19500-74050

3SG#..ST18#..LHD..LB

 1
19500-74050

3SG#..ST18#..LHD

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-74010

3SGTE..ST185

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21473

3SGTE..ST185

 1
90919-21524

3SGTE..ST185

 1
19901A - CORD, COIL RESISTIVE
19590-74050

3SGTE..ST185

 1
19590-74150

3SG#..ST18#..LB

 1
19590-74150

3SG#..ST18#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15054

3SGTE..ST185

 1
90919-15266

3SGTE..ST185

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15055

3SGTE..ST185

 1
90919-15267

3SGTE..ST185

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15268

3SGTE..ST185

 1
90919-15056

3SGTE..ST185

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15269

3SGTE..ST185

 1
90919-15057

3SGTE..ST185

 1
Common parts
90119-06005
90464-00553
90929-01250
90929-01256
91611-G0612
91651-G0612

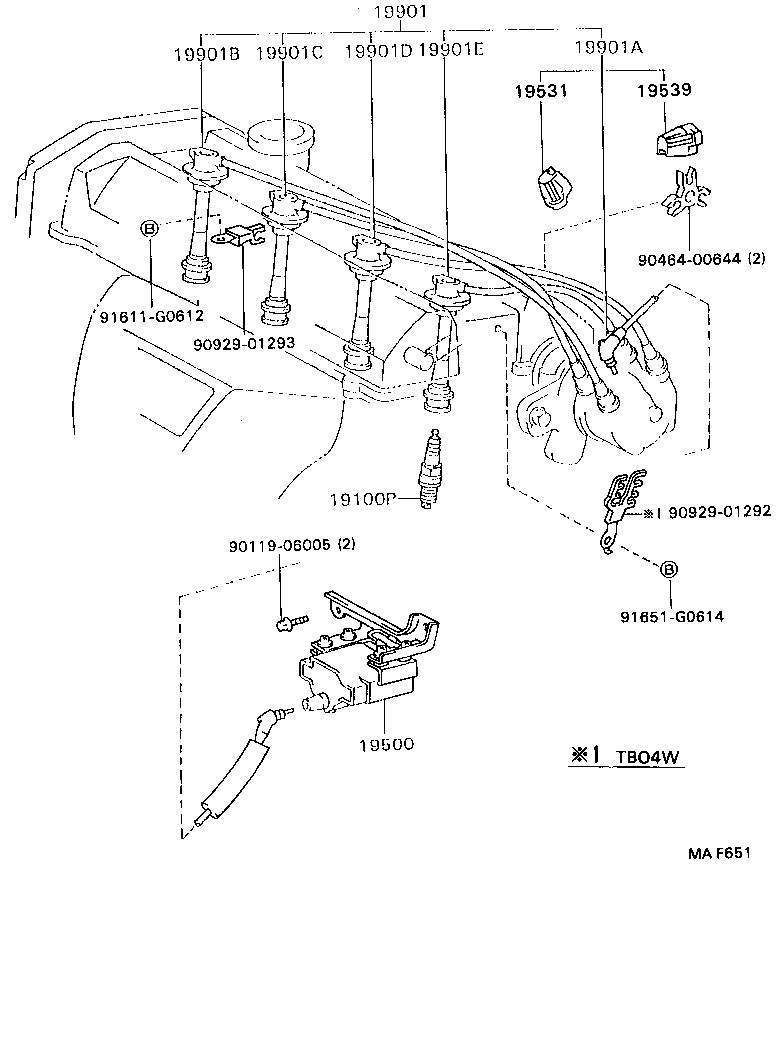

(9108- )3SGTE

Click highlighted areas on diagram

diagram 19100P 19500 19531 19539 19901 19901A 19901B 19901C 19901D 19901E 9011906005 9046400644 9092901292 9092901293 91611G0612 91651G0614
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01180

3SG#..ST18#..G

PK20R8

 4
19500 - COIL ASSY, IGNITION
19500-74030

3SGTE..ST185..LHD

 1
19500-74050

3SG#..ST18#..LHD..LB

 1
19500-74050

3SG#..ST18#..LHD

 1
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74020

3SG#..ST18#

 1
19531-74020

3SG#..ST18#..LB

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-62020

3SG#..ST18#..LB

 1
19539-62020

3SG#..ST18#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21473

3SGTE..ST185

 1
90919-21524

3SGTE..ST185

 1
19901A - CORD, COIL RESISTIVE
19590-74050

3SGTE..ST185

 1
19590-74150

3SG#..ST18#..LB

 1
19590-74150

3SG#..ST18#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15054

3SGTE..ST185

 1
90919-15266

3SGTE..ST185

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15055

3SGTE..ST185

 1
90919-15267

3SGTE..ST185

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15268

3SGTE..ST185

 1
90919-15056

3SGTE..ST185

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15269

3SGTE..ST185

 1
90919-15057

3SGTE..ST185

 1
Common parts
90119-06005
90464-00644
90929-01292
90929-01293
91611-G0612
91651-G0614
