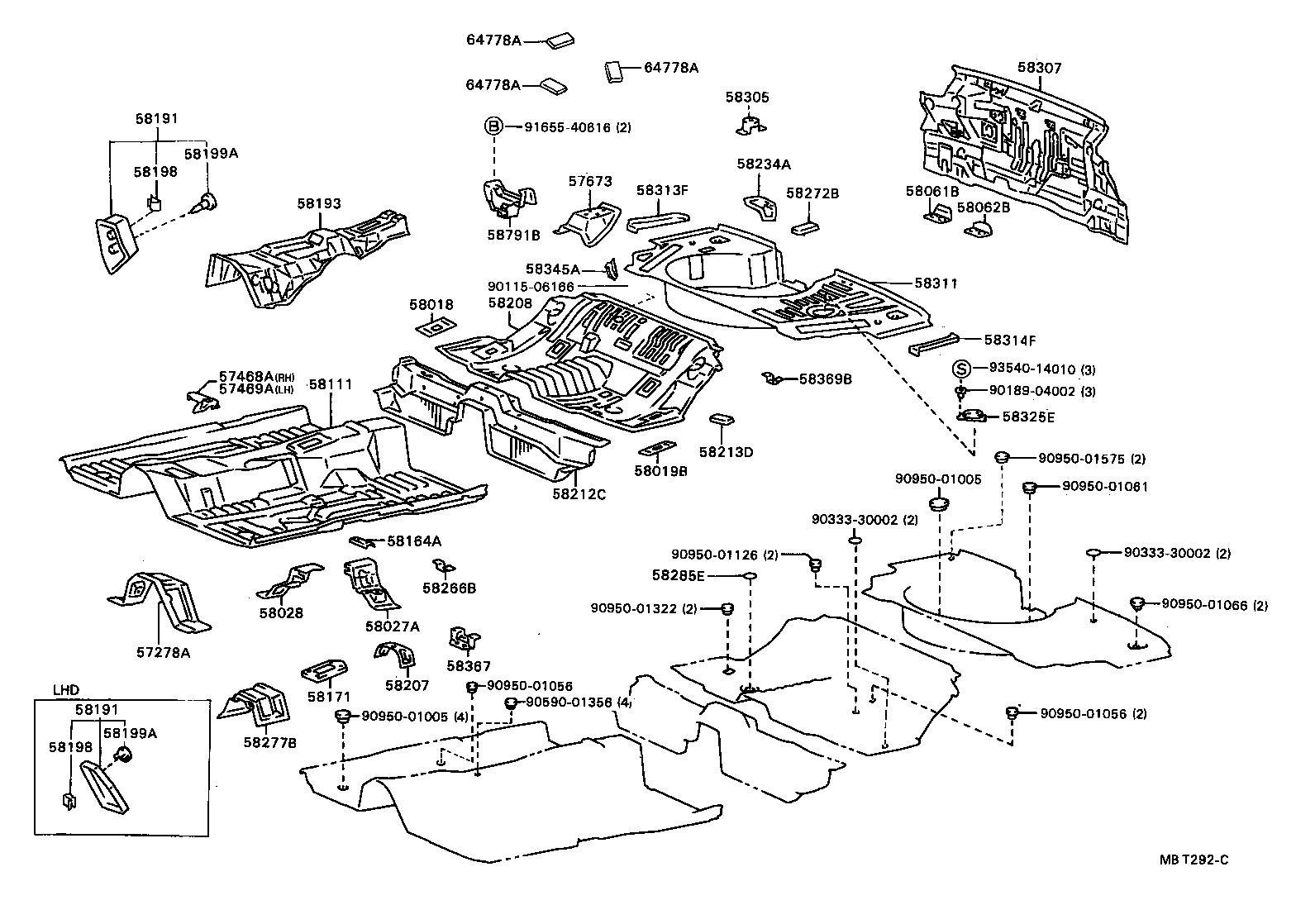

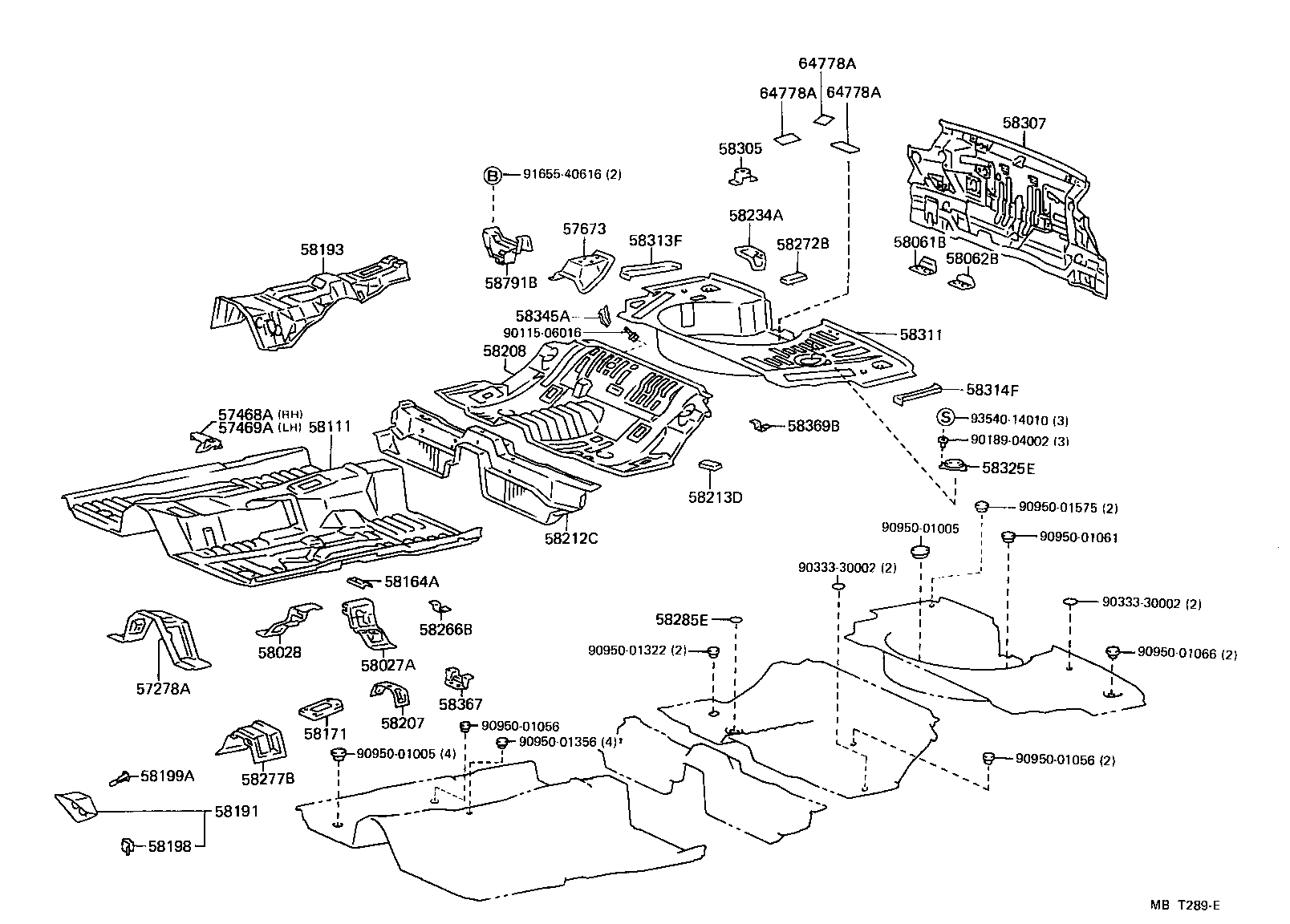

Toyota Celica ST185 FLOOR PAN & LOWER BACK PANEL

Part #	Description	Period	Qty
57278A - BRACKET, CATALYTIC CONVERTER SUPPORT
57278-20010	ST185	10/1989 - 09/1993	1
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-20050	AT180,ST18#	09/1989 - 09/1993	1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-20050	AT180,ST18#	09/1989 - 09/1993	1
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57671-20040	ST185	10/1989 - 09/1993	1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-20060	ST185	10/1989 - 09/1993	1
58028 - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2
58028-20030	ST185	10/1989 - 09/1993	1
58061B - BRACKET SUB-ASSY, FUEL TANK MOUNTING, RH
58061-20040	ST185	10/1989 - 09/1993	1
58062B - BRACKET SUB-ASSY, FUEL TANK MOUNTING, LH
58062-20040	ST185	10/1989 - 09/1993	1
58111 - PAN, FRONT FLOOR
58111-20140	ST185	10/1989 - 09/1993	1
58164A - RETAINER, CONSOLE BOX MOUNTING
58164-20040	ST185	10/1989 - 09/1993	1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-20090	ST185	10/1989 - 09/1993	1
58191 - FOOTREST, FRONT FLOOR
58192-20040	AT180,ST18#	09/1989 - 09/1993	1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58109-20080	ST185	10/1989 - 09/1993	1
58198 - CLIP, FOOTREST
58198-20080	AT180,ST18#	11/1989 - 09/1993	2
58199A - CLIP, FOOTREST, NO.2
58199-20010	AT180,ST18#	09/1989 - 09/1993	1
58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58207-20090	ST185	10/1989 - 09/1993	1
58208 - PAN, CENTER FLOOR
58211-20290	ST185	10/1989 - 09/1993	1
58212C - PAN, CENTER FLOOR, FRONT
58212-20060	ST185	10/1989 - 09/1993	1
58213D - REINFORCEMENT, CENTER FLOOR PANEL
58213-20070	ST185	10/1989 - 09/1993	1
58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER
58234-20030	ST185	10/1989 - 09/1993	1
58266B - BRACKET, FUEL TUBE CLAMP
58266-22040	ST185	10/1989 - 09/1993	6
58272B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4
58272-20060	ST185	10/1989 - 09/1993	1
58277B - REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
58277-20040	ST185	10/1989 - 09/1993	1
58285E - COVER, CENTER FLOOR HOLE
58285-20030	ST185	10/1989 - 09/1993	2
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011	AT180,ST18#	09/1989 - 09/1993	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20790	ST185	10/1989 - 09/1993	1
58311 - PAN, REAR FLOOR
58311-20280	ST185	10/1989 - 09/1993	1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-20250	ST185	10/1989 - 09/1993	1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-20230	ST185	10/1989 - 09/1993	1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-20040	ST185	10/1989 - 09/1993	1
58345A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-14020	ST185	10/1989 - 09/1993	1
58367 - BRACKET, FUEL TUBE CLAMP
58367-20040	ST185	10/1989 - 09/1993	1
58369B - BRACKET, FUEL TUBE, NO.3
58369-20010	ST185	10/1989 - 09/1993	8
58791B - CARRIER, JACK
58791-20060	ST18#..LB	09/1989 - 09/1993	1
64778A - PROTECTOR, SPARE WHEEL
64778-20020	AT180,ST185	09/1989 - 08/1991	3
64778-20070	ST185;ST184..CND	08/1991 - 09/1993	3
64778A - PROTECTOR, SPARE WHEEL
64778-20020	AT180,ST185	09/1989 - 08/1991	3
64778-20070	ST185;ST184..CND	08/1991 - 09/1993	3
64778A - PROTECTOR, SPARE WHEEL
64778-20020	AT180,ST185	09/1989 - 08/1991	3
64778-20070	ST185;ST184..CND	08/1991 - 09/1993	3
Common parts
90115-06016
90189-04002
90333-30002
90950-01005
90950-01056
90950-01061
90950-01066
90950-01322
90950-01356
90950-01575
91655-40616
93540-14010

ST185L-BLMVZA (1989)

(8910- )ST185

(8910- )ST185

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90115-06166
90189-04002
90333-30002
90590-01356
90950-01005
90950-01056
90950-01061
90950-01066
90950-01126
90950-01322
90950-01575
91655-40616
93540-14010
