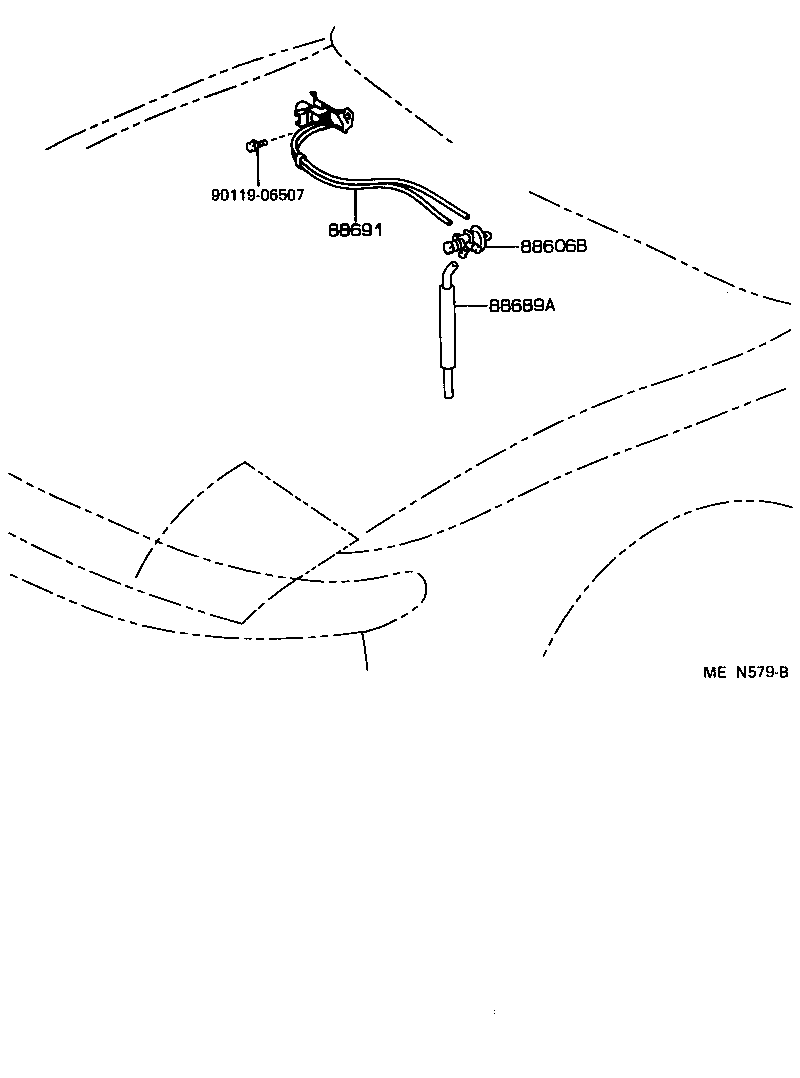

Toyota Celica ST184 HEATING & AIR CONDITIONING - VACUUM PIPING

Part #	Description	Period	Qty
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-20250	ST184	04/1990 - 08/1991	1
88606-20250	ST184..GTS	09/1989 - 04/1990	1
88606-20250	ST184..LB..GT	09/1989 - 04/1990	1
88689A - HOSE, COOLER VACUUM NO.1
88689-20760	ST184..GTS EVP 2 PACKAGE	09/1989 - 04/1990	1
88689-20760	ST184	04/1990 - 08/1991	1
88689-20760	ST184..LB..GT	09/1989 - 04/1990	1
17347-74020	ST184..CP,LB	08/1991 - 09/1991	1
17346-74050	ST184	09/1991 - 09/1993	1
17347-74020	ST184	09/1991 - 09/1993	1
17346-74050	ST184..CP,LB	08/1991 - 09/1991	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-2B340	ST184..LB..GT	09/1989 - 04/1990	1
88690-2B340	ST184	04/1990 - 08/1991	1
17600-74120	ST184	09/1991 - 09/1993	1
88690-2B340	ST184..GTS	09/1989 - 04/1990	1
17600-74120	ST184..CP,LB	08/1991 - 09/1991	1
Common parts
90119-06507

ST184L-BLPVKK (1989)
